DTC 13

DTC 13 Tilt and telescopic ECU communication stop

CIRCUIT DESCRIPTION

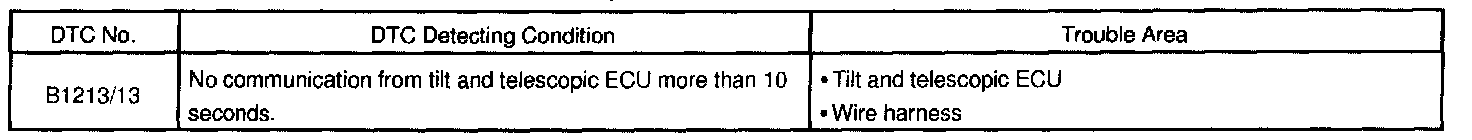

DTC Detecting Condition:

This DTC is output when communication stops between tilt and telescopic ECU and Body No. 1 ECU.

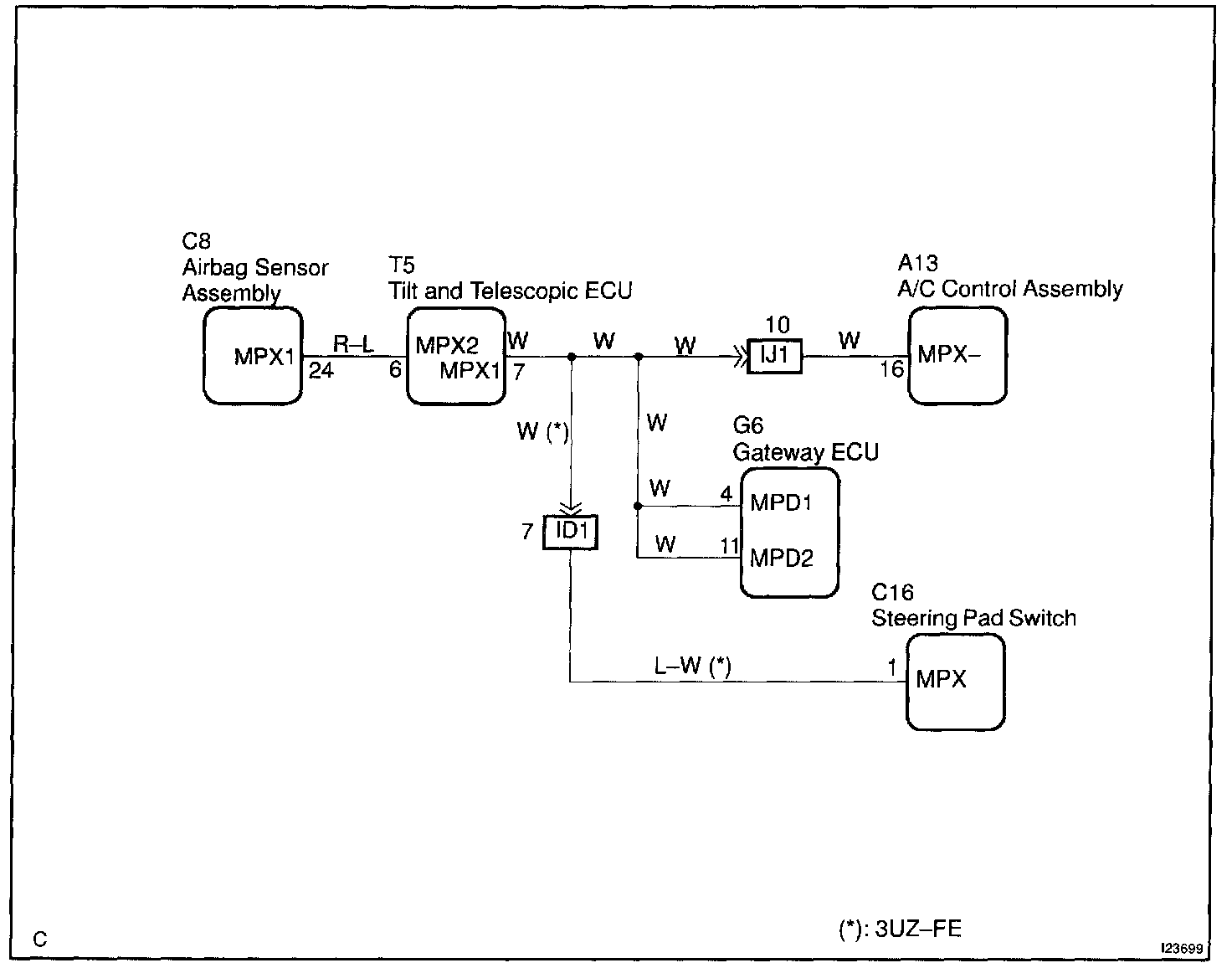

Wiring Diagram:

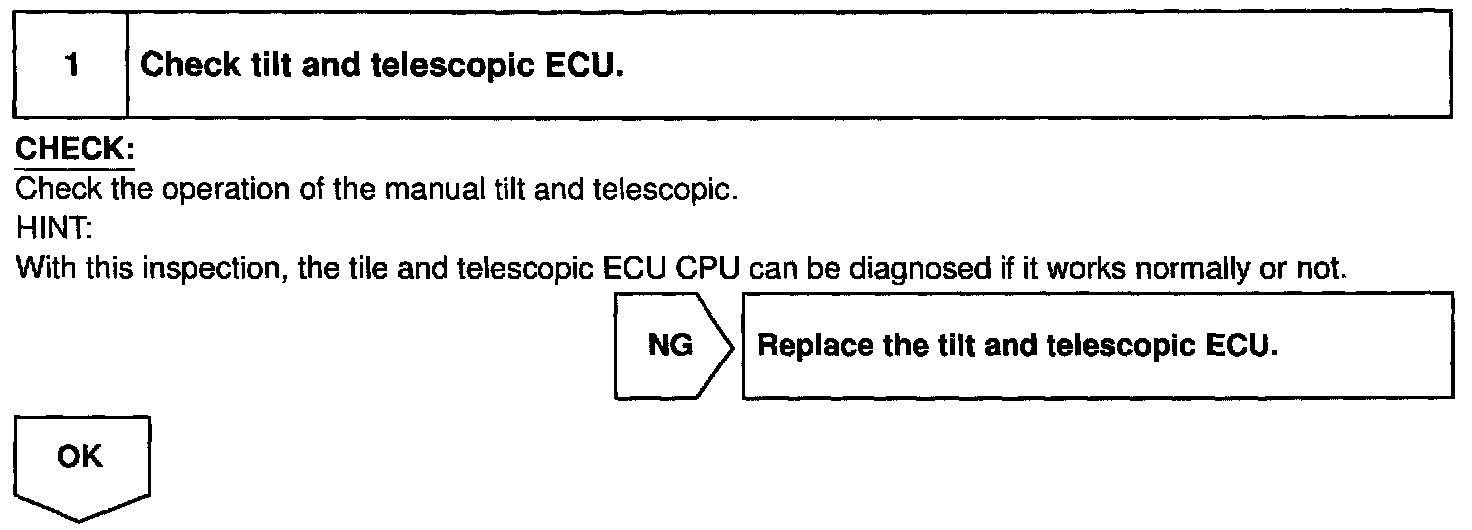

Step 1:

Step 2:

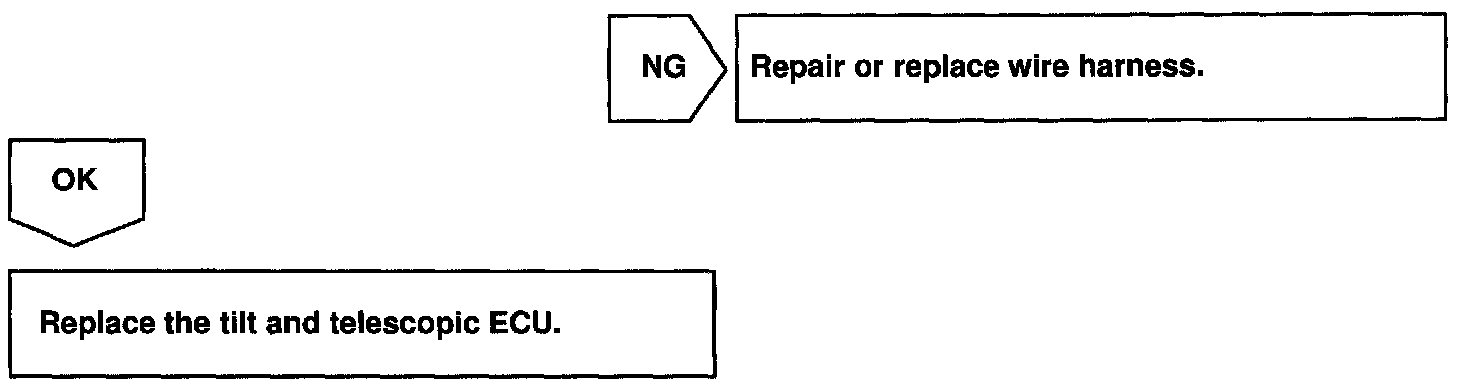

Step 2 (continued):

INSPECTION PROCEDURE
