Air Mix Damper Control Servomotor Circuit

DTC 46 Air Mix Damper Control Servomotor Circuit (Passenger side)

CIRCUIT DESCRIPTION

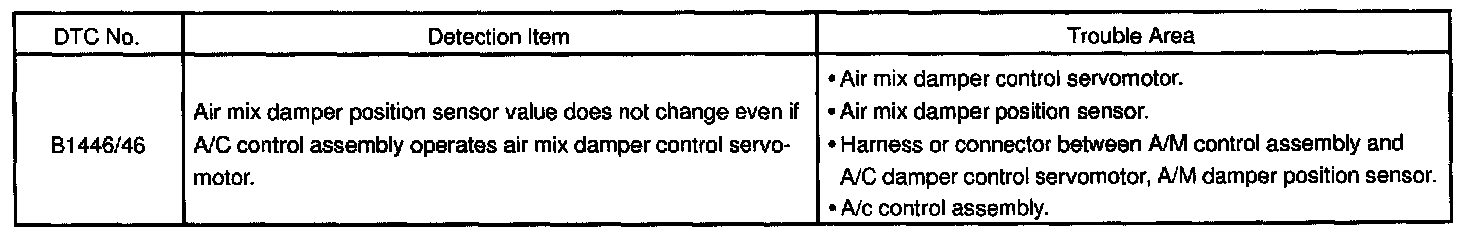

Detection Item:

The air mix damper control servomotor is controlled by the A/C control assembly and moves the air mix damper to the desired position.

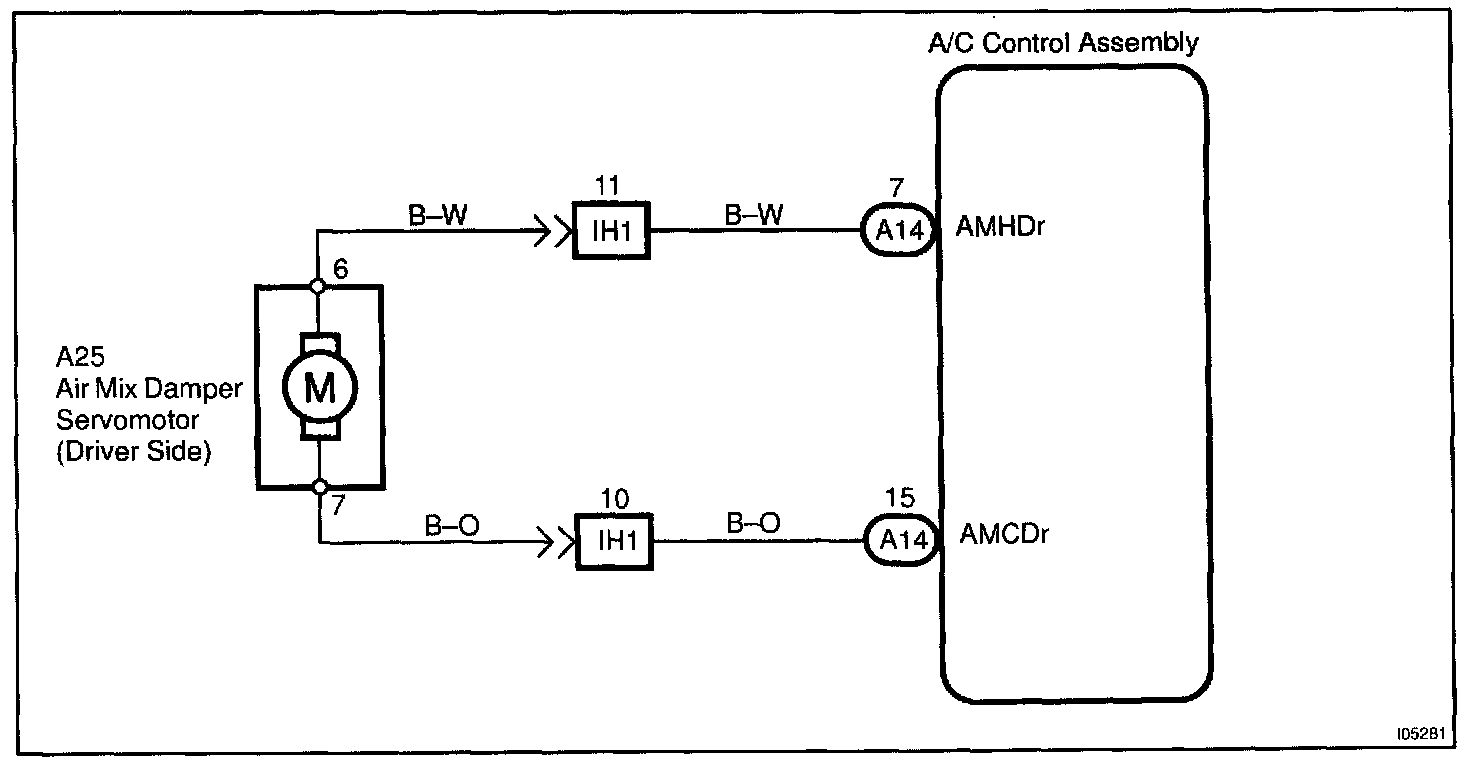

Wiring Diagram:

Step 1:

Step 2 - 3:

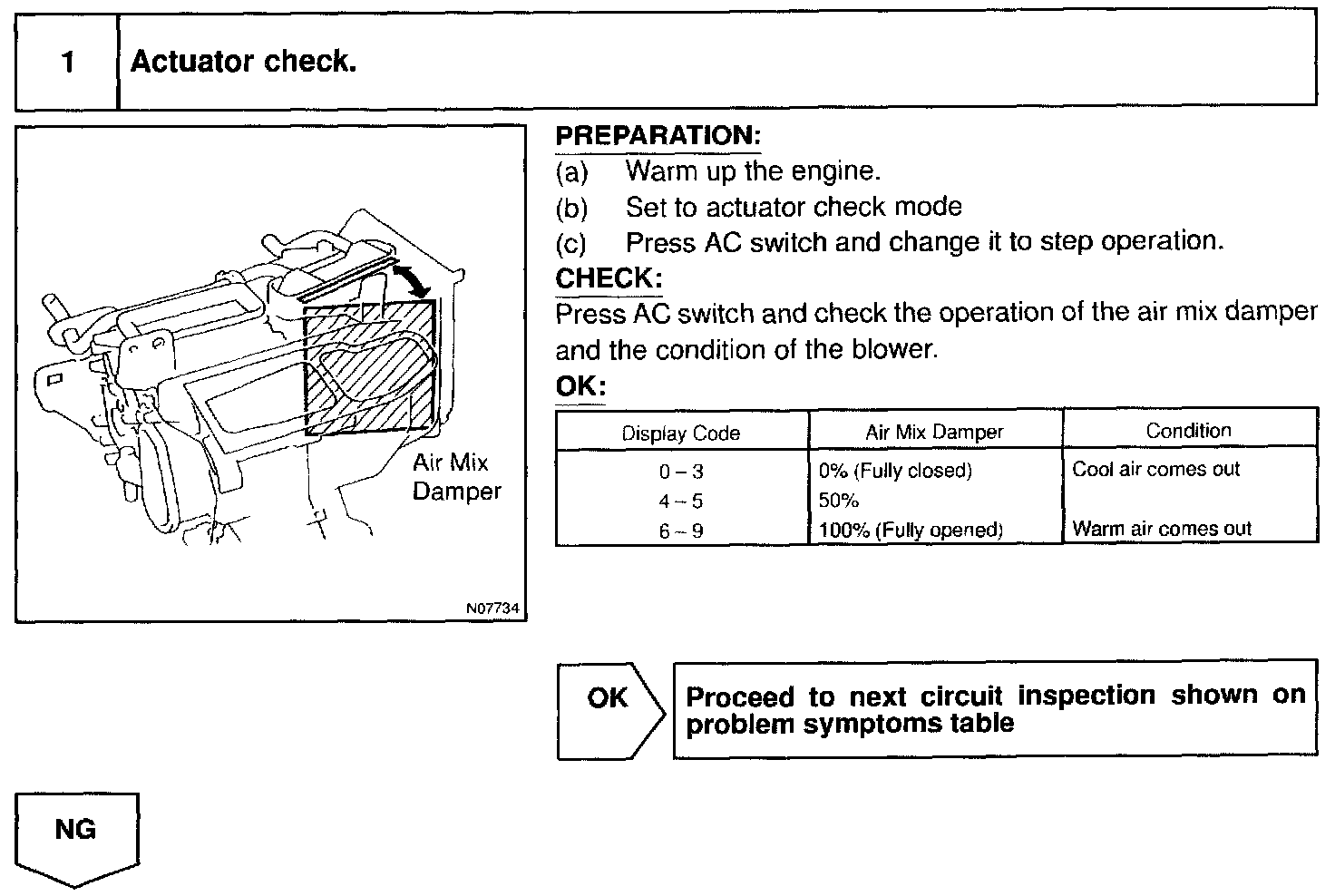

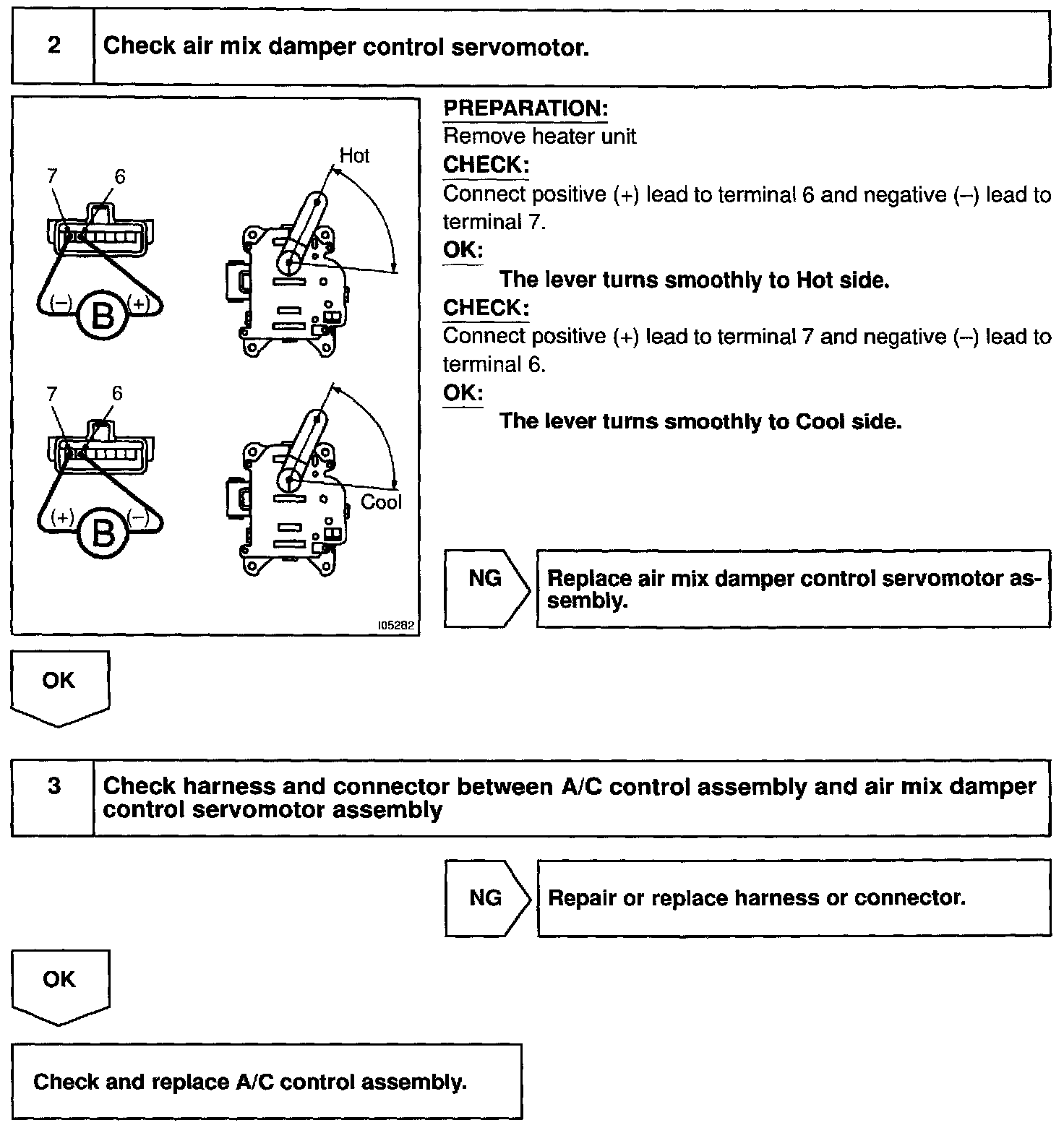

INSPECTION PROCEDURE
