DTC 21

DTC 21 Solar Sensor Circuit (Passenger side)

CIRCUIT DESCRIPTION

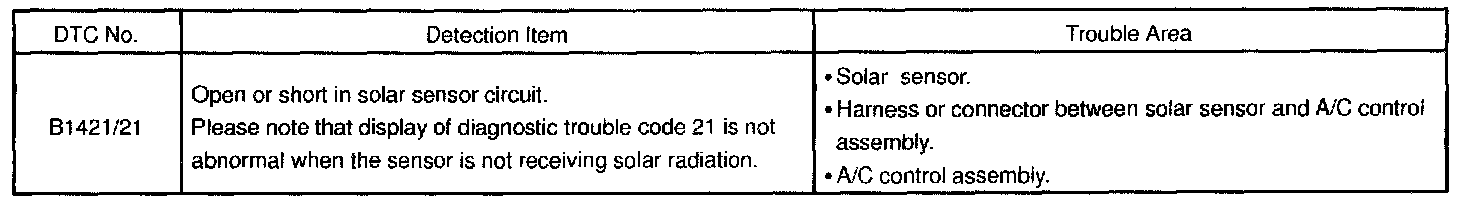

Detection Item:

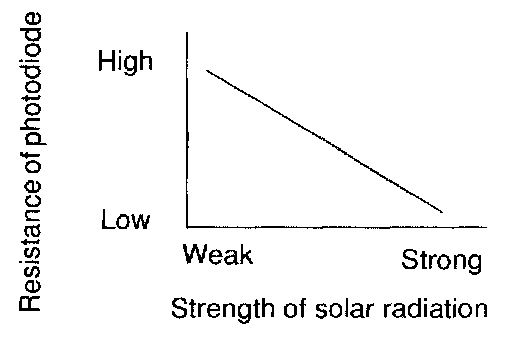

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C control assembly.

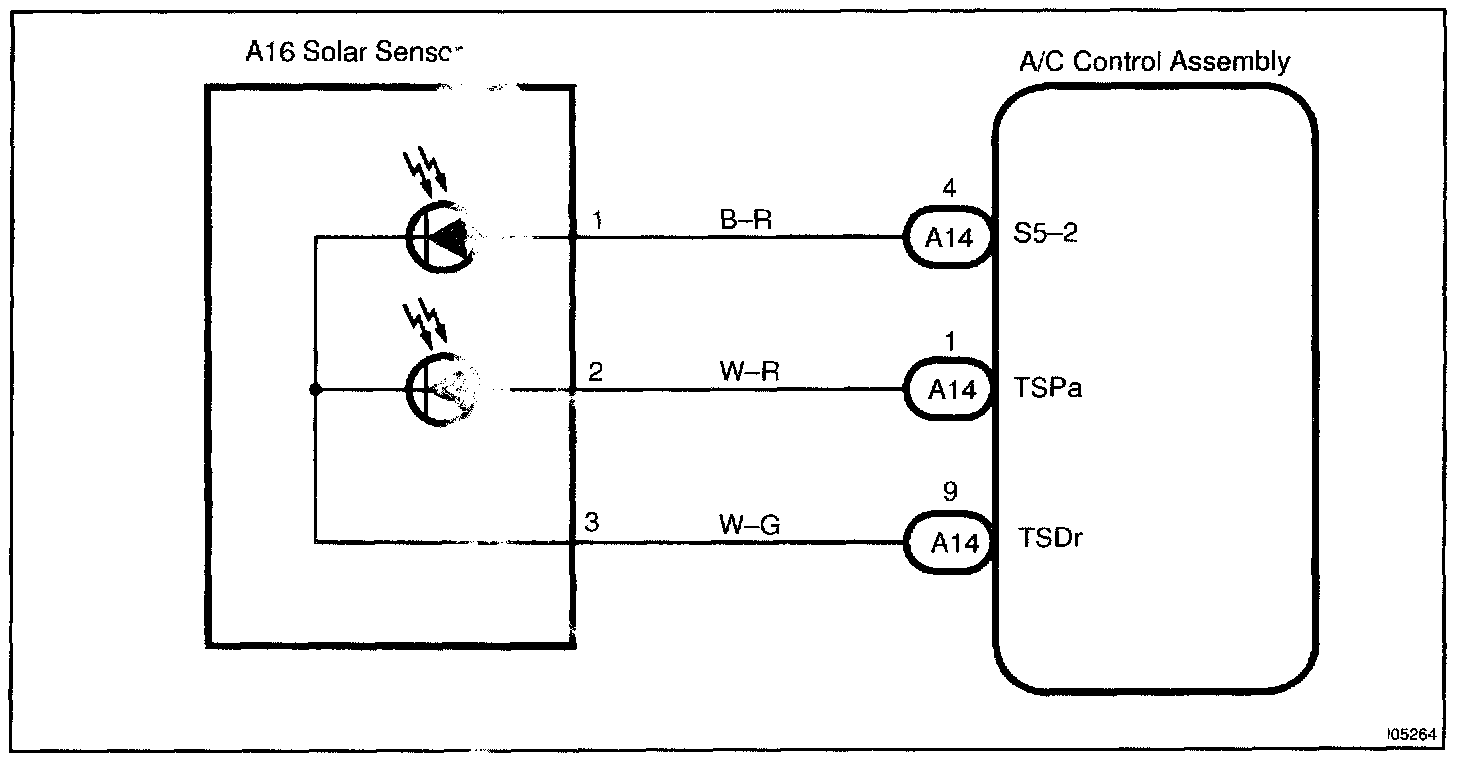

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

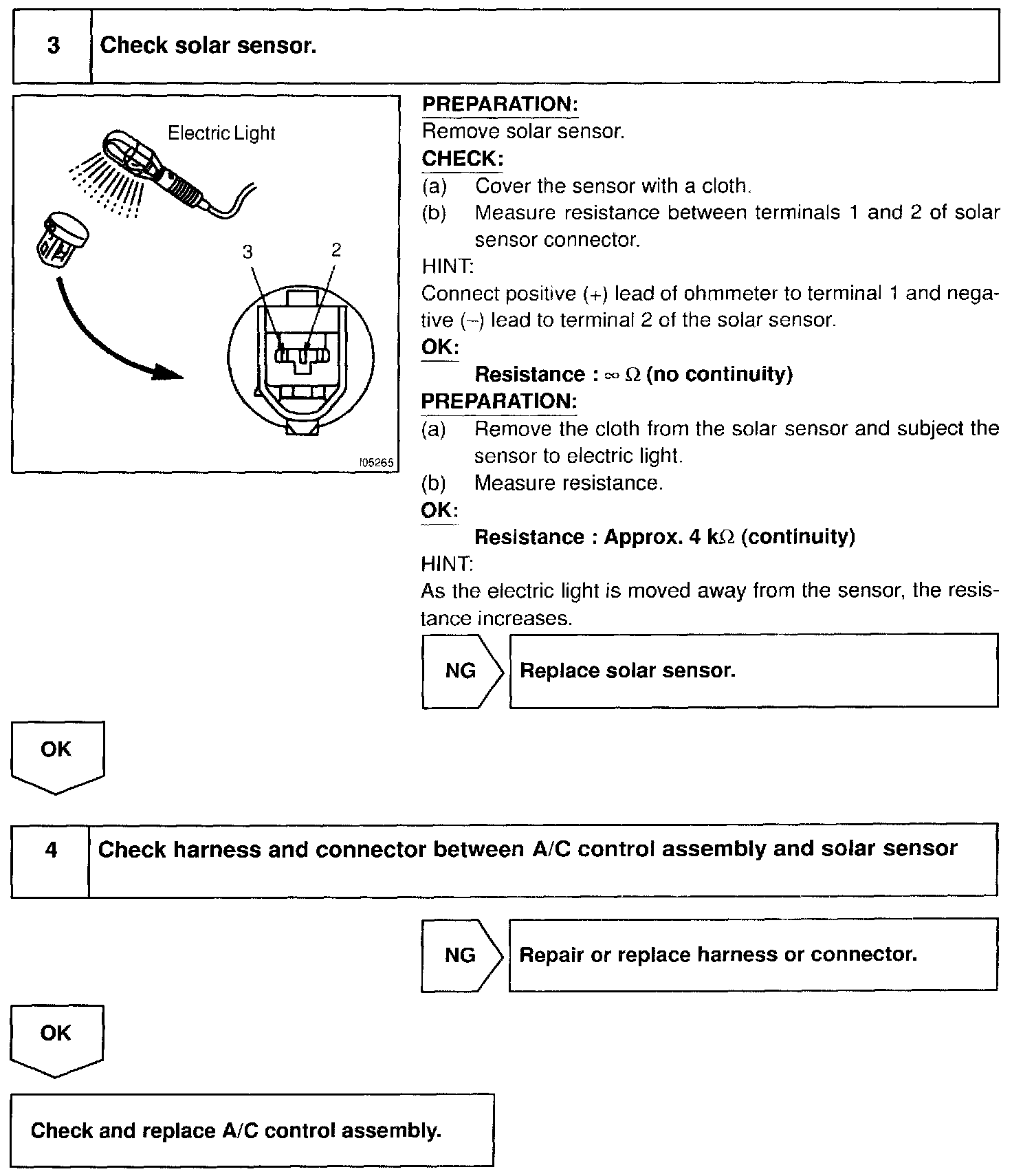

INSPECTION PROCEDURE

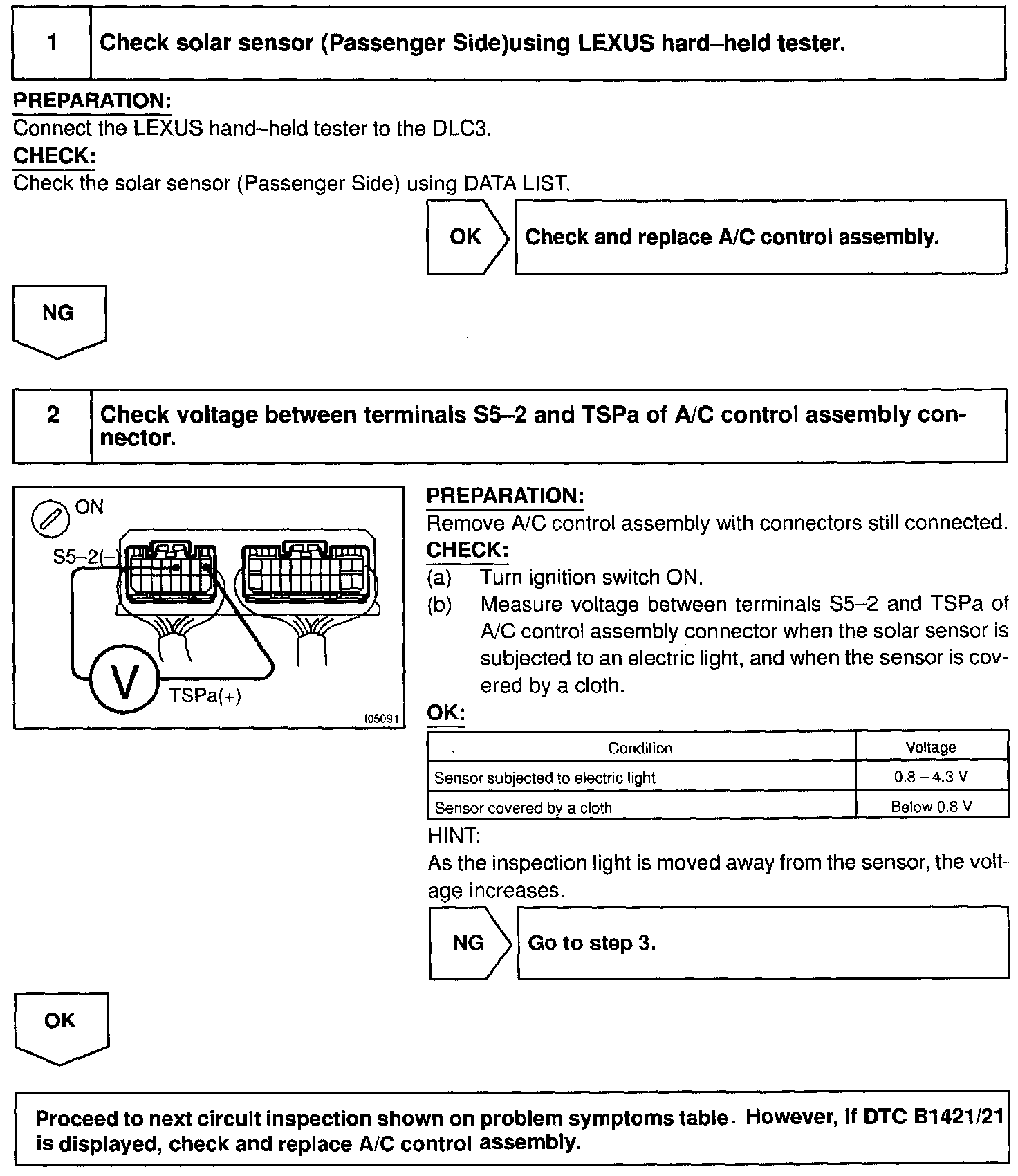

HINT: In case of using the LEXUS hand-held tester, start the inspection step 1 and in case of not using the LEXUS hand-held tester, start from step 2.
