GS 300 L6-3.0L (2JZ-GE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Engine Immobiliser System
>>
Communication Malfunction No. 2
Communication Malfunction No. 2
DTC 99 Communication Malfunction No.2

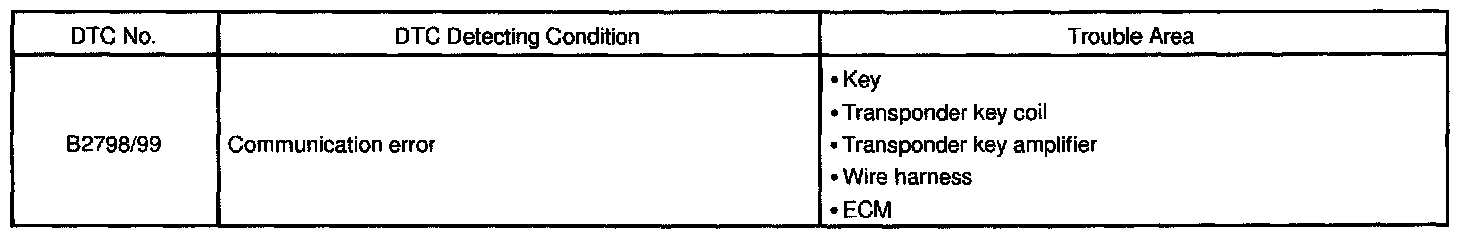

DTC Detecting Condition:
CIRCUIT DESCRIPTION

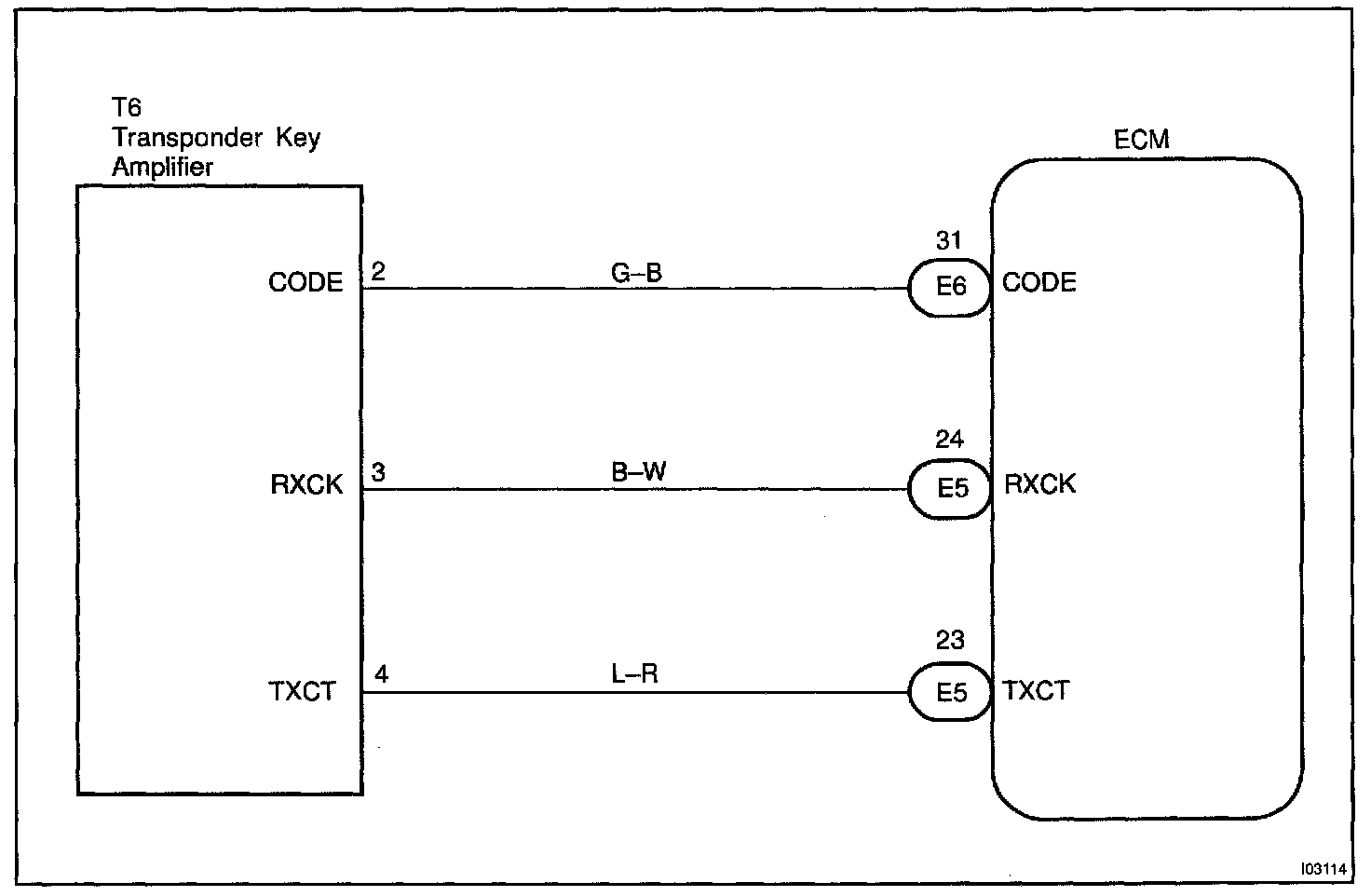

Wiring Diagram:
Step 1 - 3:

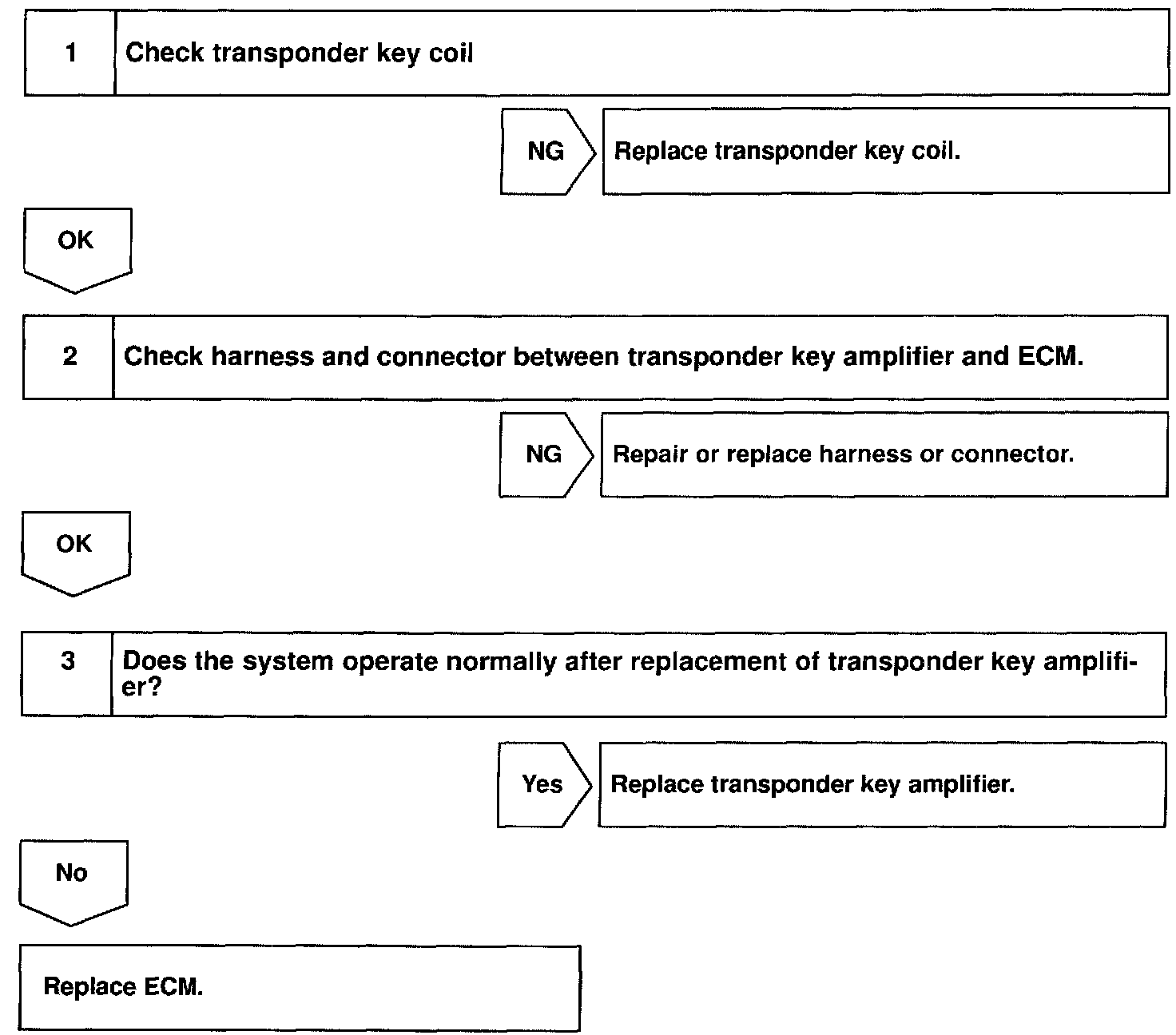

INSPECTION PROCEDURE
