DTC 85

DTC 85 Short in Curtain Shield Squib LH Circuit (to Ground)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The curtain shield squib LH circuit consists of the airbag sensor assembly and the curtain shield airbag assembly LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

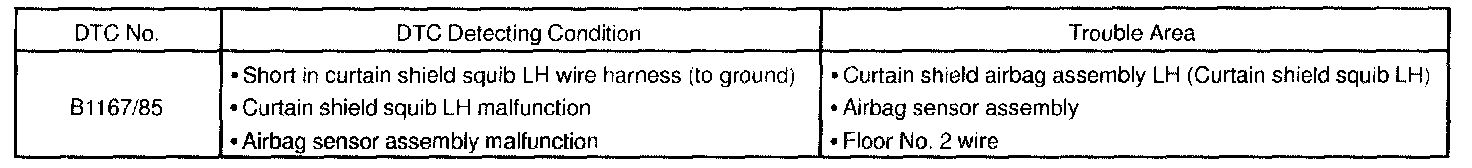

DTC B1167/85 is recorded when ground short is detected in the curtain shield squib LH circuit.

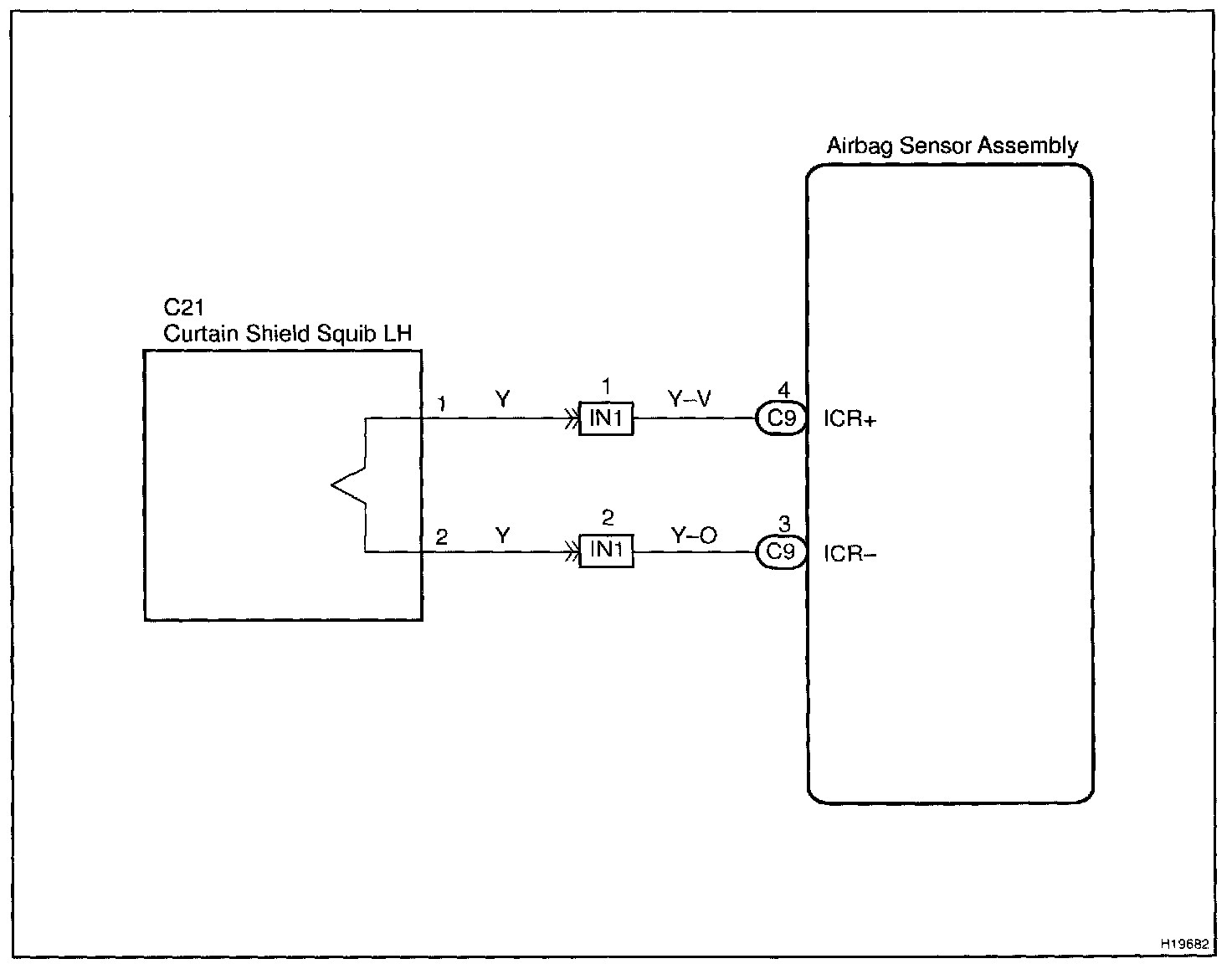

Wiring Diagram:

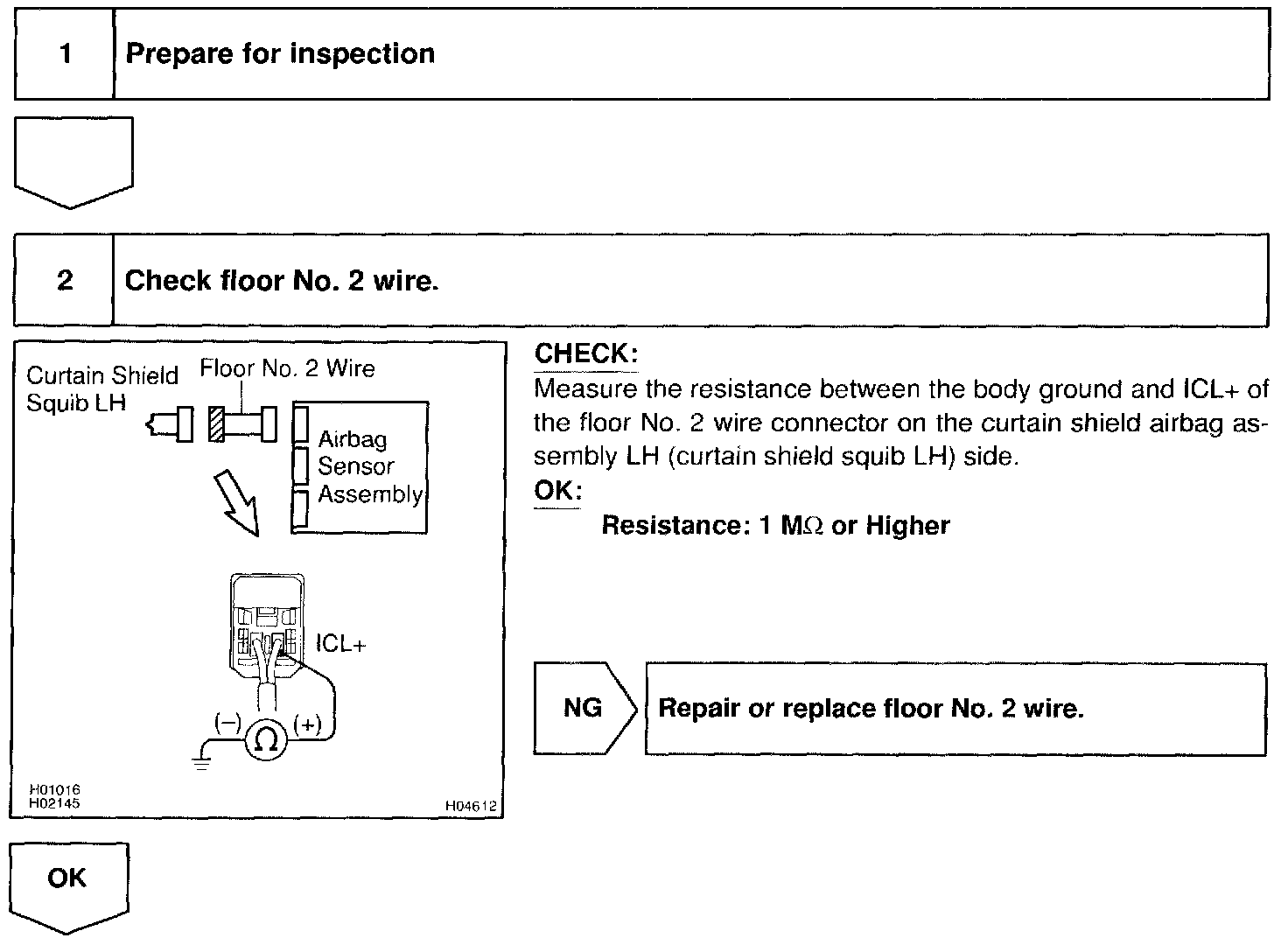

Step 1 - 2:

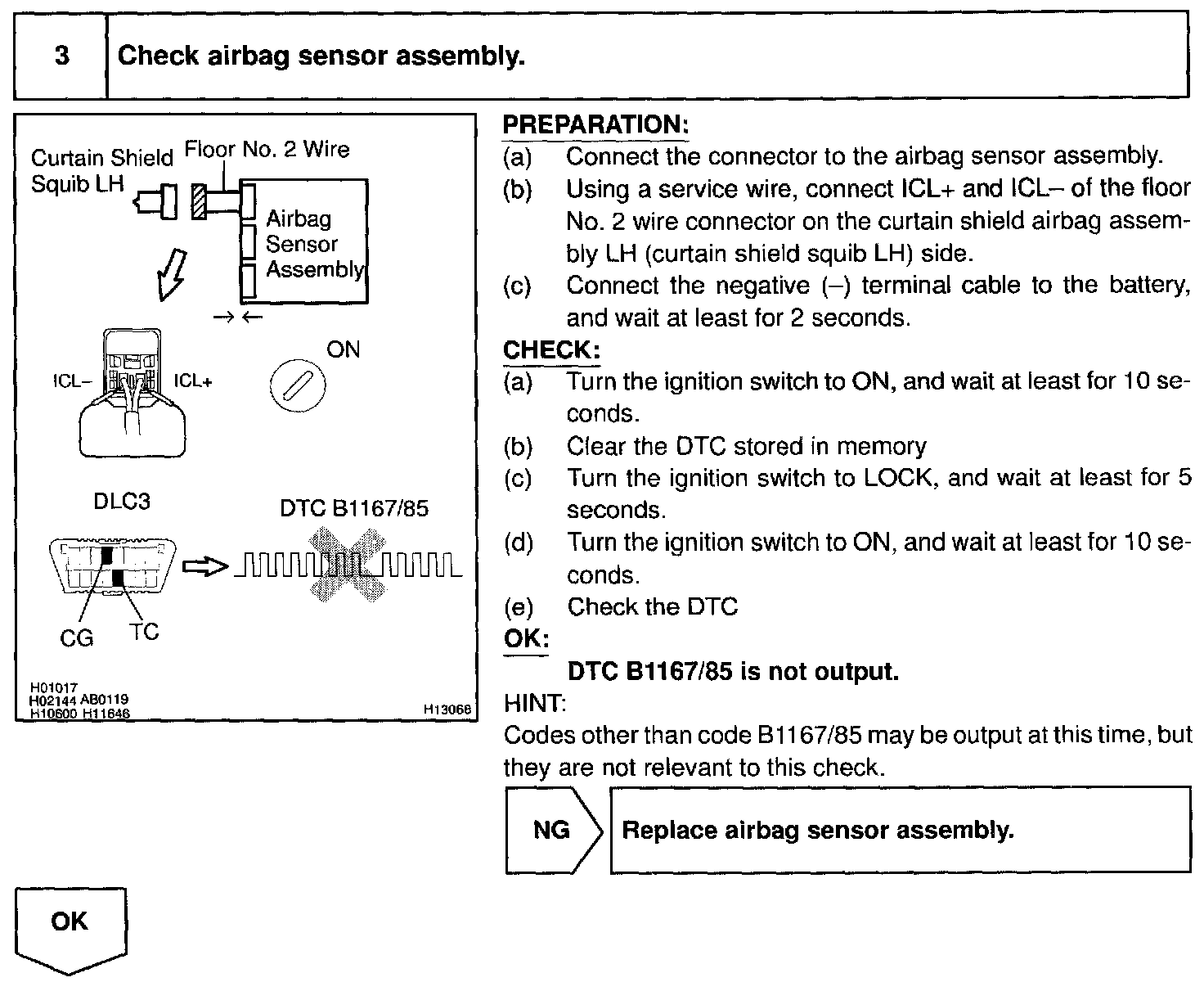

Step 3:

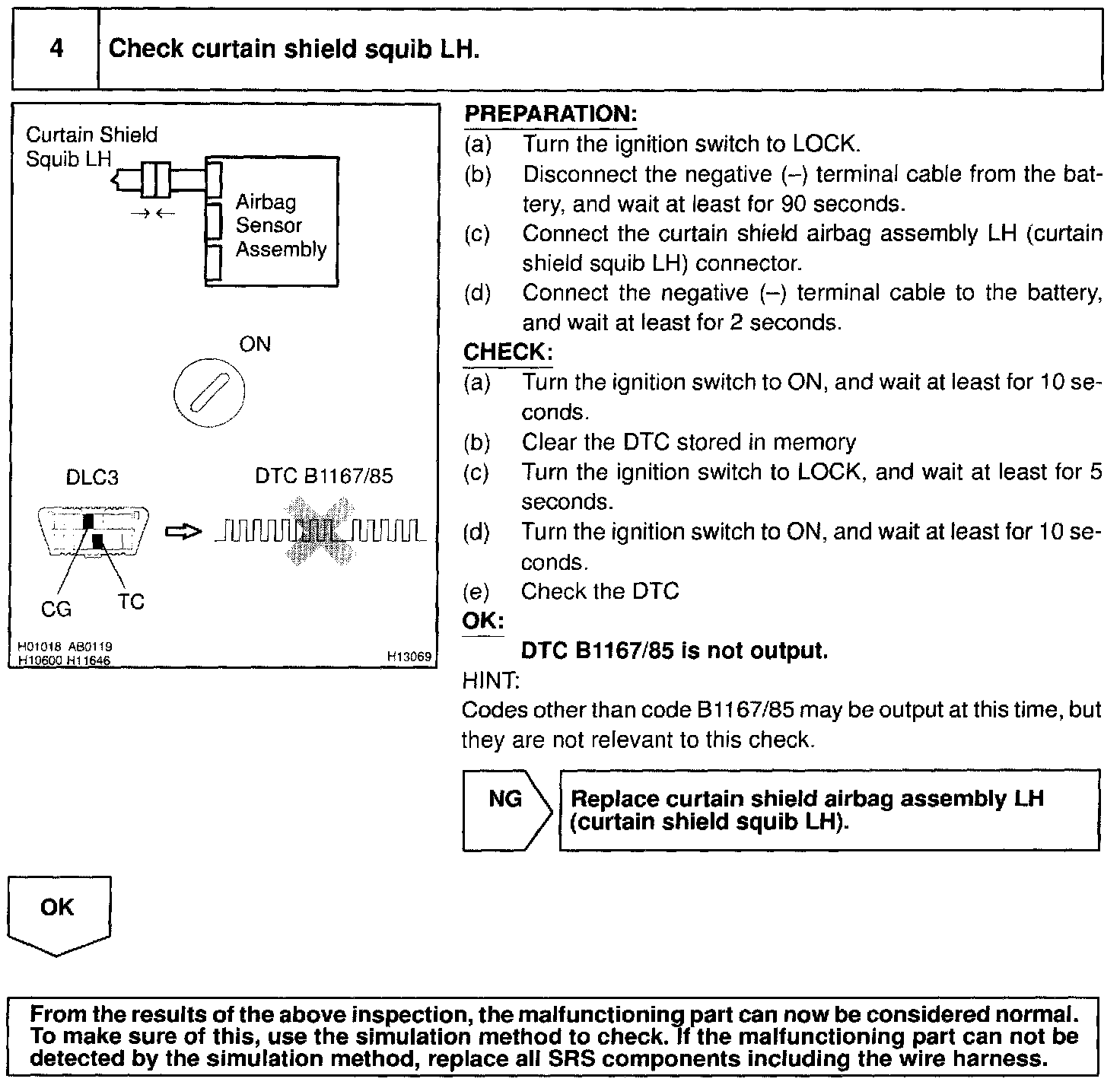

Step 4:

INSPECTION PROCEDURE
