DTC 82

DTC 82 Short in curtain shield Squib RH Circuit (to B+)

CIRCUIT DESCRIPTION

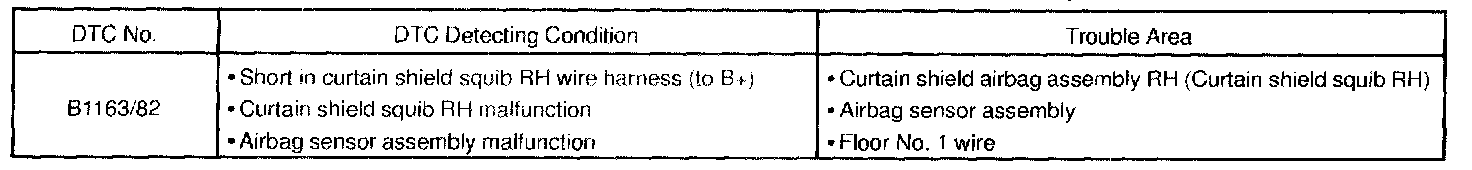

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the airbag sensor assembly and the curtain shield airbag assembly RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1163/82 is recorded when a B+ short is detected in the curtain shield squib RH circuit.

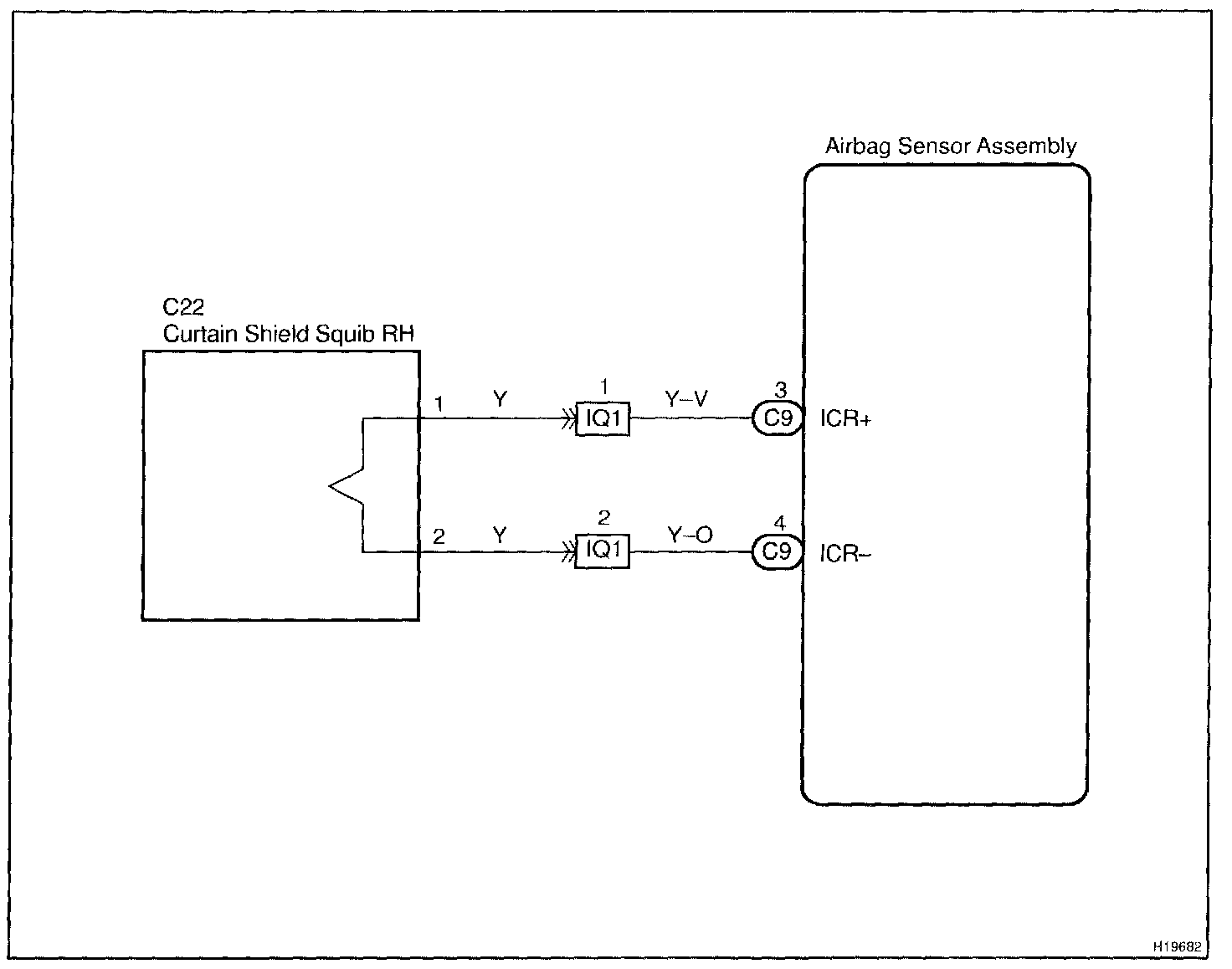

Wiring Diagram:

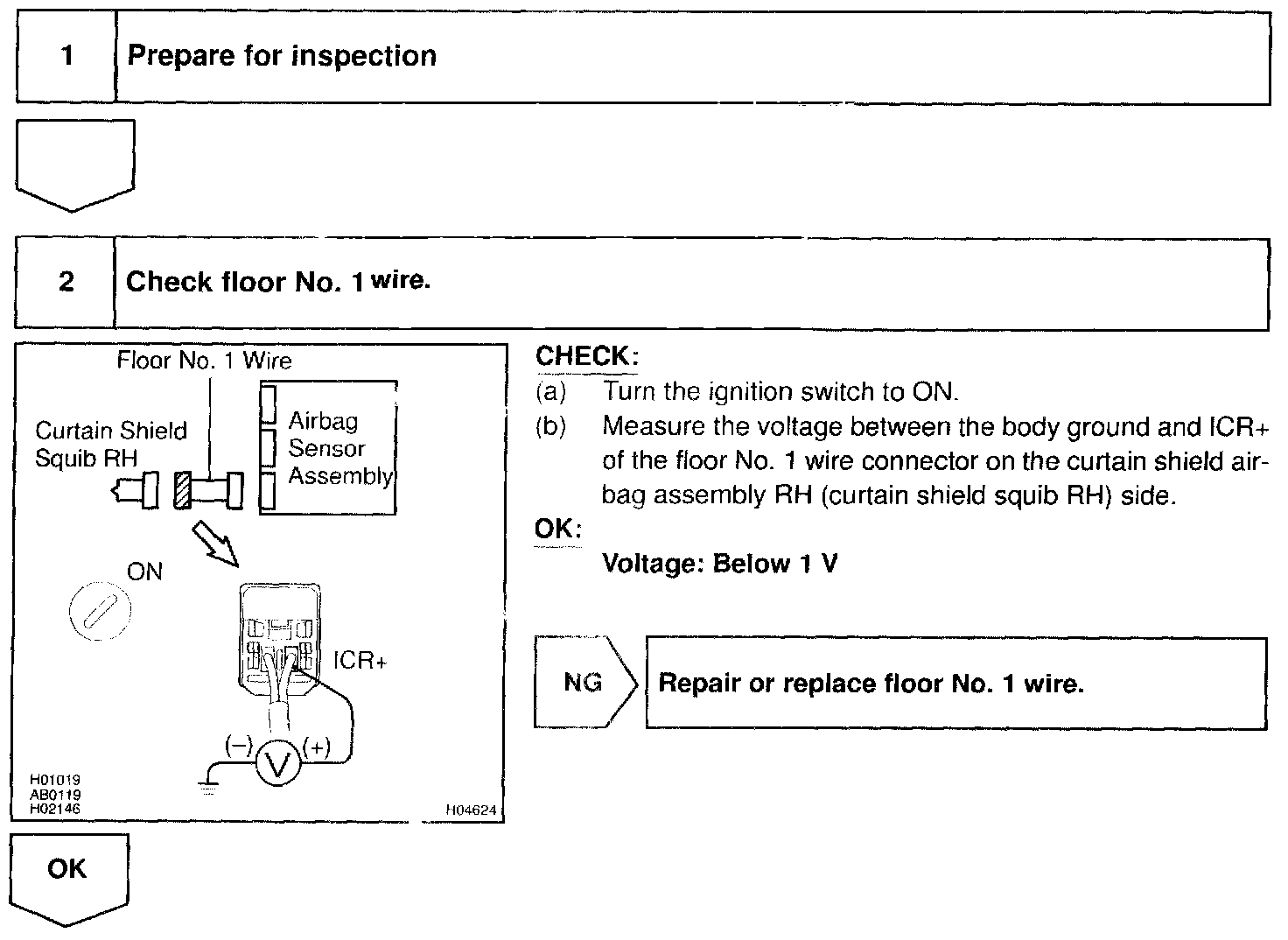

Step 1 - 2:

Step 3:

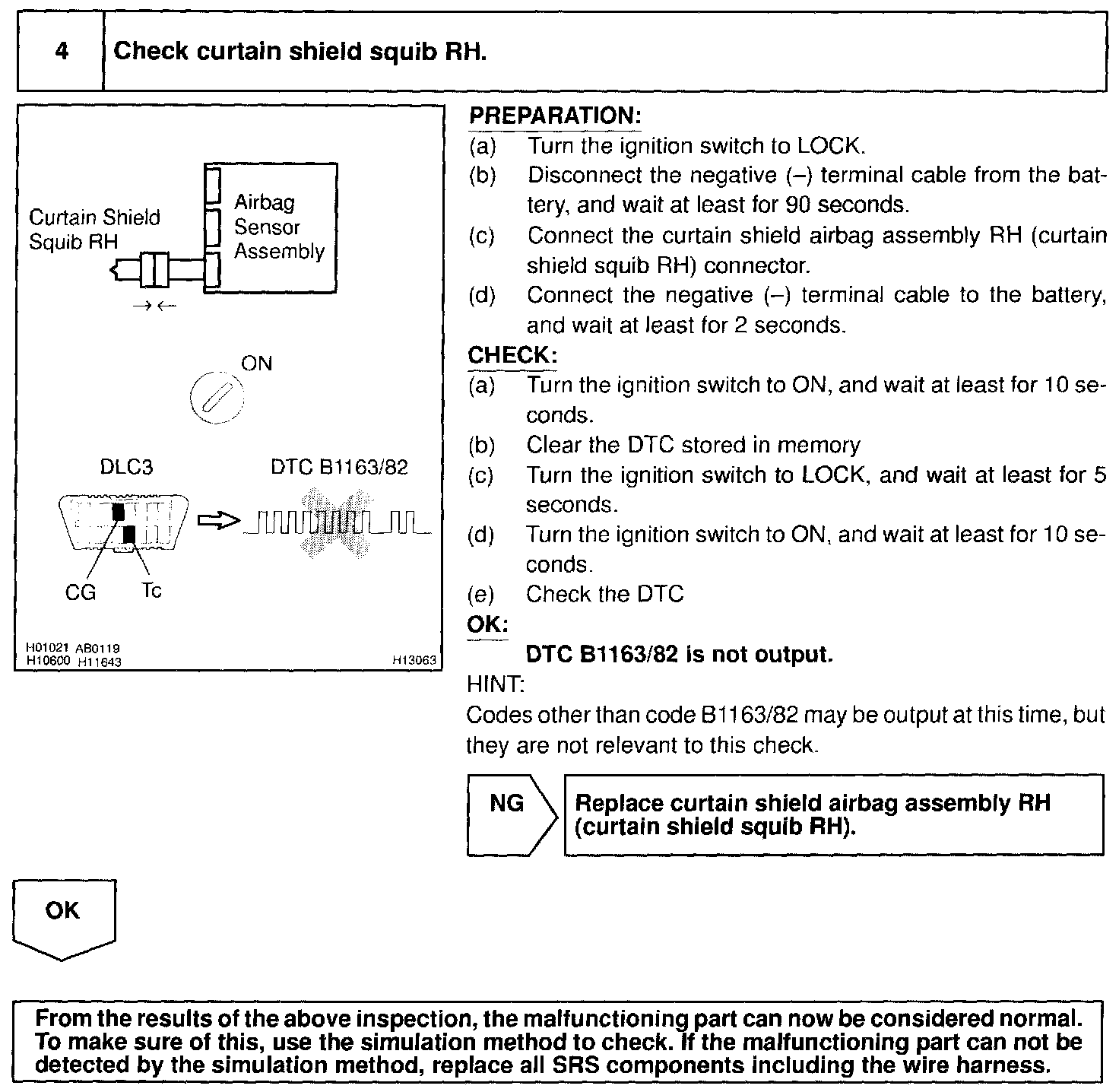

Step 4:

INSPECTION PROCEDURE
