DTC 73

DTC 73 Short in P/T Squib LH Circuit

CIRCUIT DESCRIPTION

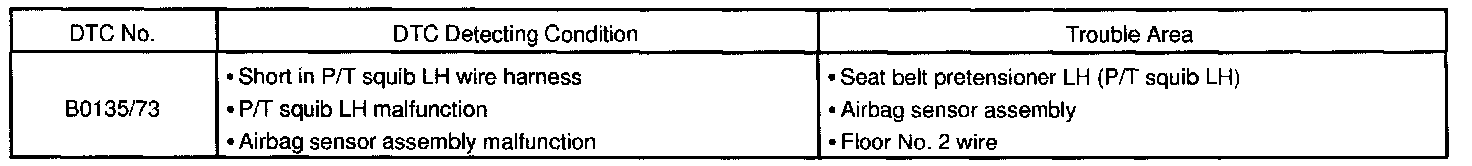

DTC Detecting Condition:

The P/T squib LH circuit consists of the airbag sensor assembly and the seat belt pretensioner LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0135/73 is recorded when a short is detected in the P/T squib LH circuit.

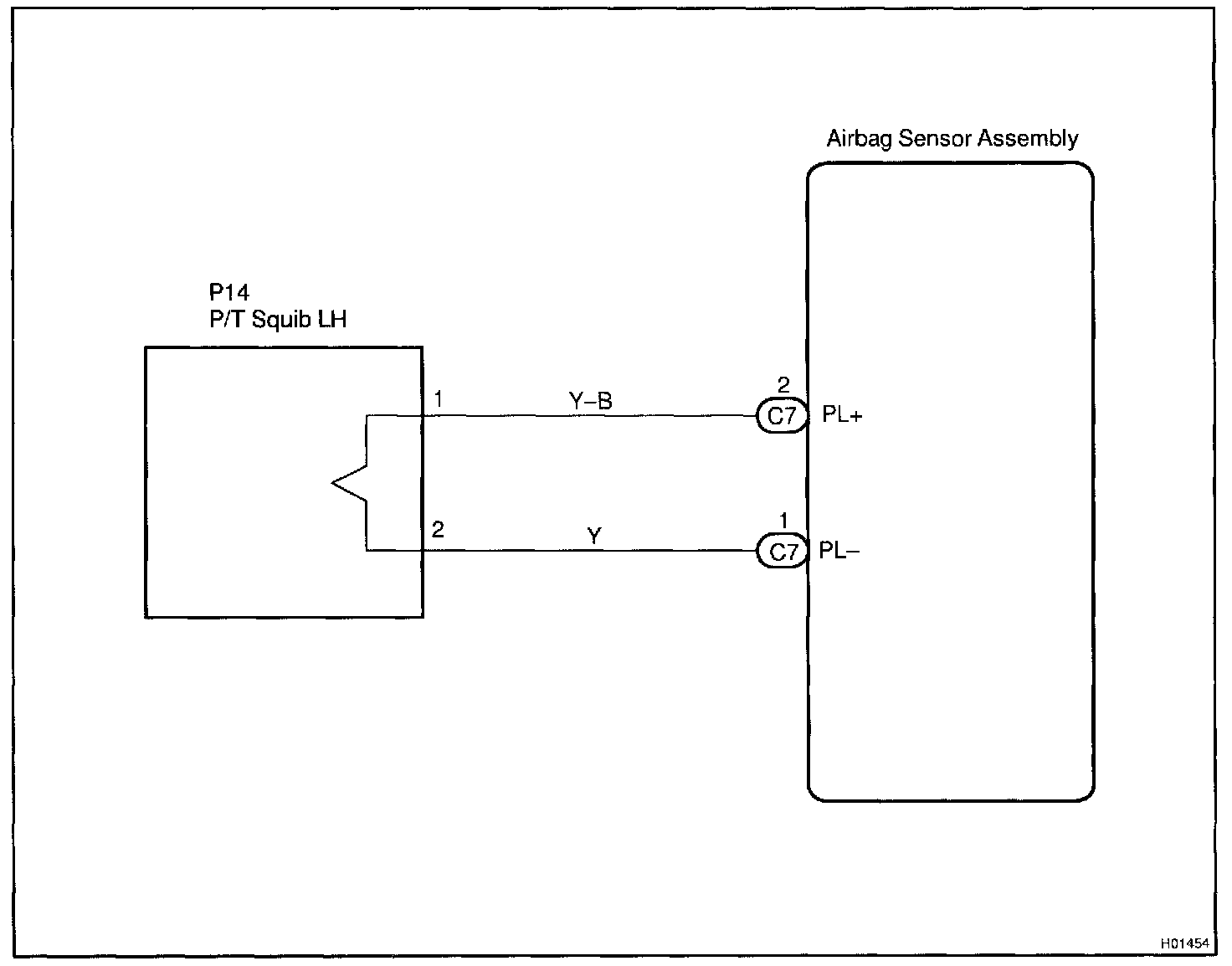

Wiring Diagram:

Step 1 - 2:

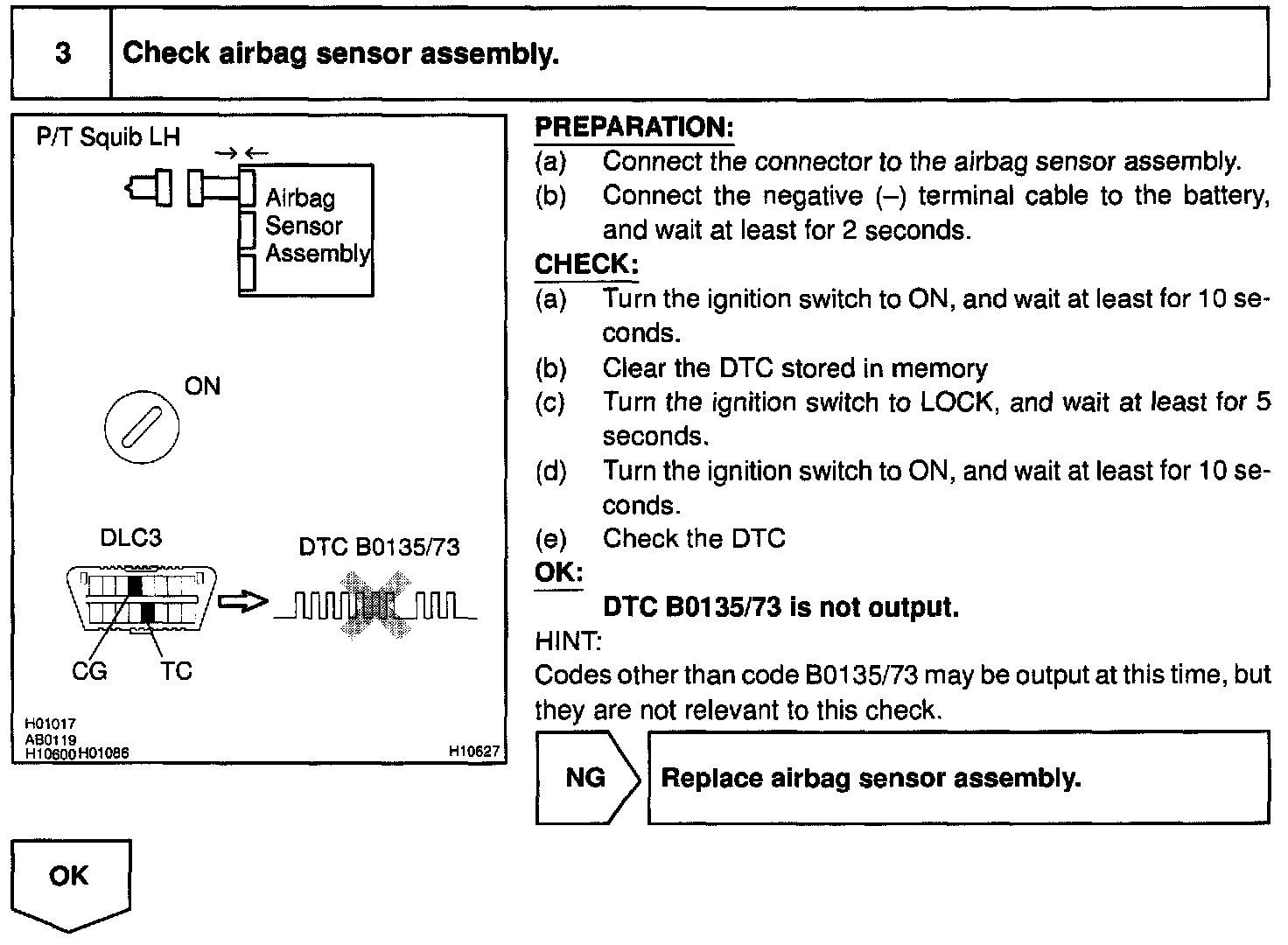

Step 3:

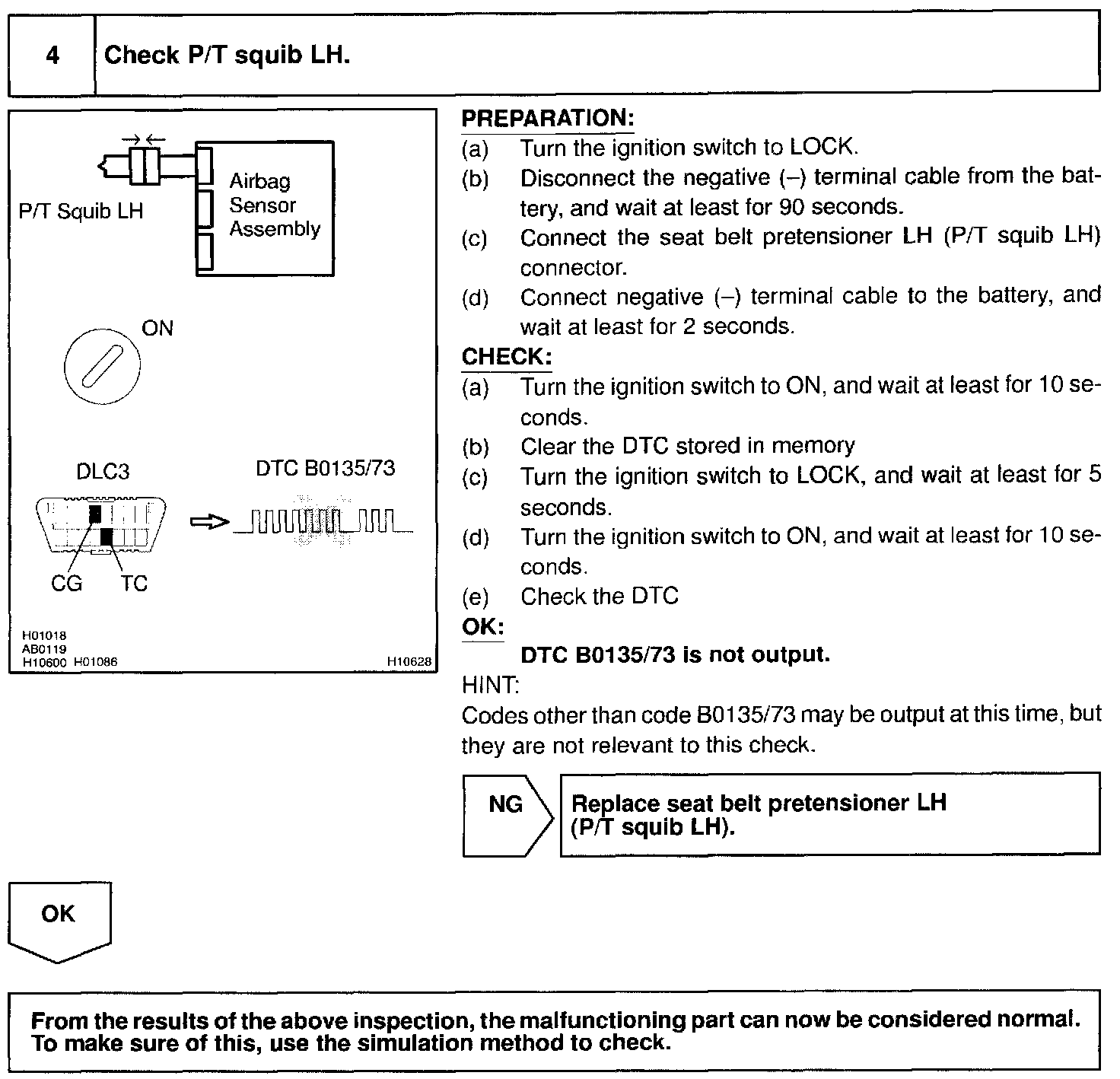

Step 4:

INSPECTION PROCEDURE
