DTC 23

DTC 23 Occupant Detection Sensor Malfunction

CIRCUIT DESCRIPTION

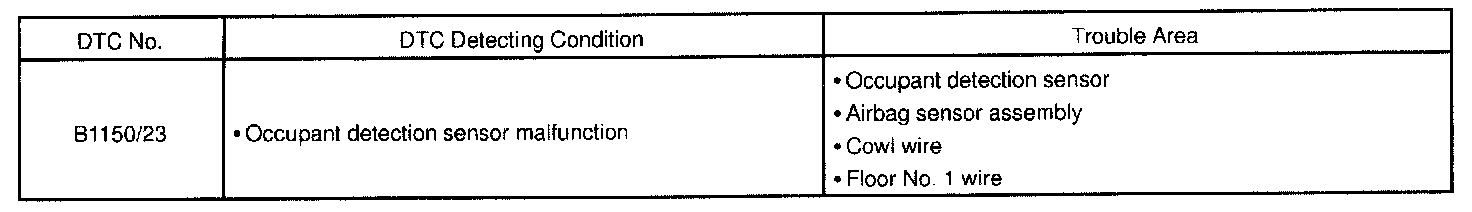

DTC Detecting Condition:

The occupant detection sensor circuit consists of the airbag sensor assembly and the occupant detection sensor.

DTC B1150/23 is recorded when a malfunction is detected in the occupant detection sensor circuit.

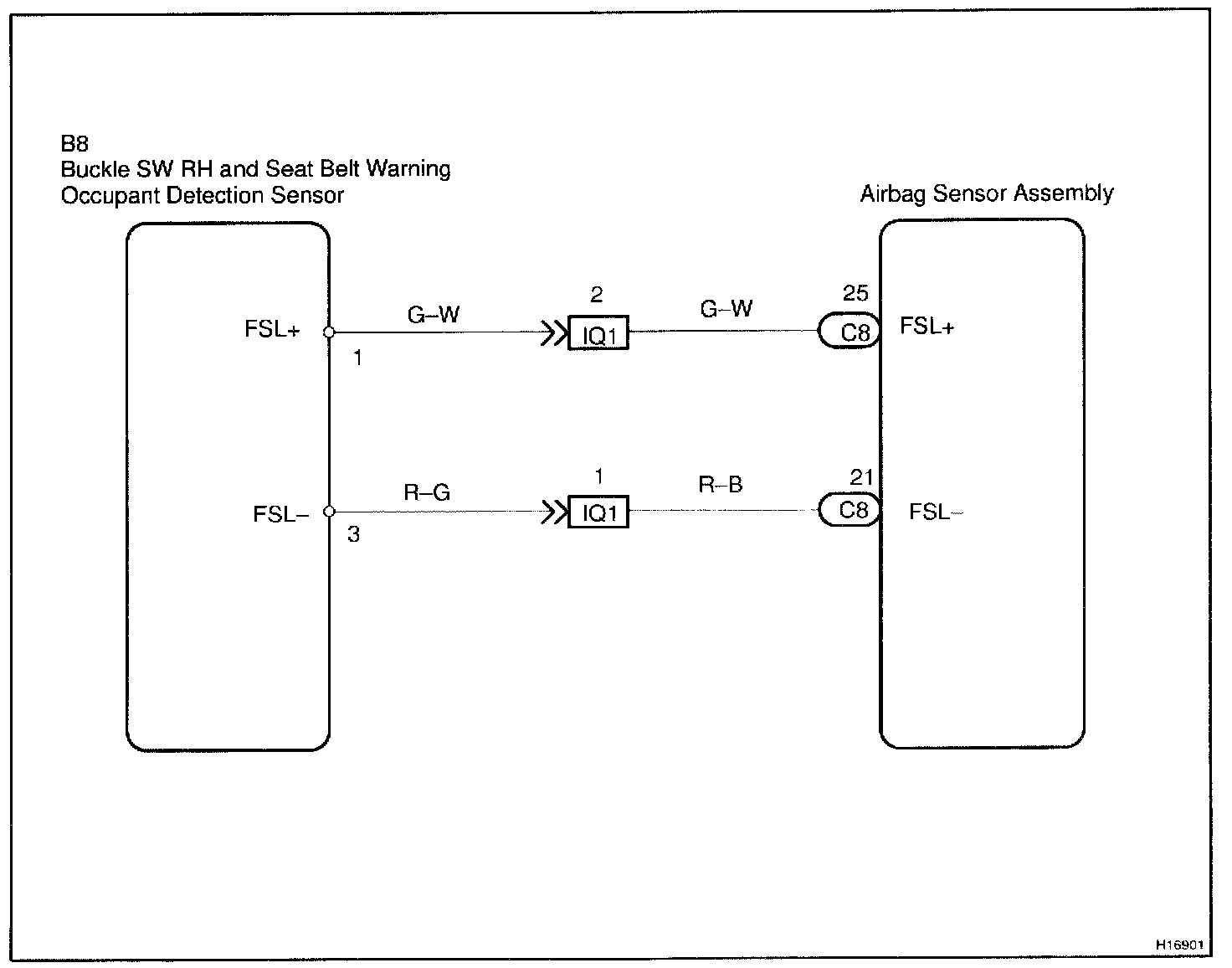

Wiring Diagram:

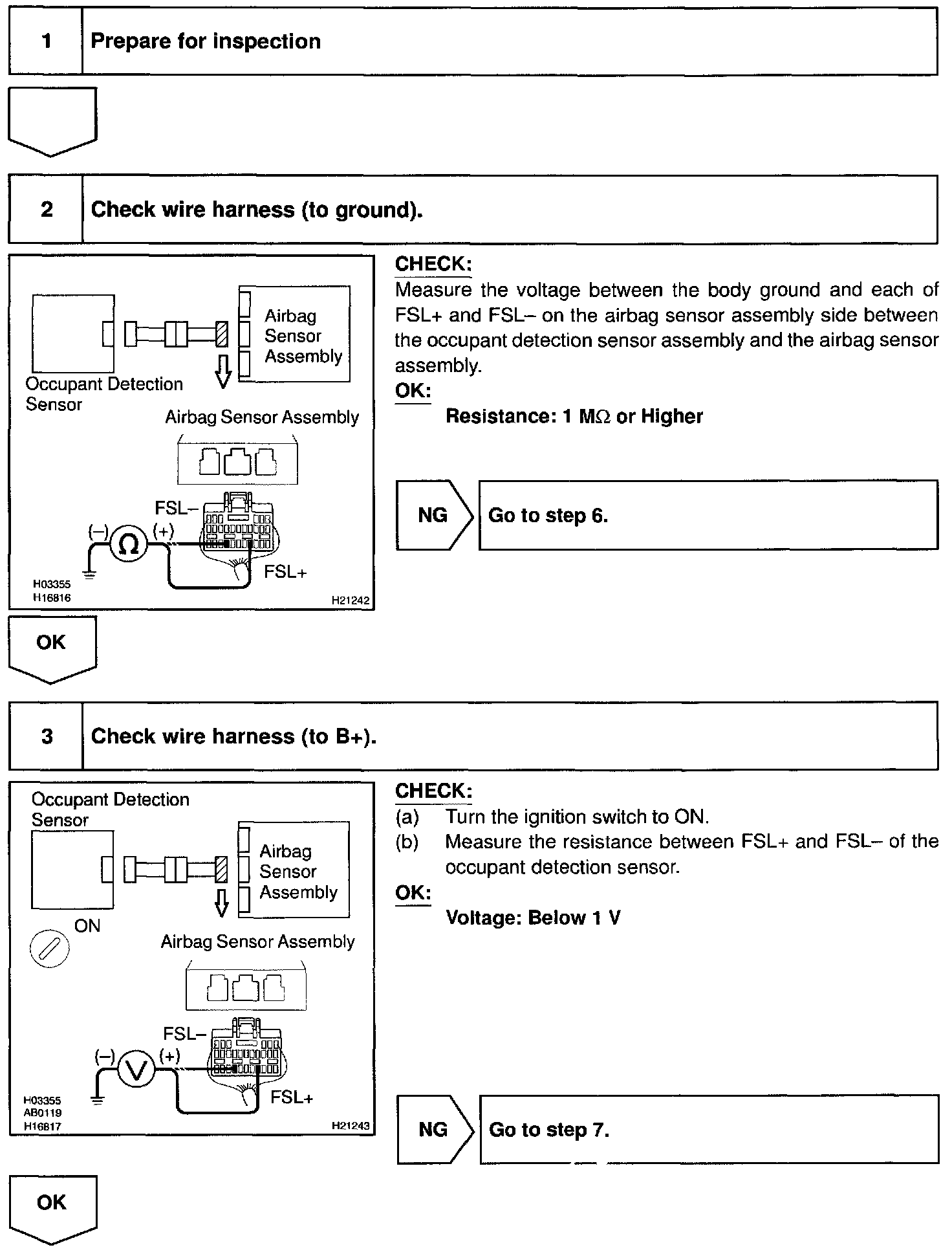

Step 1 - 3:

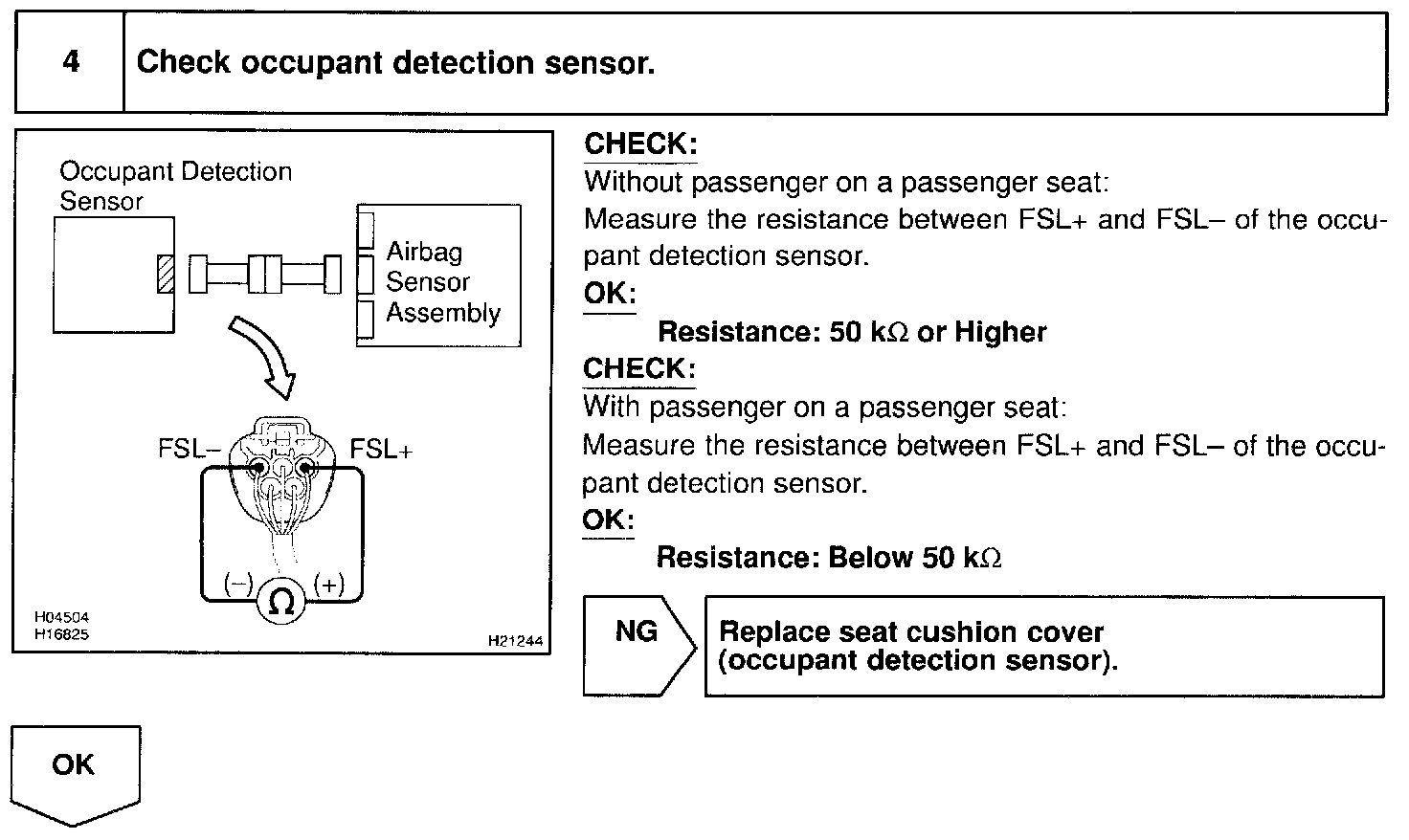

Step 4:

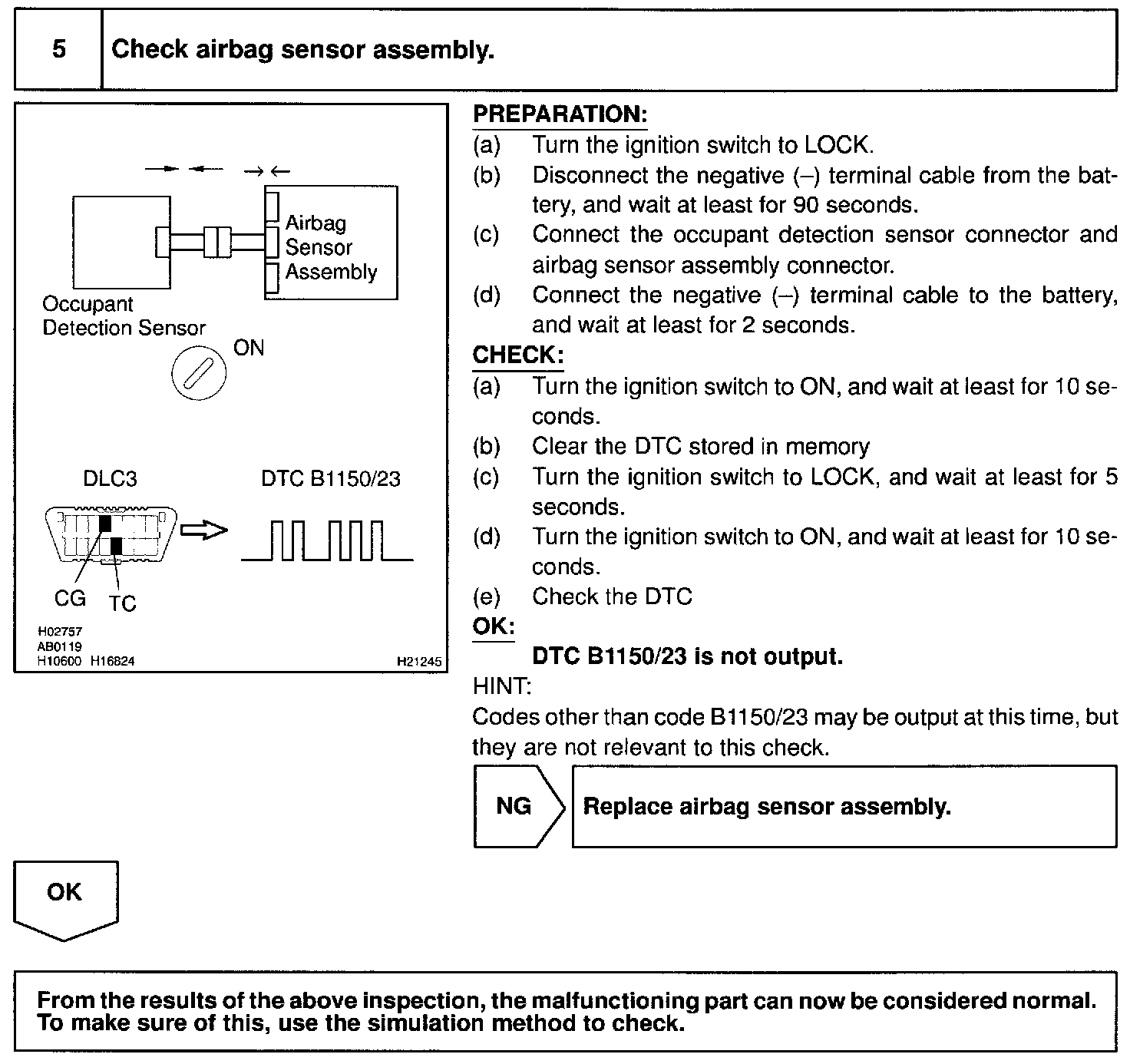

Step 5:

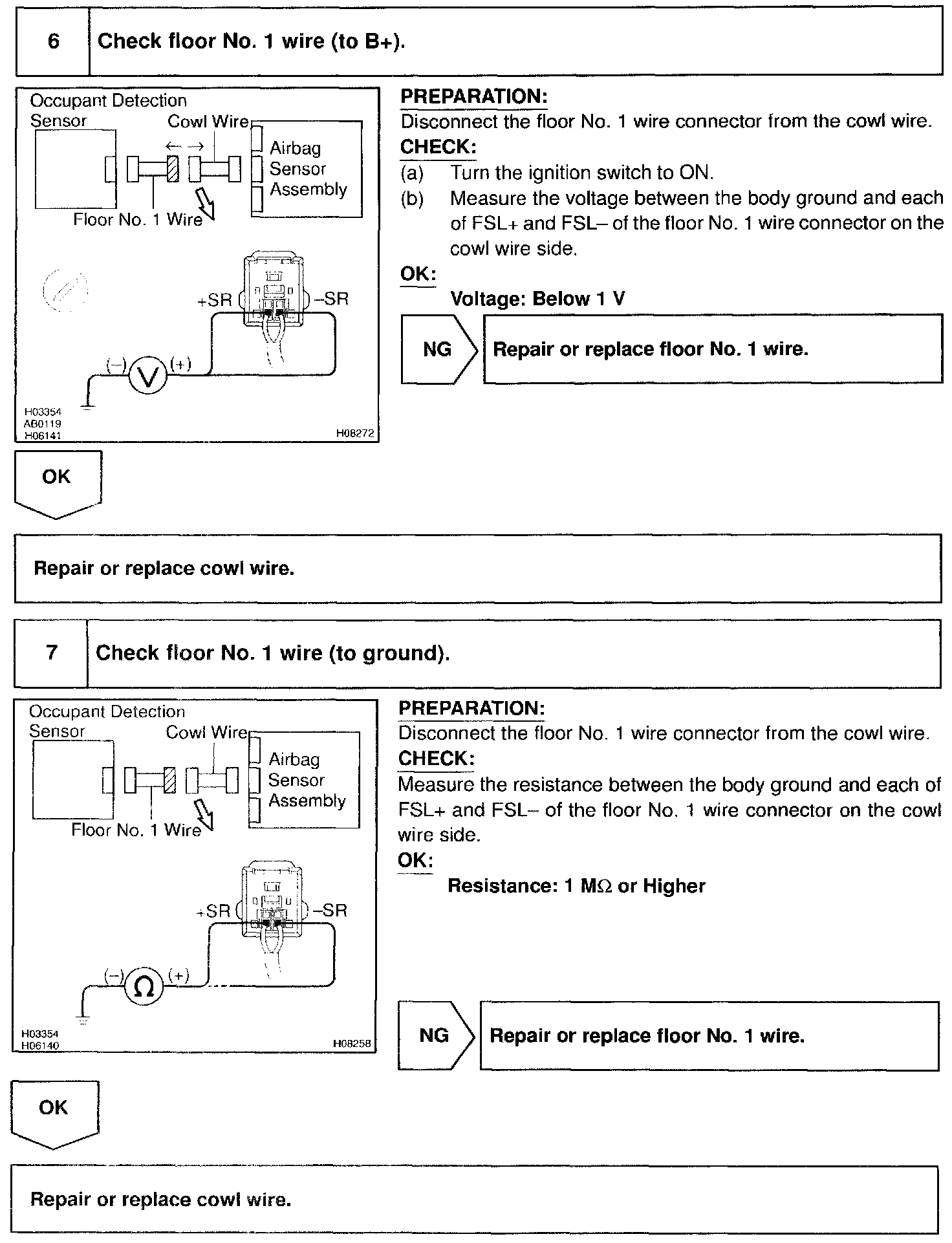

Step 6 - 7:

INSPECTION PROCEDURE
