DTC 14

DTC 14 Open in D Squib Circuit

CIRCUIT DESCRIPTION

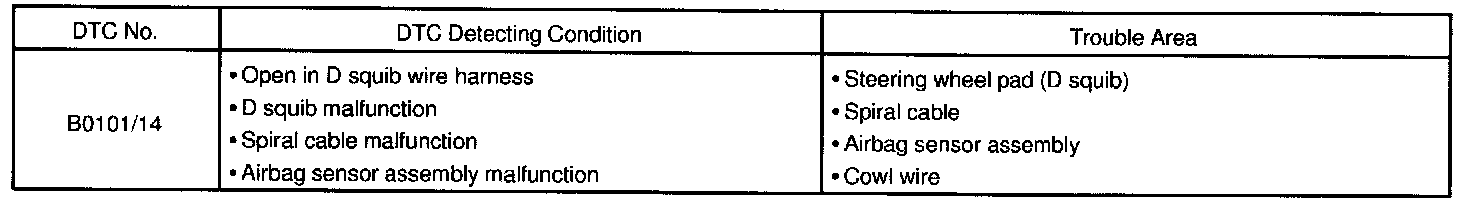

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly, the spiral cable and the steering wheel pad.

It causes the airbag to deploy when the airbag deployment conditions are satisfied.

DTC B0101/14 is recorded when an open is detected in the D squib circuit.

Wiring Diagram:

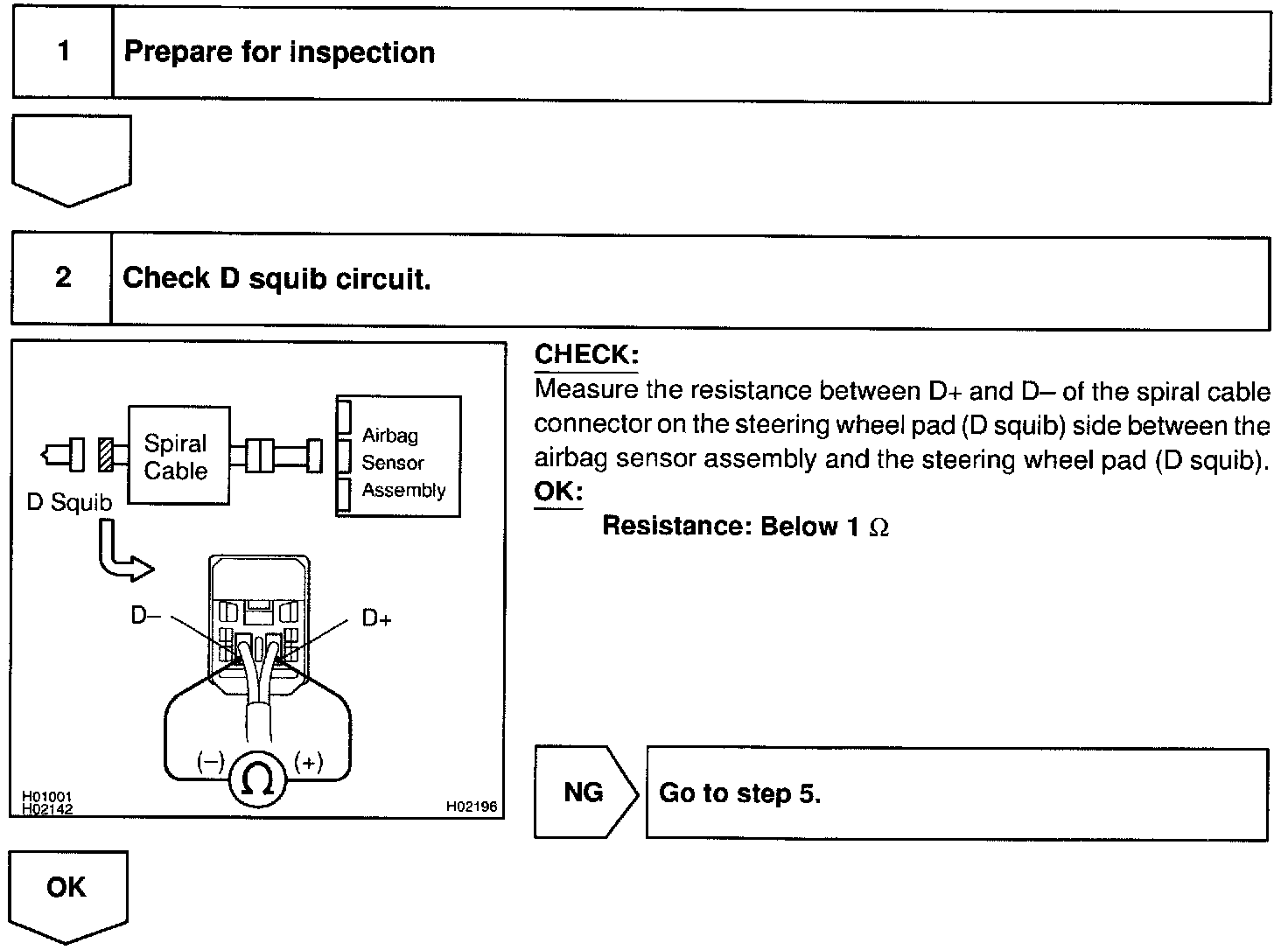

Step 1 - 2:

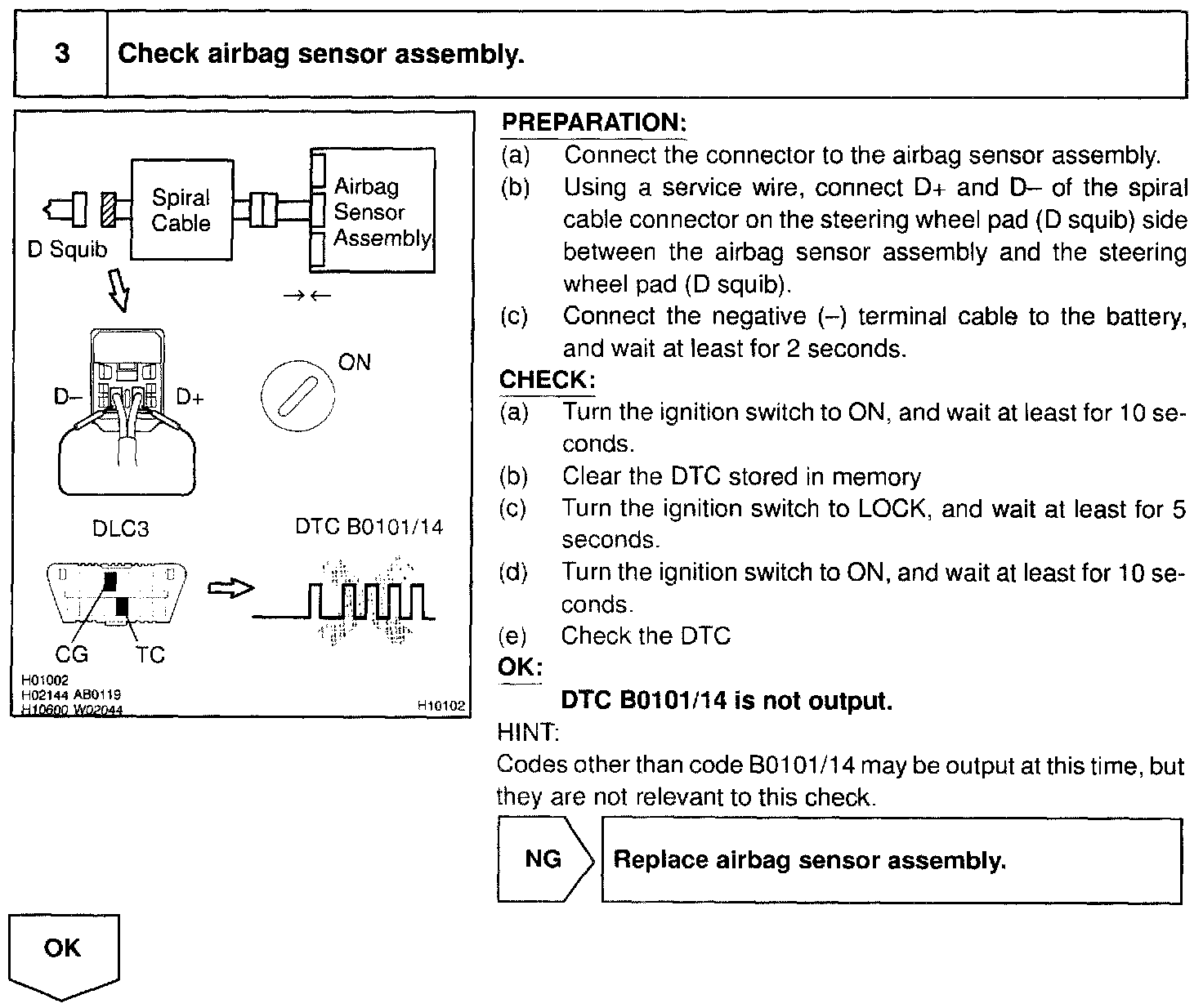

Step 3:

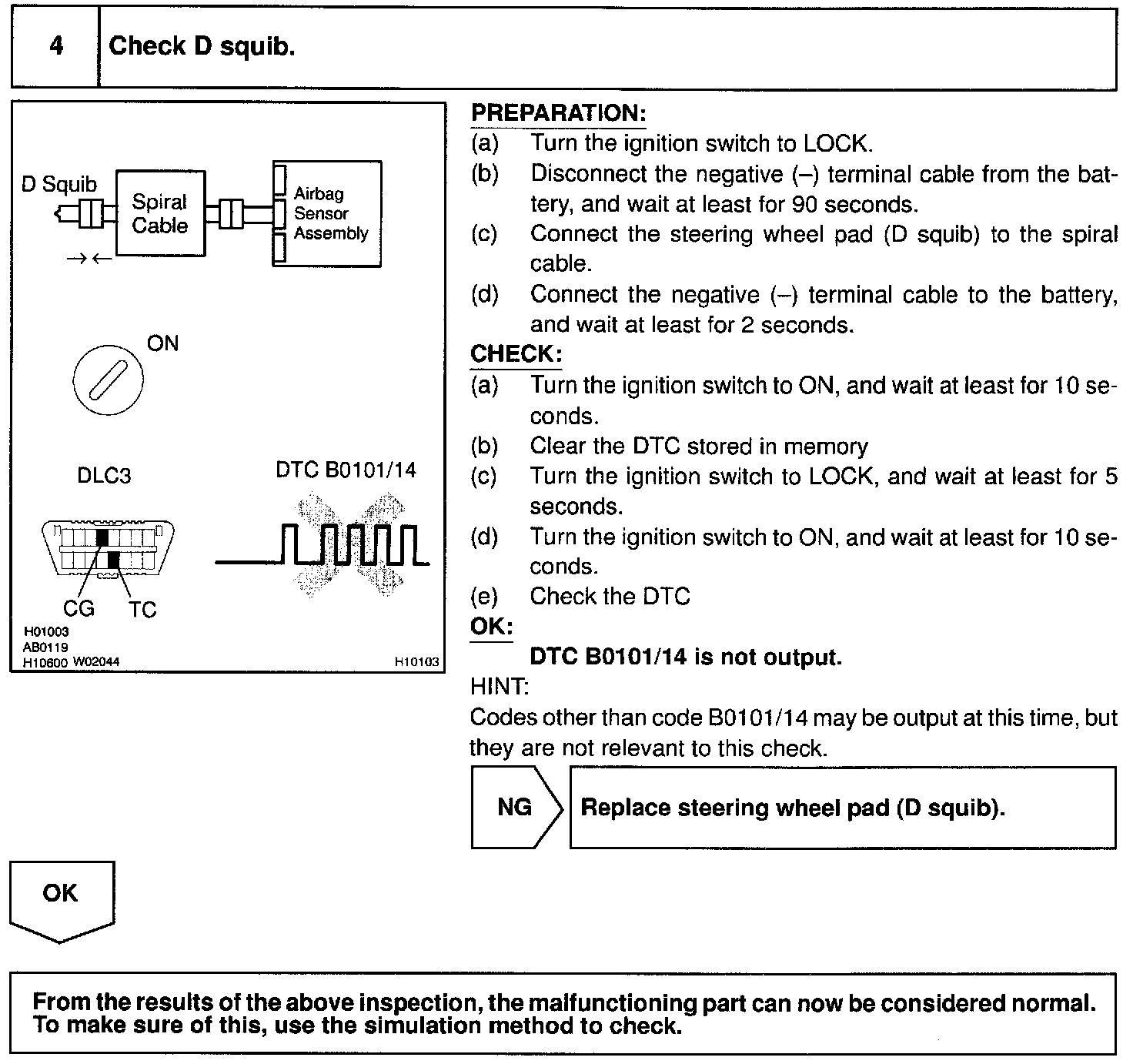

Step 4:

Step 5 - 6:

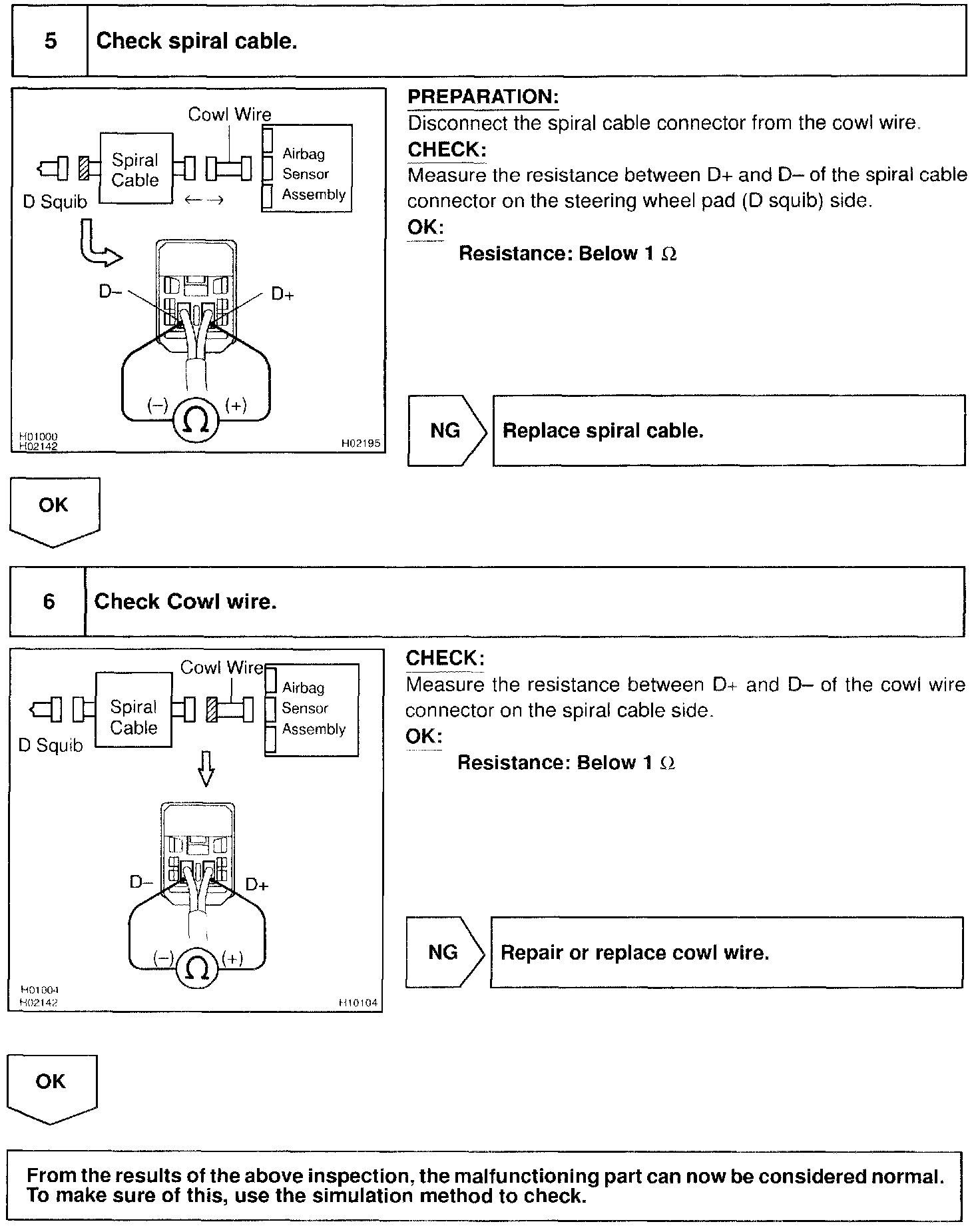

INSPECTION PROCEDURE
