DTC 11

DTC 11 Short in D Squib Circuit (to Ground)

CIRCUIT DESCRIPTION

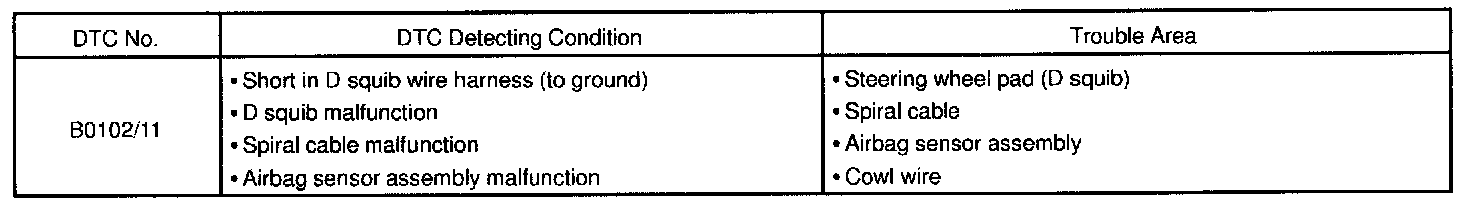

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assembly, the spiral cable and the steering wheel pad.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0102/11 is recorded when a ground short is detected in the D squib circuit.

Wiring Diagram:

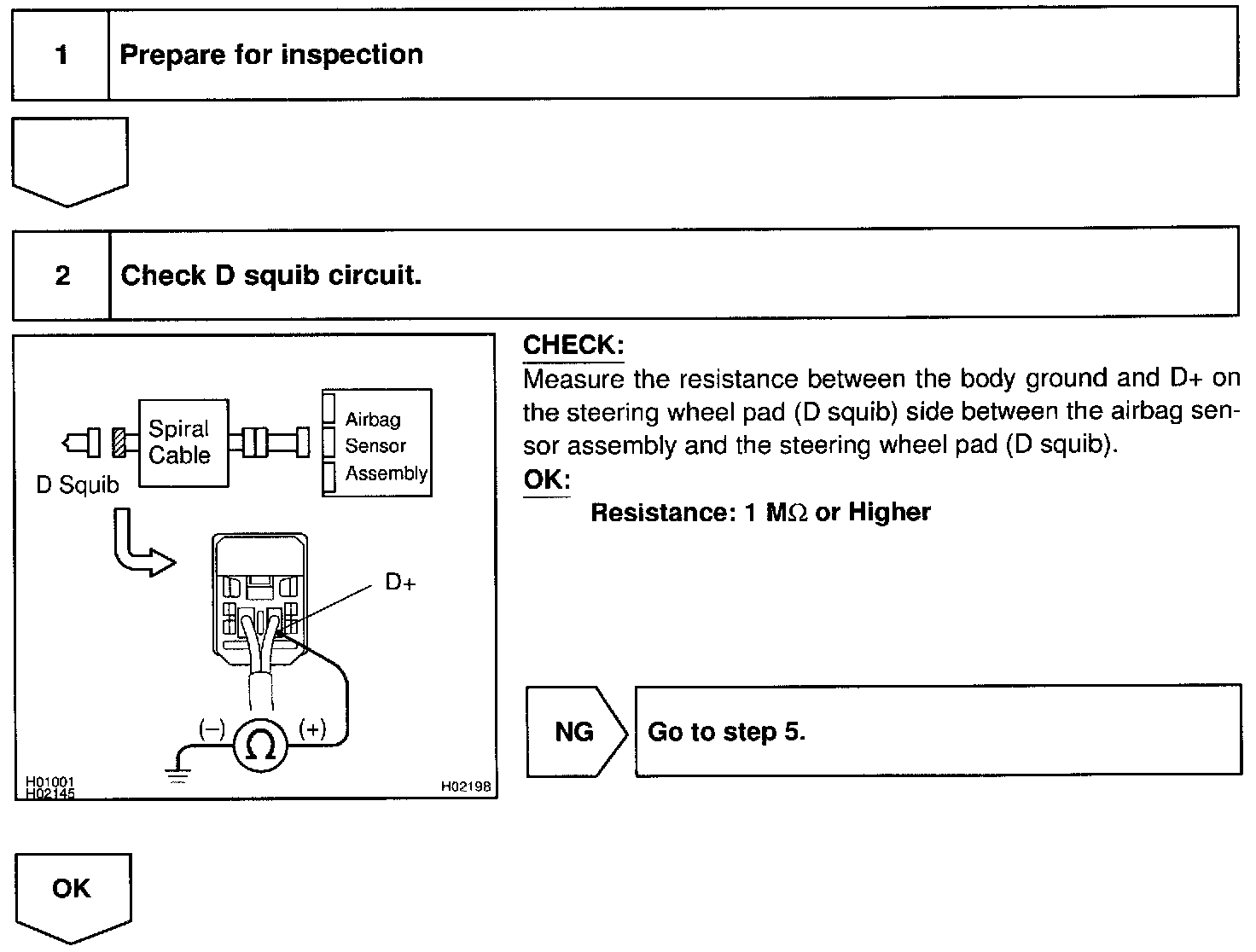

Step 1 - 2:

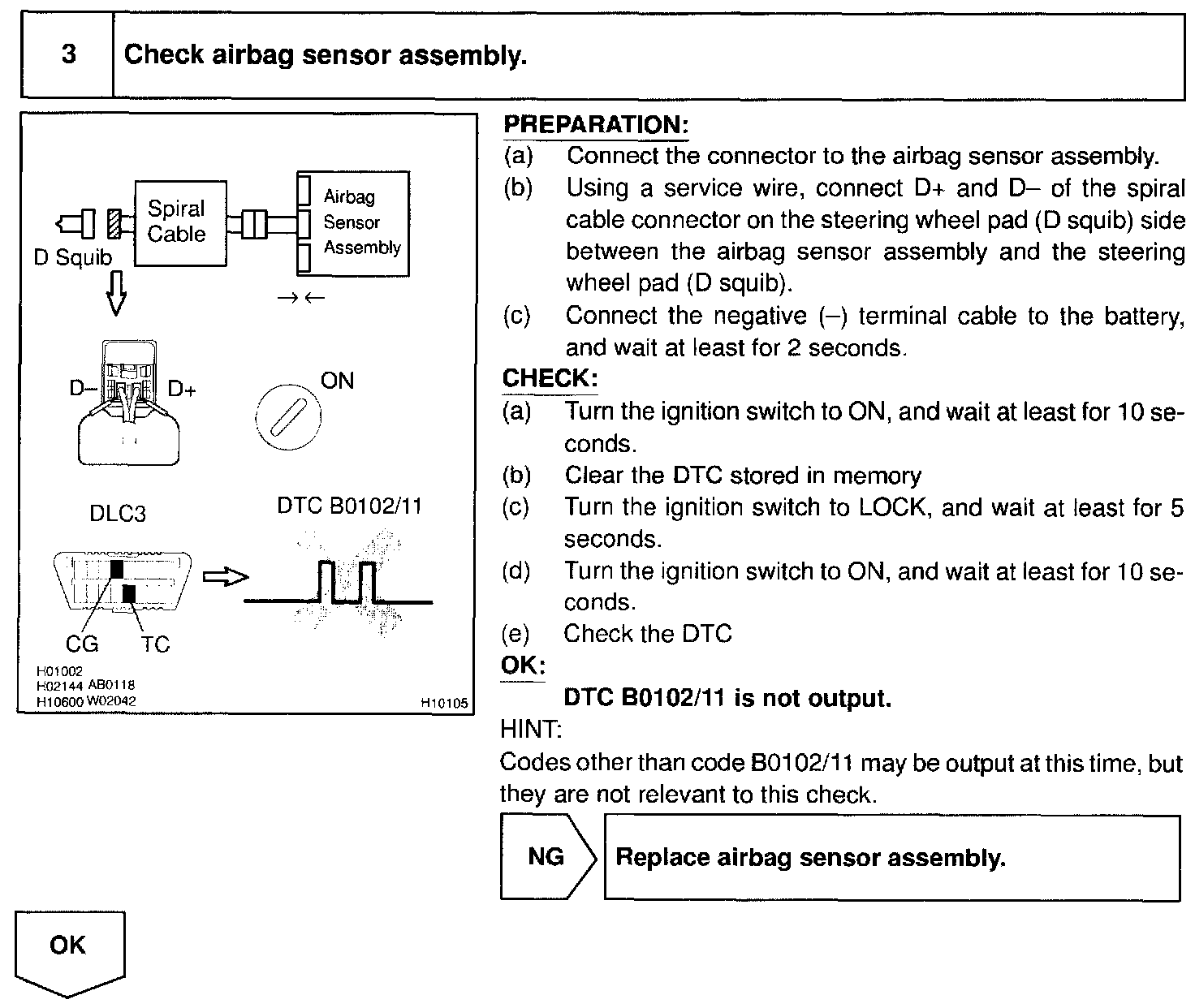

Step 3:

Step 4:

Step 5 - 6:

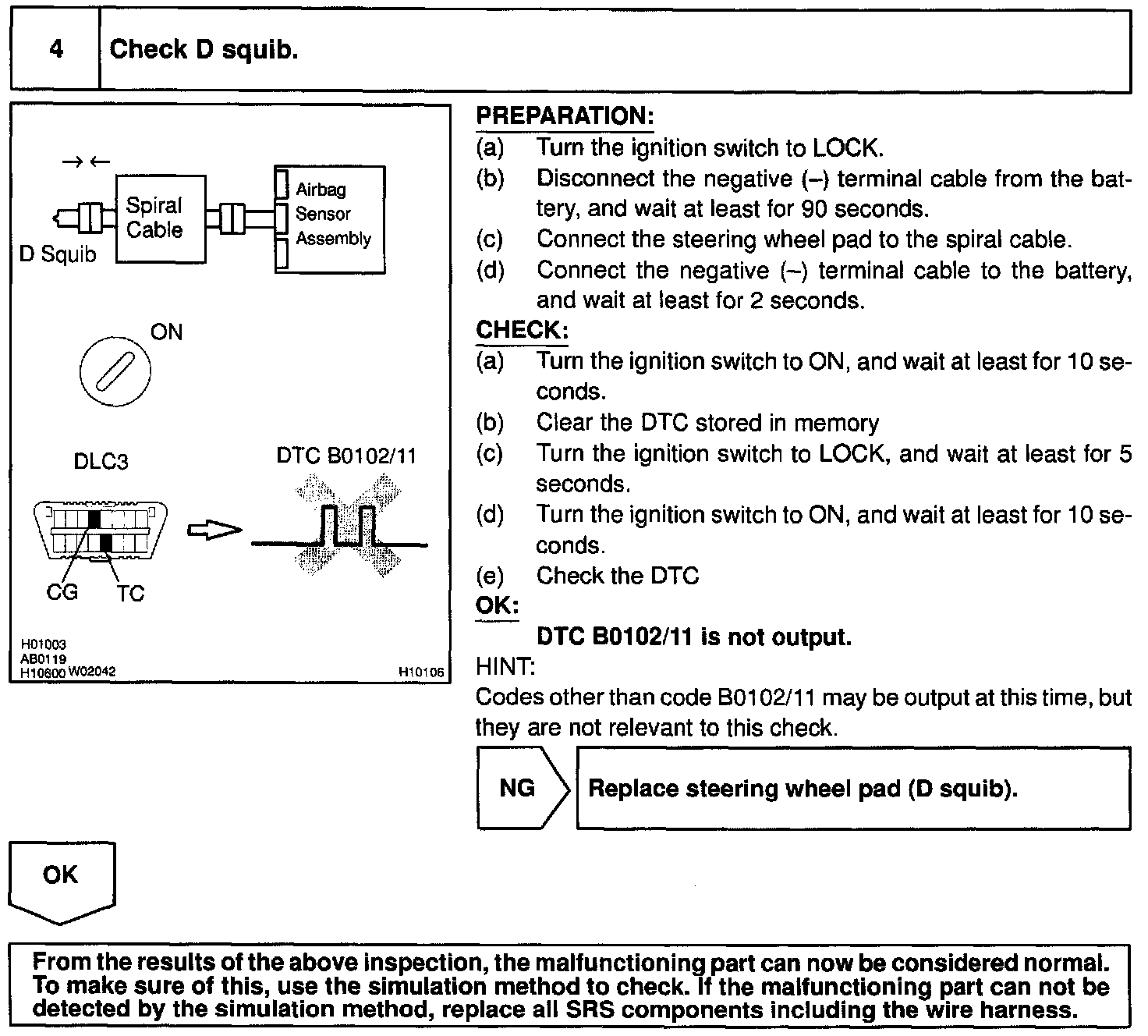

INSPECTION PROCEDURE
