Navigation System

DIAGNOSTIC TROUBLE CODE CHART

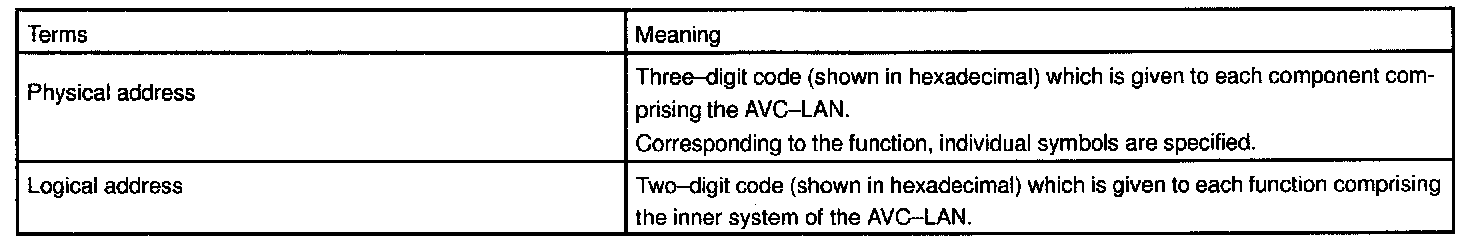

1. PHYSICAL ADDRESS: 110 MULTI DISPLAY

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: It may be stored when the engine key is turned 1 min. again after engine start.

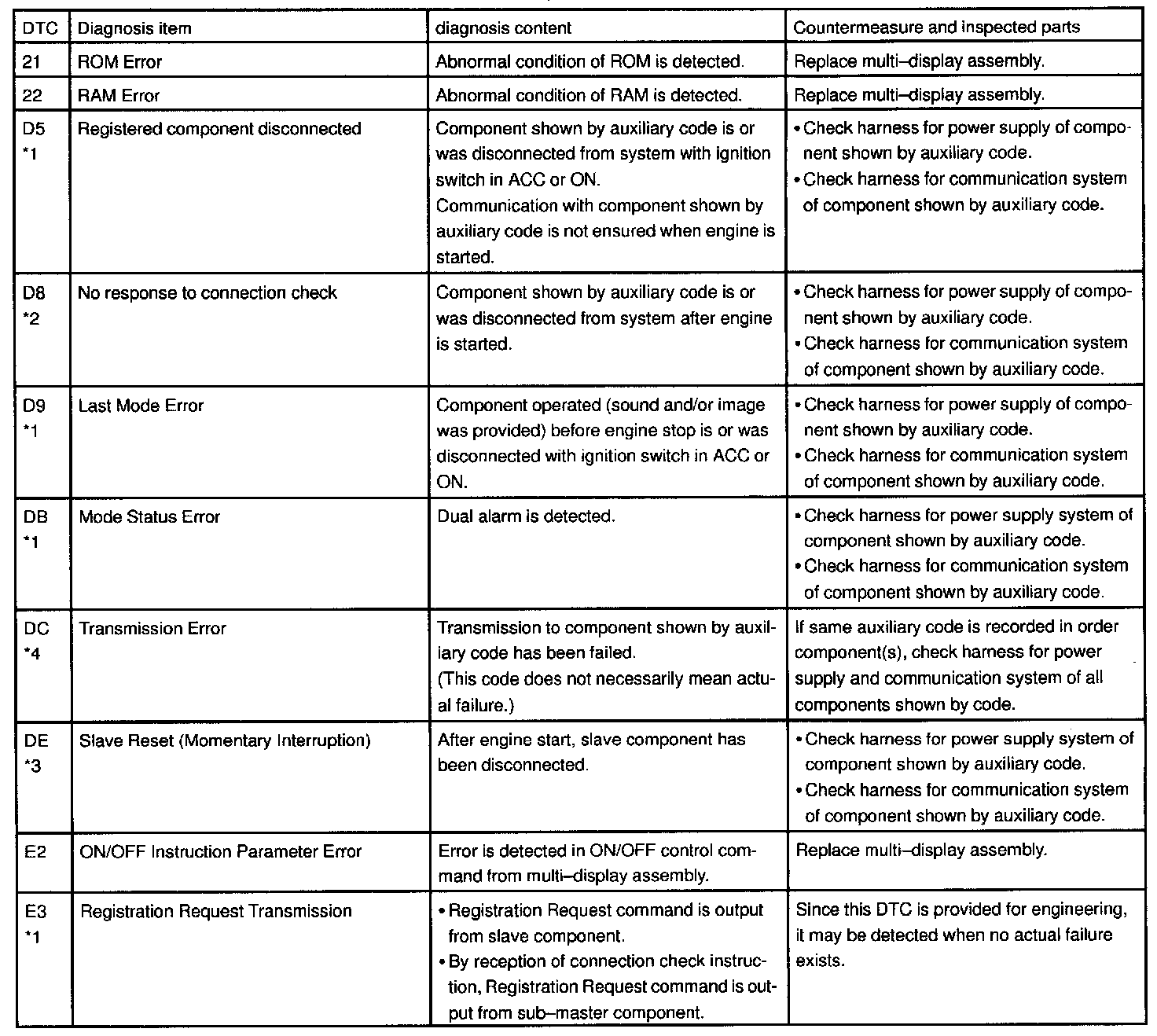

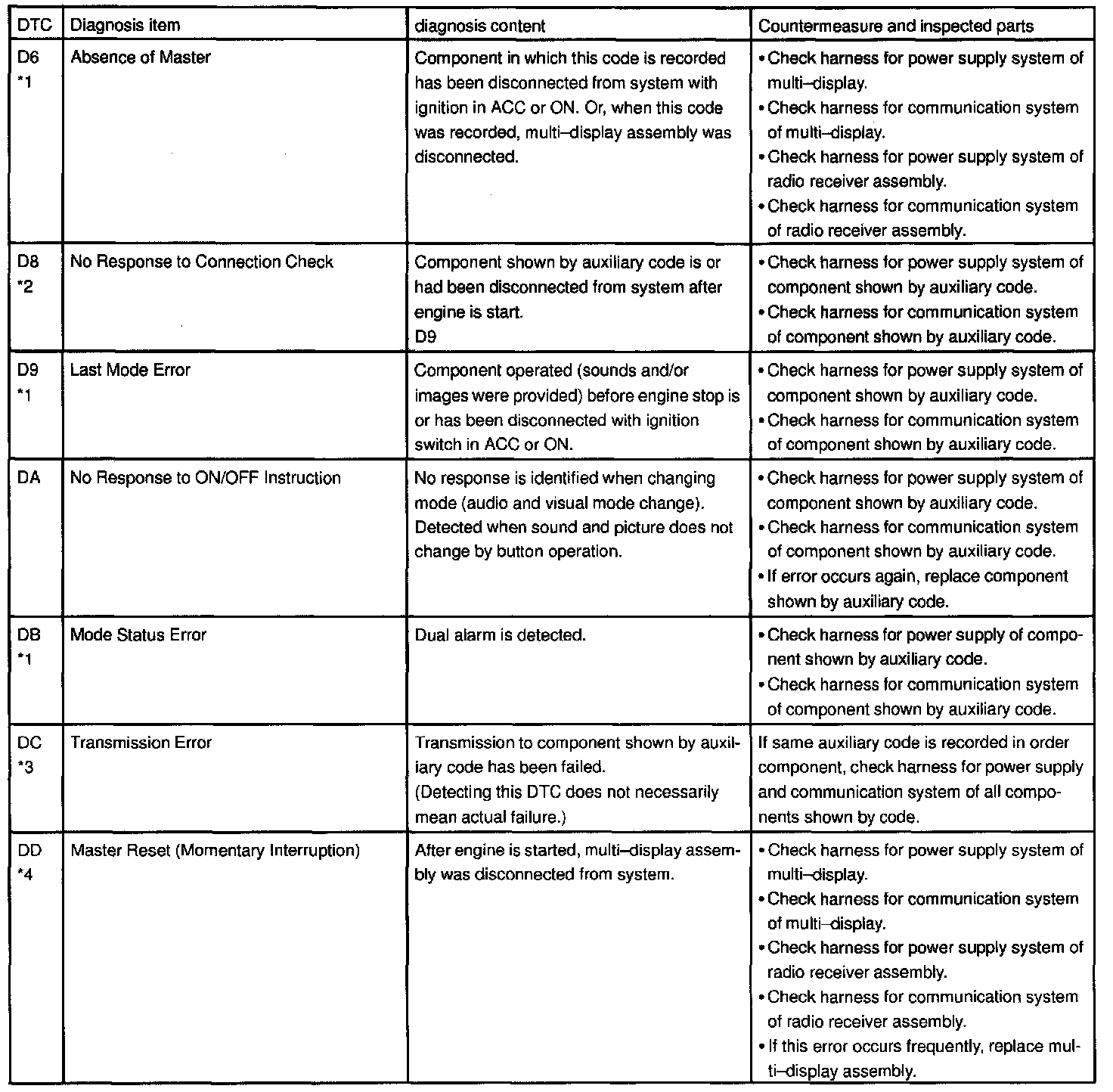

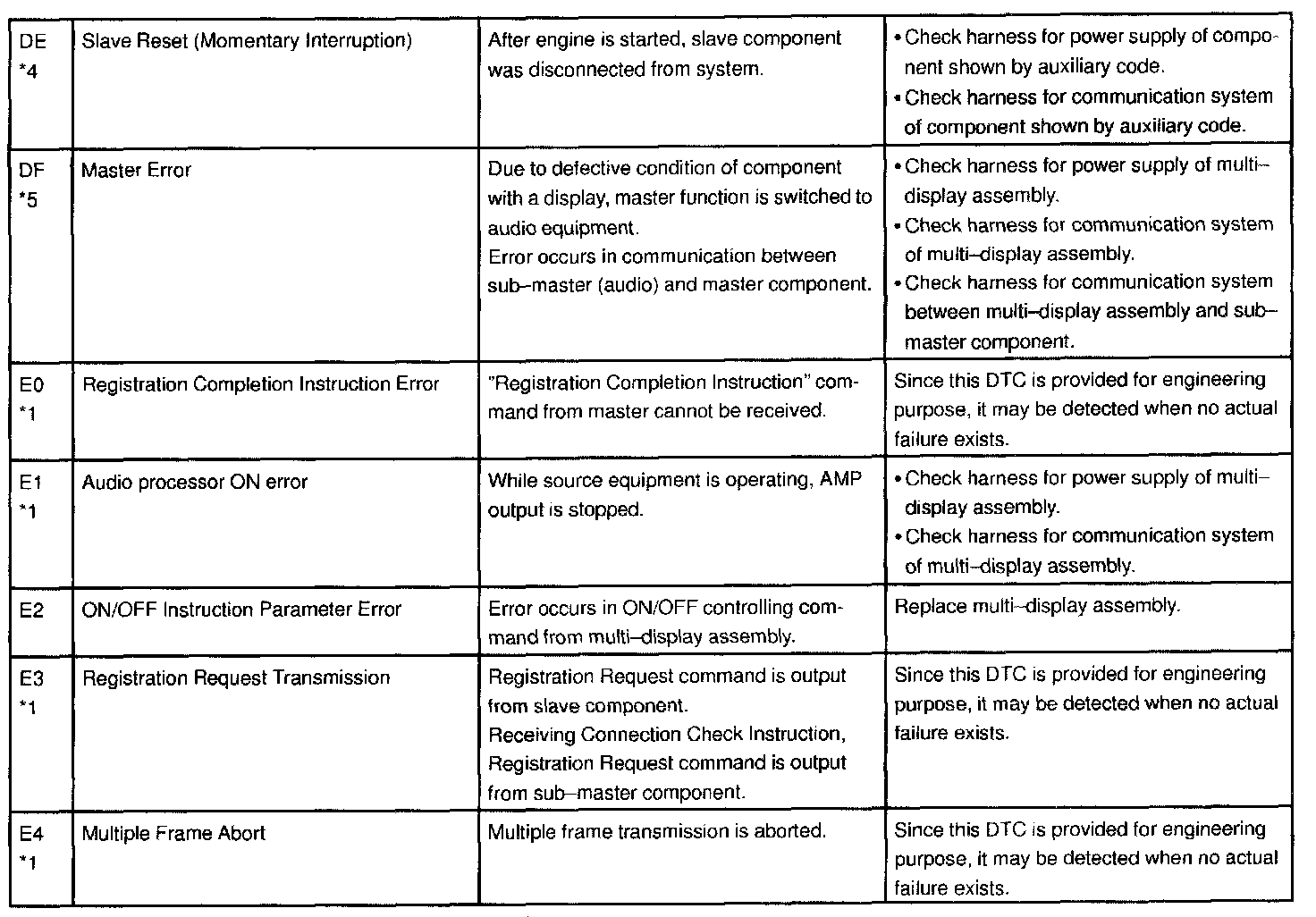

21 - E3:

a. Logical address: 01 (Communication control)

10 - 11:

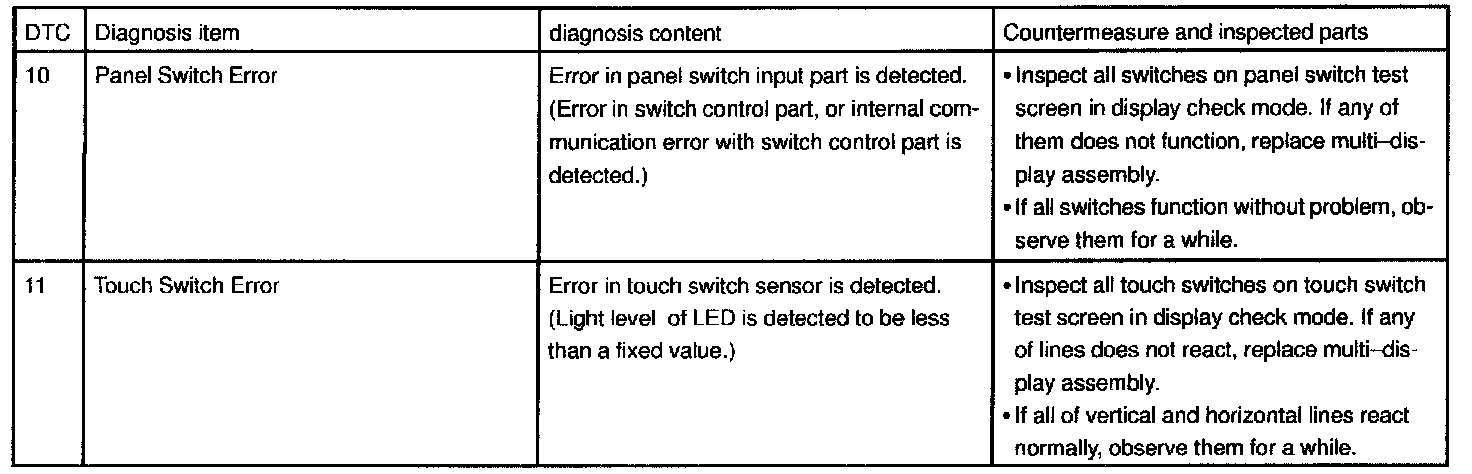

b. Logical address. 21 (Switch)

10 - 12:

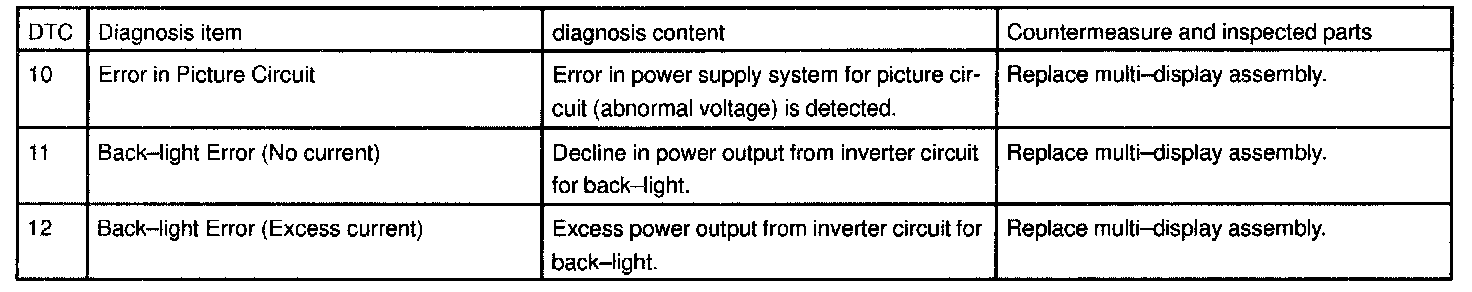

c. Logical address 34 (Front passenger monitor)

2. PHYSICAL ADDRESS: 190 RADIO RECEIVER ASSEMBLY ASSEMBLY

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

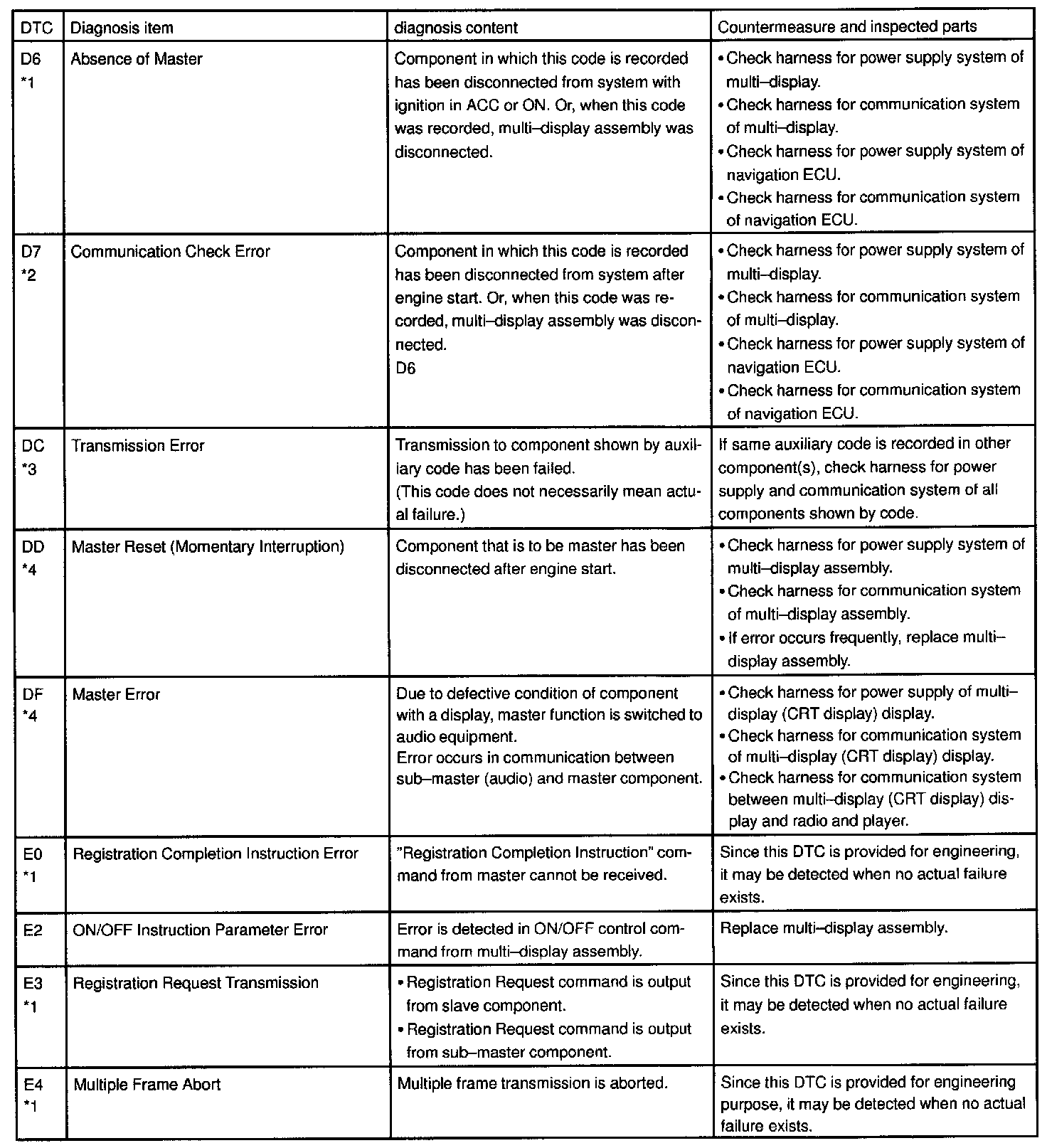

D6 - DD:

DE - E4:

a. Logical address: 01 (Communication control)

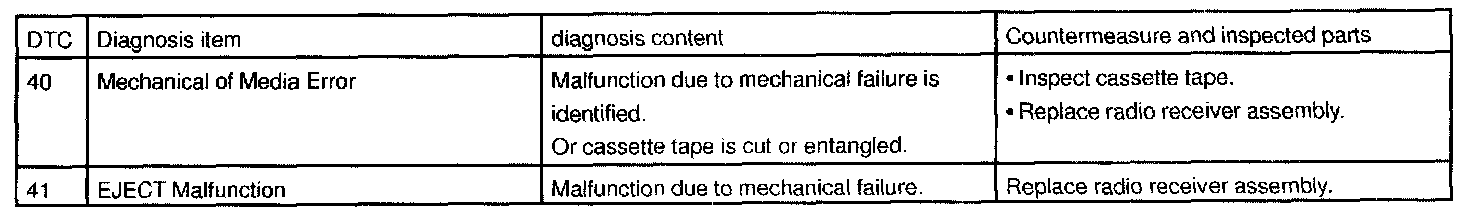

40 - 41:

b. Logical address: 61 (Cassette switch)

43 - 44:

c. Logical address: 60(Radio receiver assembly)

3. PHYSICAL ADDRESS: 178 NAVIGATION ECU

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
- *3: It may be stored when the engine key is turned 1 min. again after engine start.
- *4: It may be stored when the engine key is turned again after engine start.

D6 - E4:

a. Logical address: 01 (Communication control)

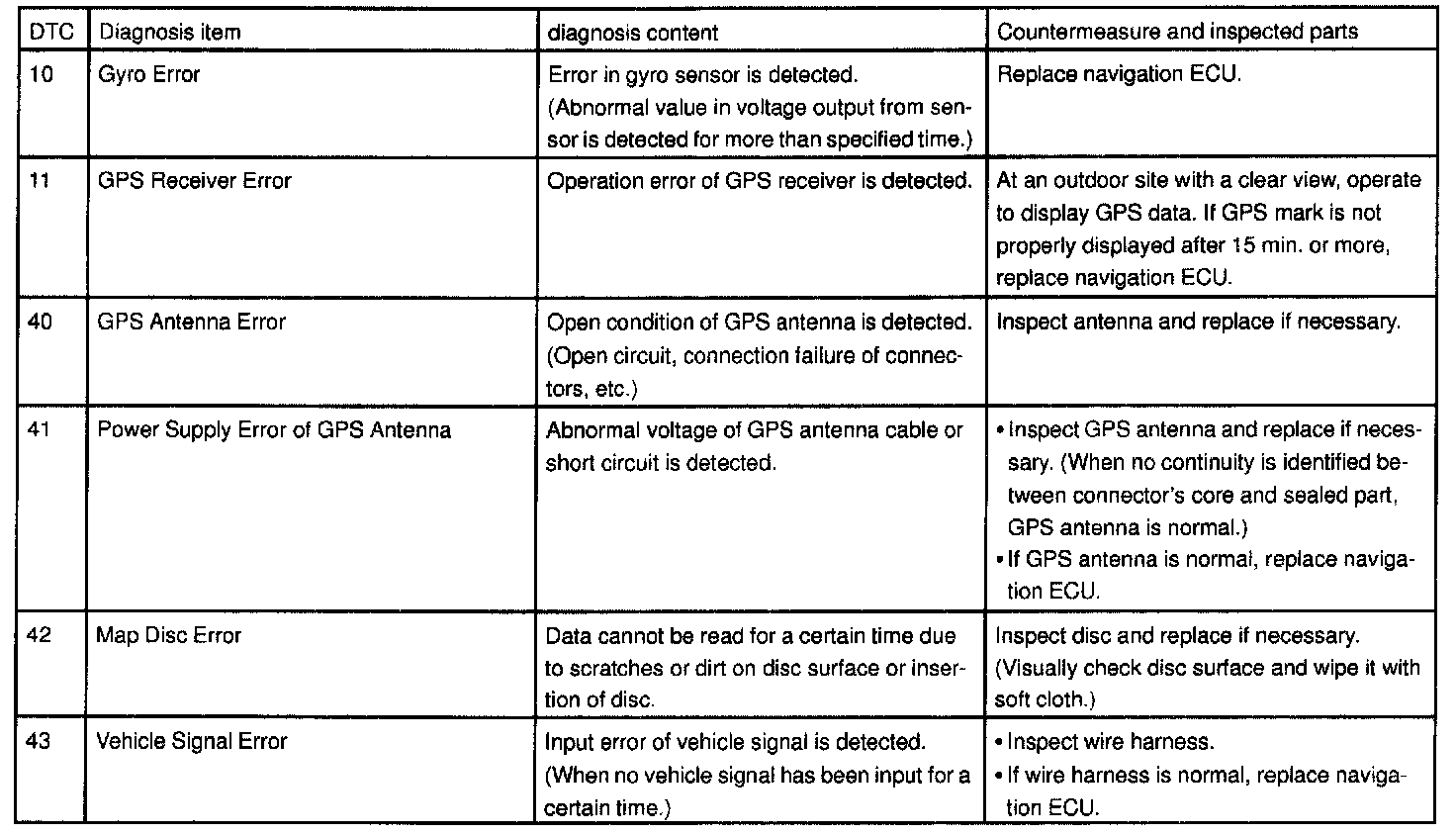

10 - 43:

b. Logical address: 58 (Navigation ECU)

4. PHYSICAL ADDRESS: 440 STEREO COMPONENT AMPLIFIER

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

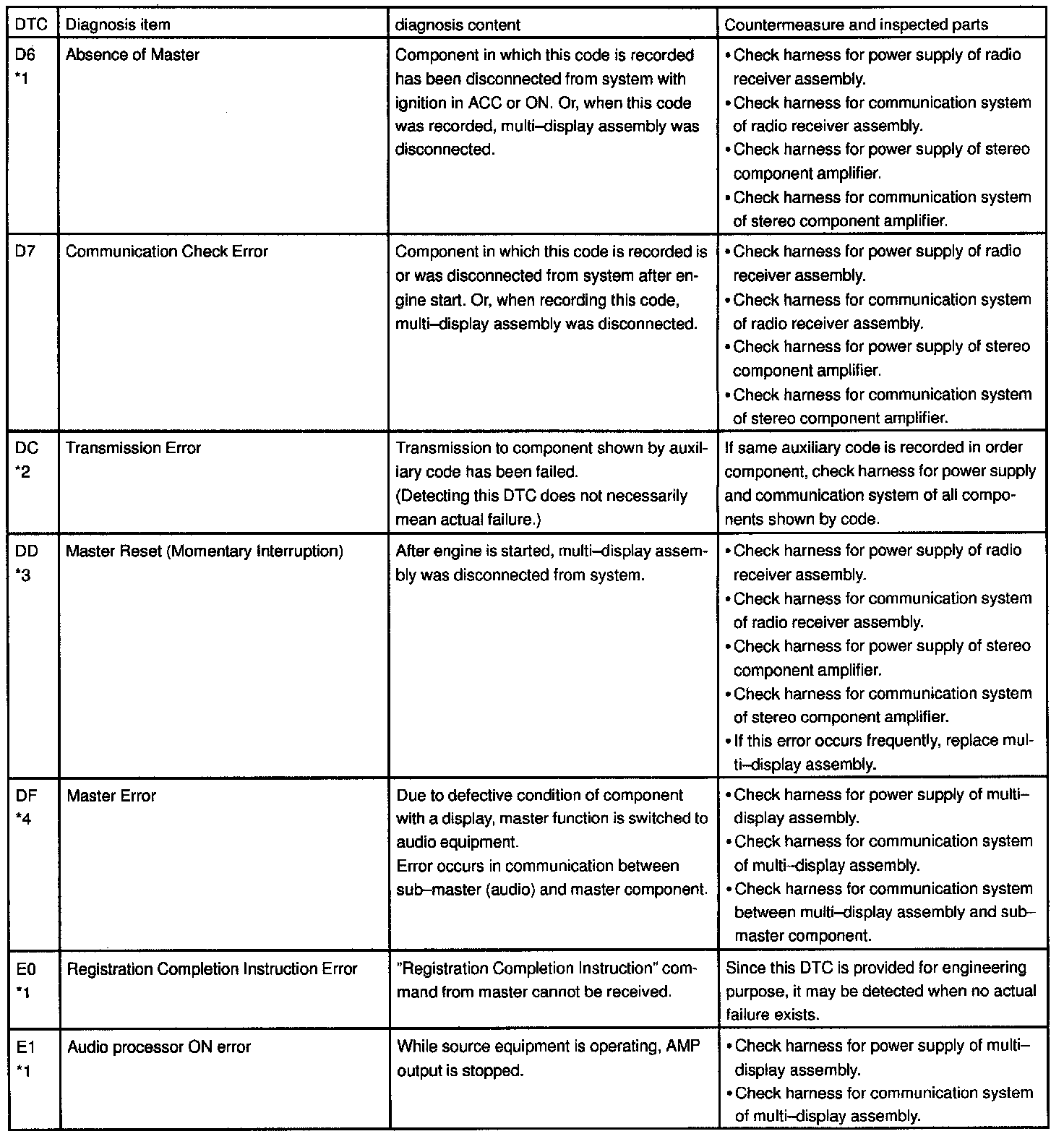

D6 - E1:

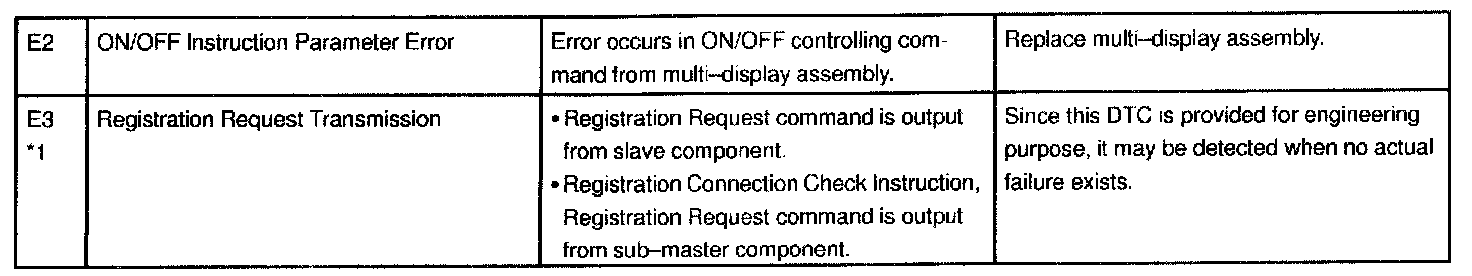

E2 - E3:

Logical address: 01 (Communication control)

5. PHYSICAL ADDRESS: 240 CD AUTO CHANGER

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It may be stored when the engine key is turned 1 min. again after engine start.
- *3: It may be stored when the engine key is turned again after engine start *4: It may be stored when the engine key is turned again after engine start
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.

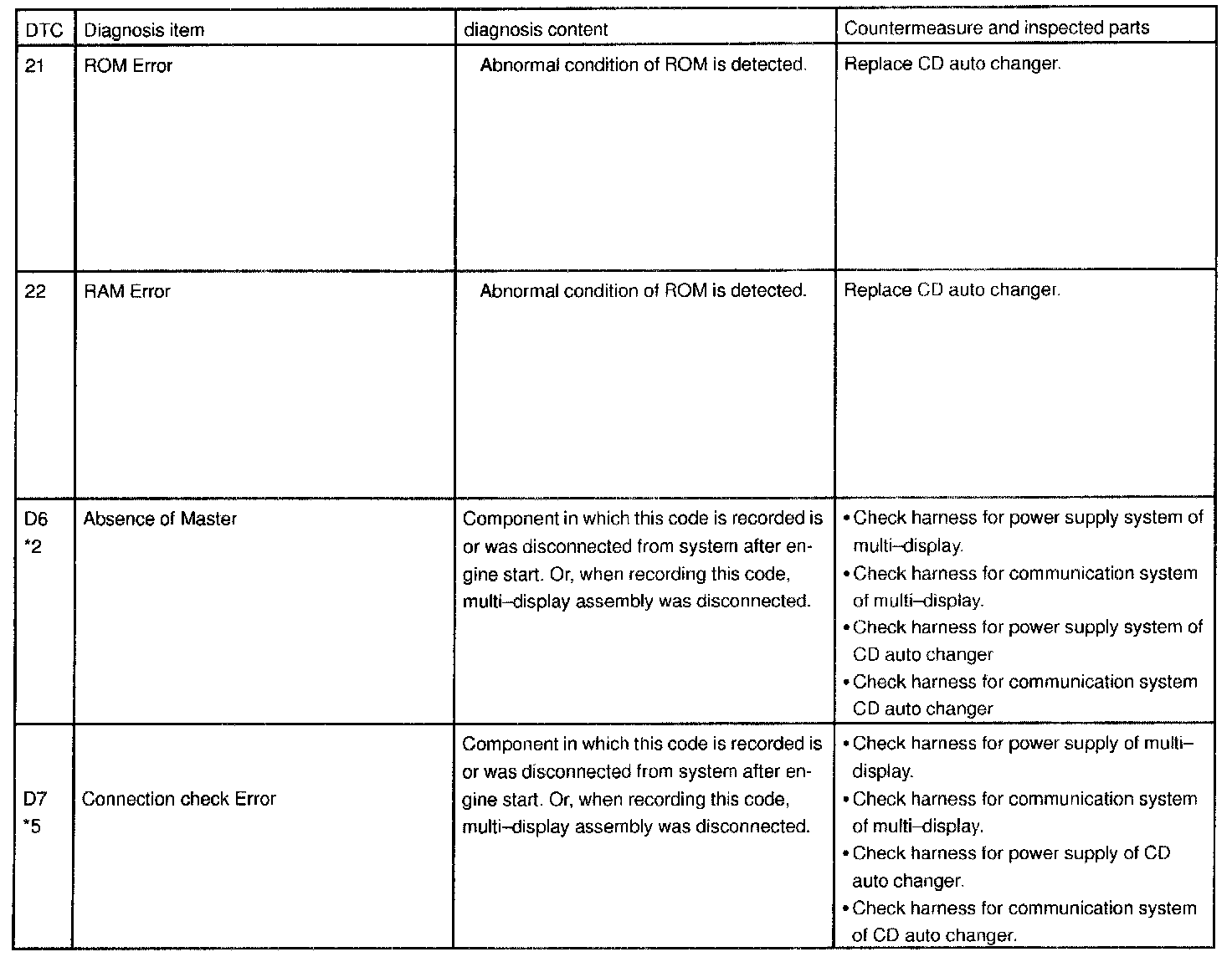

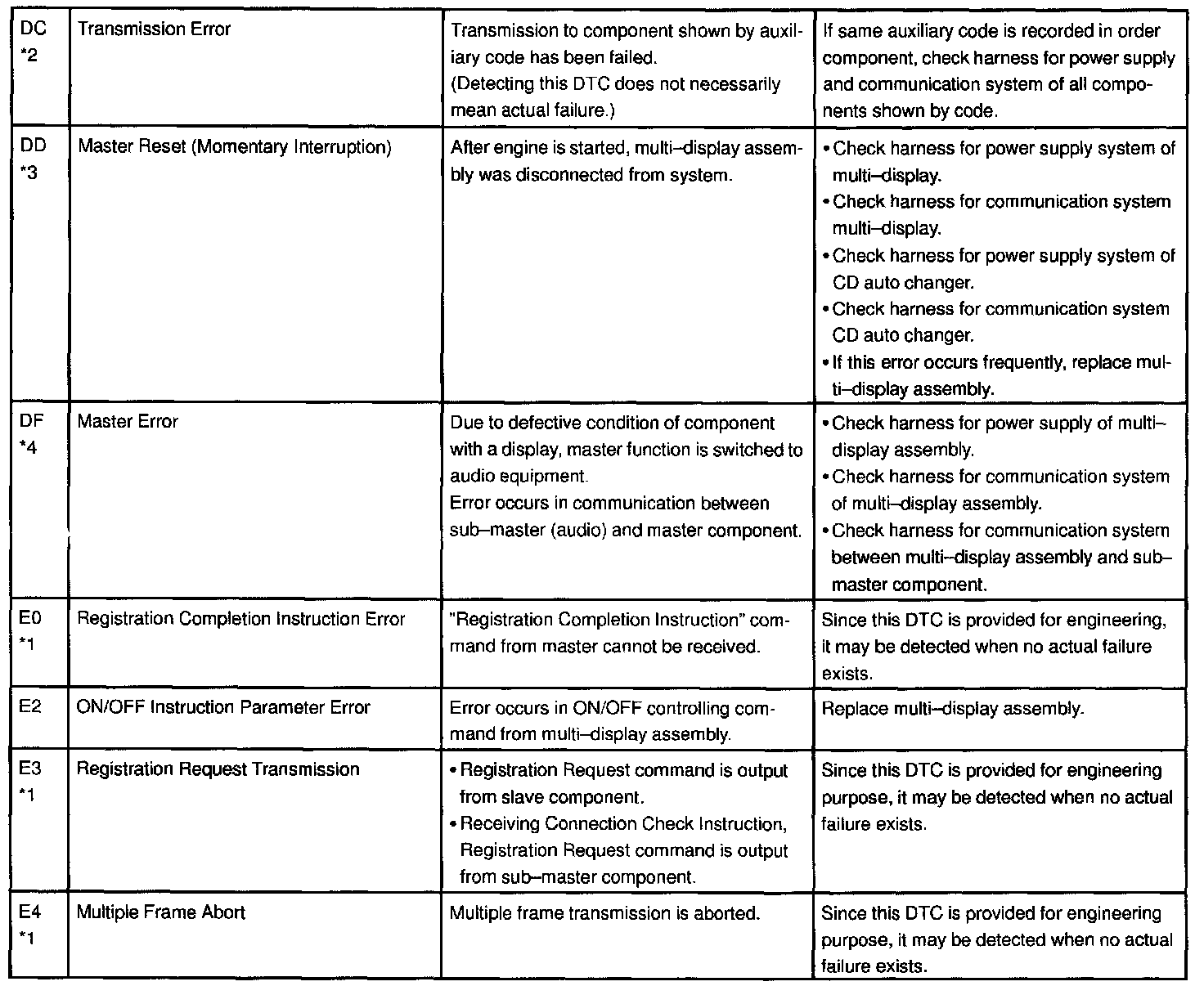

21 - D7:

DC - E4:

a. Logical address: 01 (Communication control)

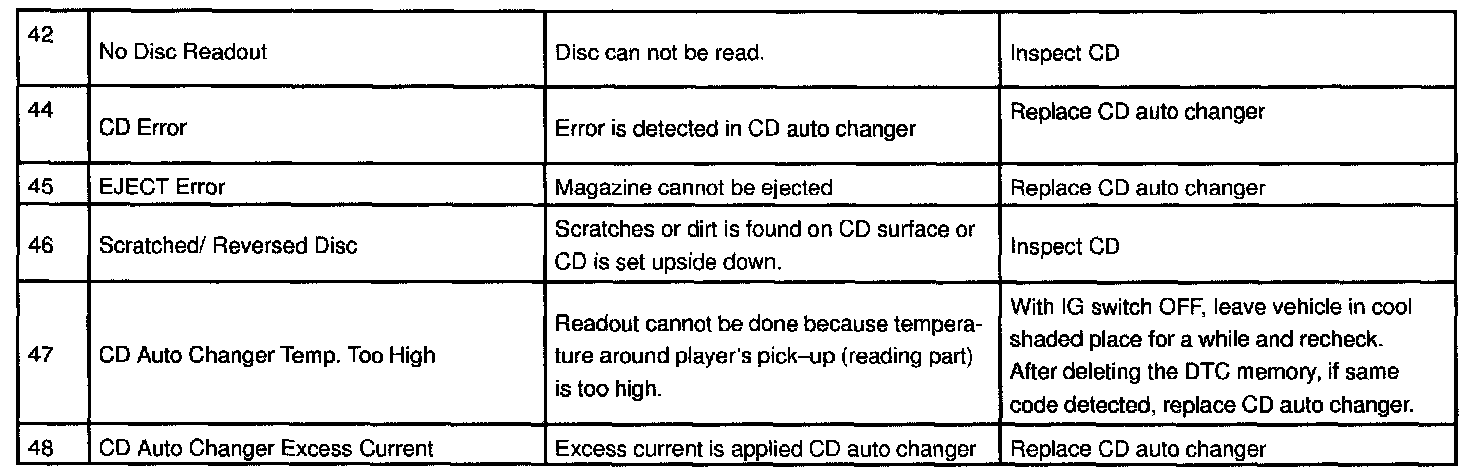

42 - 48:

b. Logical address: 63 (CD auto changer)
