Automatic Transmission System

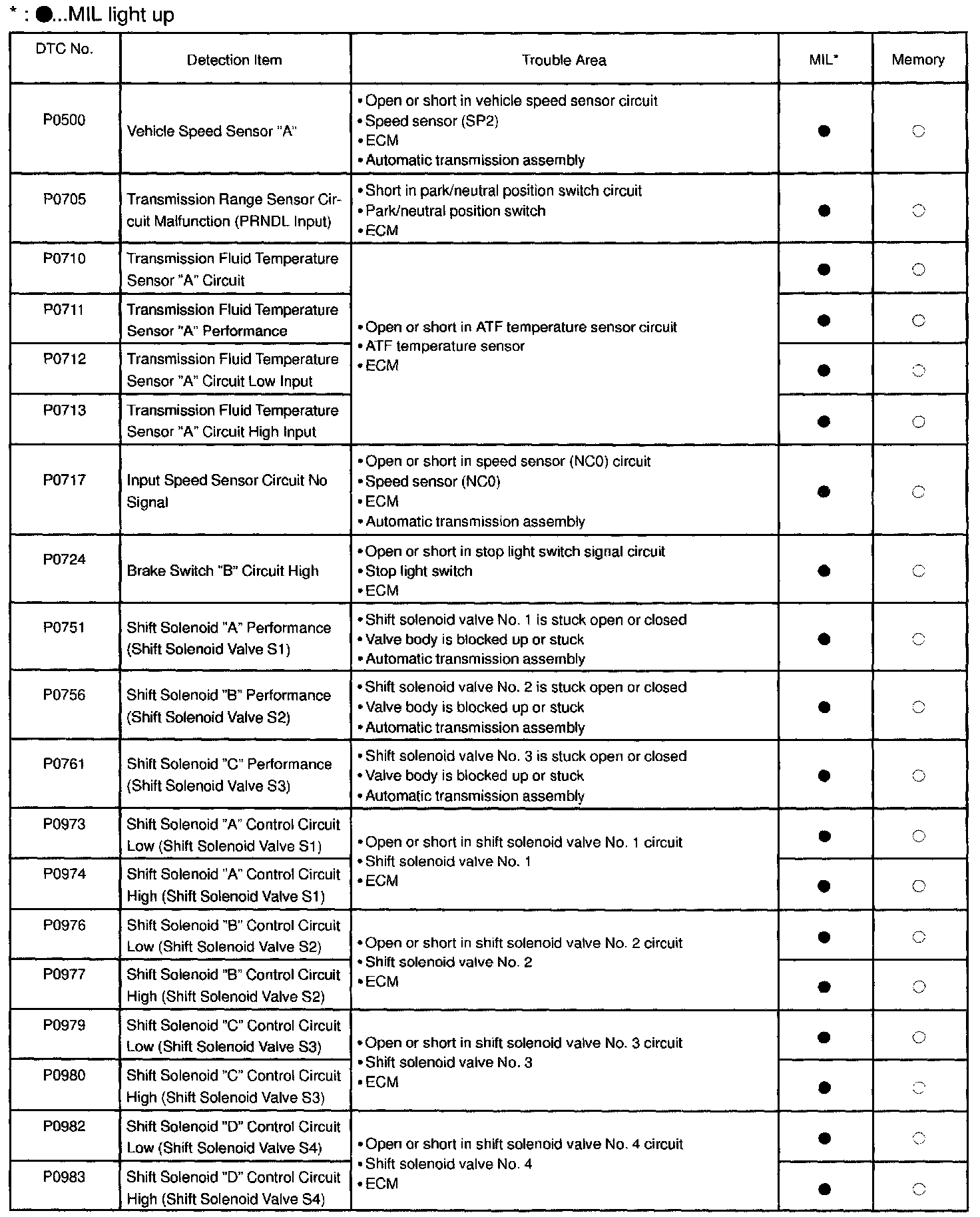

DIAGNOSTIC TROUBLE CODE CHART

P0500 - P0983:

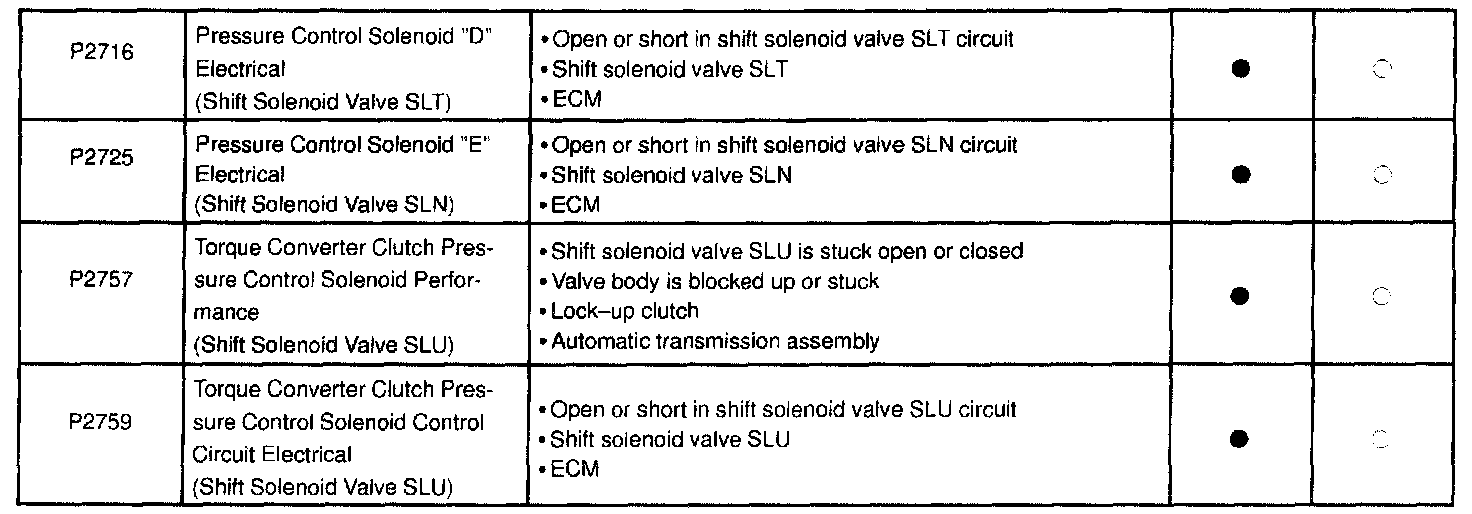

P2716 - P2759:




If a DTC is displayed during the DTC check, check the circuit listed in the table and proceed to the corresponding troubleshooting.
