ABS W/Hydraulic Brake Booster Power Supply System

DIAGNOSTIC TROUBLE CODE CHART

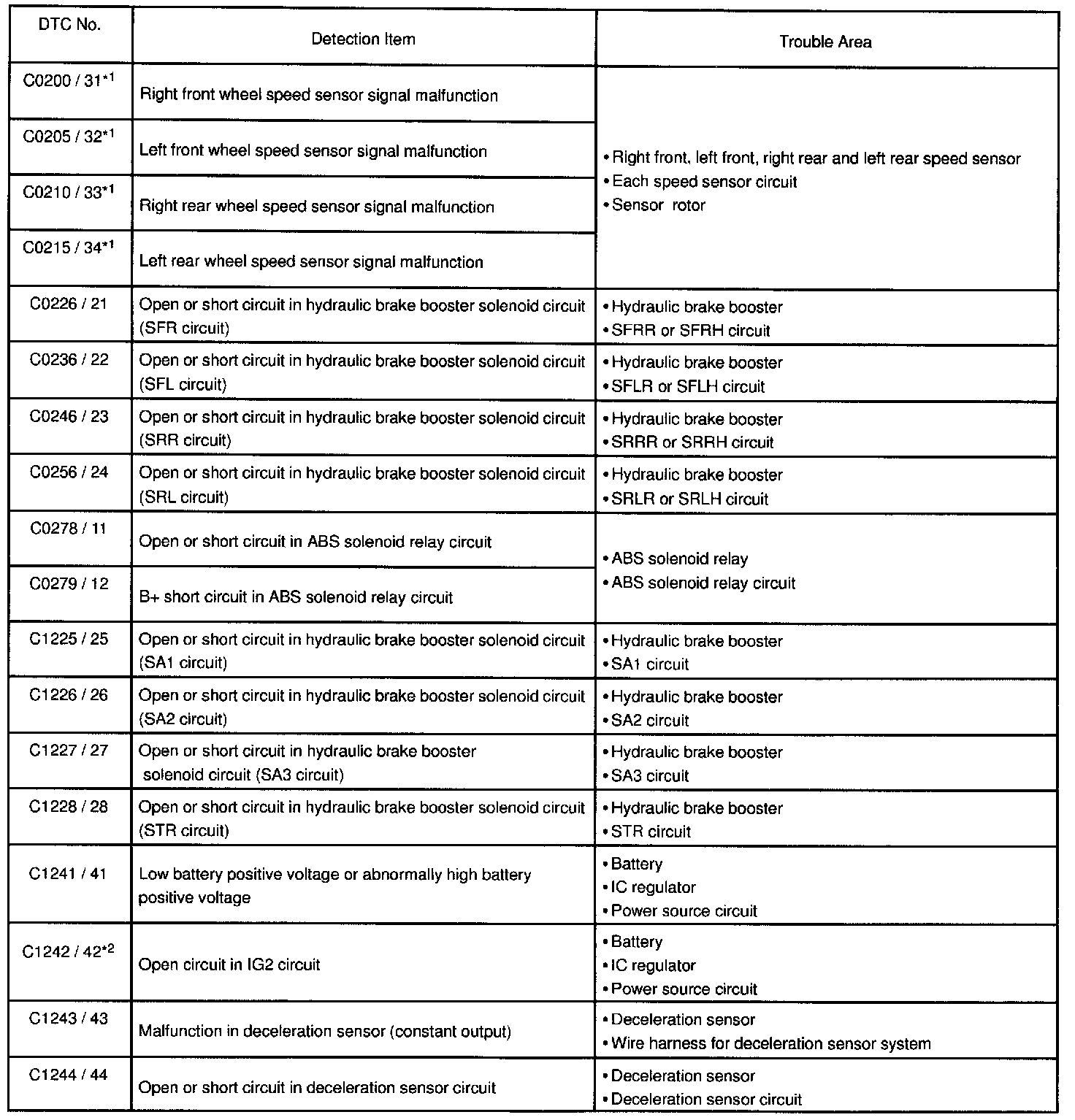

C0200/31 - C1244/44:

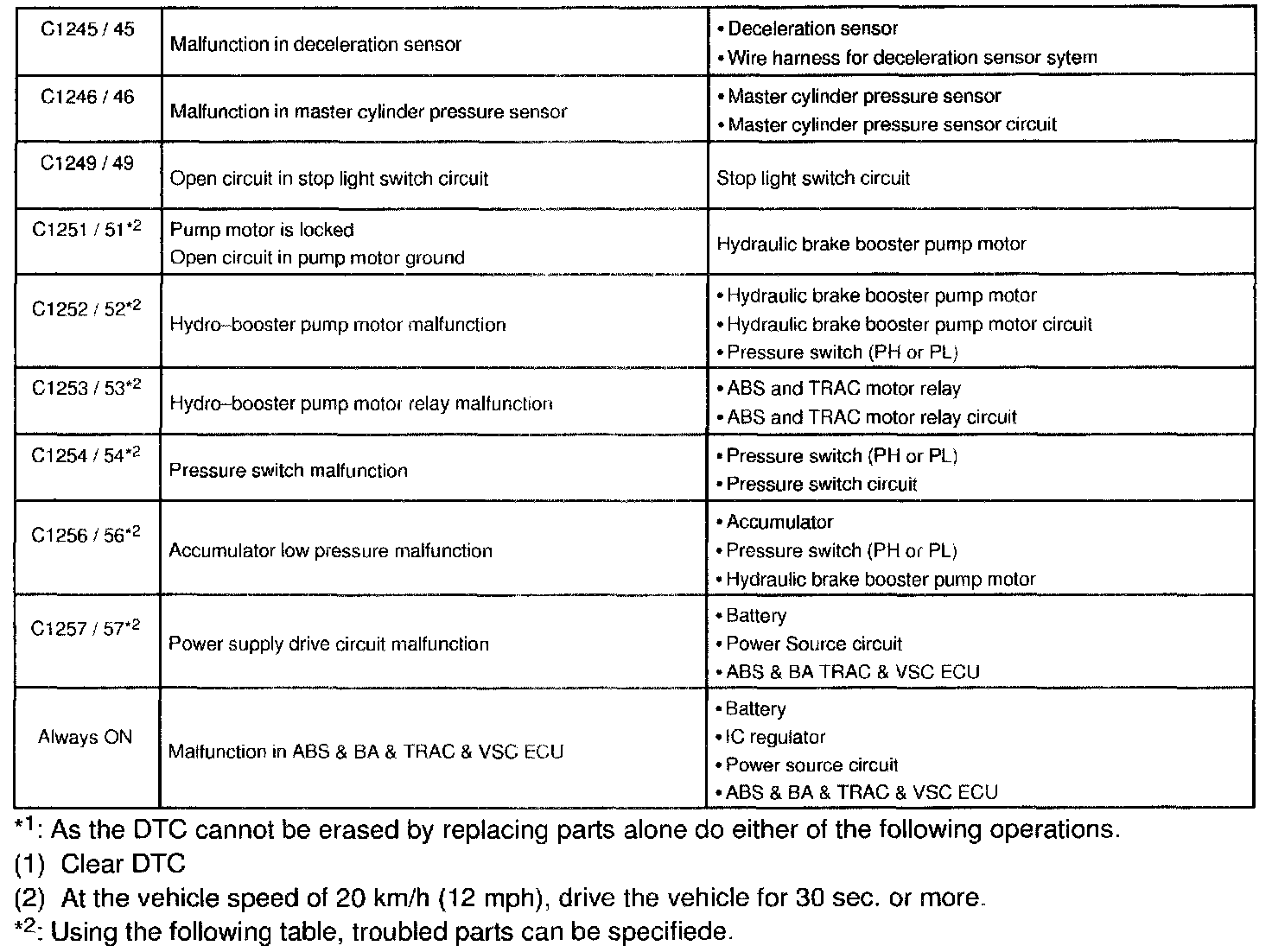

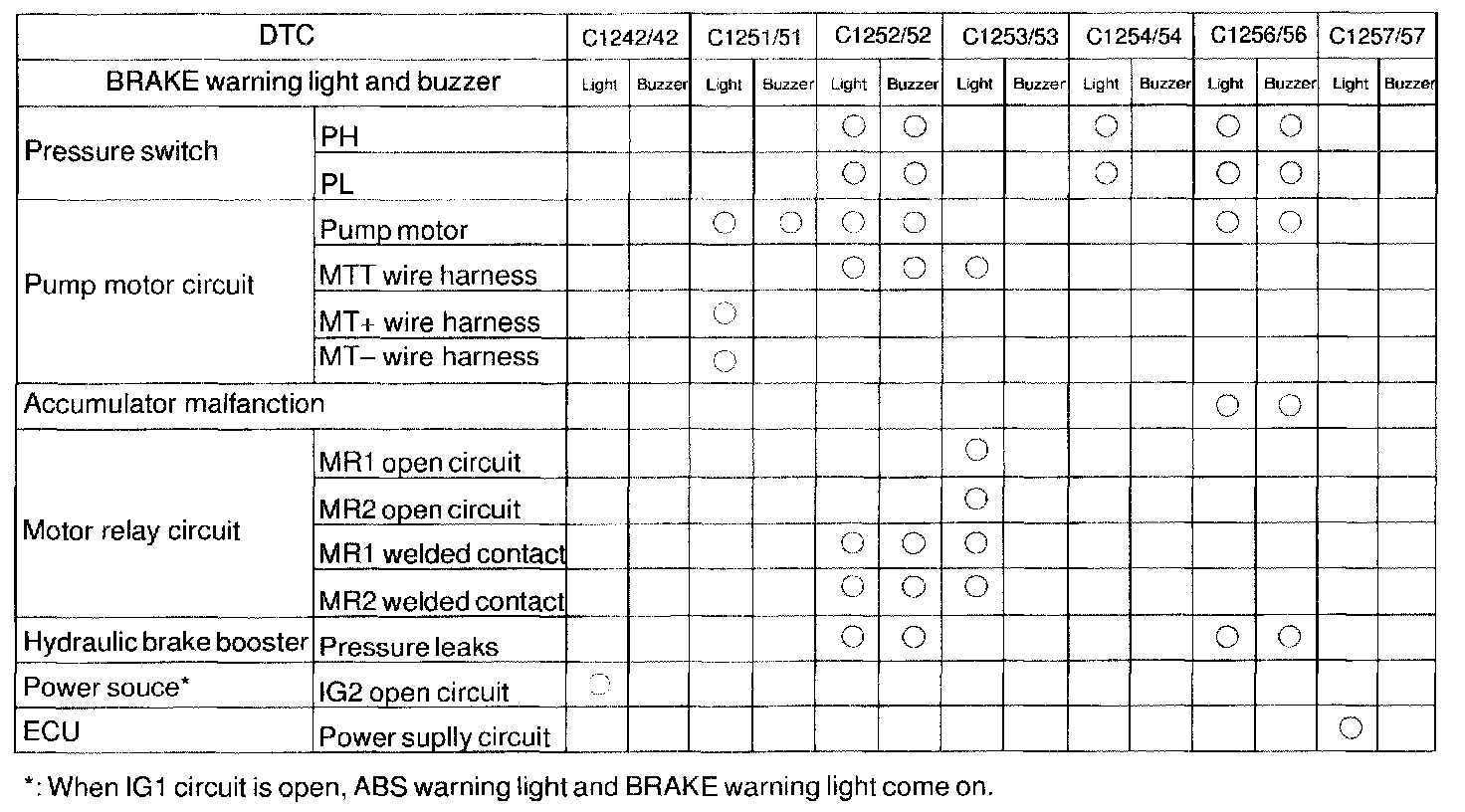

C1245/45 - Always ON:

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020, connect the terminals Tc and E1 of DLC1 and remove the short pin of DLC1.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed that code. For details of each code, turn to the respective "DTC No." in the DTC chart.




Check the DTC of the sensor function.
