C1252

DTC C1252 Hydraulic brake booster Pump Motor ON Time Abnormally Long

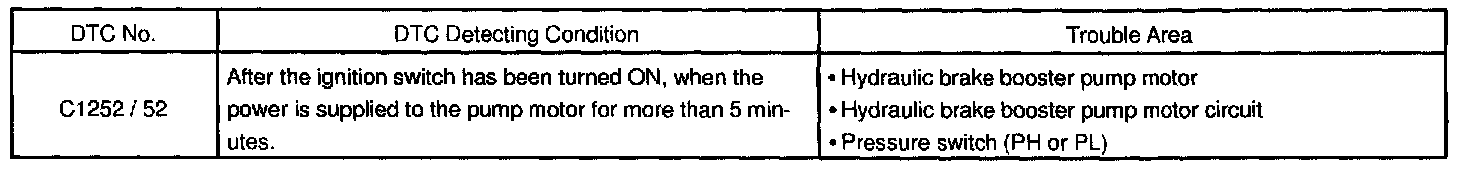

DTC Detecting Condition:

CIRCUIT DESCRIPTION

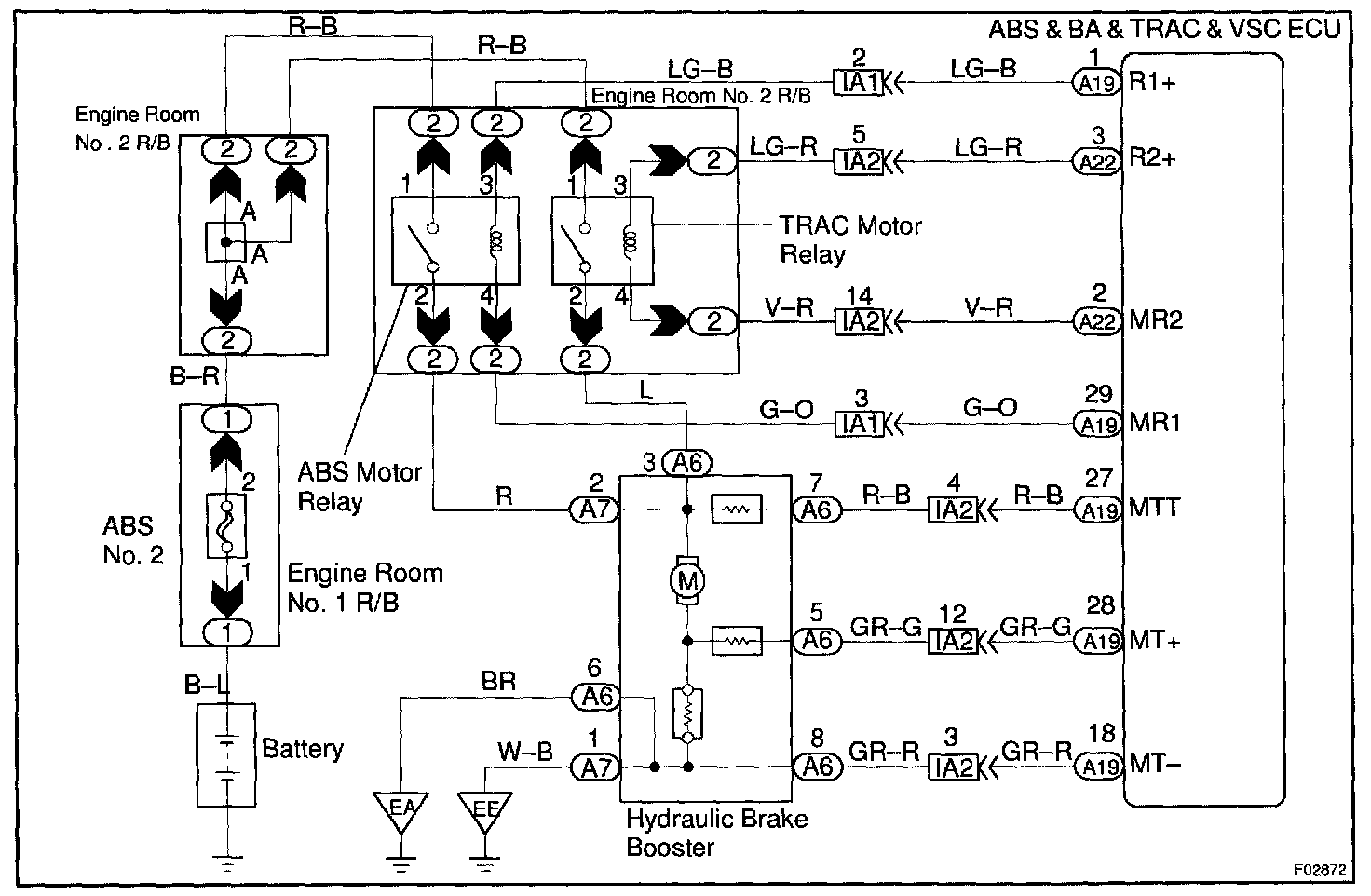

Wiring Diagram:

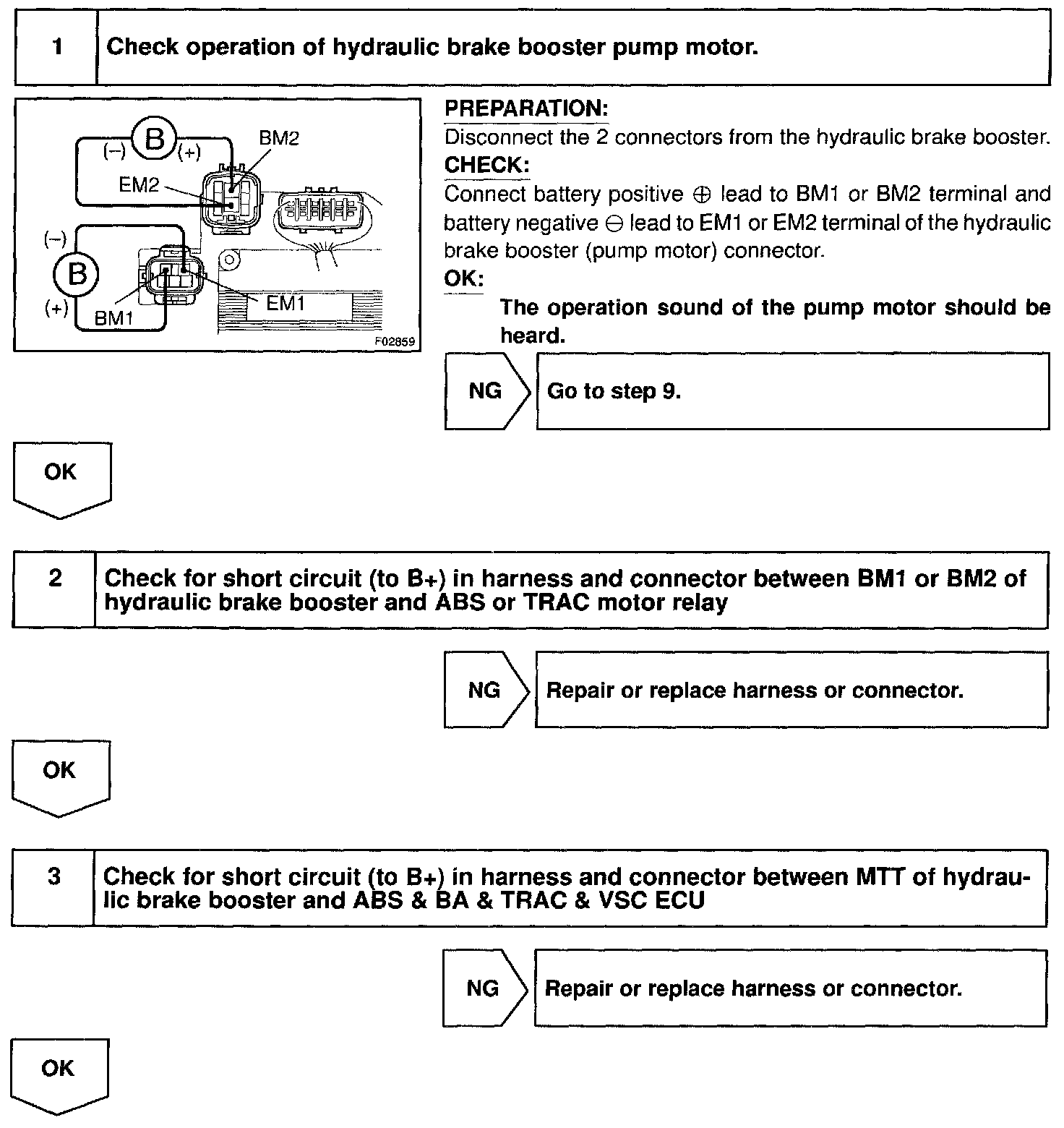

Step 1 - 3:

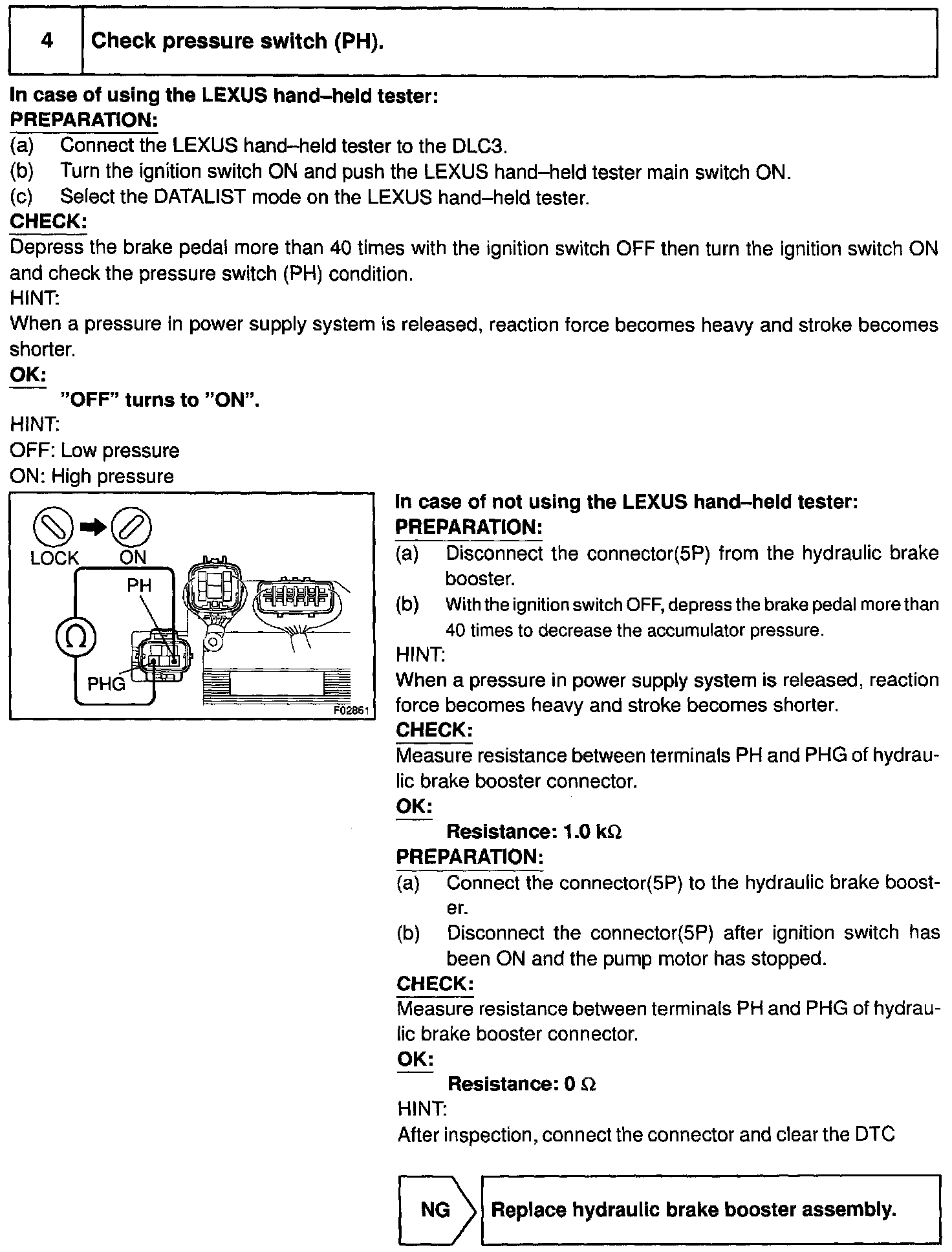

Step 4:

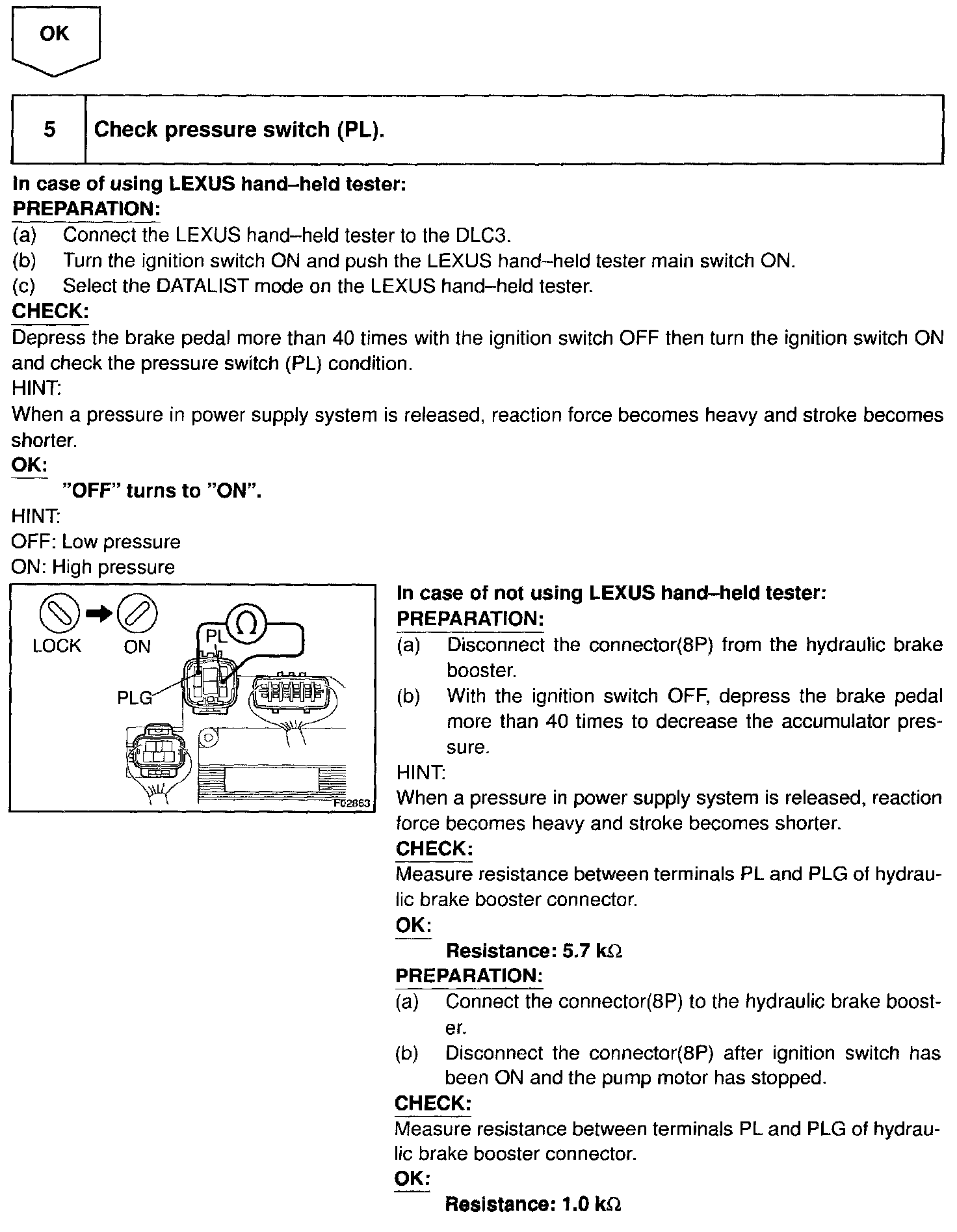

Step 4 (continued) - 5:

Step 5 (continued) - 7:

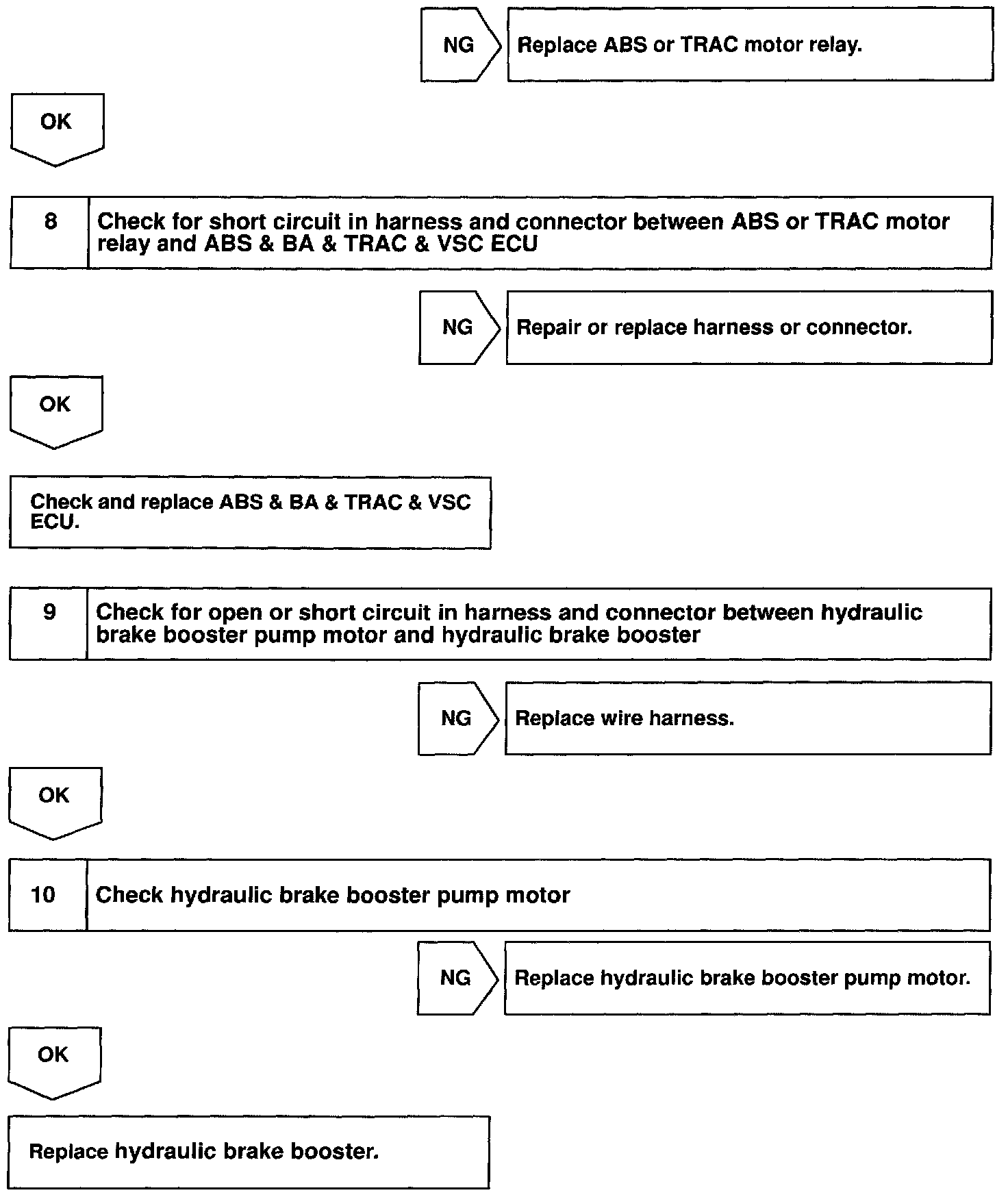

Step 7 (continued) - 10:

INSPECTION PROCEDURE
