C1251
C1251
DTC C1251 Hydraulic Brake Booster Pump Motor Malfunction

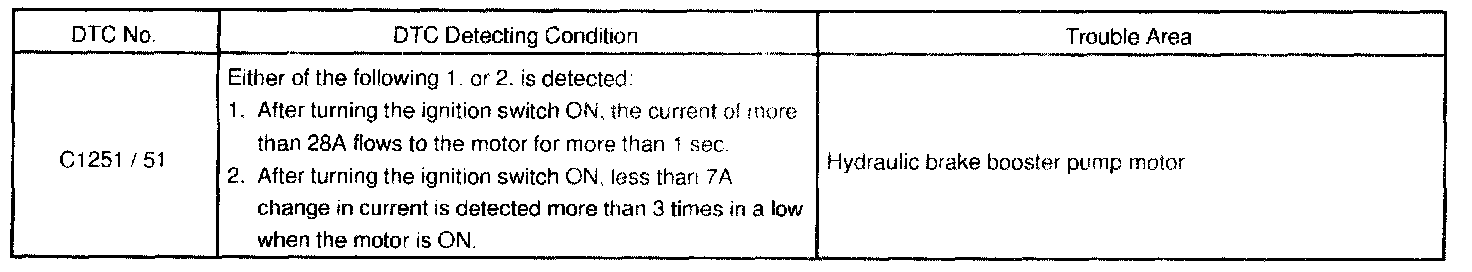

DTC Detecting Condition:
CIRCUIT DESCRIPTION

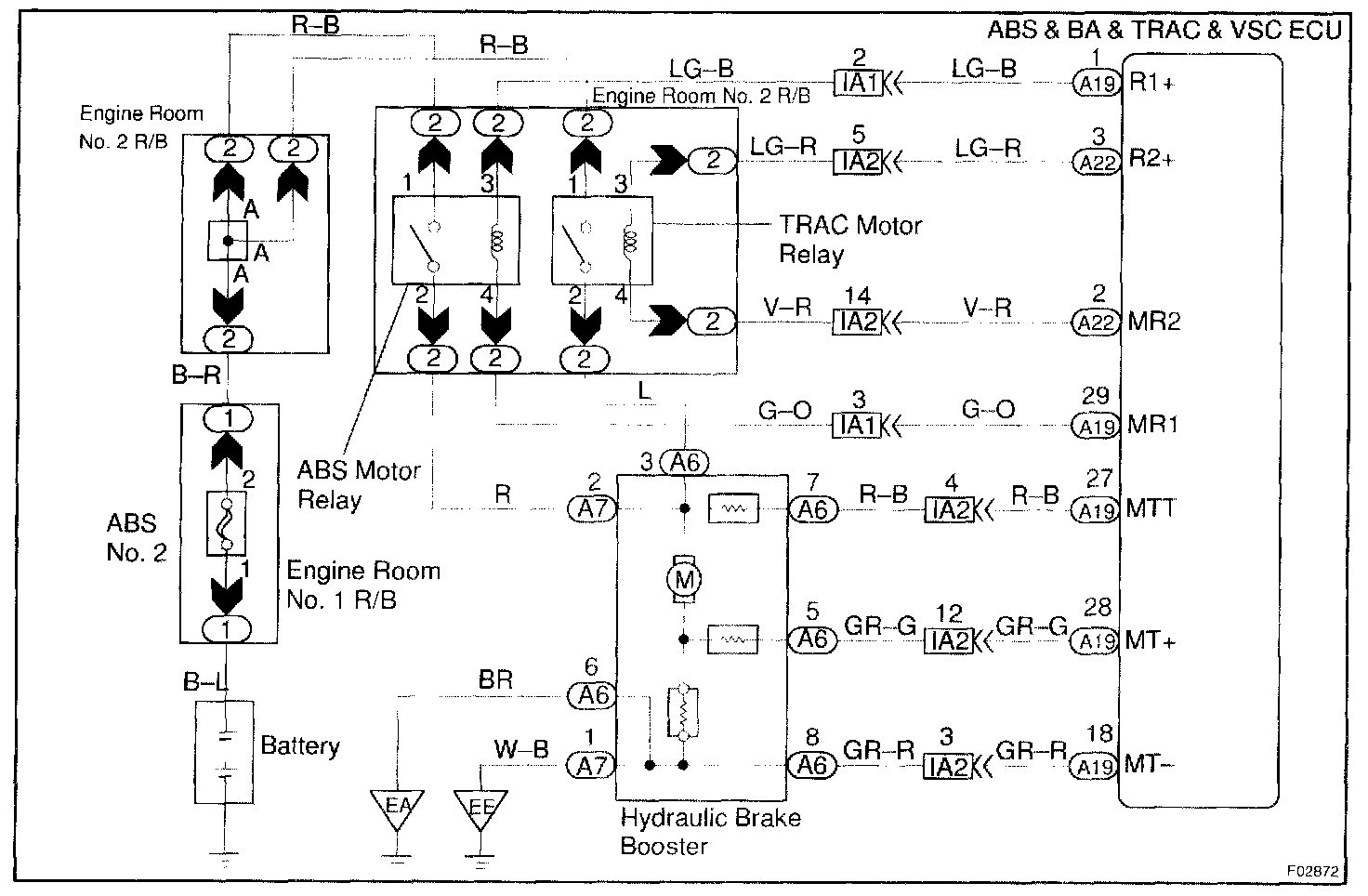

Wiring Diagram:

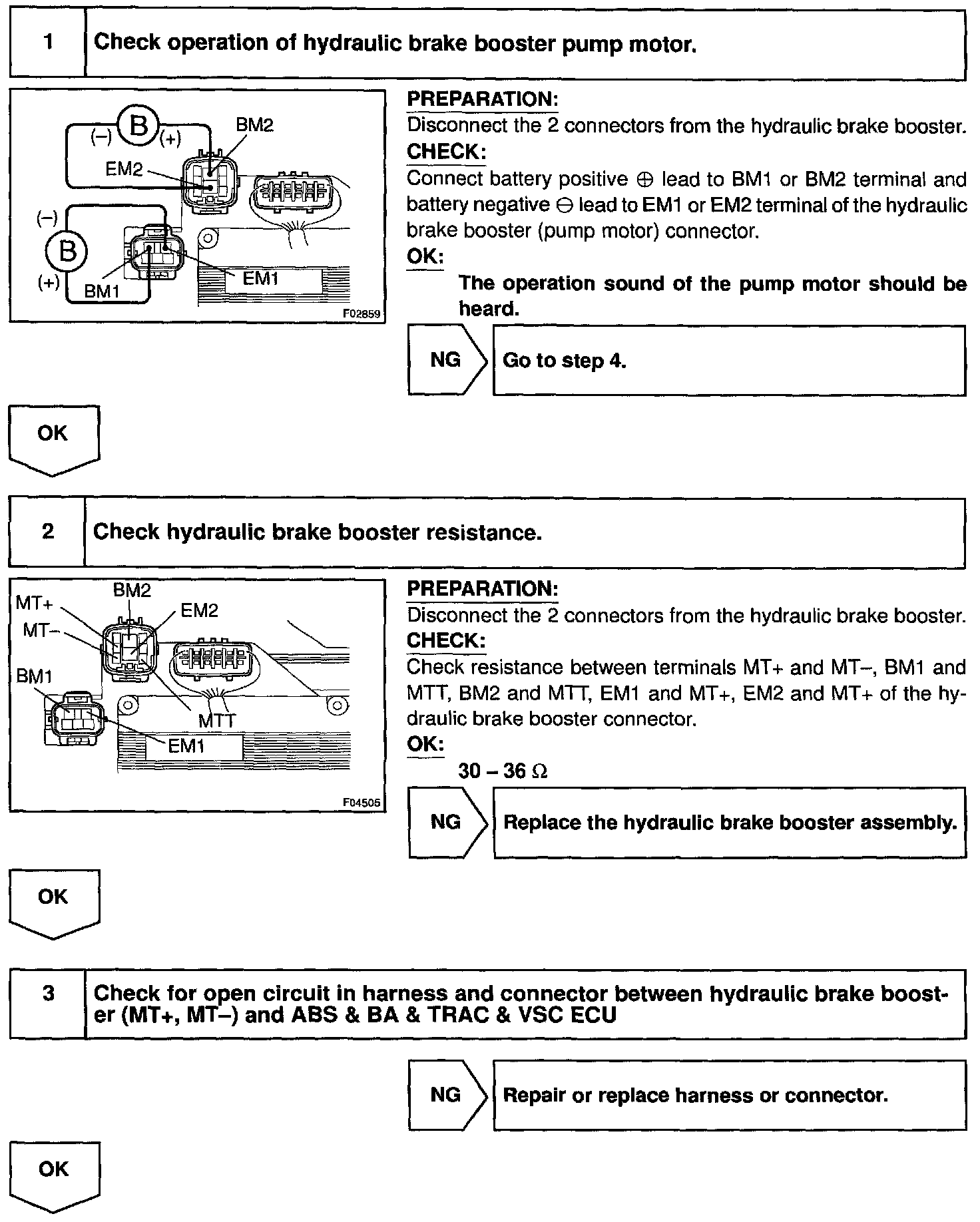

Step 1 - 3:

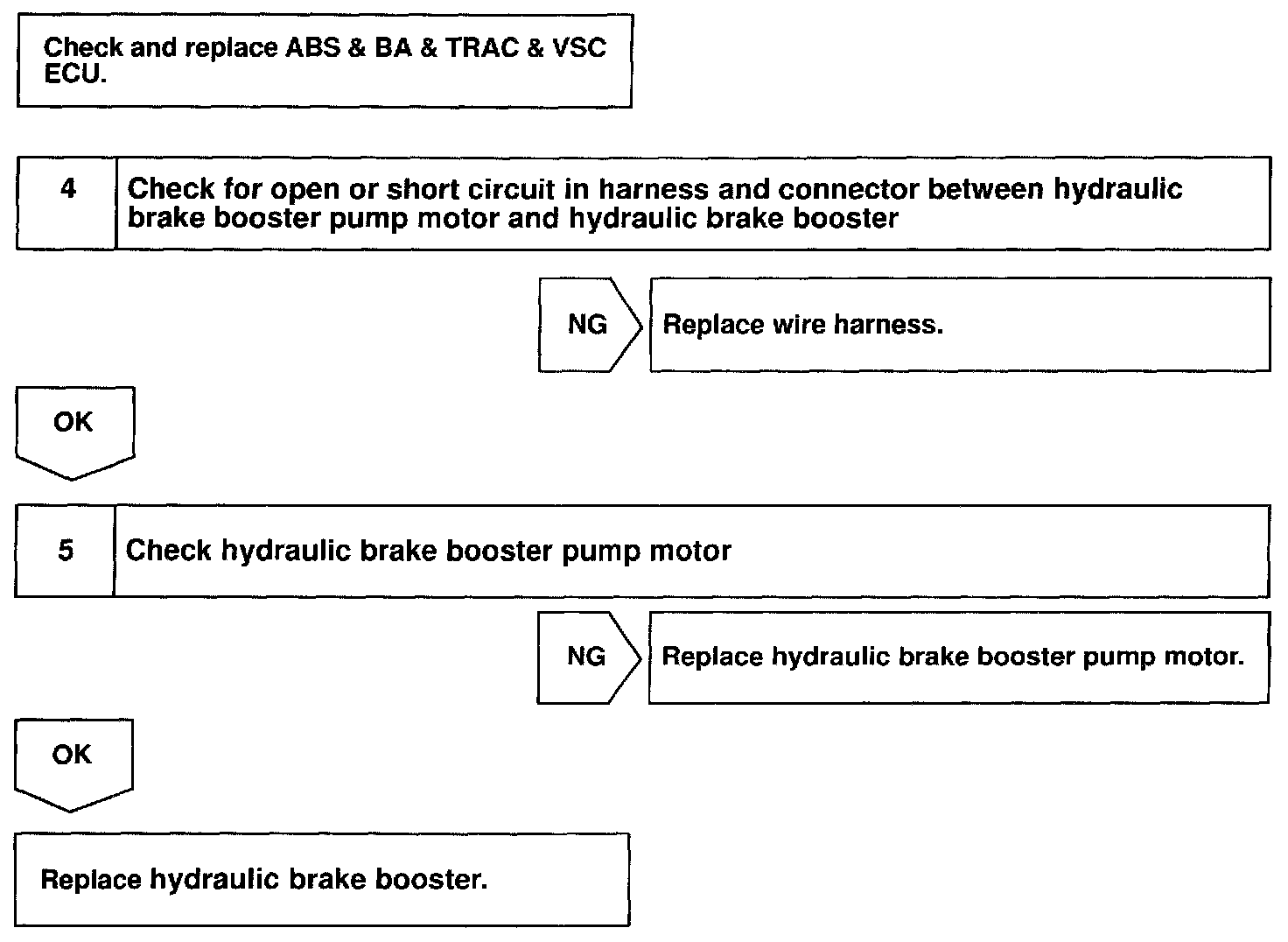

Step 3 (continued) - 5:
INSPECTION PROCEDURE
