B2611

DTC B2611 Telescopic Position Sensor or Telescopic Motor Circuit Malfunction

CIRCUIT DESCRIPTION

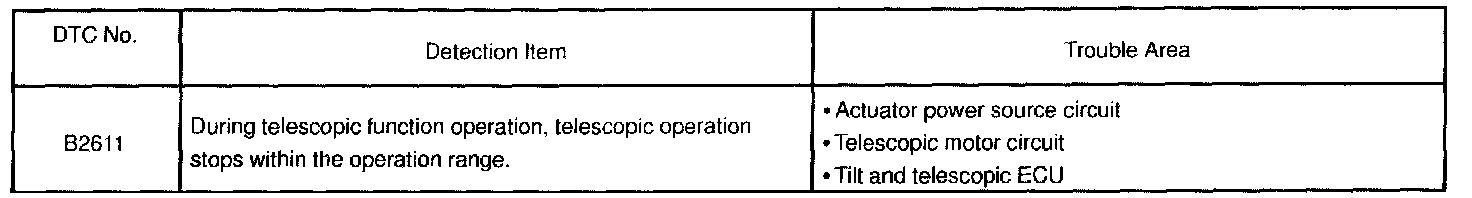

Detection Item:

Telescopic motor is operated by the power voltage supplied from tilt and telescopic ECU and makes the steering column slide forward and rearward. Telescopic position sensor (Hole IC) in the tilt and telescopic ECU detects the sliding position of the forward and rearward direction of the steering column and outputs the signal to the CPU in response to that sliding amount.

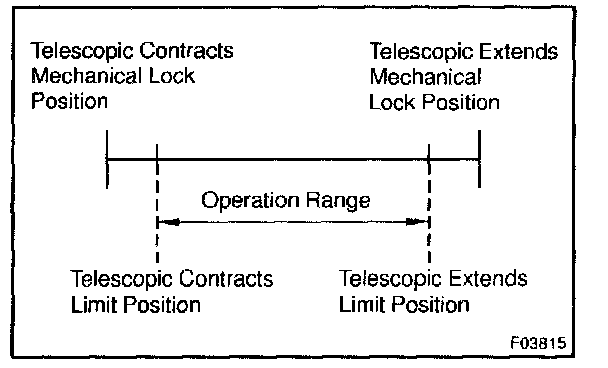

HINT: Limit positions can be confirmed on the screen of the LEXUS hand-held tester.

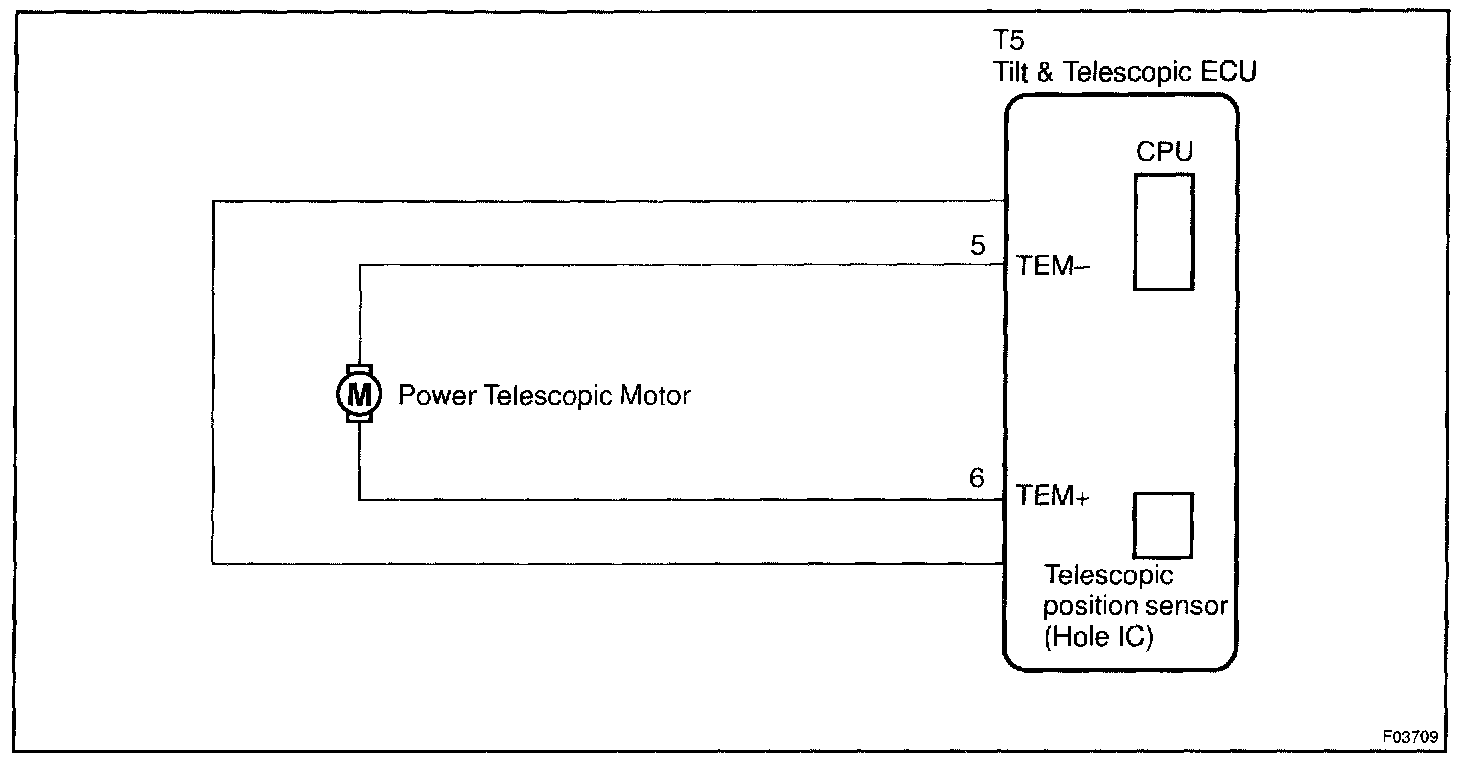

Wiring Diagram:

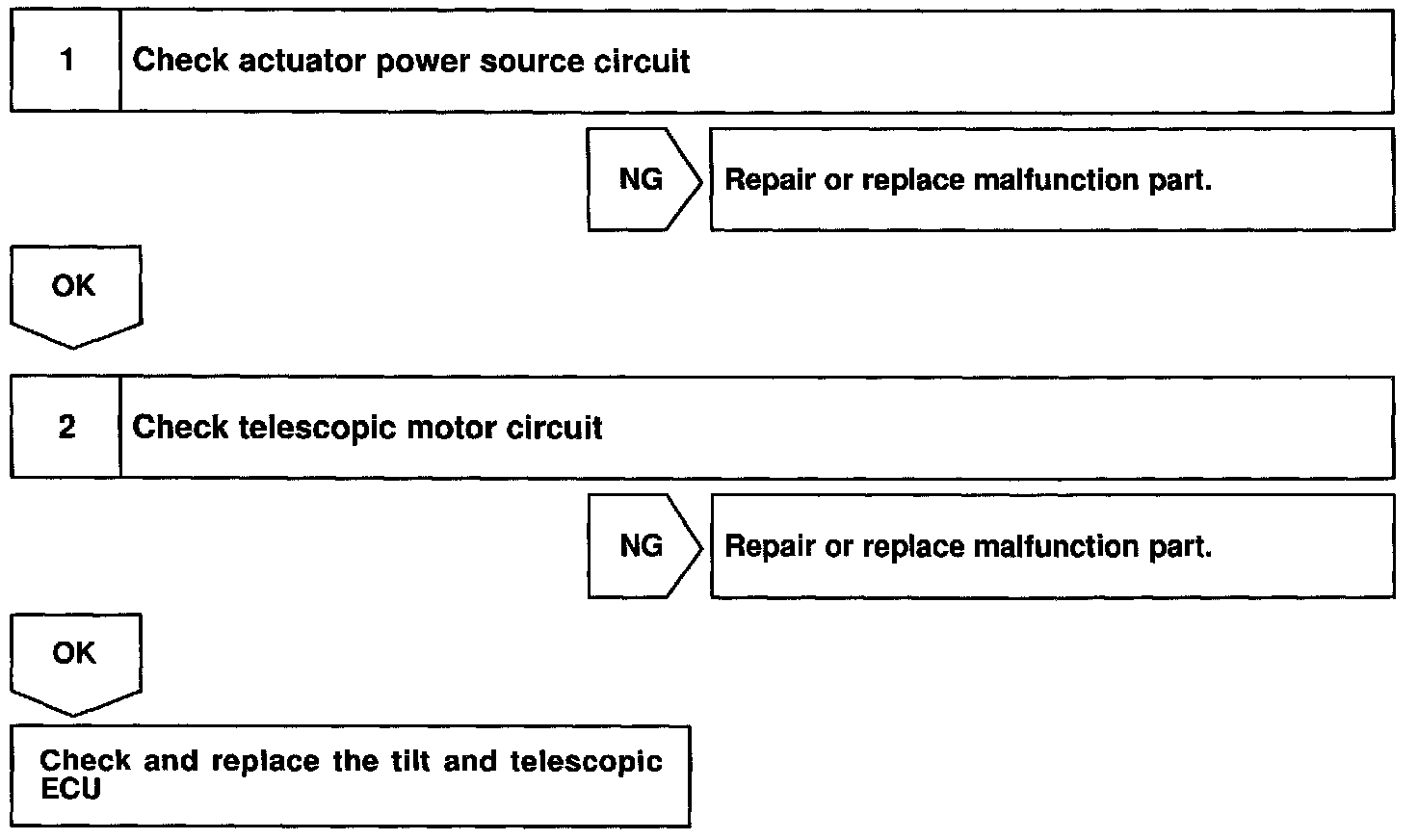

Step 1 - 2:

INSPECTION PROCEDURE
