B1273

DTC B1273 Sliding roof ECU communication stop (w/ Sliding roof vehicle only)

CIRCUIT DESCRIPTION

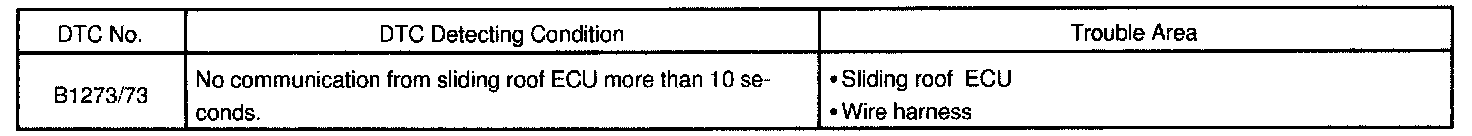

DTC Detecting Condition:

This DTC is output when communication stops between sliding roof ECU and Body ECU No. 1.

Wiring Diagram:

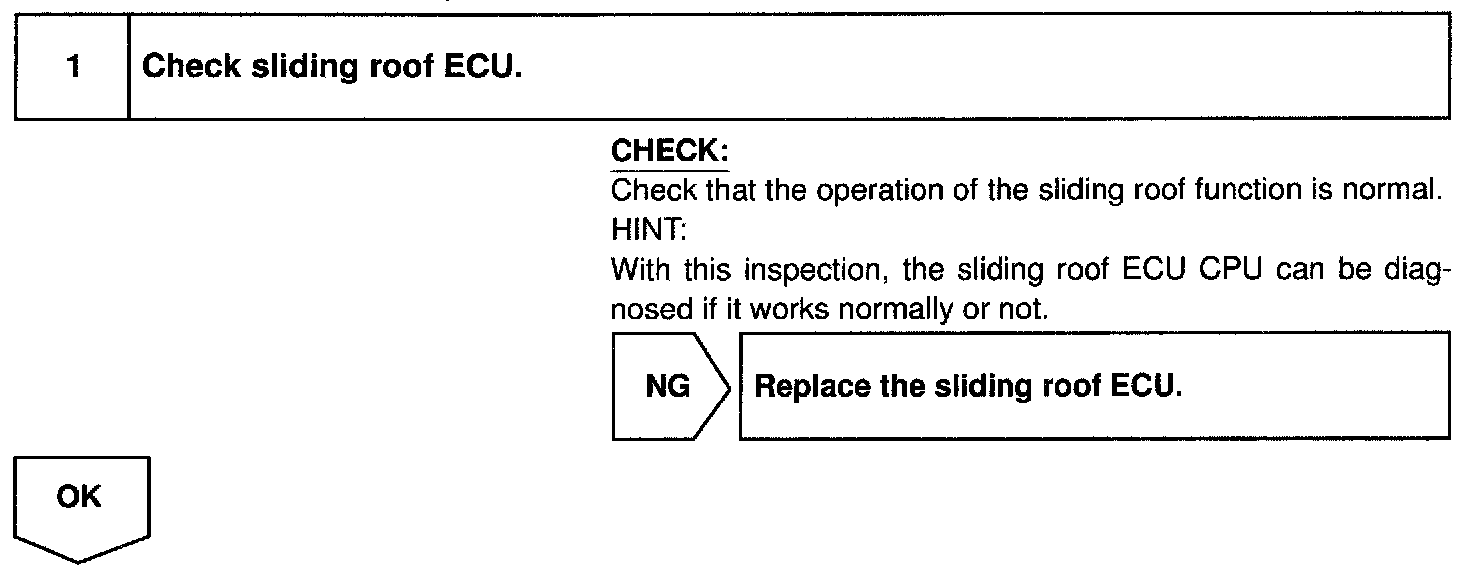

Step 1:

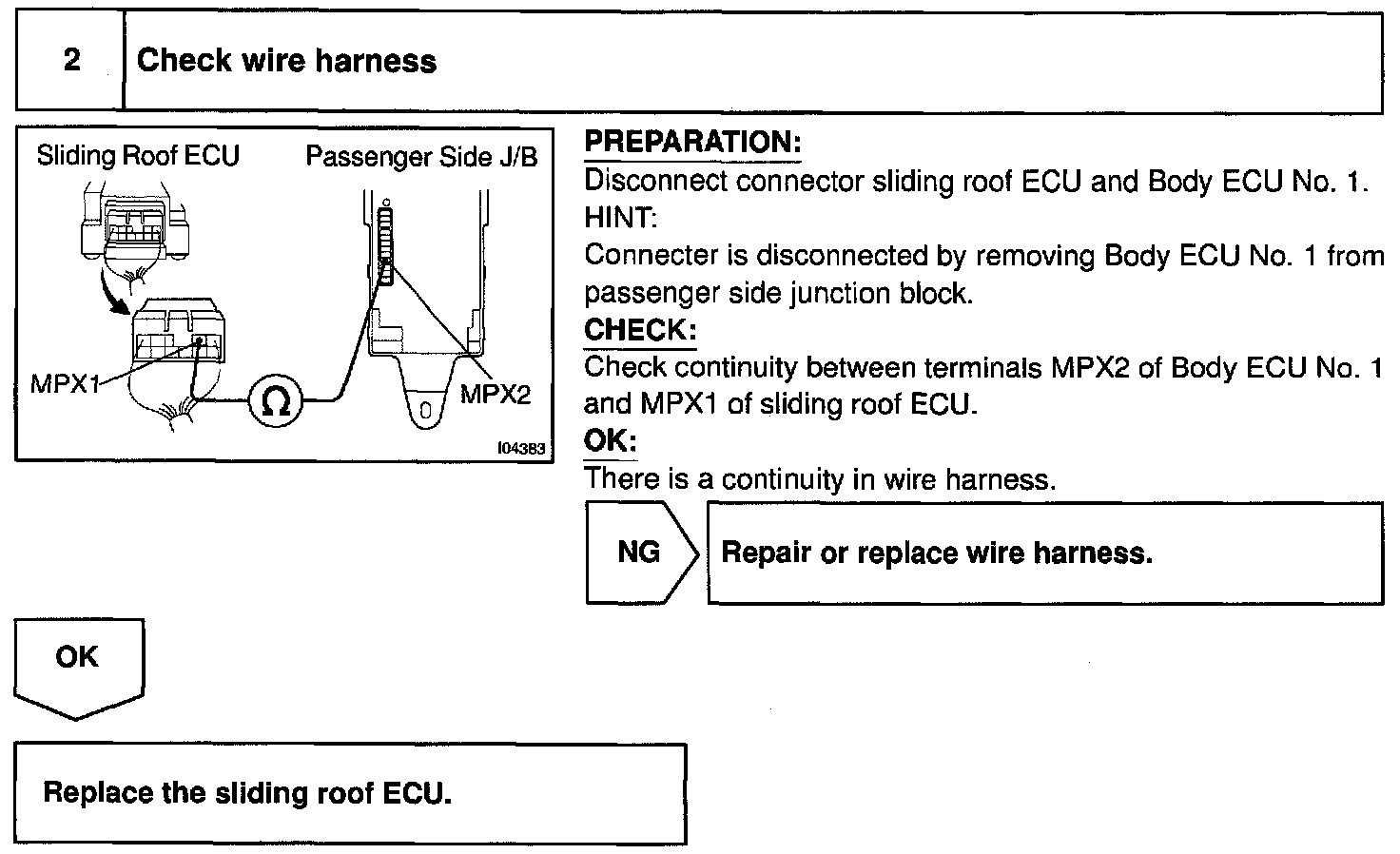

Step 2:

INSPECTION PROCEDURE
