B1262

DTC B1262 A/C amplifier communication stop

CIRCUIT DESCRIPTION

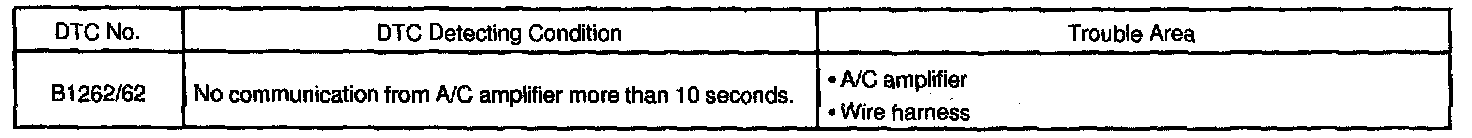

DTC Detecting Condition:

This DTC is output when communication stops between A/C amplifier and Body ECU No. 1.

Wiring Diagram:

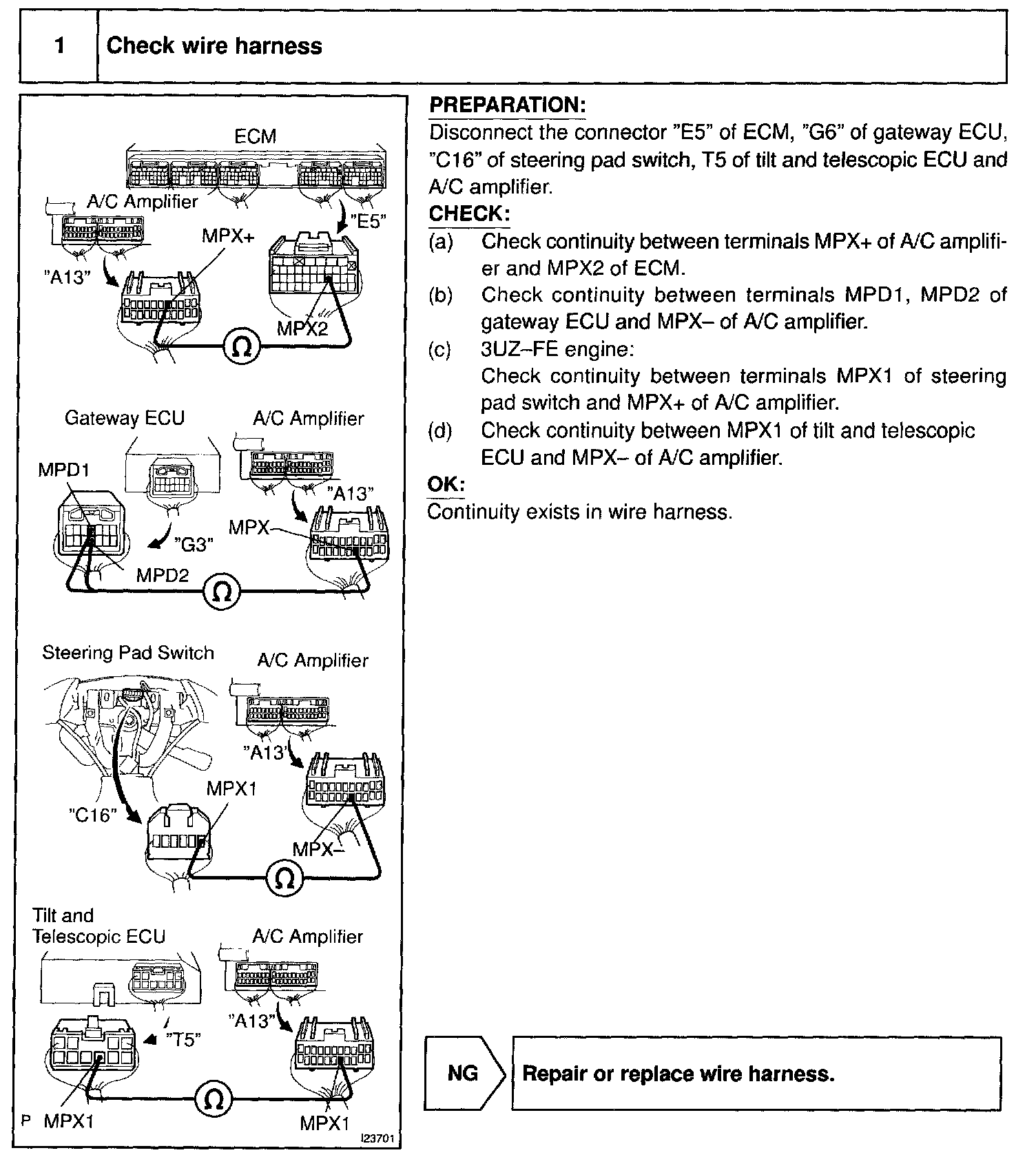

Step 1:

Step 1 (continued):

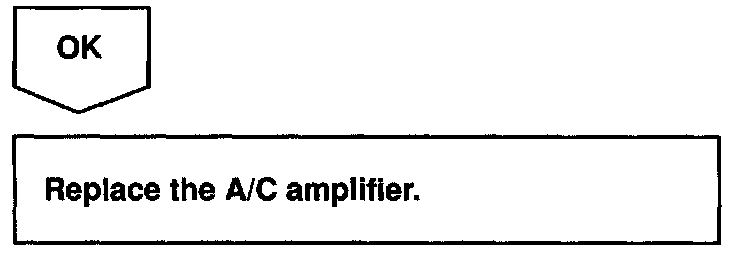

INSPECTION PROCEDURE
