DTC B1165 Short in Curtain Shield Squib LH Circuit

CIRCUIT DESCRIPTION

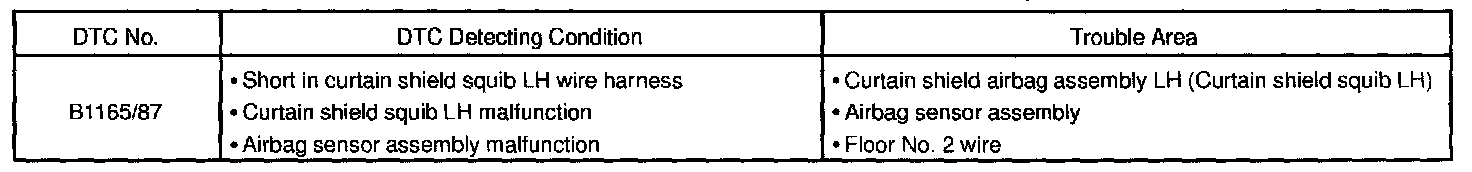

DTC Detecting Condition:

The curtain shield squib LH circuit consists of the airbag sensor assembly and the curtain shield airbag assembly LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1165/87 is recorded when a short is detected in the curtain shield squib LH circuit.

Wiring Diagram:

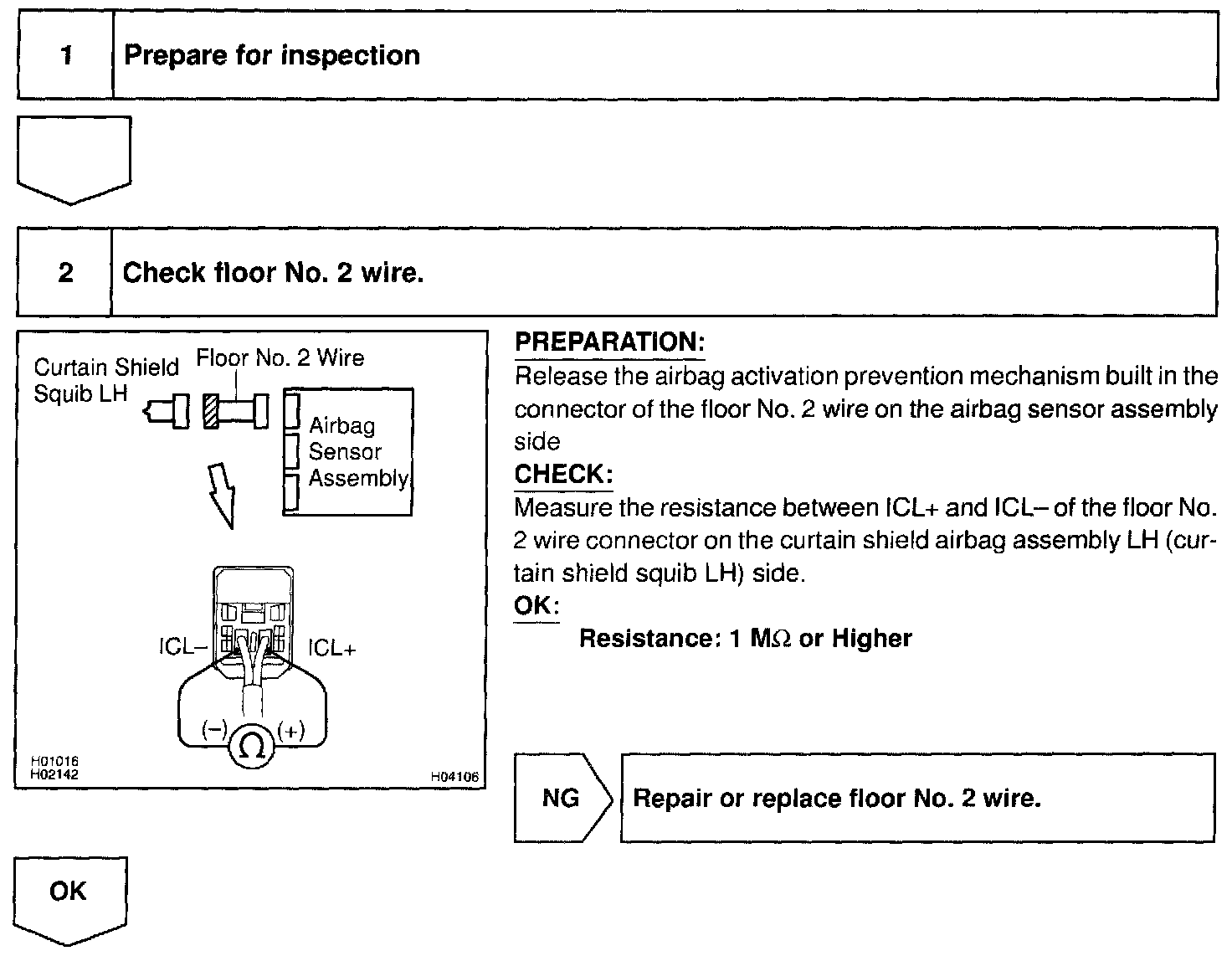

Step 1 - 2:

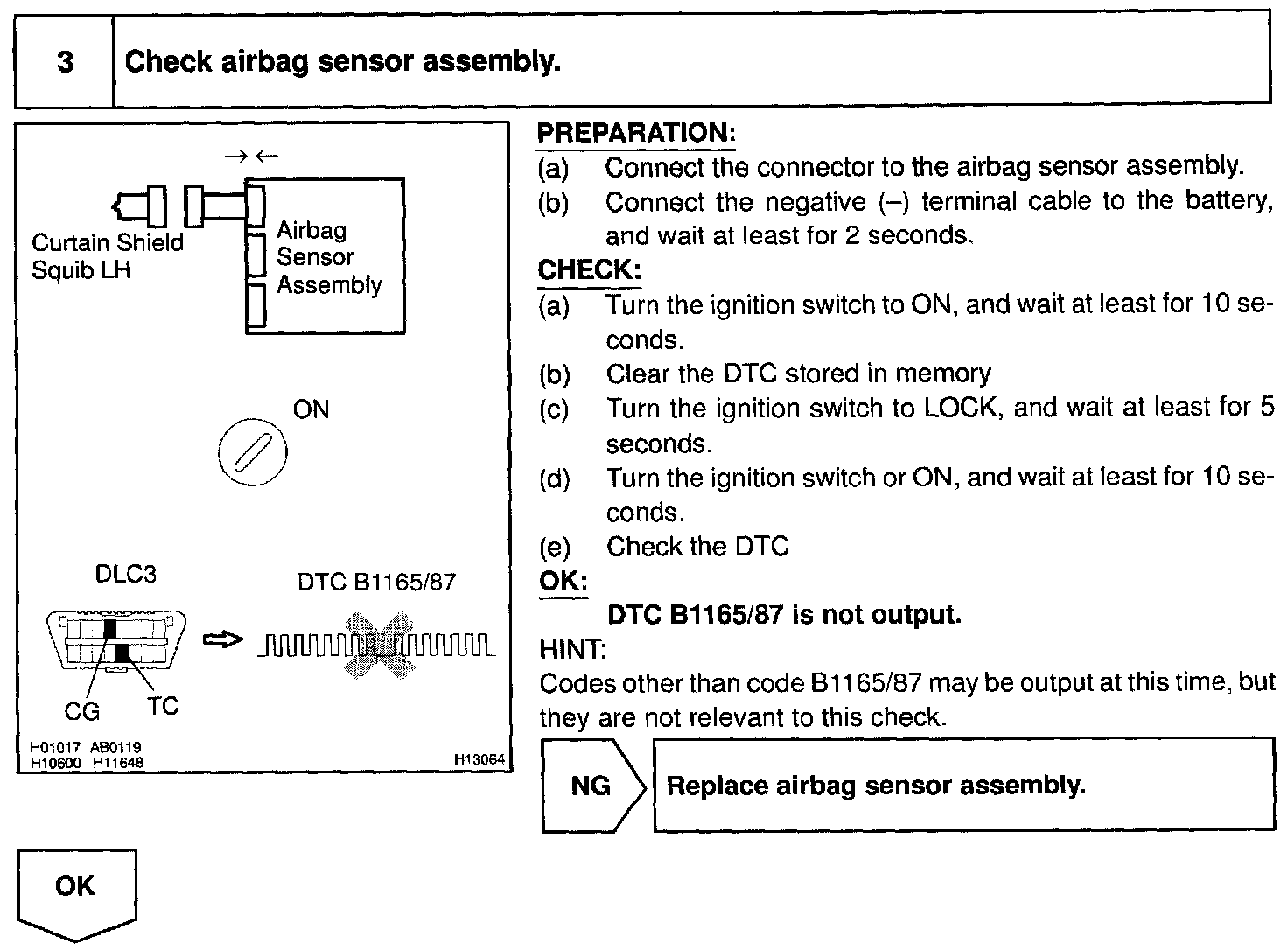

Step 3:

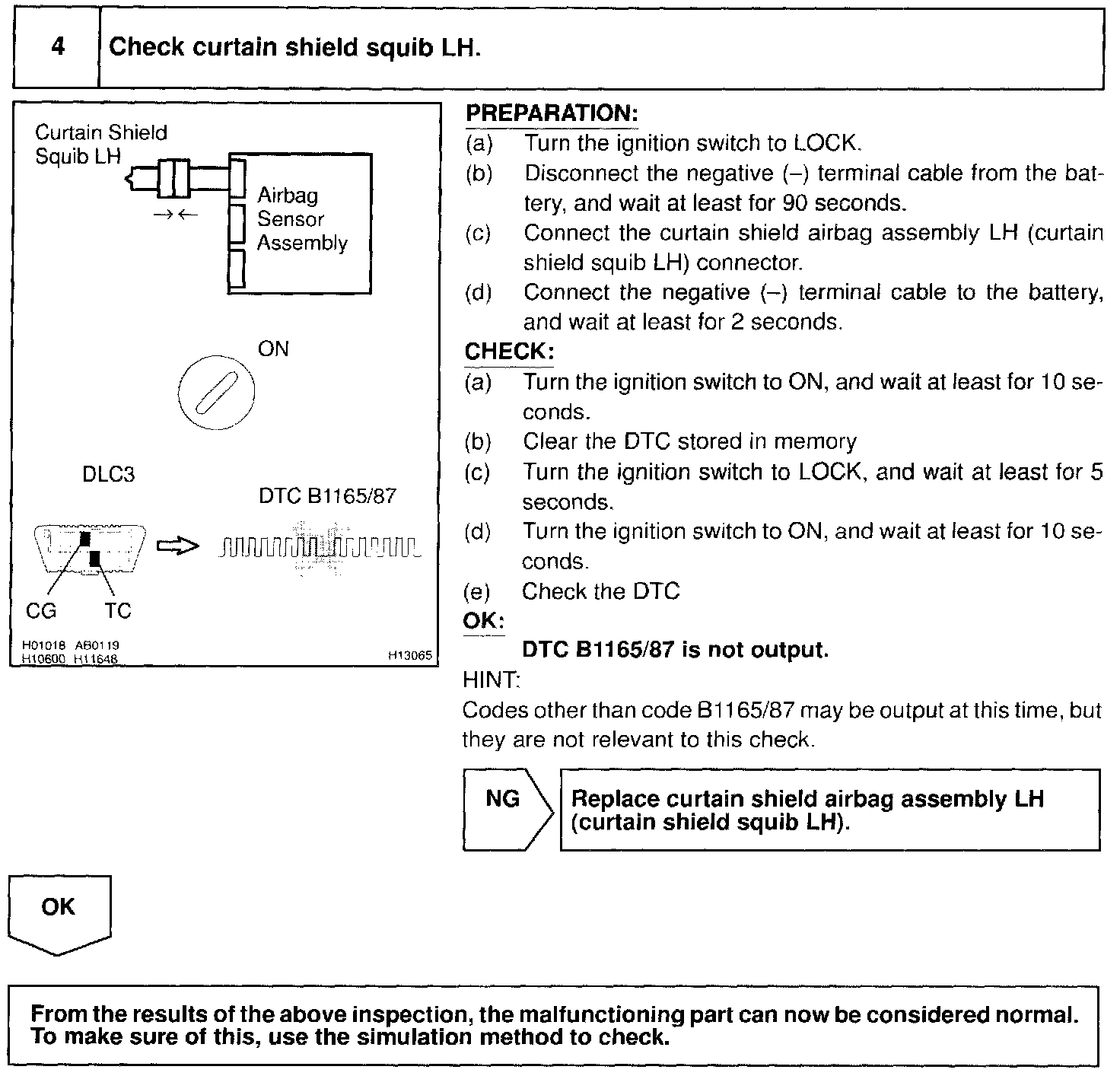

Step 4:

INSPECTION PROCEDURE
