DTC B1160 Short in Curtain Shield Squib RH Circuit

CIRCUIT DESCRIPTION

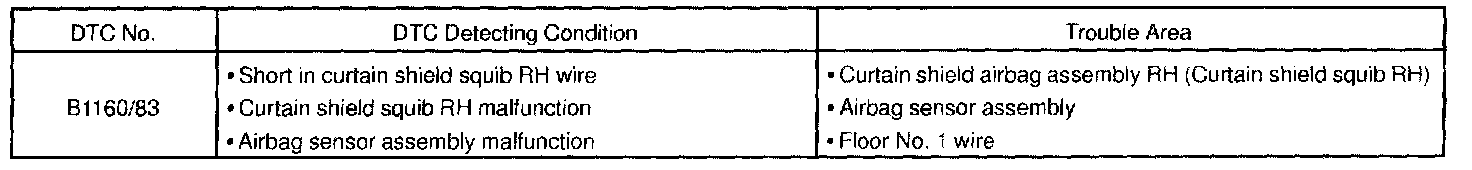

DTC Detecting Condition:

The curtain shield squib RH circuit consists of the air-bag sensor assembly and the curtain shield airbag assembly RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B1160/83 is recorded when a short is detected in the curtain shield squib RH circuit.

Wiring Diagram:

Step 1 - 2:

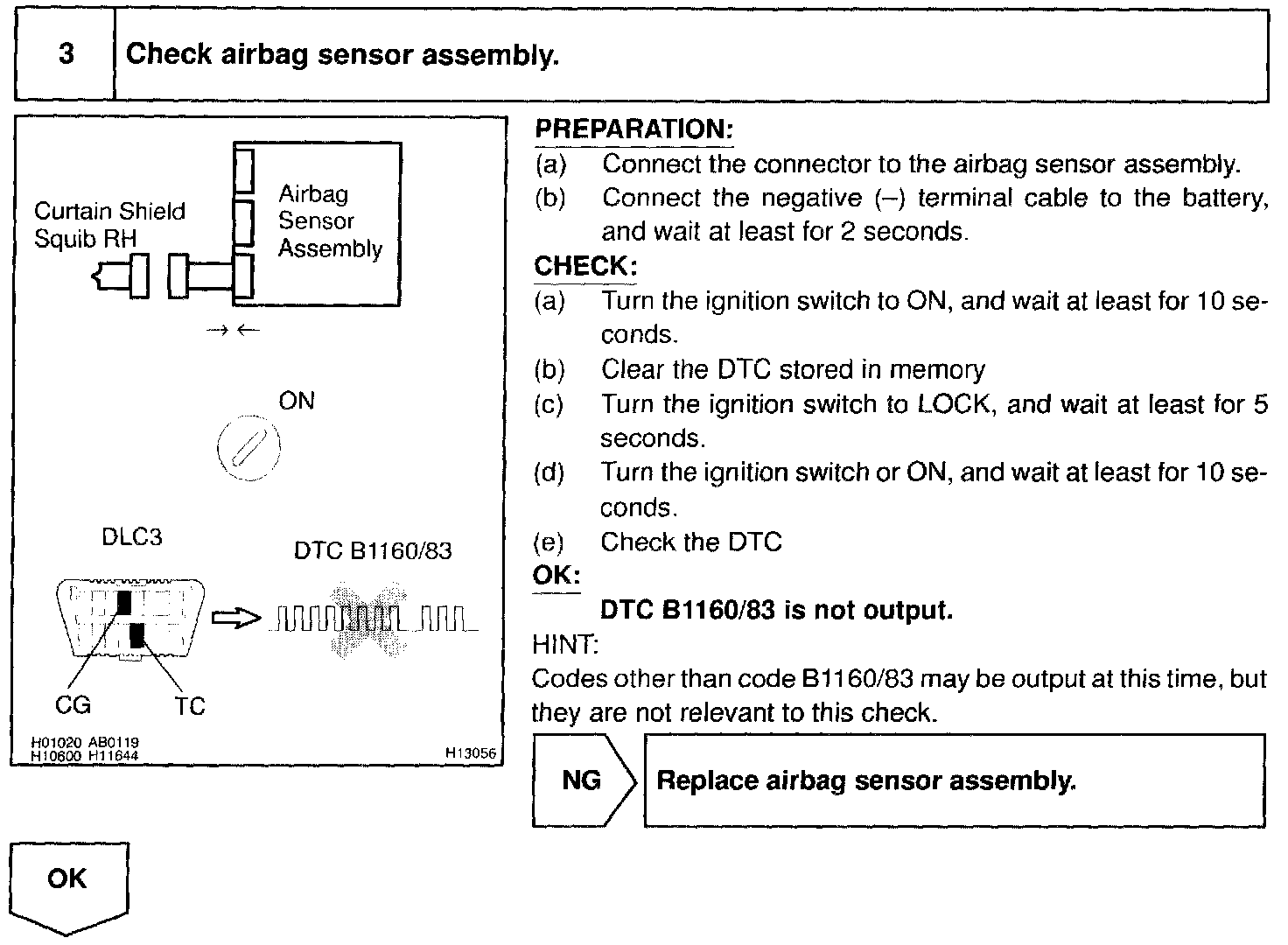

Step 3:

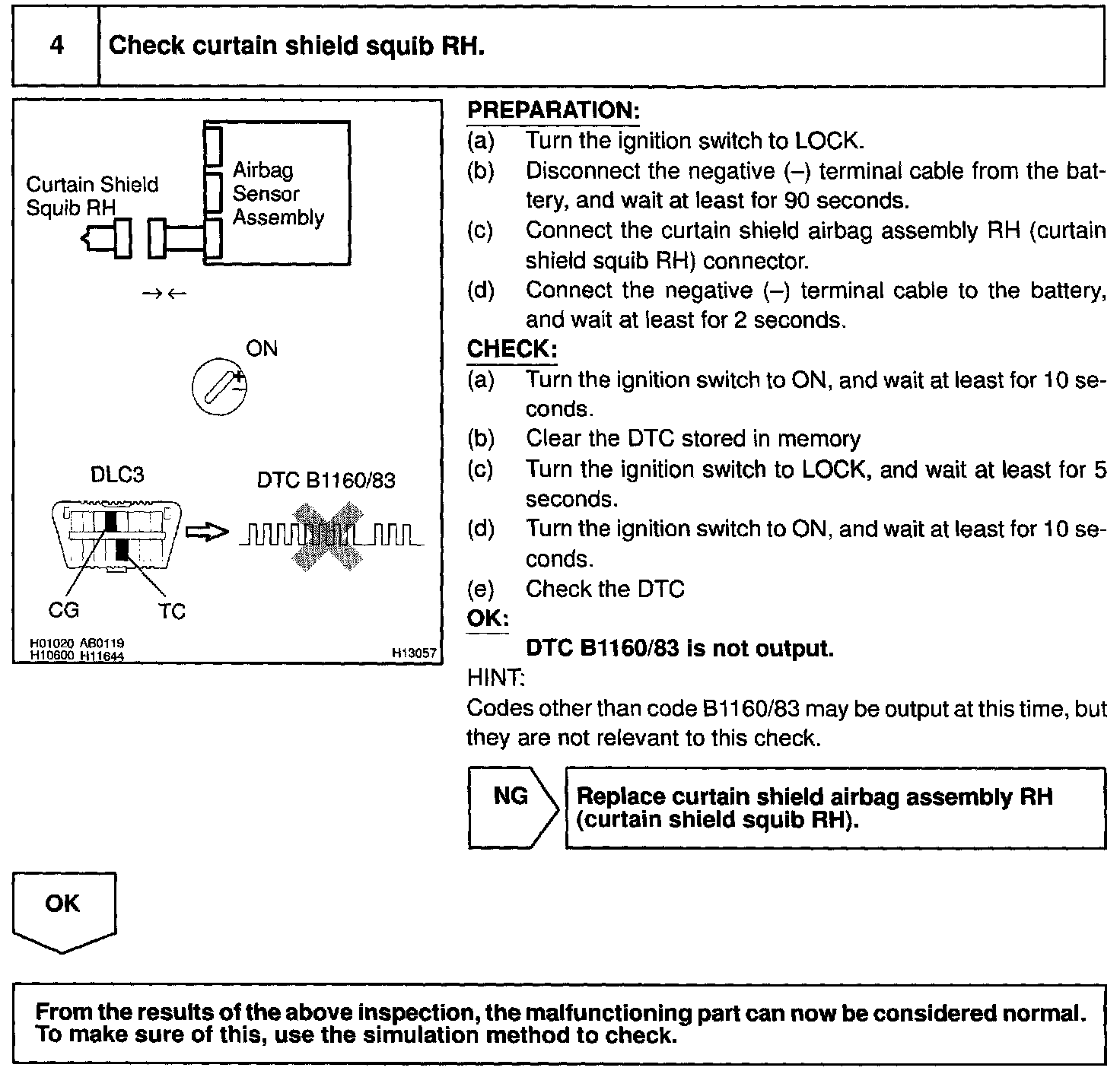

Step 4:

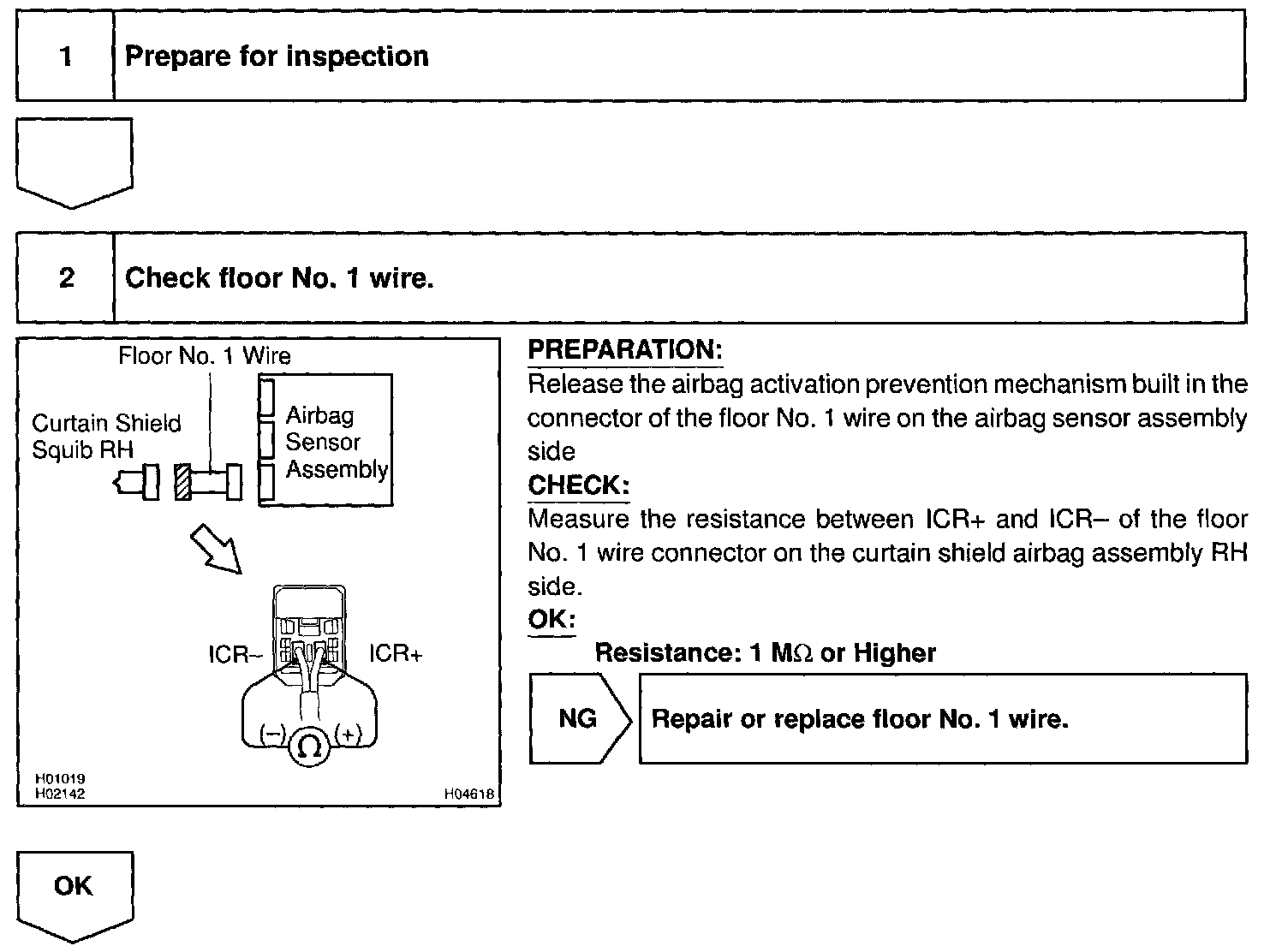

INSPECTION PROCEDURE
