B1157

DTC B1157 Front Airbag Sensor RH Malfunction

CIRCUIT DESCRIPTION

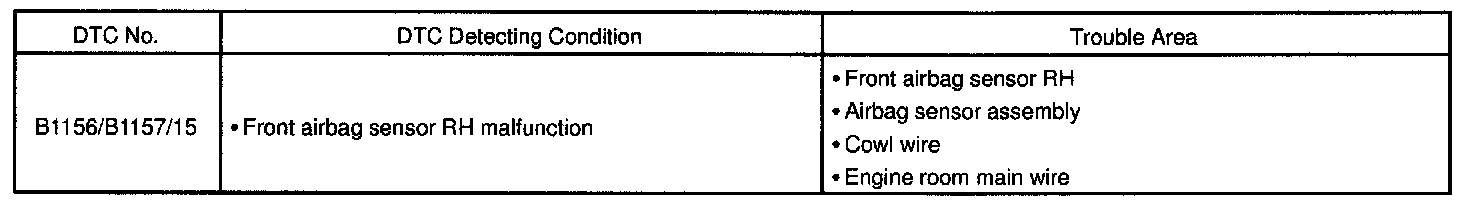

DTC Detecting Condition:

The front airbag sensor RH circuit consists of the airbag sensor assembly and the front airbag sensor RH.

DTC B1156/B1157/15 is recorded when a malfunction is detected in the front airbag sensor RH circuit.

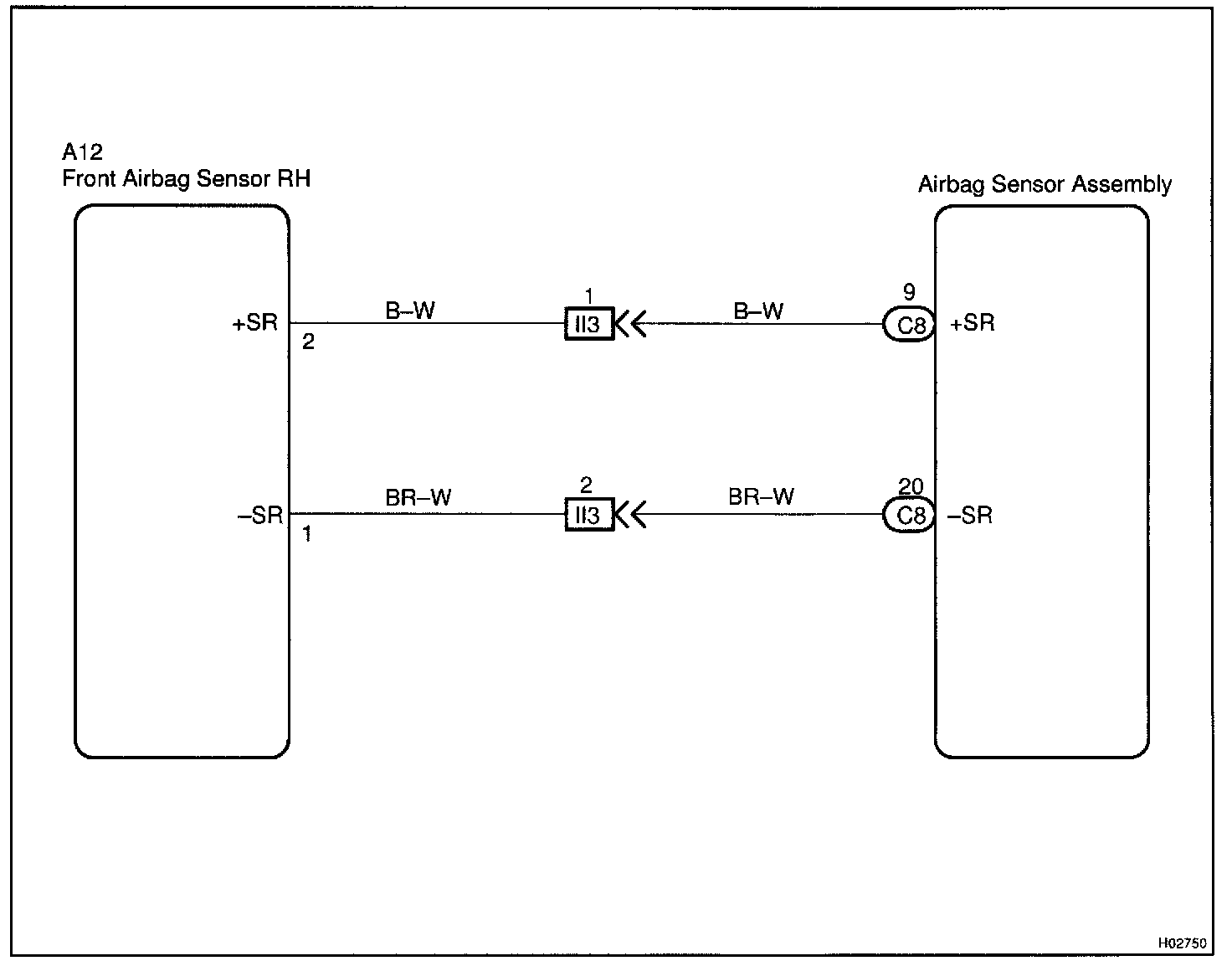

Wiring Diagram:

Step 1 - 3:

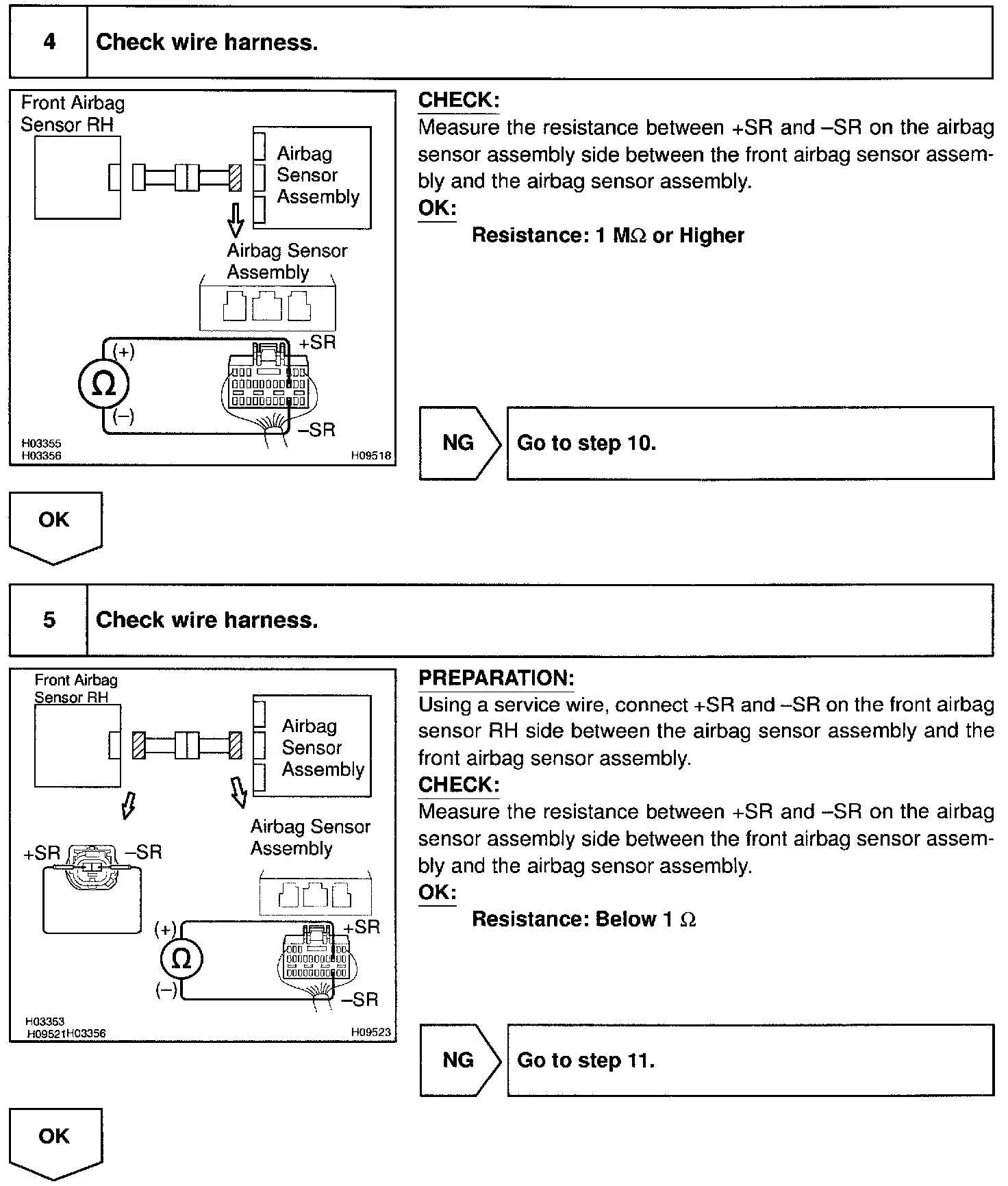

Step 4 - 5:

Step 6:

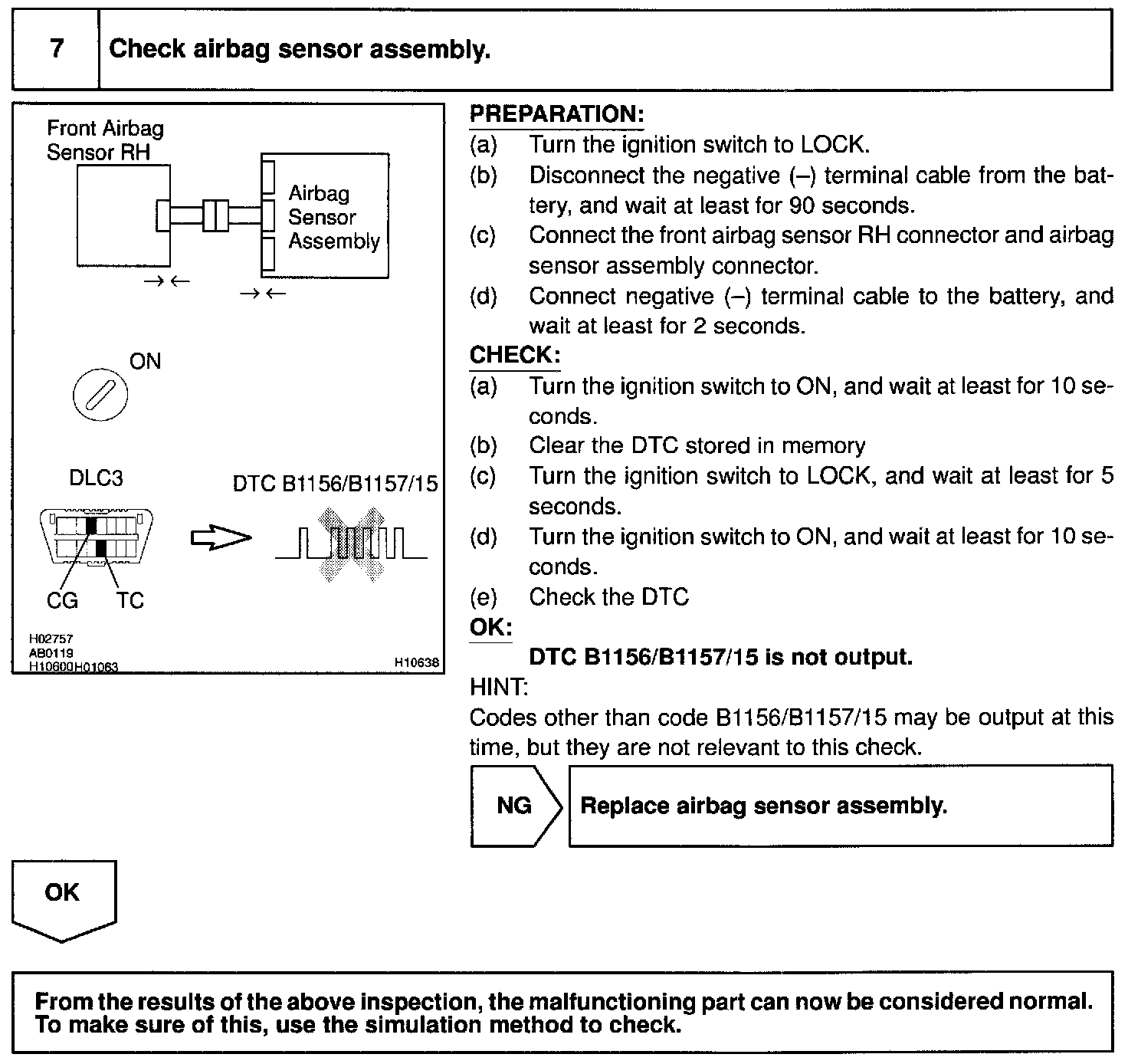

Step 7:

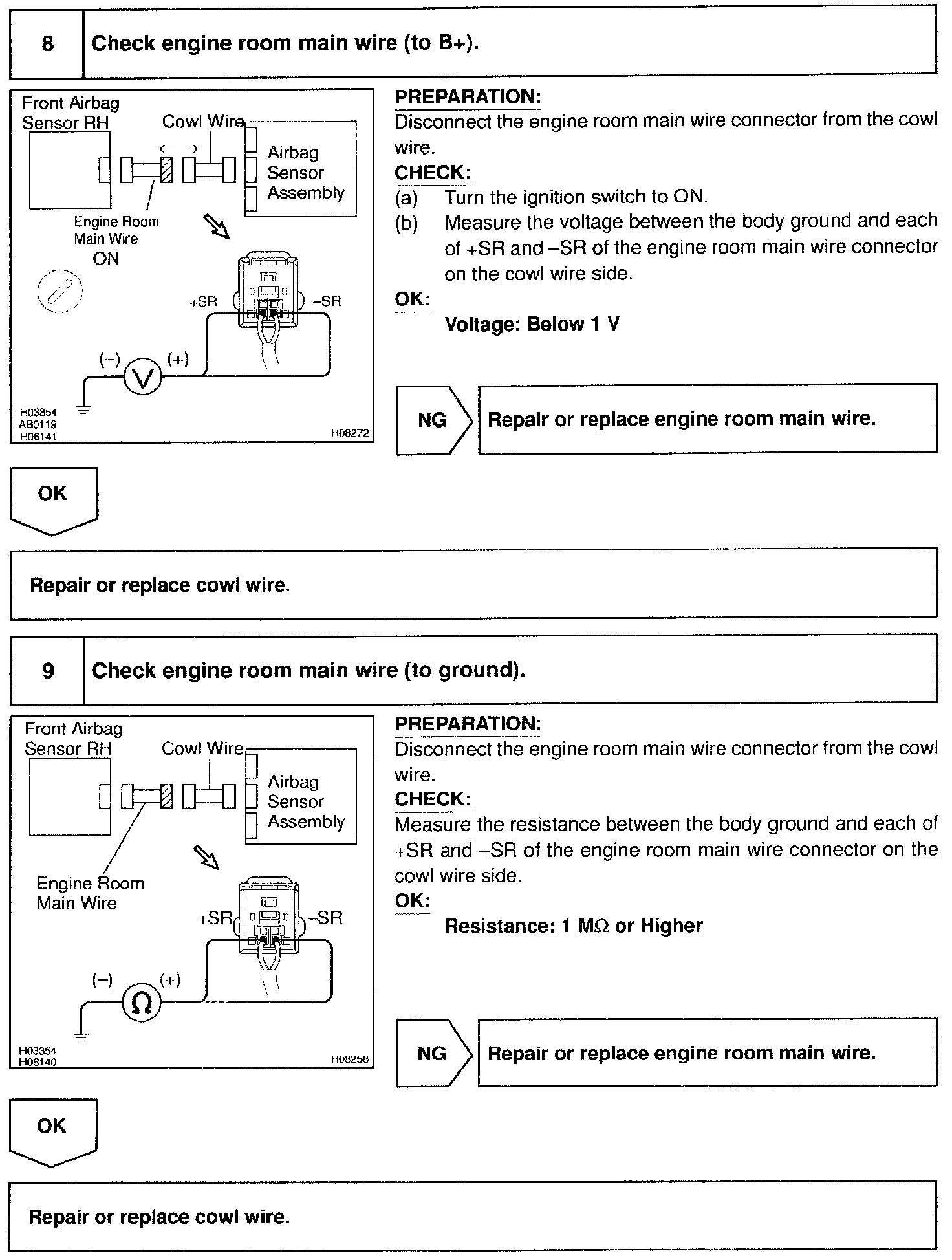

Step 8 - 9:

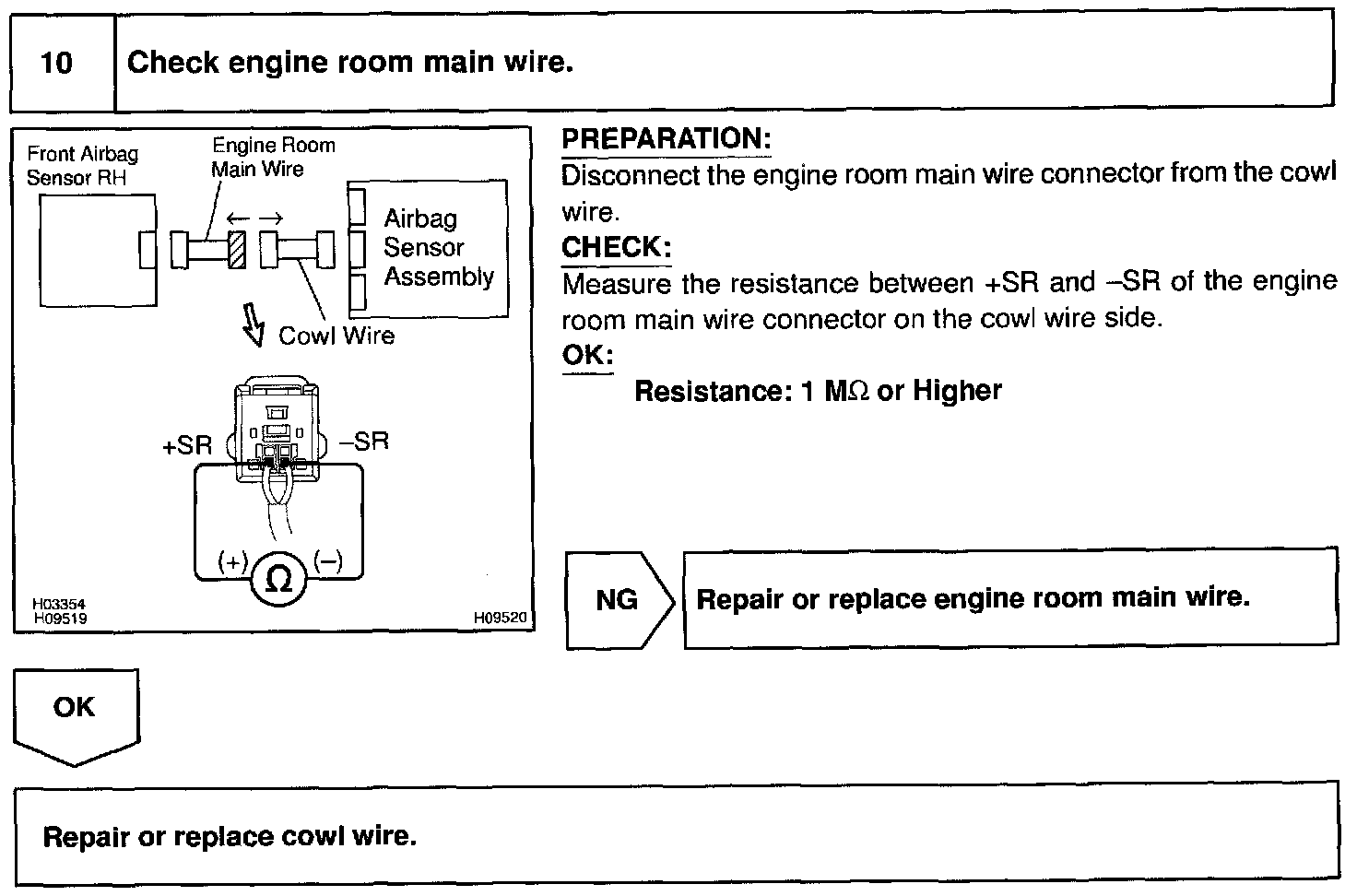

Step 10:

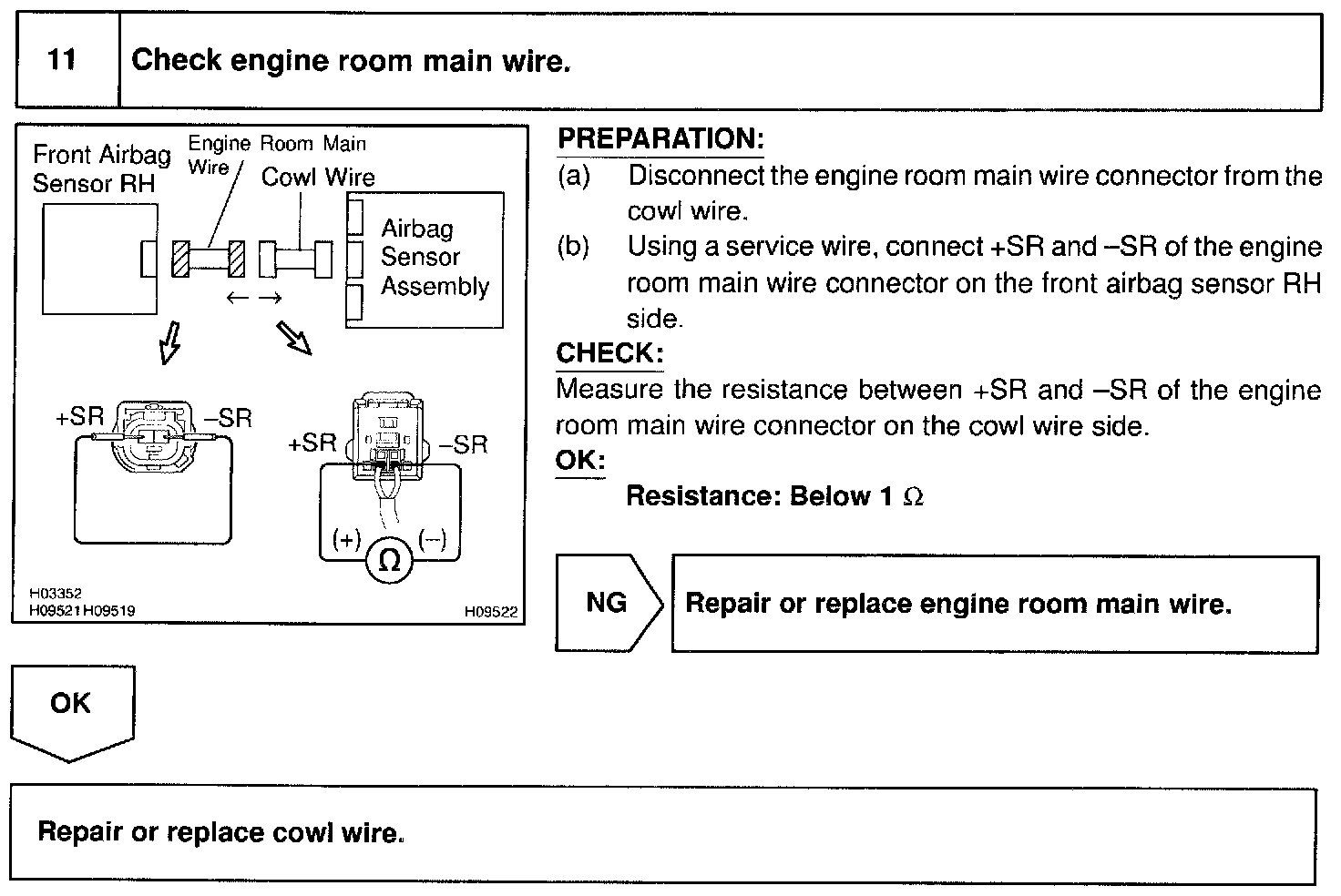

Step 11:

INSPECTION PROCEDURE
