B0130

DTC B0130 Short in P/T Squib RH Circuit

CIRCUIT DESCRIPTION

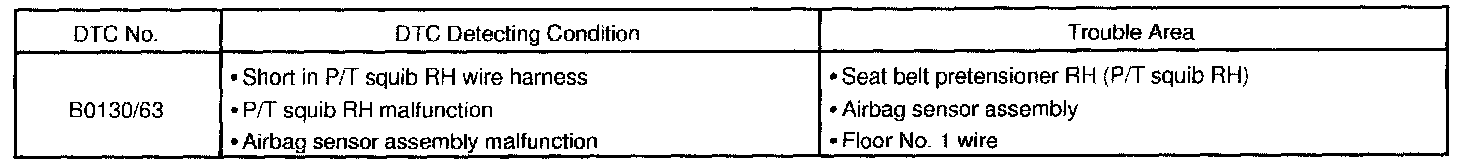

DTC Detecting Condition:

The P/T squib RH circuit consists of the airbag sensor assembly and the seat belt pretensioner RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0130/63 is recorded when a short is detected in the P/T squib RH circuit.

Wiring Diagram:

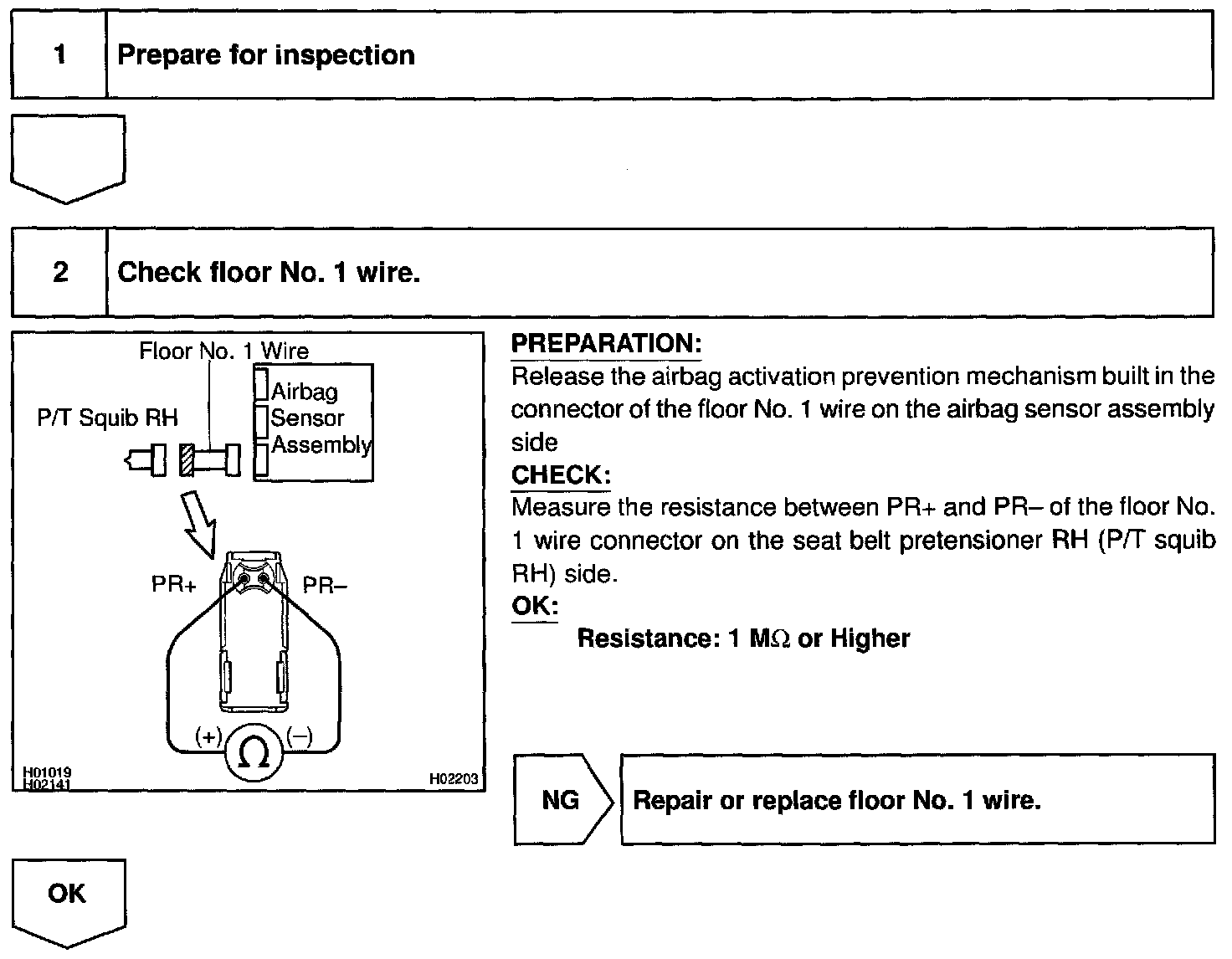

Step 1 - 2:

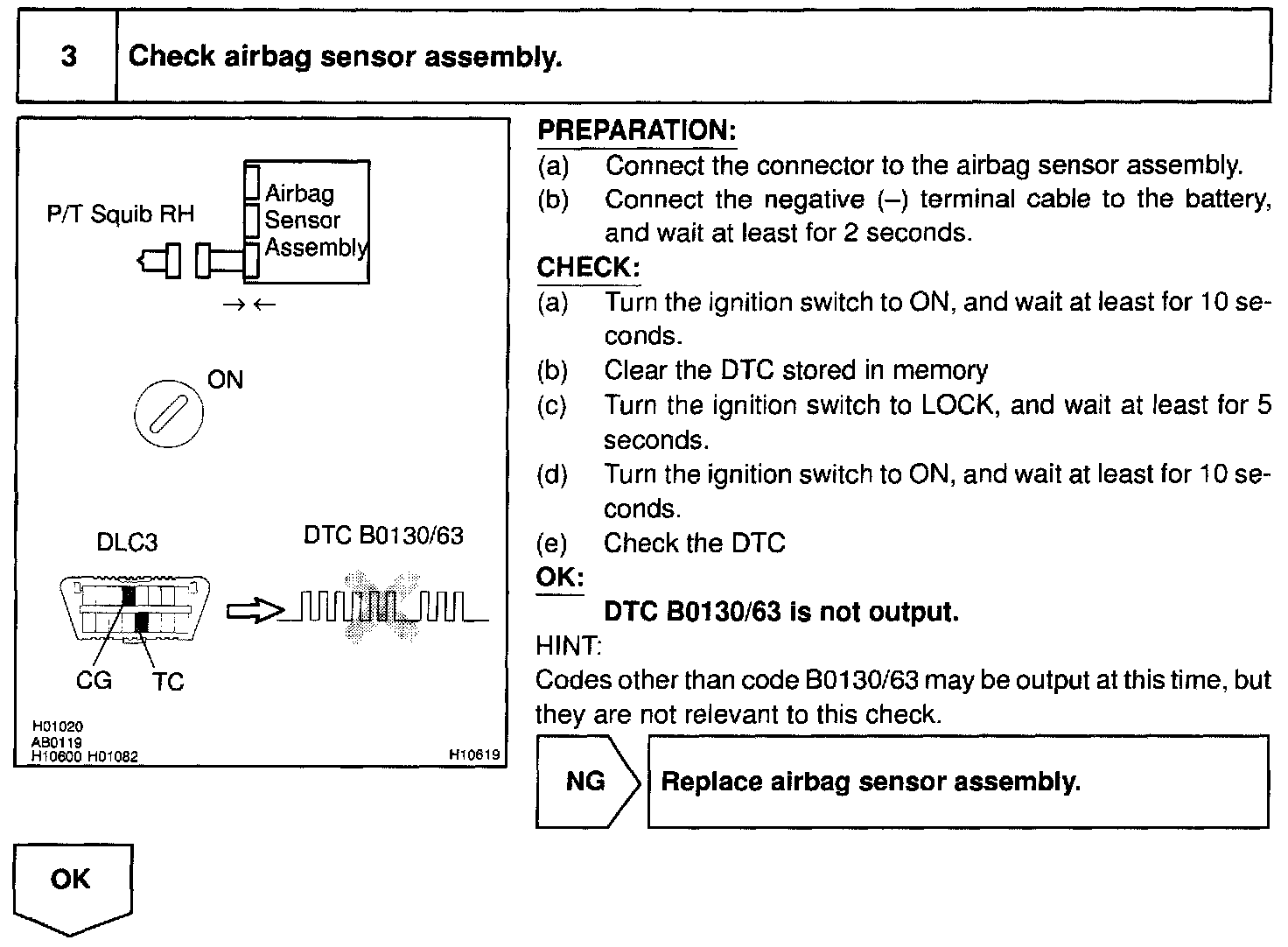

Step 3:

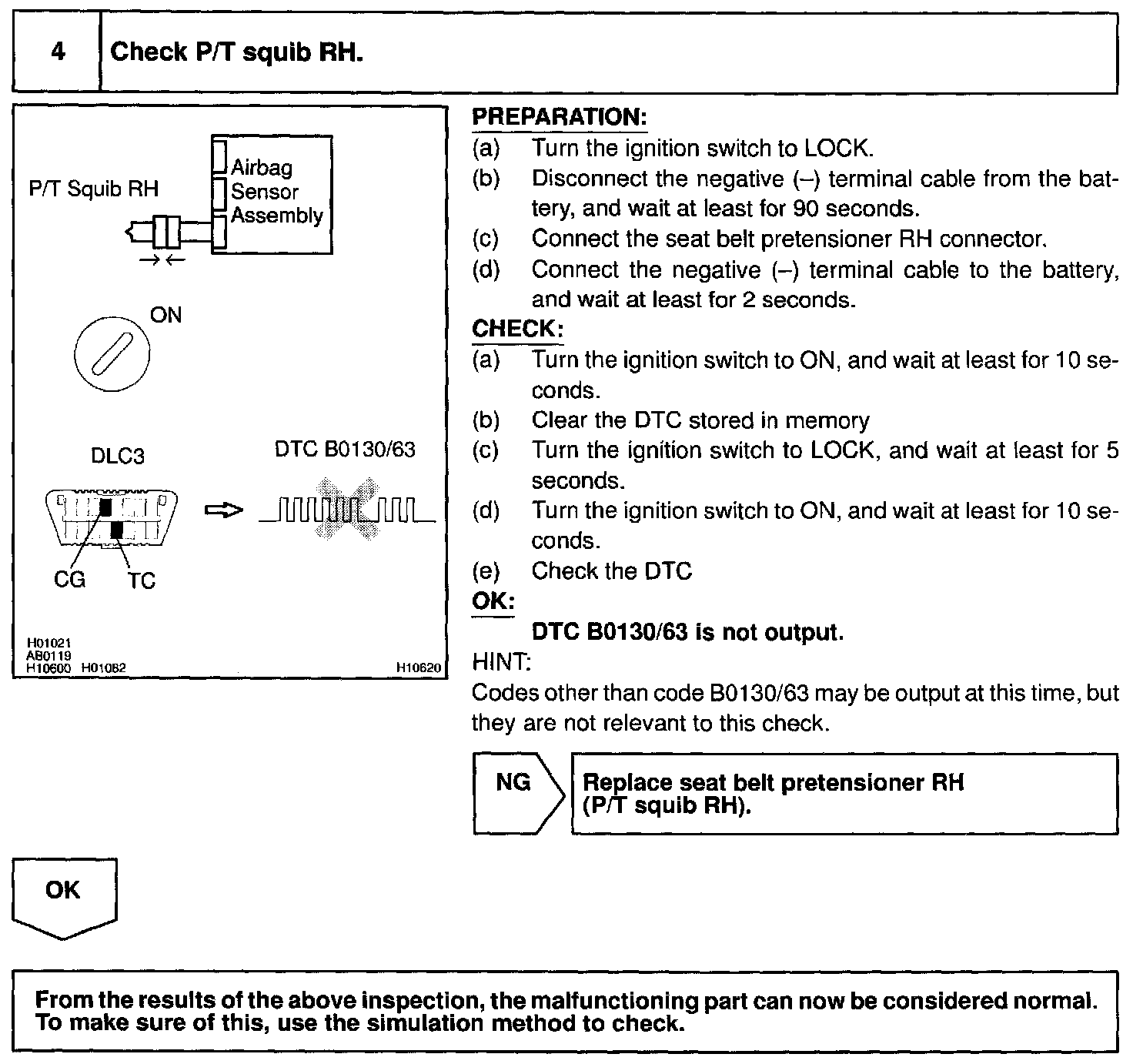

Step 4:

INSPECTION PROCEDURE
