B0115

DTC B0115 Short in Side Squib LH Circuit

CIRCUIT DESCRIPTION

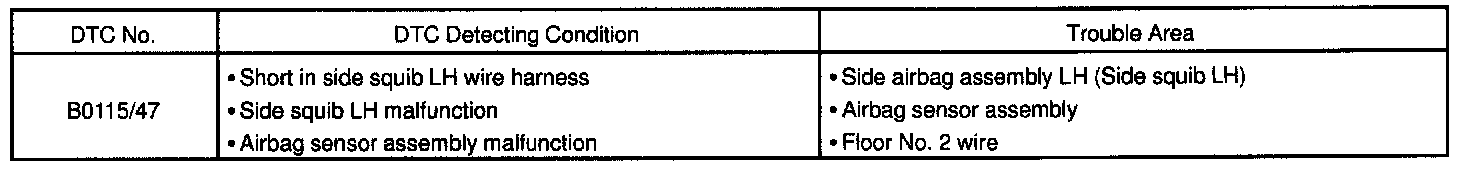

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly and the side airbag assembly LH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0115/47 is recorded when a short is detected in the side squib LH circuit.

Wiring Diagram:

Step 1 - 2:

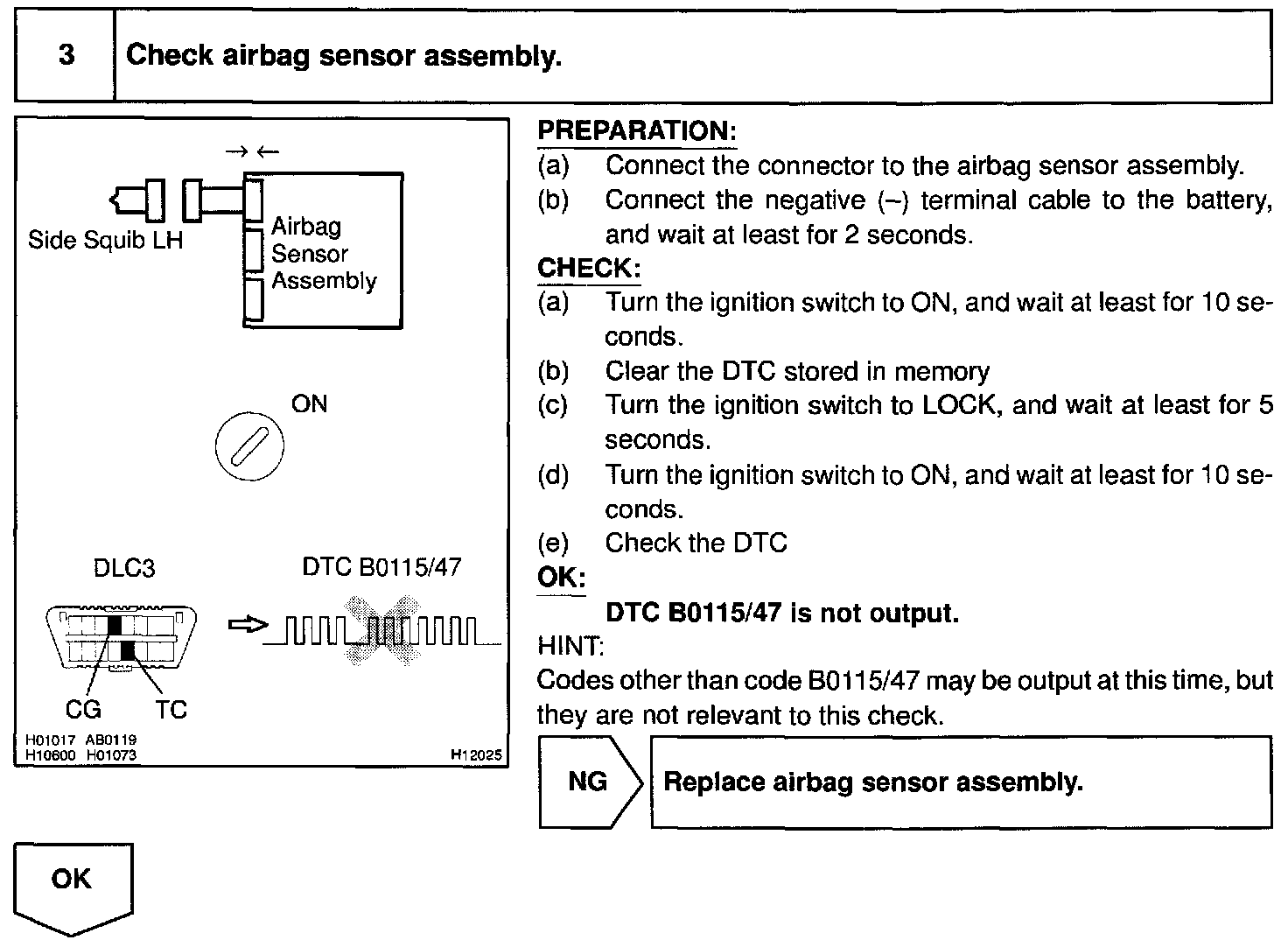

Step 3:

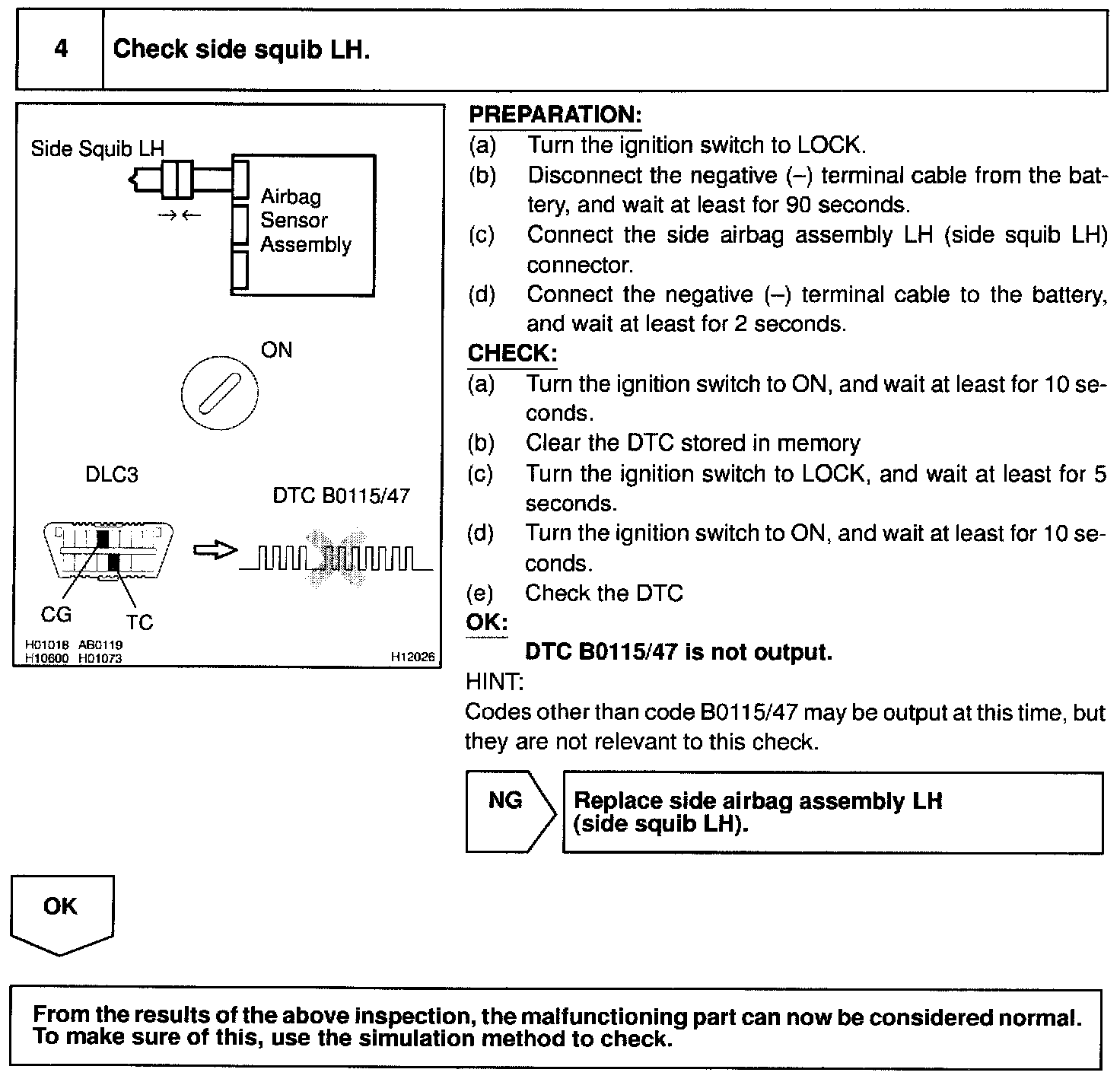

Step 4:

INSPECTION PROCEDURE
