DTC B0113 Short in Side Squib RH Circuit (to B+)

CIRCUIT DESCRIPTION

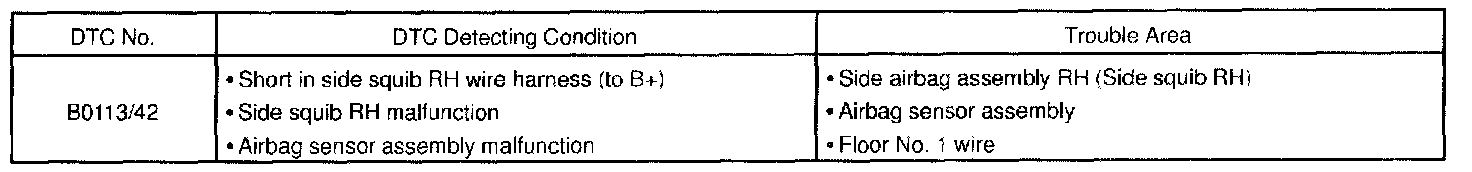

DTC Detecting Condition:

The side squib RH circuit consists of the air-bag sensor assembly and the side airbag assembly RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0113/42 is recorded when a B+ short is detected in the side squib RH circuit.

Wiring Diagram:

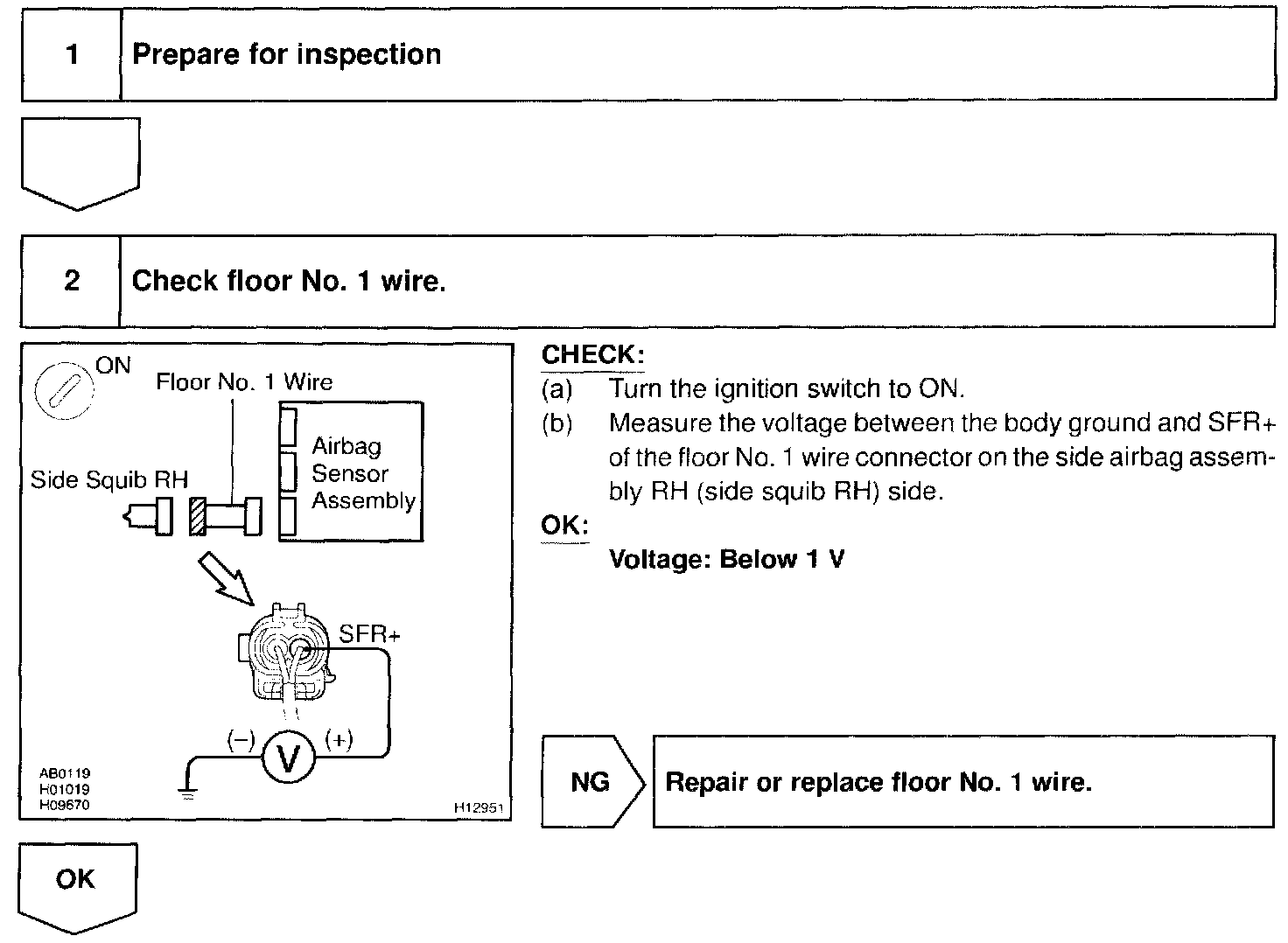

Step 1 - 2:

Step 3:

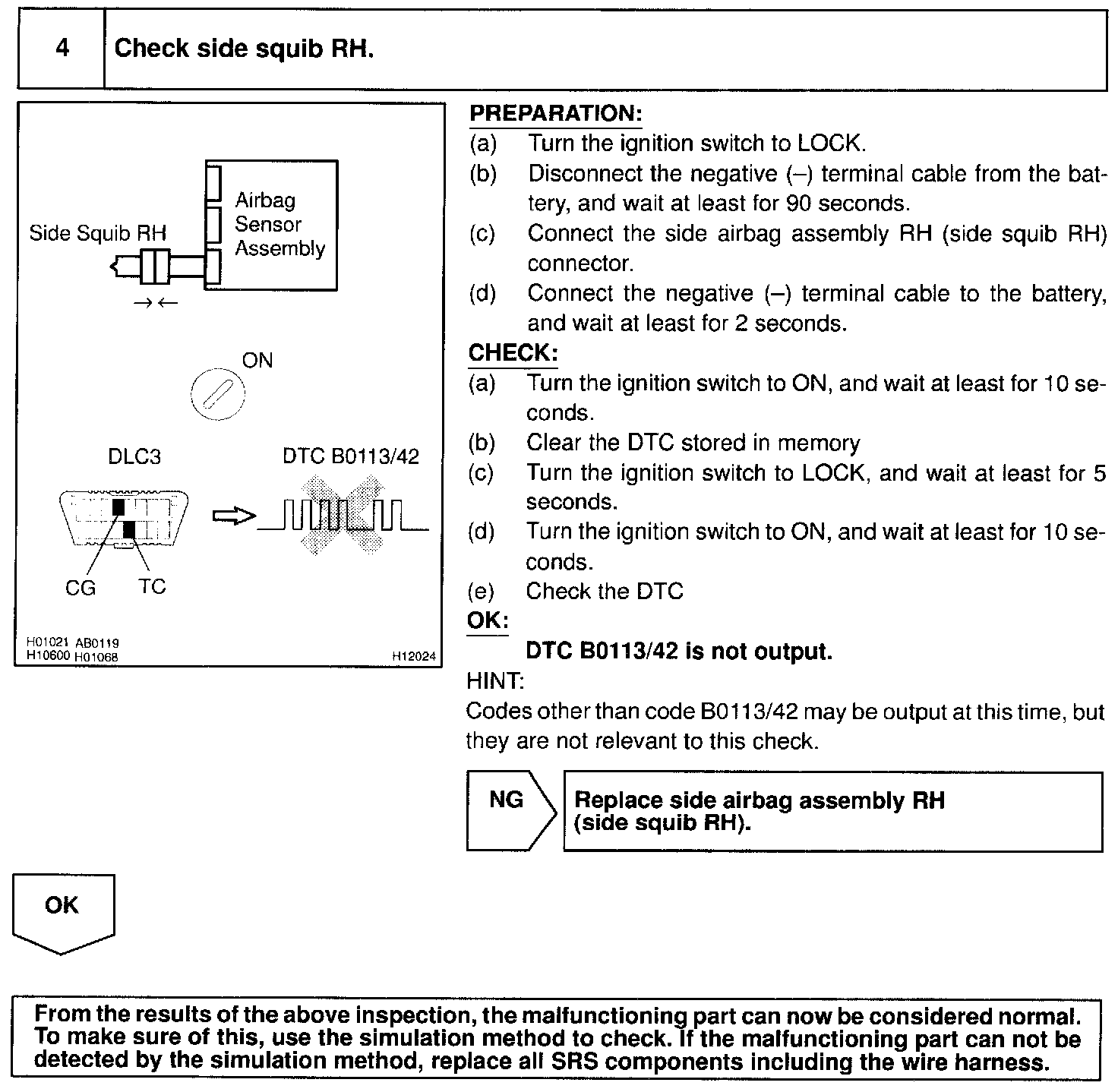

Step 4:

INSPECTION PROCEDURE
