B0110

DTC B0110 Short in Side Squib RH Circuit

CIRCUIT DESCRIPTION

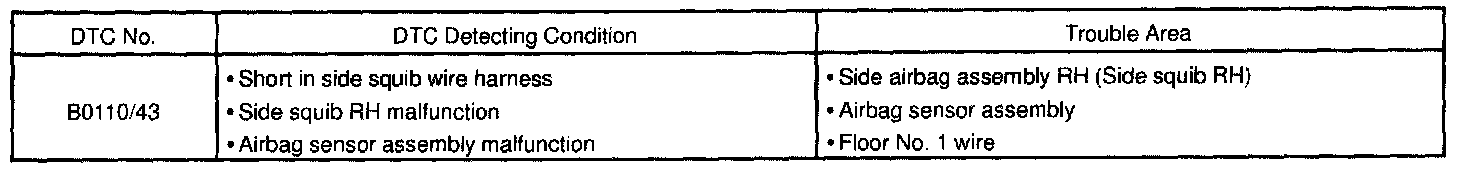

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly and the side airbag assembly RH.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0110/43 is recorded when a short is detected in the side squib RH circuit.

Wiring Diagram:

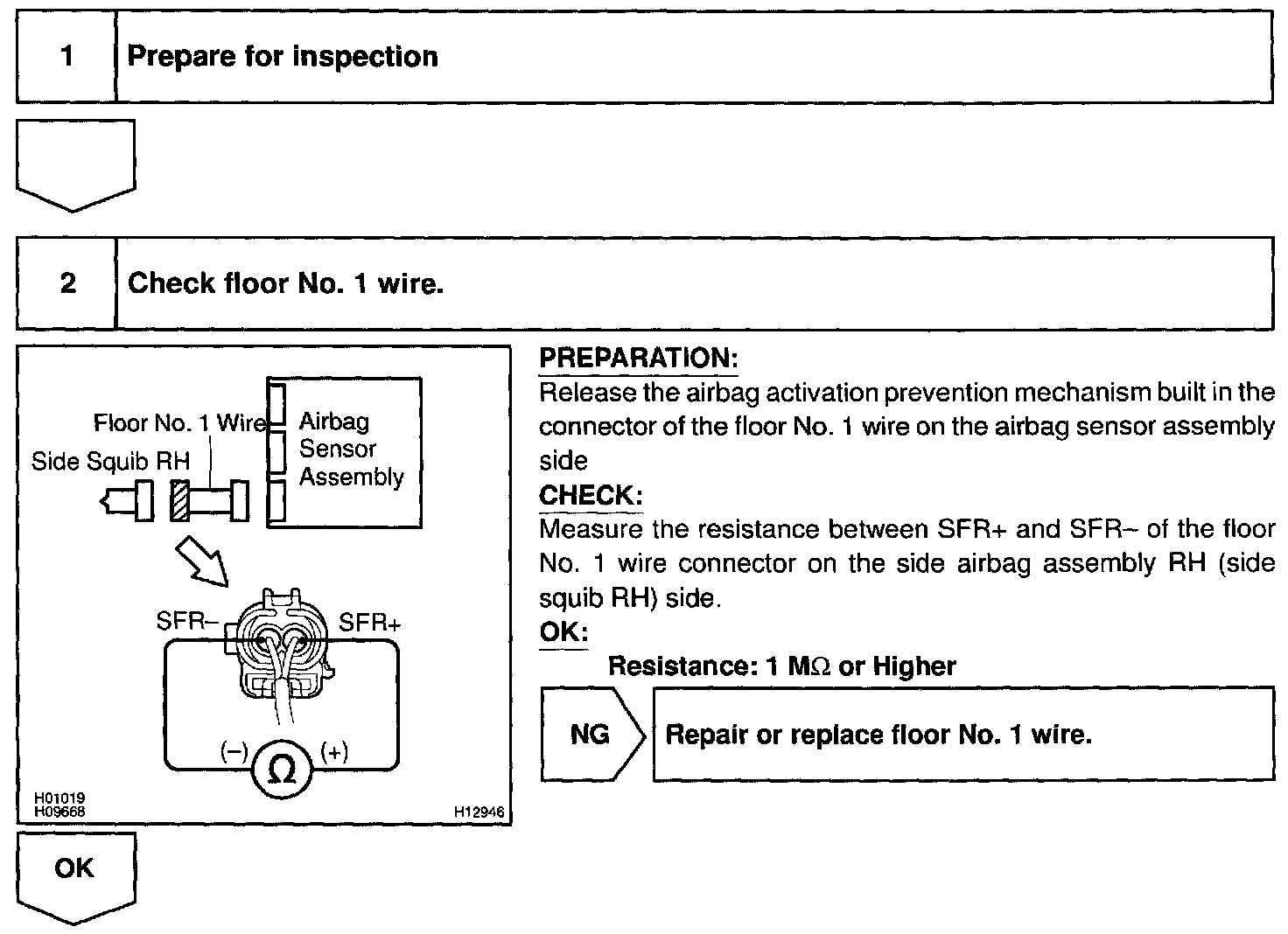

Step 1 - 2:

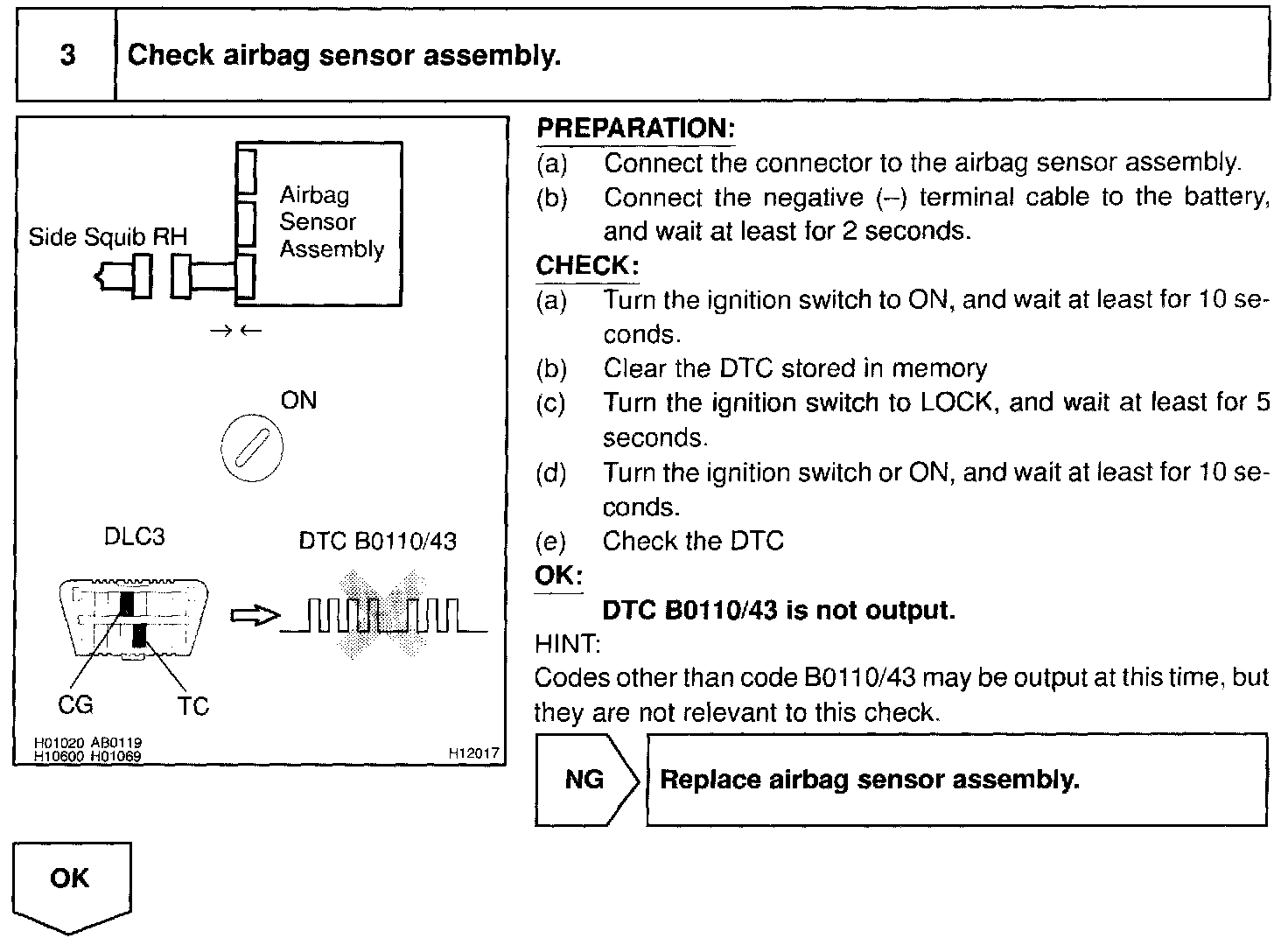

Step 3:

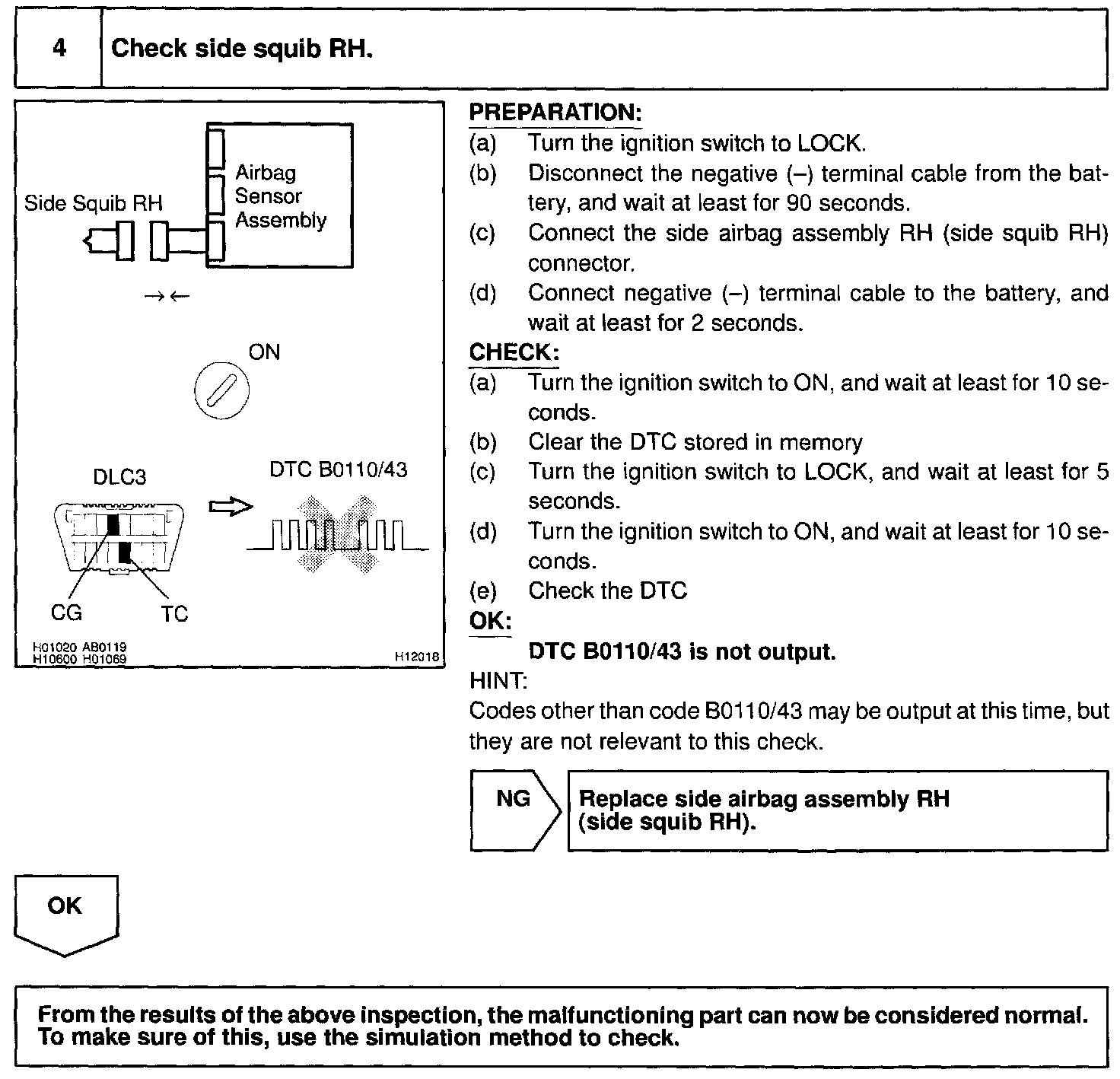

Step 4:

INSPECTION PROCEDURE
