Wiper Motor Circuit
CIRCUIT DESCRIPTIONThe passenger side J/B ECU controls the wiper motor.
Even ECU is in the failure, its circuit structures enables to operate the wiper with "HIGH" mode.

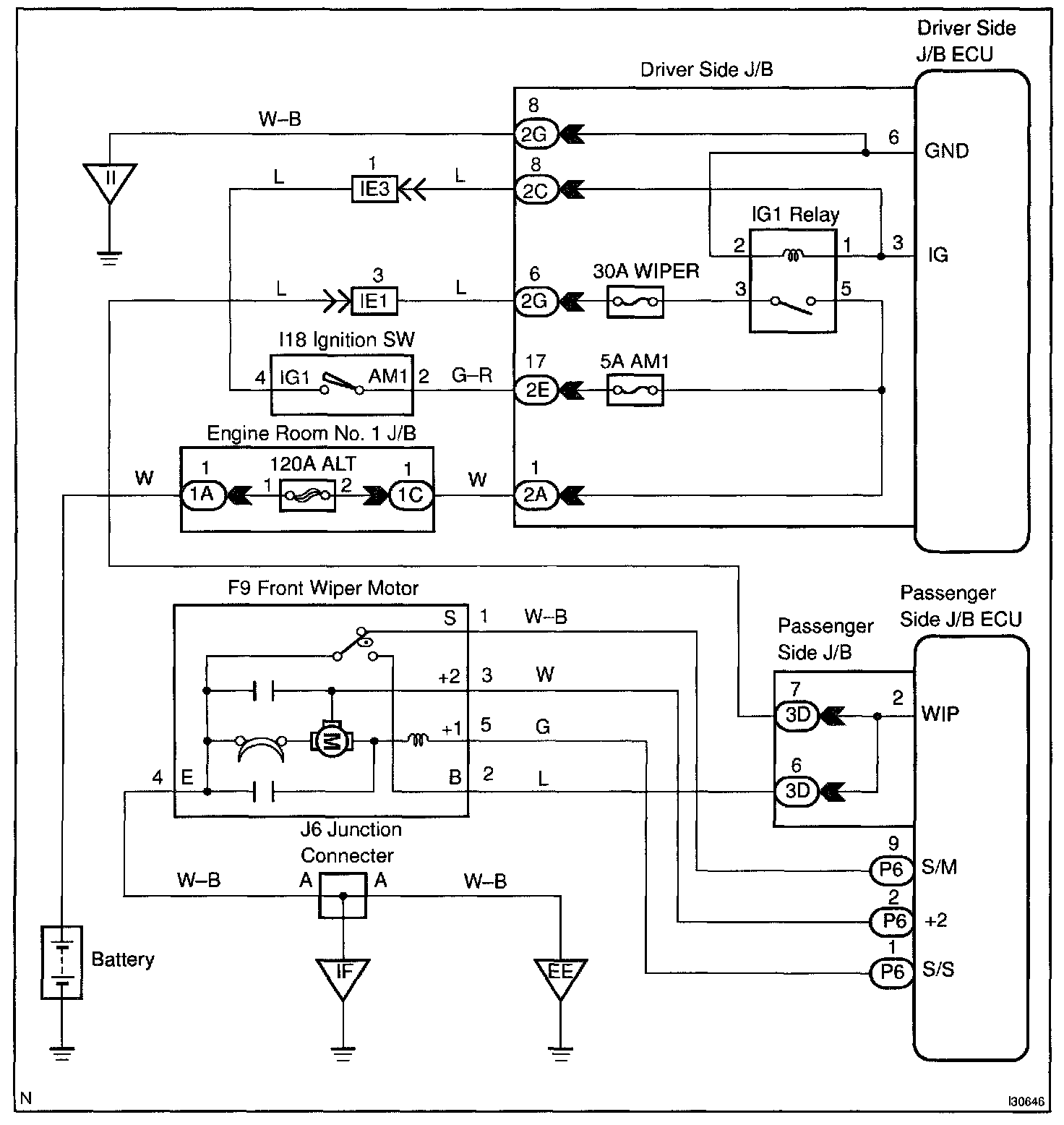

Wiring Diagram:
Step 1 - 2:
Step 3:

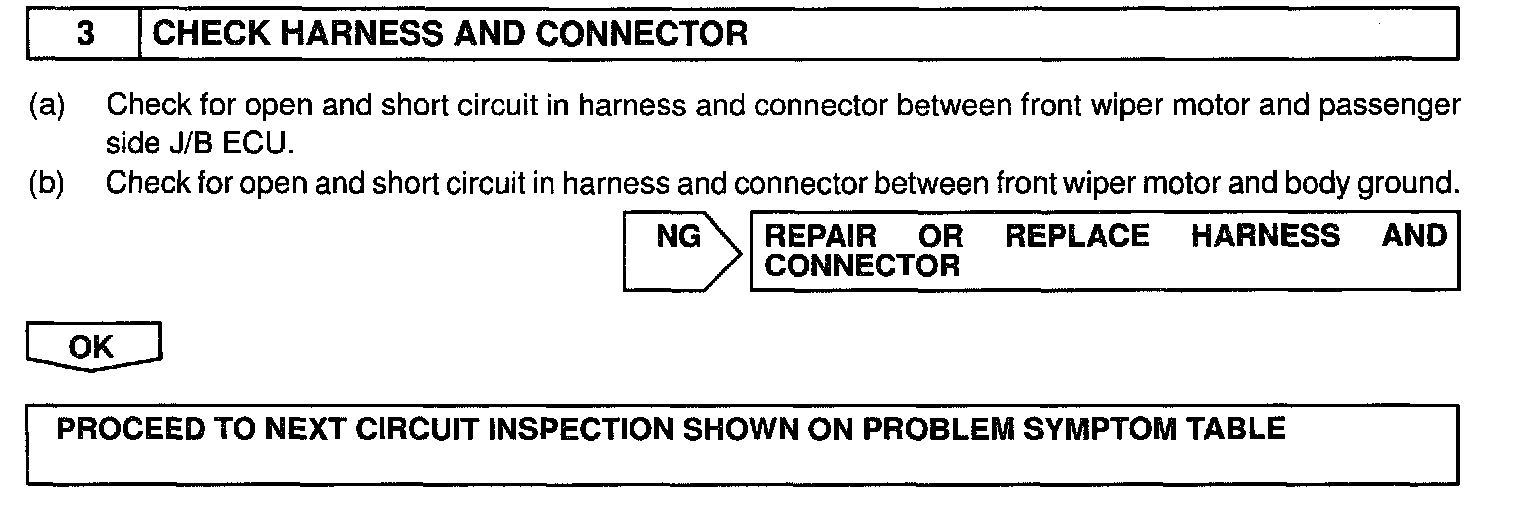

INSPECTION PROCEDURE
The passenger side J/B ECU controls the wiper motor.
Even ECU is in the failure, its circuit structures enables to operate the wiper with "HIGH" mode.
INSPECTION PROCEDURE
