Headlight Cleaner Motor and Relay Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the headlight cleaner motor.

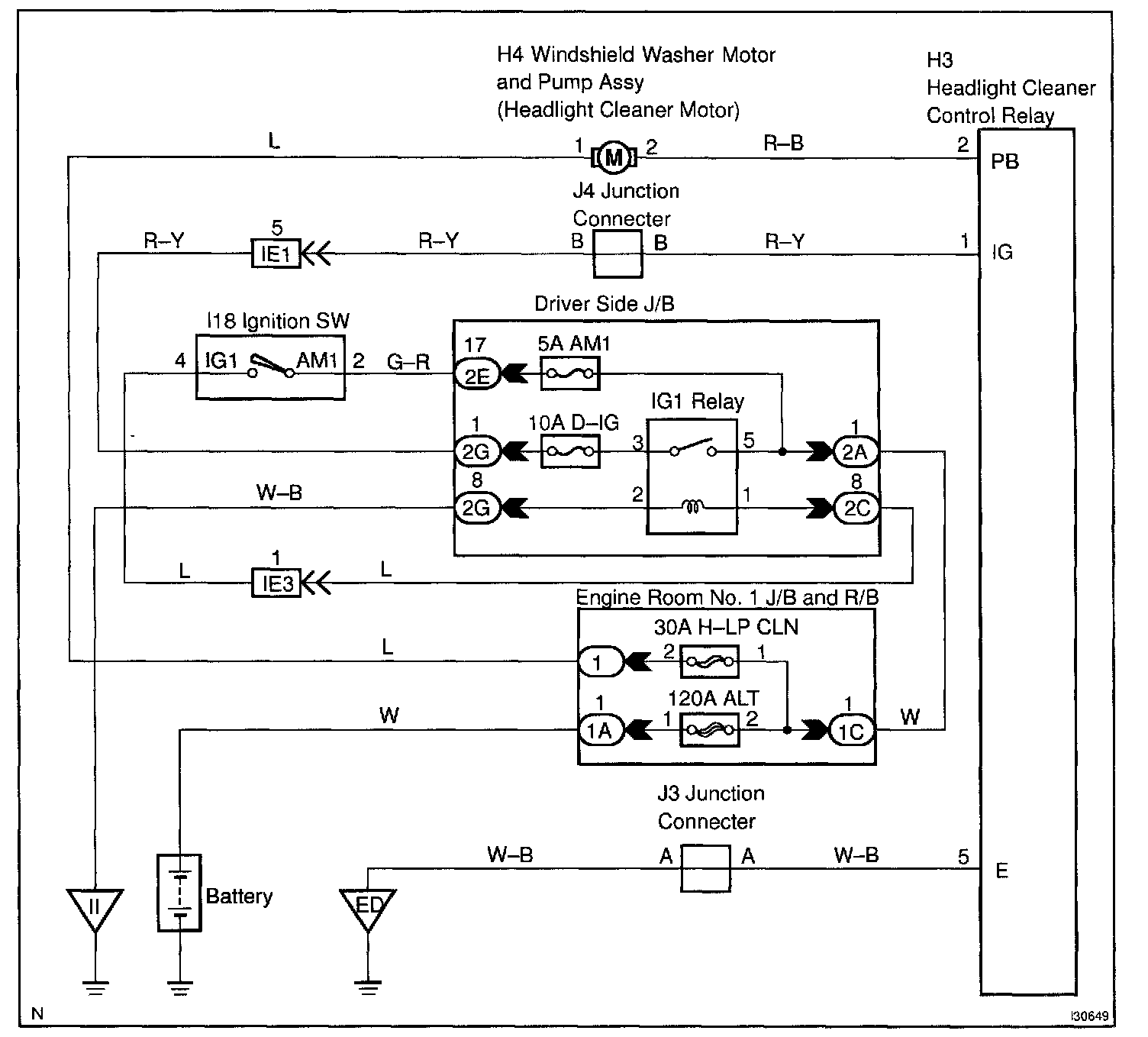

Wiring Diagram:






Step 1 - 3:

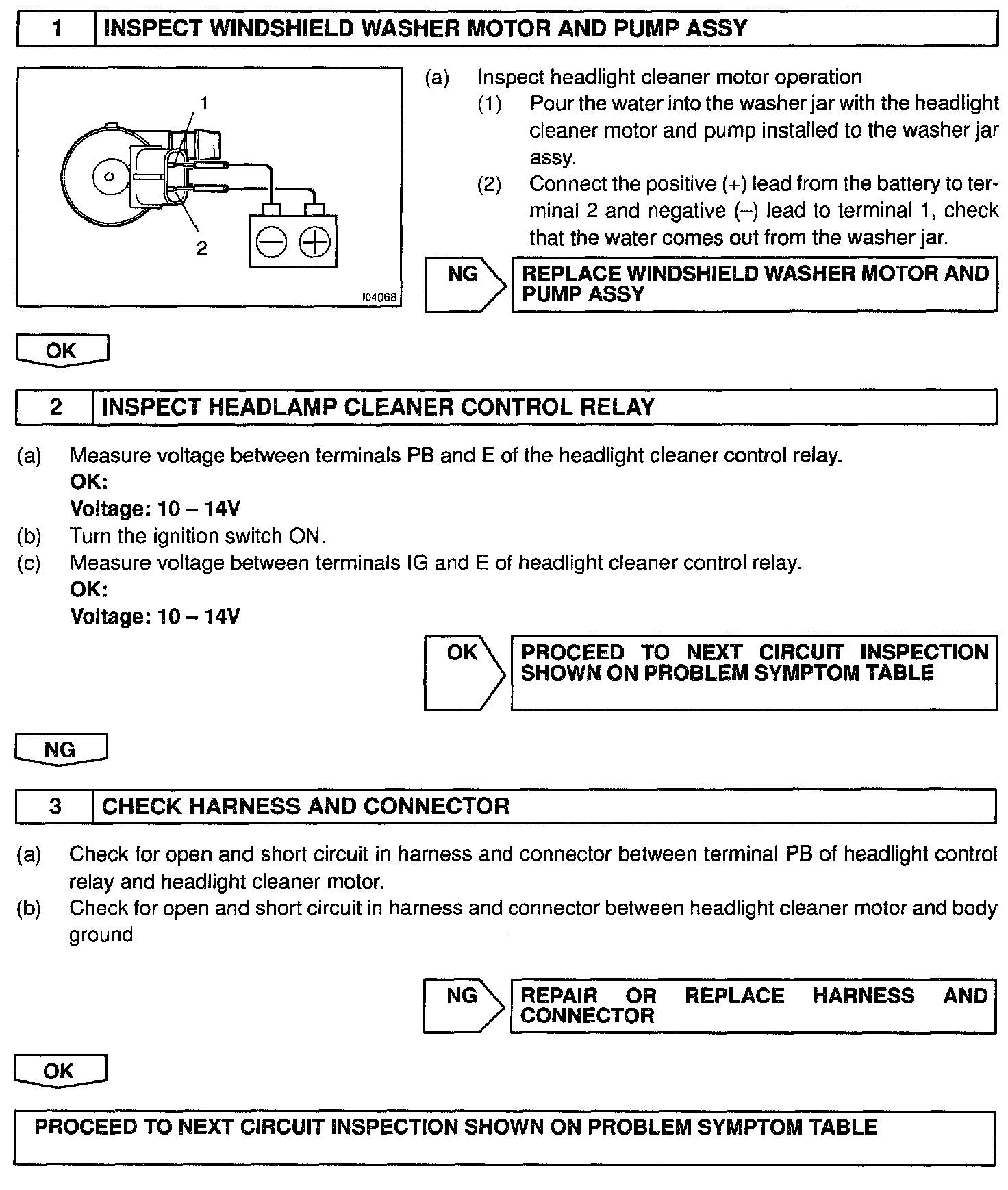

INSPECTION PROCEDURE
