Pinout Values and Diagnostic Parameters
TERMINALS OF ECU

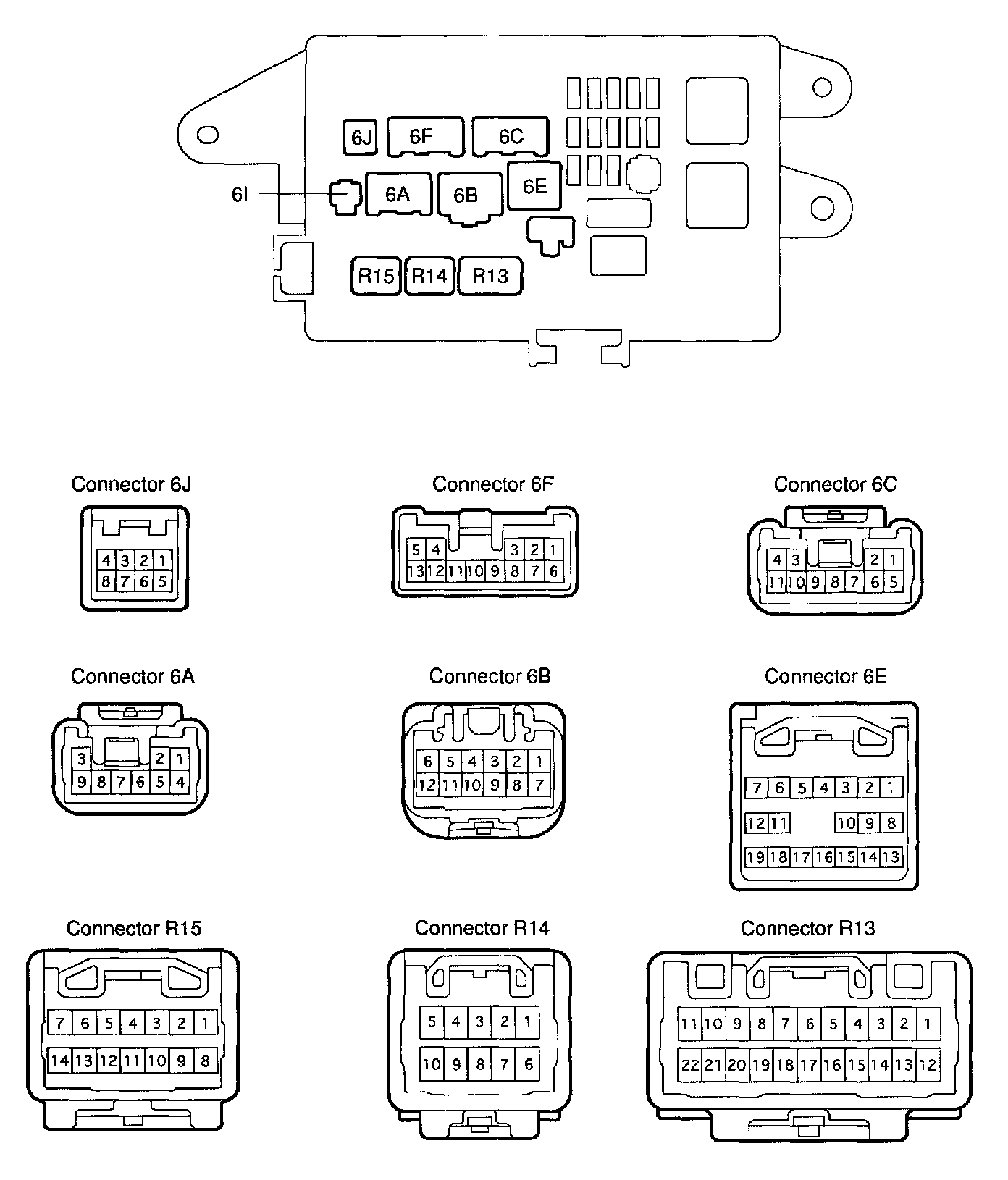

1. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)
a. Disconnect the J/B connectors 6F and 6J.

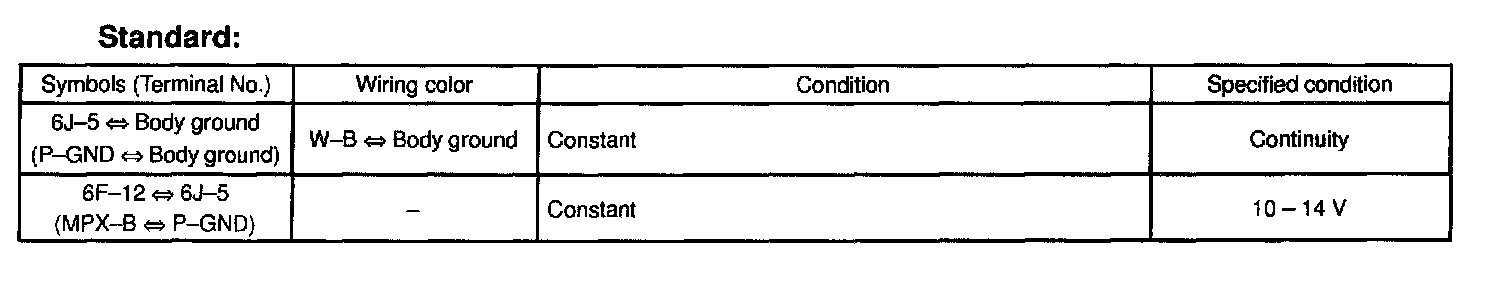

b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
1. CHECK LUGGAGE ROOM J/B (LUGGAGE ROOM J/B ECU)
a. Disconnect the J/B connectors 6F and 6J.
b. Check the voltage and continuity of each terminal of the vehicle's side connectors.
