Direct Clutch Drum

OVERHAUL

1. INSPECT PISTON STROKE OF DIRECT CLUTCH

a. Place the direct clutch assembly onto the O/D support assembly.

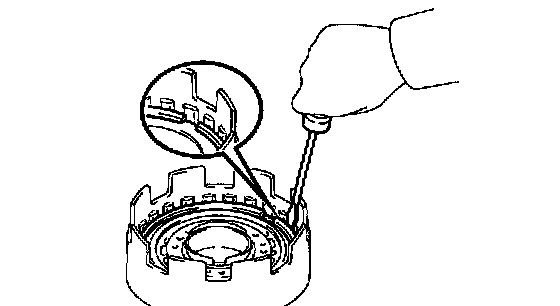

a. Using a screwdriver, remove the snap ring from the direct clutch drum.

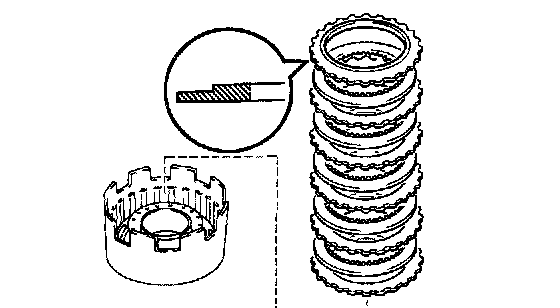

b. Remove the flange, 5 plates and 5 discs.
c. Remove the cushion plate.

3. INSPECT DIRECT CLUTCH FLANGE
a. Check to see if the sliding surface of the disc, plate and flange are worn or burnt. If necessary, replace them.

HINT: If the lining of the disc is peeling off or discolored, or even if a part of the printed numbers is defaced, replace all discs. Before assembling new discs, soak them in ATF for at least 15 minutes.

4. REMOVE DIRECT CLUTCH RETURN SPRING SUB-ASSY

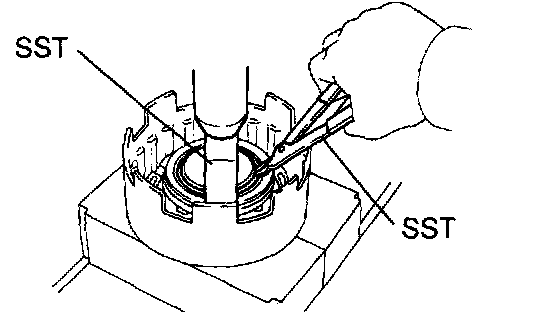

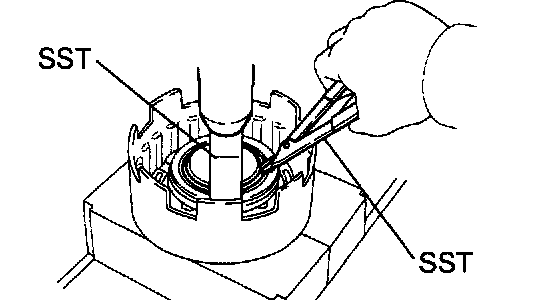

a. Place SST on the piston return spring and compress.
SST 09350-30020 (09350-07040)
b. Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)

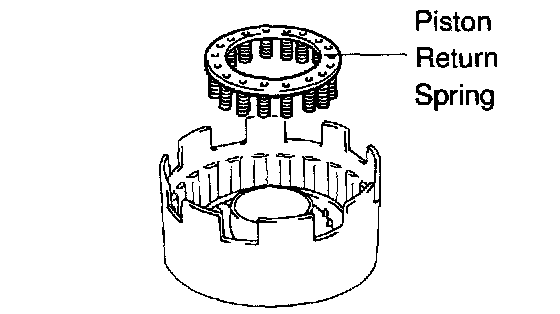

c. Remove the piston return spring.

5. INSPECT DIRECT CLUTCH RETURN SPRING SUB-ASSY

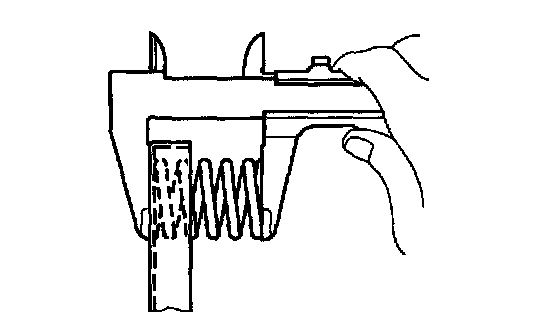

a. Measure the free length of the spring together with the spring seat.
Standard free length: 23.25 mm (0.915 inch)
6. REMOVE DIRECT CLUTCH PISTON SUB-ASSY

a. Place the direct clutch drum onto the O/D support.

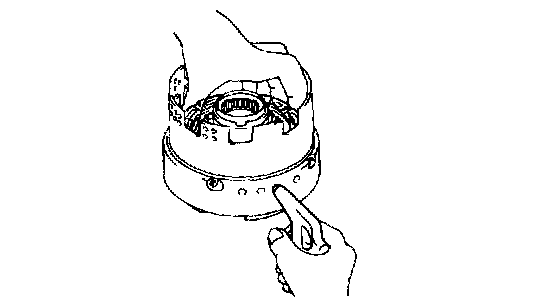

b. Hold the direct clutch piston and apply compressed air (196 kPa, 2.0 kgf/cm2, 28.5 psi) to the O/D support to remove the direct clutch piston.

HINT: Make sure the direct clutch piston squares in the drum before applying compressed air.

c. Remove the direct clutch piston.

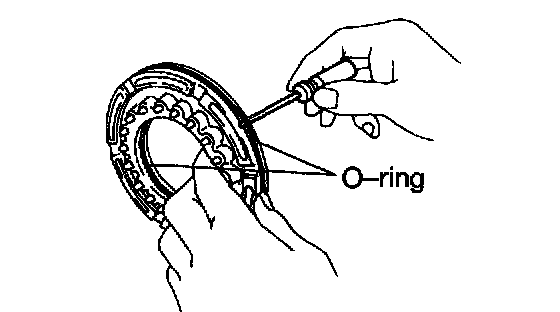

d. Using a small screwdriver, remove the 2 O-rings from the piston.

7. INSPECT DIRECT CLUTCH PISTON SUB-ASSY

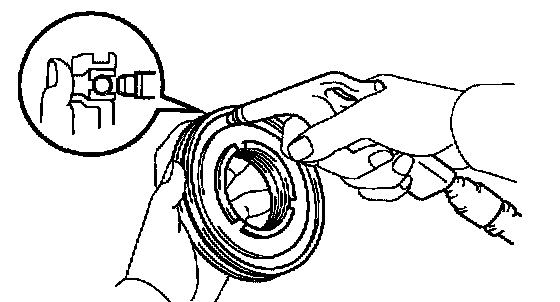

a. Check that the check ball is free by shaking the piston.
b. Check that the valve does not leak by applying low-pressure compressed air.

8. INSPECT DIRECT CLUTCH DRUM SUB-ASSY

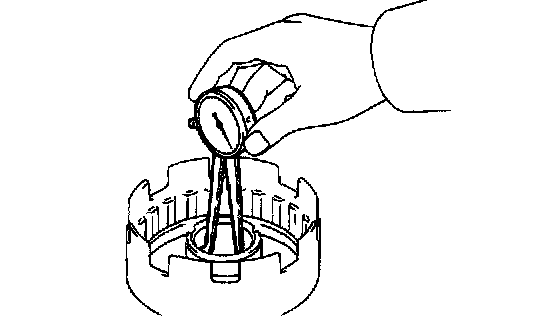

a. Using a deal indicator, measure the inside diameter of the clutch drum bushing.
Maximum inside diameter: 53.97 mm (2.1248 inch)
If the inside diameter is greater than the maximum, replace the clutch drum.
9. REMOVE DIRECT CLUTCH PISTON SUB-ASSY

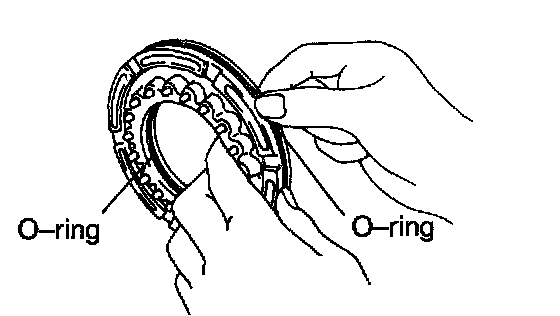

a. Coat 2 new O-rings with ATF and install them in the direct clutch piston.

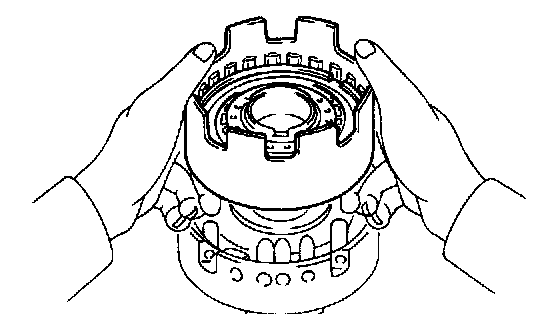

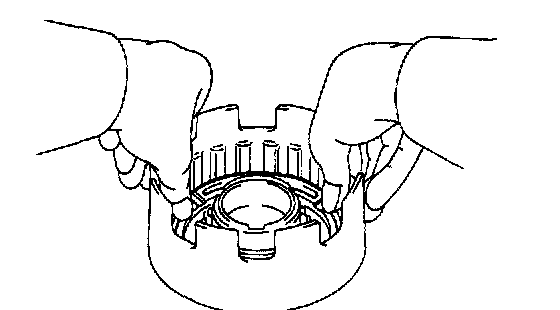

b. Being careful not to damage the O-rings press in the direct clutch piston into the clutch drum with both hands.
10. REMOVE DIRECT CLUTCH RETURN SPRING SUB-ASSY

a. Install the piston return spring.

b. Place SST on the spring retainer, and compress the return spring with a press.
SST 09350-30020 (09350-07040)
c. Using SST, install the snap ring.
SST 09350-30020 (09350--07070)

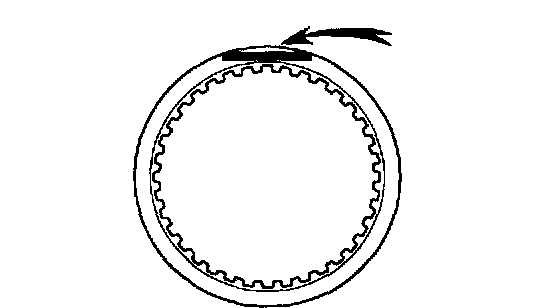

NOTICE: Be sure the end gap of the snap ring is not aligned with the spring retainer claw.

11. REMOVE DIRECT CLUTCH FLANGE

a. Install the cushion plate.

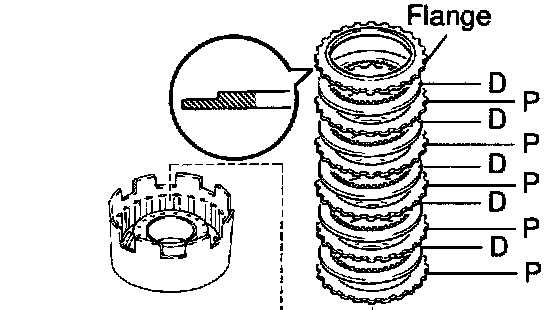

b. Install the 5 plates and 5 discs.
Install in order: P = Plate, D = Disc
P - D - P - D - P - D - P - D - P - D
c. Install the flange, the flat end facing downward.

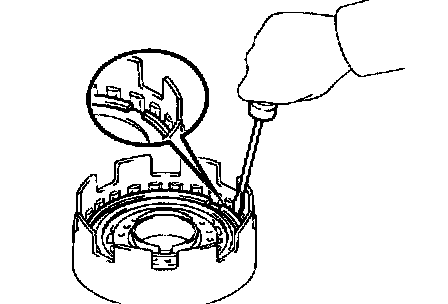

d. Using a screwdriver, install the snap ring.

NOTICE: Be sure the end gap of the snap ring is not aligned with the cutout portion of the direct clutch drum.

12. INSPECT PISTON STROKE OF DIRECT CLUTCH

a. Place the direct clutch assembly onto the O/D support assembly.

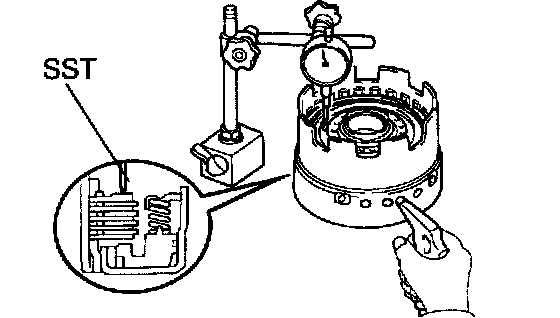

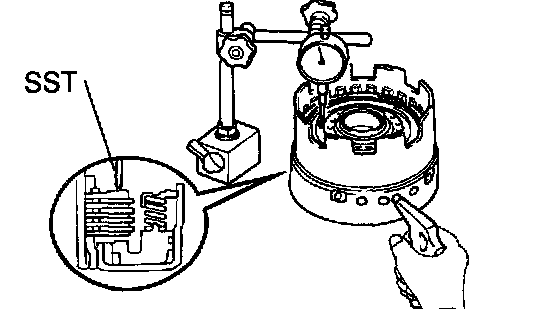

b. Using SST and a dial indicator, measure the direct clutch piston stroke while applying and releasing compressed air (186 - 206 kPa, 1.9 - 2.1 kgf/cm2, 27 - 30 psi).
SST 09350-30020 (09350-06120)
Piston stroke: 0.50 - 0.80 mm (0.020 - 0.032 inch)
If the pack clearance is less than the limit of piston stroke, parts may have been assembled incorrectly, so check and reassemble again.
If the clearance is non-standard, select another flange.

HINT: There are 10 different flanges in thickness.

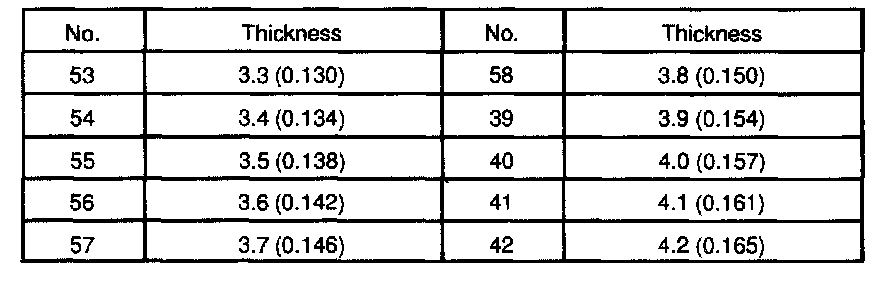

Flange thickness: mm (in.)
