Extension Housing: Service and Repair
AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEALREPLACEMENT
1. REMOVE FRONT FLOOR BRACE CENTER
2. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER LH
3. REMOVE RR SUSPENSION MEMBER BRACE REAR LOWER RH
4. REMOVE OXYGEN SENSOR
5. REMOVE EXHAUST PIPE
6. REMOVE FRONT FLOOR HEAT INSULATOR NO. 1
7. REMOVE PARKING BRAKE CABLE HEAT INSULATOR
8. REMOVE PROPELLER W/CENTER BEARING SHAFT ASSY
SST 09922-10010
9. DRAIN AUTOMATIC TRANSMISSION FLUID
a. Remove the drain plug, gasket and drain ATF.
b. Install a new gasket and drain plug.
Torque: 20 Nm (205 kgf-cm, 15 ft. lbs.)
10. REMOVE AUTOMATIC TRANSMISSION FLANGE YOKE ASSY

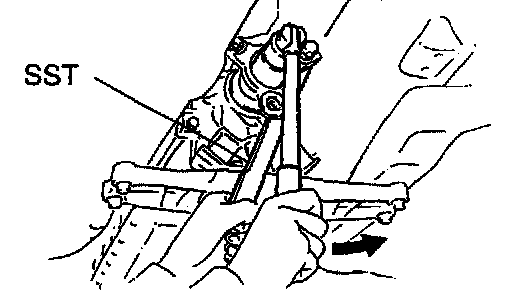

a. Using SST and hammer, loosen the staked part of the nut.
SST 09930-00010

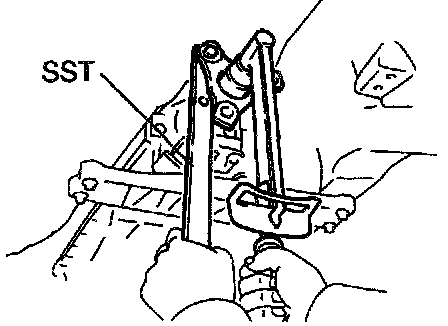

b. Using SST and a 30 mm deeper socket wrench, remove the nut.
SST 09330-00021
c. Tap the transmission flange with a plastic hammer to remove it.

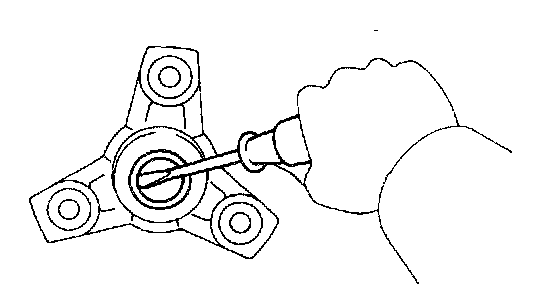

d. Using a screwdriver, remove the oil seal from the transmission flange.
11. REMOVE AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL

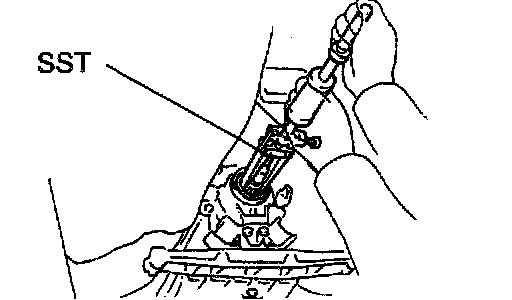

a. Using SST, remove the oil seal.
SST 0930-00010
12. INSTALL AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL
a. Coat the lip of a new oil seal with MP grease.

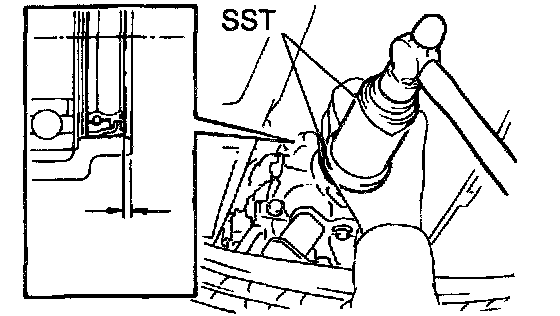

b. Using SST and a hammer, drive in the oil seal with the lip facing downward.
SST 09310-60011 (09316-00011, 09316-00051)
Oil seal depth from flat end: 2.0 - 0.2 mm (0.079 - 0.088 inch)
13. INSTALL AUTOMATIC TRANSMISSION FLANGE YOKE ASSY

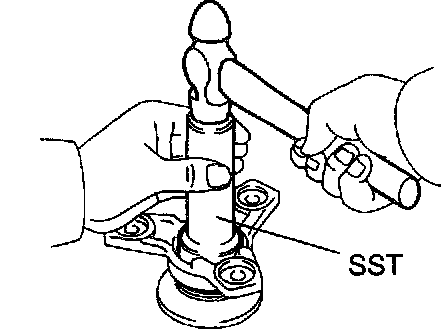

a. Using SST and a hammer, drive in a new oil seal.
SST 09517-36010
b. Install the transmission flange.
c. Using SST and a 30 mm deeper socket wrench, install and torque a new nut.
SST 09330-00021
Torque: 126 Nm (1,280 kgf-cm, 92 ft. lbs.)
d. Using a chisel and hammer, stake the nut.
14. INSTALL PROPELLER W/CENTER BEARING SHAFT ASSY
15. FULLY TIGHTEN CENTER SUPPORT BEARING ASSY NO. 1
SST 09922-10010
16. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
17. INSTALL FRONT FLOOR HEAT INSULATOR NO. 1
18. INSTALL EXHAUST PIPE
19. INSTALL OXYGEN SENSOR
20. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER RH
21. INSTALL RR SUSPENSION MEMBER BRACE REAR LOWER LH
22. INSTALL FRONT FLOOR BRACE CENTER
23. ADD AUTOMATIC TRANSMISSION FLUID
24. INSPECT AUTOMATIC TRANSMISSION FLUID
25. CHECK EXHAUST GAS LEAK
