Tilt and Telescopic Manual Switch Circuit

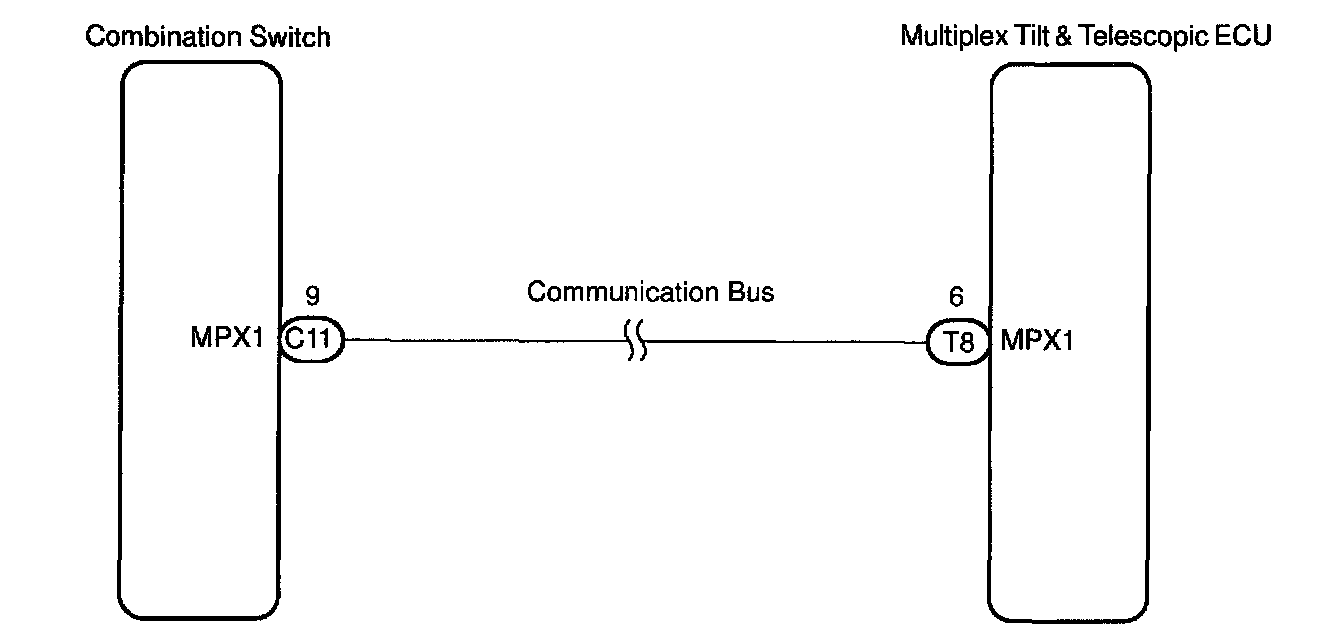

CIRCUIT DESCRIPTION

The signal occurred by operating the manual switch (turn signal switch) are sent to the multiplex tilt & telescopic ECU through the light control communication bus.
