Ignition Lock Solenoid: Testing and Inspection
KEY INTER LOCK SOLENOIDINSPECTION
1. INSPECT KEY INTER LOCK SOLENOID [85432/98-129]
a. Disconnect the solenoid connector.

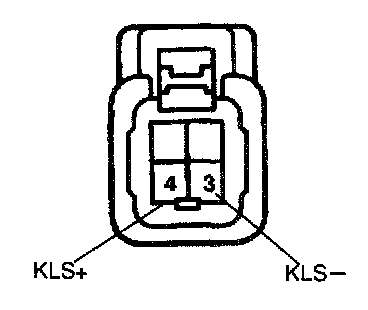

b. Connect KLS+ (4) terminal to the batteries positive (+) terminal, and KLS- (3) terminal to the battery negative (-) terminal, and apply about 12V between KLS+ - KL- terminals. Check that operation noise can be heard from the solenoid.
If the solenoid does not operate, replace the solenoid.
