Tire Pressure Antenna Rear LH
REPLACEMENTHINT:
^ COMPONENTS: See Diagrams; Exploded Views.
^ Replace the RH side by the same procedure as the LH side.
1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY [42603/98-46]
a) Remove the 10 bolts and wheel hub ornament sub-assembly.
2. REMOVE REAR WHEEL
a) Remove the 5 nuts and front wheel.
3. REMOVE TIRE PRESSURE ANTENNA REAR LH [89768/98-142]
a) Remove the rear wheel house liner.

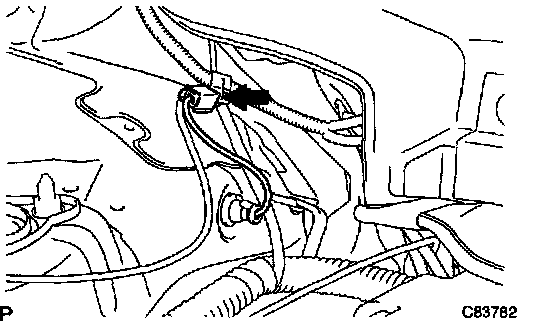

b) Disconnect the connector.
c) Remove the 2 bolts and tire pressure antenna.
4. INSTALL TIRE PRESSURE ANTENNA REAR LH [89768/98-142]
a) Install the tire pressure antenna with the 2 bolts.
Torque: 7.8 Nm (80 kgf-cm, 69 inch lbs.)
b) Connect the connector.
c) Install the rear wheel house liner.
5. INSTALL REAR WHEEL
a) Install the rear wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
6. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY [42603/98-46]
a) Install the ornament with 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
7. REGISTRATION OF TRANSMITTER ID
8. INSPECT TIRE PRESSURE WARNING SYSTEM
