Tire Pressure Sensor: Diagrams

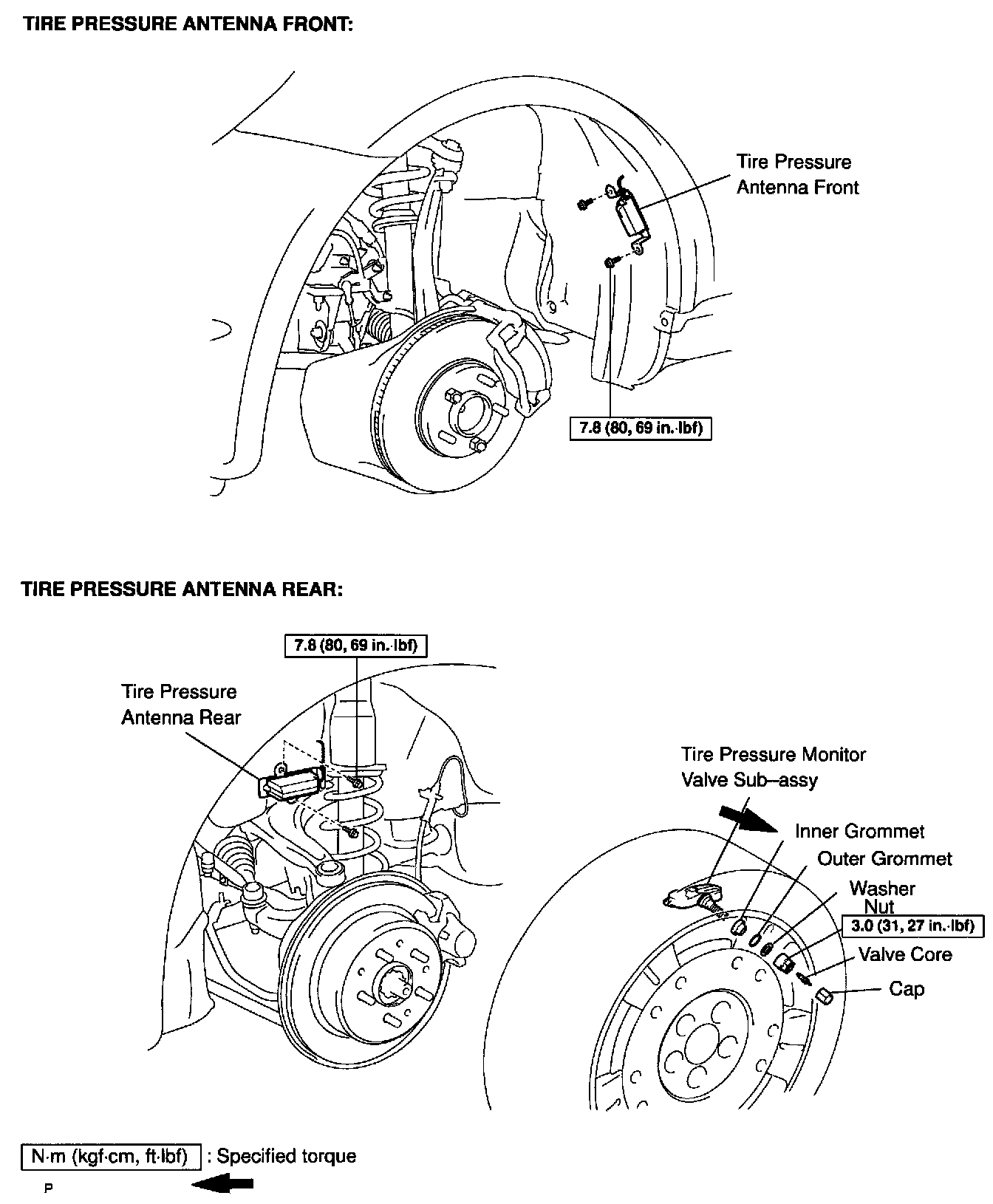

TIRE & WHEEL COMPONENTS W/ RELATED COMPONENTS





Part 1 of 2

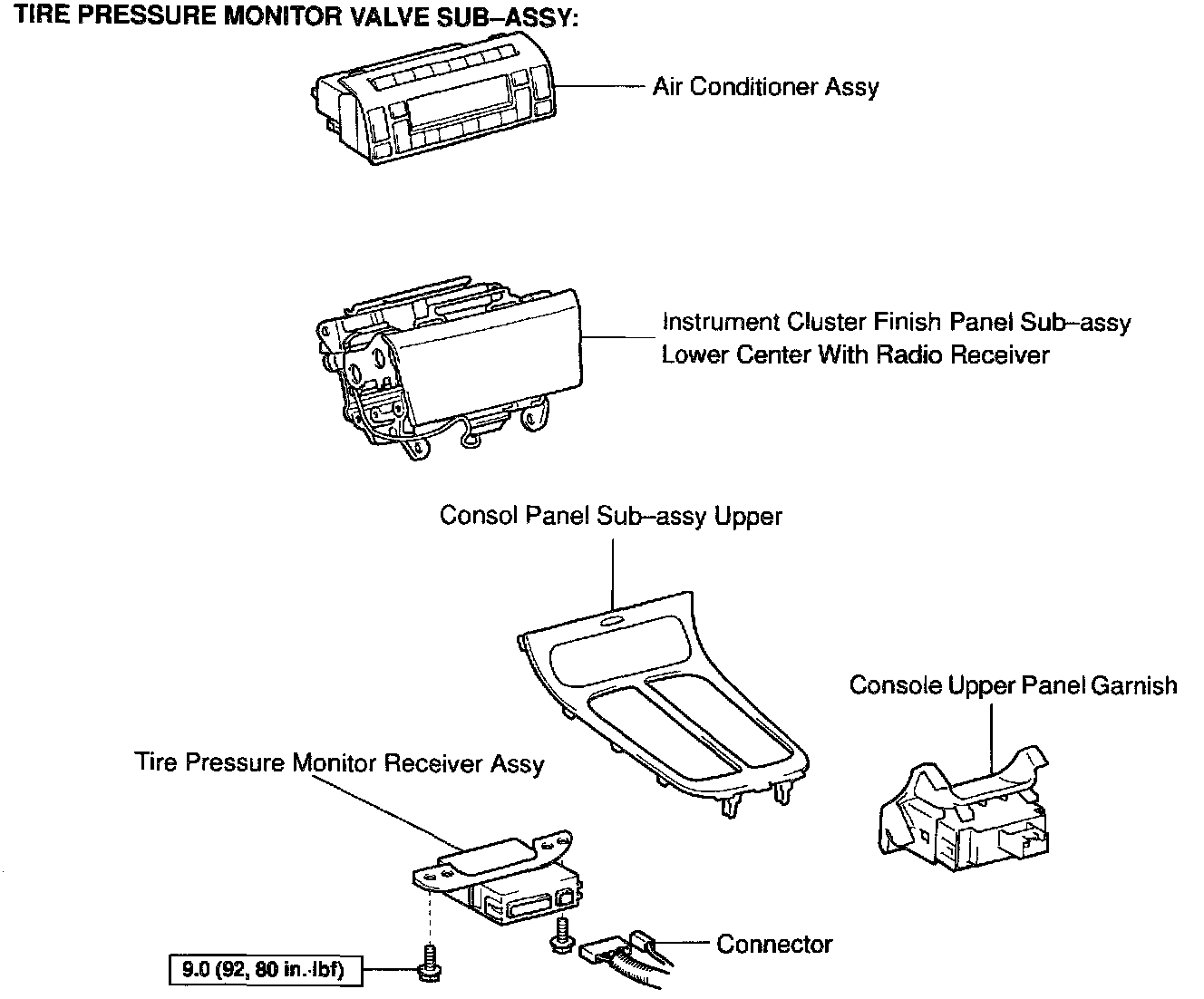

Part 2 of 2
