Speed Sensor, Rear

COMPONENTS

- Replace the RH side by the same procedures with LH side.

1. REMOVE REAR WHEEL
2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT BACK ASSEMBLY





4. REMOVE SPEED SENSOR REAR LH [89546]
(a) Disconnect the speed sensor and HID connectors.

HINT: Disconnect only the speed sensor connector in RH side.

(b) Remove the bolt and nut and disconnect the No. 2 and No. 3 clamps.
(c) Remove the resin clamp and the clamp bolt, and disconnect the HID connector.

HINT: Only LH side has No. 3 clamp, the resin clip and clamp bolt.

(d) Remove the bolt and disconnect the No. 1 clamp.

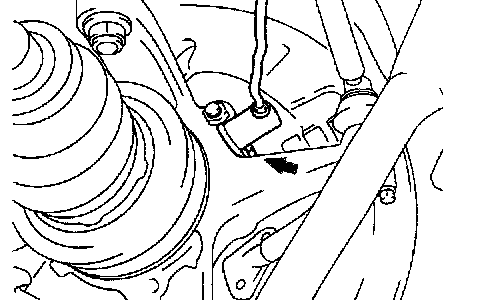

(e) Remove the bolt and speed sensor.





5. INSTALL SPEED SENSOR REAR LH [89546]

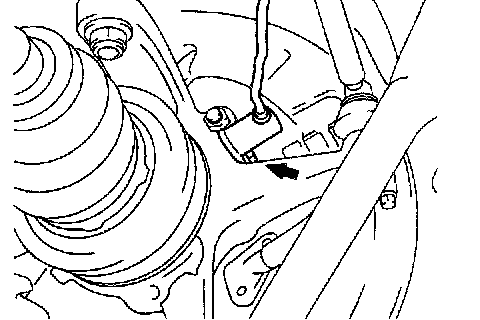

(a) Install the speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
(b) Install the No. 1 clamp the the bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
(c) Install the No. 2 and No. 3 clamps with bolt and nut.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
(d) Connect the HID connector, and install the resin clamp and clamp bolt.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)

HINT: Only LH side has No. 3 clamp, the resin clip and clamp bolt.

(e) Connect the speed sensor and HID connector.

HINT: Connect only the speed sensor connector in RH side

6. INSTALL REAR SEAT BACK ASSEMBLY
7. INSTALL REAR SEAT CUSHION ASSEMBLY
8. INSTALL REAR WHEEL
(a) Install the rear wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
(b) Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
9. CHECK ABS SPEED SENSOR SIGNAL
