Speed Sensor, Front

COMPONENTS

- Replace the RH side by the same procedures with LH side.

1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH [53876A]
3. REMOVE SPEED SENSOR FRONT LH [89543]

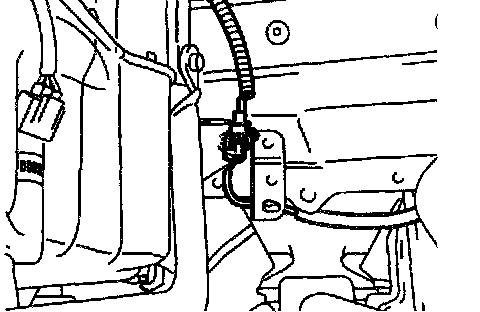

(a) Disconnect the speed sensor connector.

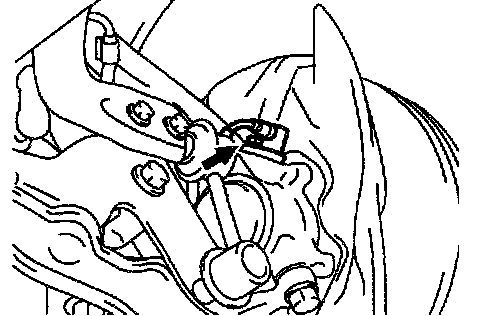

(b) Remove the resin clip and 2 clamp bolts holding the sensor harness.
(c) Remove the bolt and speed sensor.

NOTICE: Do not stick any foreign matter on the sensor tip.

4. INSTALL SPEED SENSOR FRONT LH [89543]





(a) Install the speed sensor with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
(b) Install the sensor harness with the 2 clamp bolts and resin clip.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)

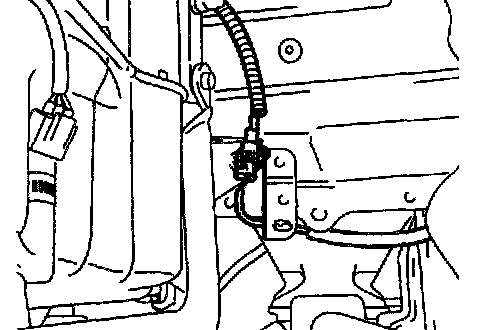

(c) Connect the speed sensor connector.
5. INSTALL FRONT FENDER LINER LH [53876A]
6. INSTALL FRONT WHEEL
(a) Install the front wheel with the 5 nuts.
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
(b) Install the ornament with the 10 bolts.
Torque: 20 Nm (204 kgf-cm, 15 ft. lbs.)
7. CHECK ABS SPEED SENSOR SIGNAL
