Activation When Disposing of Front Seat Outer Belt Pretensioner

DISPOSE FRONT SEAT OUTER BELT ASSEMBLY LH (WHEN DISPOSING OF AIRBAG ASSEMBLY DEPLOYMENT METHOD)
[73220 / 98-99]

NOTE:
- When disposing of a front seat outer belt (with seat belt pretensioner) only, never use the customer's vehicle to activate the seat belt pretensioner.
- Be sure to follow the procedure given when activating the seat belt pretensioner.

a. Remove the front seat outer belt.

HINT: Cut the belt near the seat belt retractor.

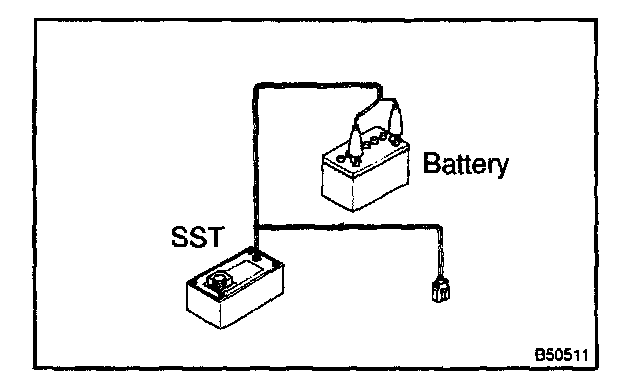

b. Check functioning of SST.
SST 09082-00700, 09082-00770

c. Install the SST.

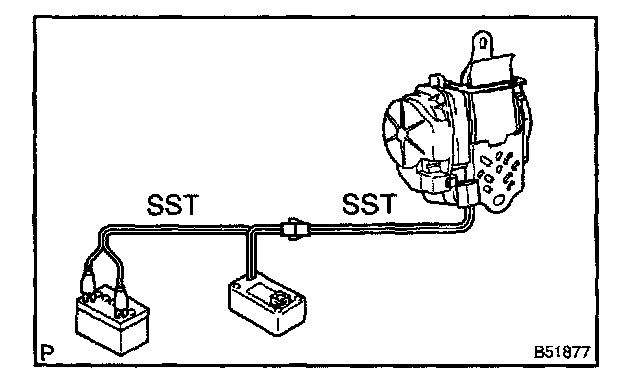

1. Connect the 2 SST, then connect to the seat belt pretensioner.
SST 09082-00700, 09082-00770

NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

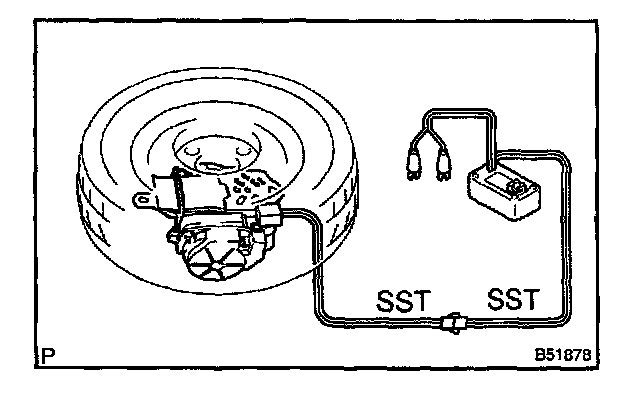

2. Place the front seat outer belt on the ground and cover it with the disc wheel with tire.

NOTE: Place the front seat outer belt as shown in the illustration.

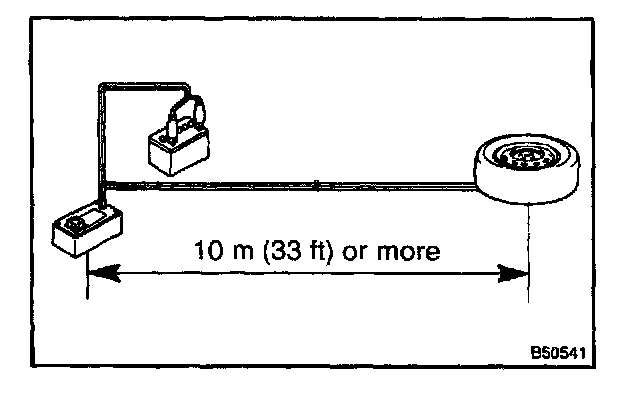

3. Move the SST at least 10 m (33 ft) away from the disc wheel.

NOTE: Take care not to damage the SST wire harness.




d. Activate the seat belt pretensioner.
1. Connect the SST red clip to the battery positive (+) terminal and black clip to the battery negative (-) terminal.
2. Check that no one is within 10 m (33 ft) area around the disc wheel.
3. Press the SST activation switch and activate the seat belt pretensioner.

HINT: The seat belt pretensioner operates simultaneously with the LED of the SST activation switch lighting up.

e. Dispose of the front seat outer belt (with seat belt pretensioner).




1. Remove the disc wheel and SST.
2. Place the front seat outer belt in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts.
