Initial Inspection and Diagnostic Overview
>>
Fail-Safe Operation
Fail-Safe Operation

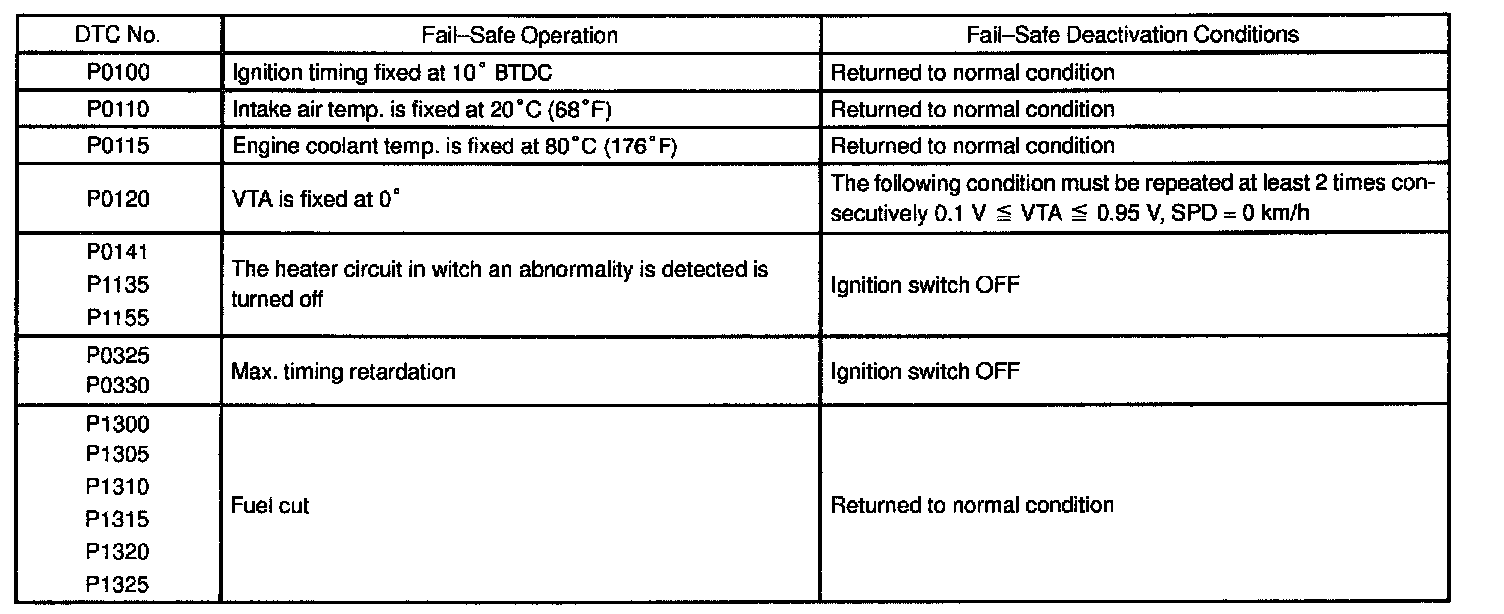

FAIL-SAFE CHART
P0100 - P1325:
If any of the codes is recorded, the ECM enters into the fail-safe mode.
