Air Bag Wiring Diagram - Manual Update
ELECTRICALEL003-02
Title:
ELECTRICAL WIRING DIAGRAM AMENDMENT
MODELS:
'02 SC 430
March 8, 2002
Introduction
Due to the mid-year changes of the SRS airbag system on the 2002 model year SC 430, some pages of the Electrical Wiring Diagram have been modified. When diagnosing vehicles produced from the starting VIN listed below, utilize the following amended Electrical Wiring Diagram.

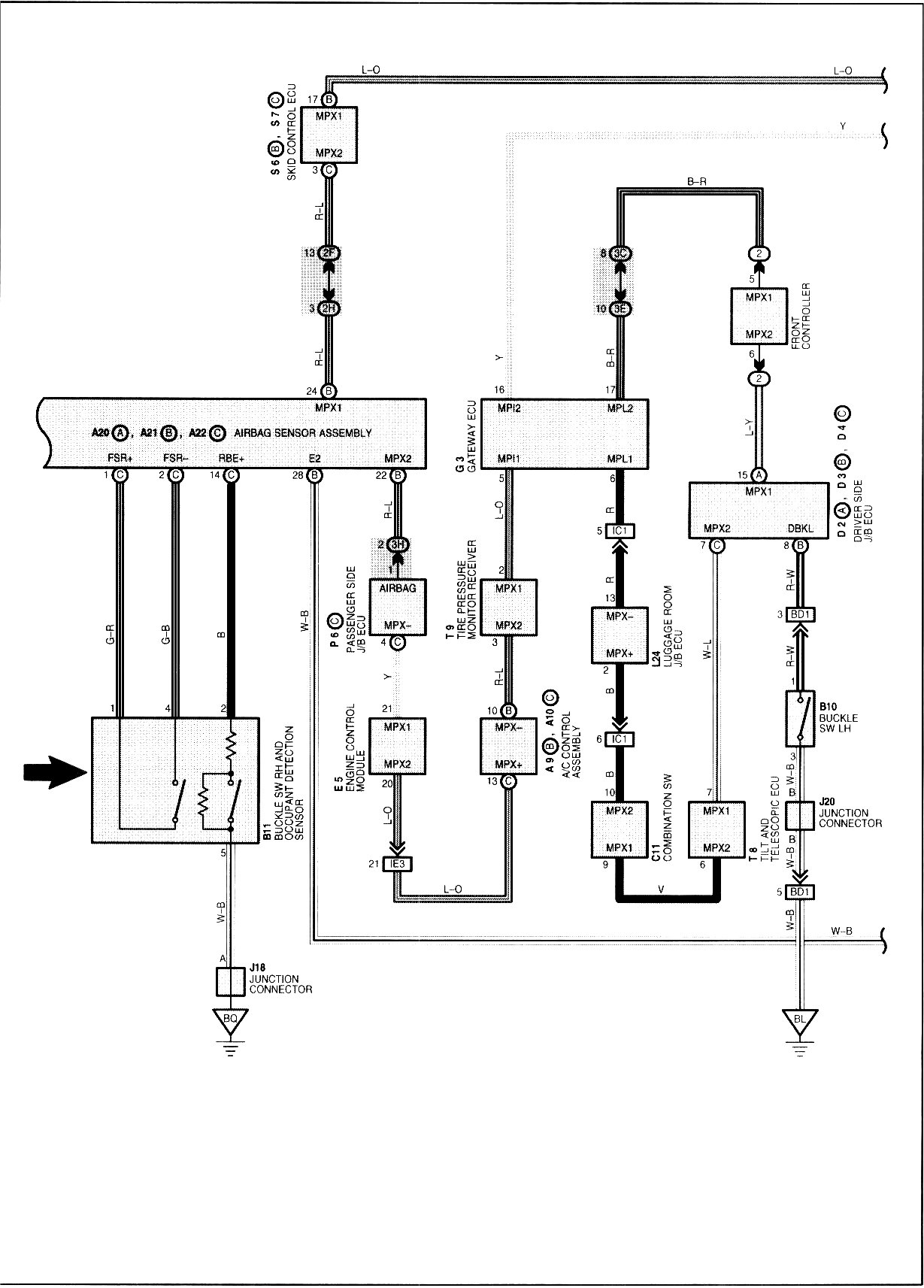

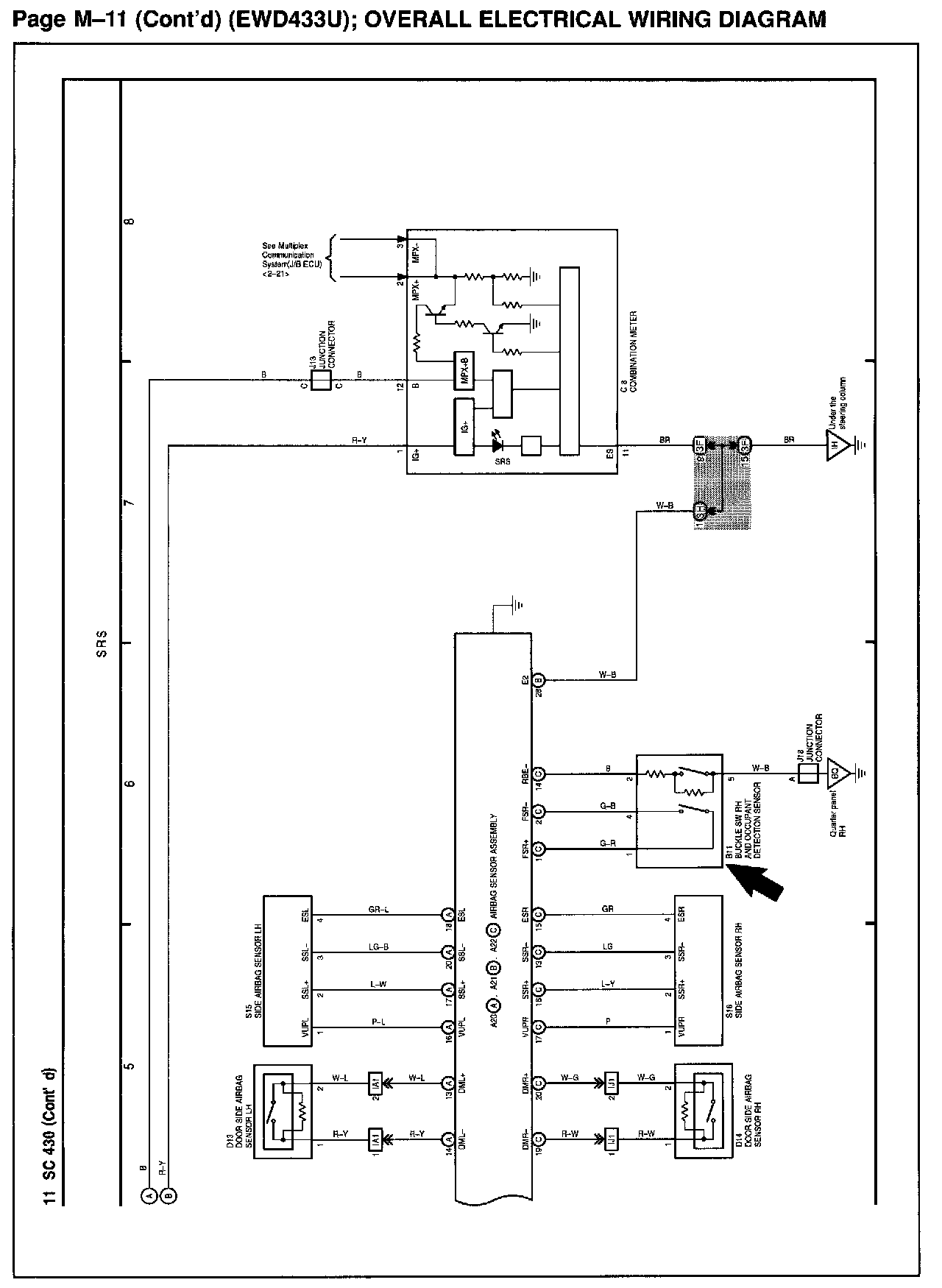

The SRS airbag system has the added function of detecting the presence of a passenger seated in the vehicle, through an occupant detection sensor. The illustrations show the circuit between the airbag sensor assembly and the occupant detection sensor.
Refer to your Technical Information System (TIS) for the complete updated 2002 SC 430 Electrical Wiring Diagram.
Applicable Vehicles
^ 2002 model year SC 430 vehicles produced starting with the VIN shown below.
Amended Pages

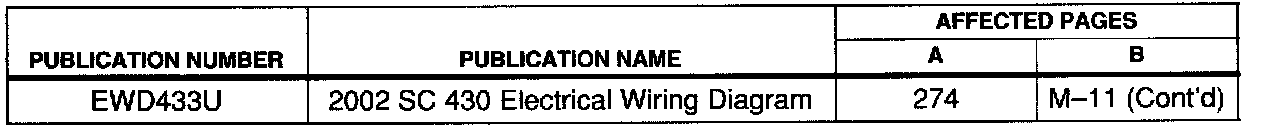

The chart shown lists affected publication pages. Column "A" lists those related Pages "System Circuit Diagram" pages affected by these amendments. Column "B" indicates the amended "Overall Electrical Wiring Diagram" pages affected by these amendments.
Warranty Information
Electrical Wiring Diagram Amendments
