Stop Lamp Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the conditions of the stop light switch.

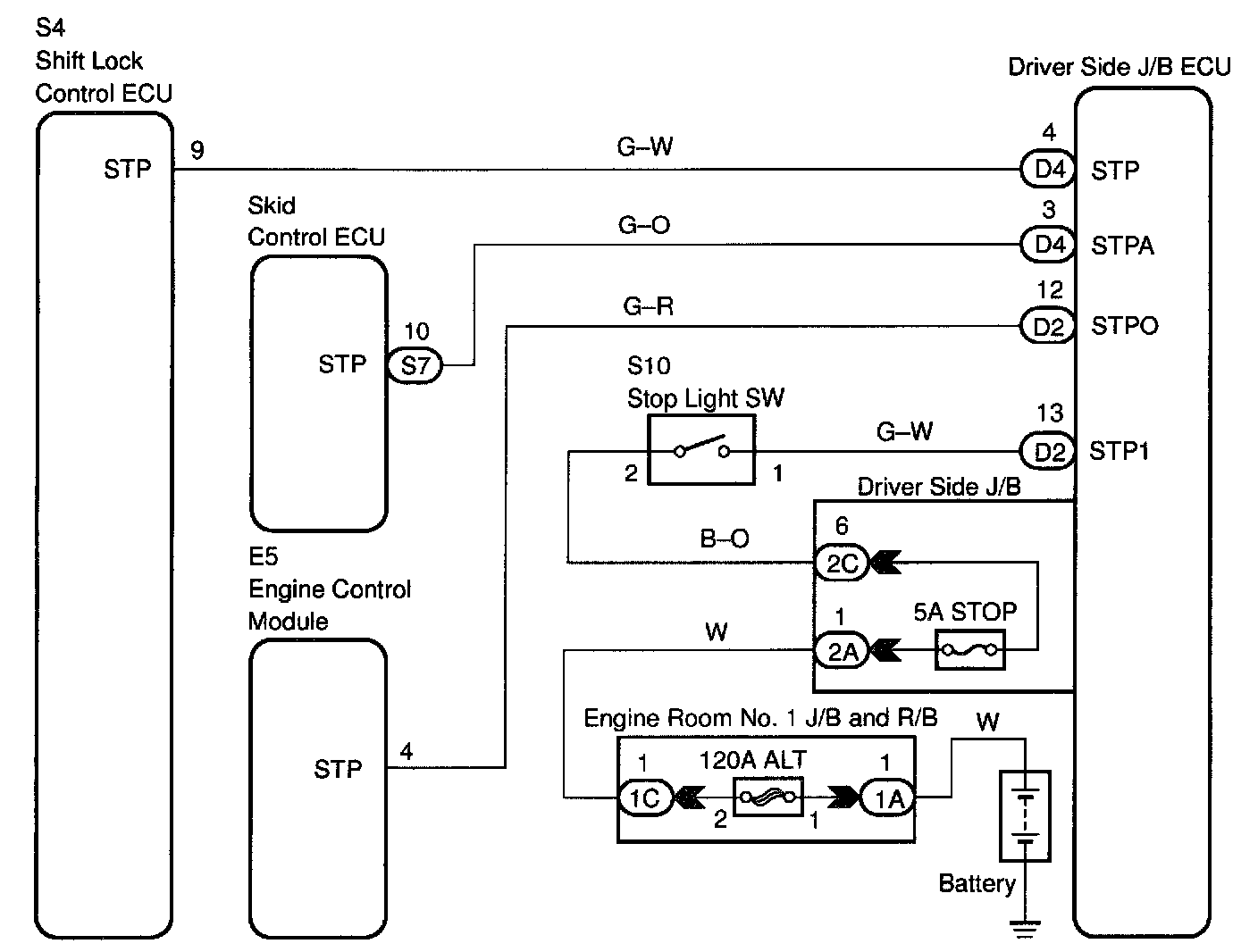

Wiring Diagram:






Step 1 - 3:

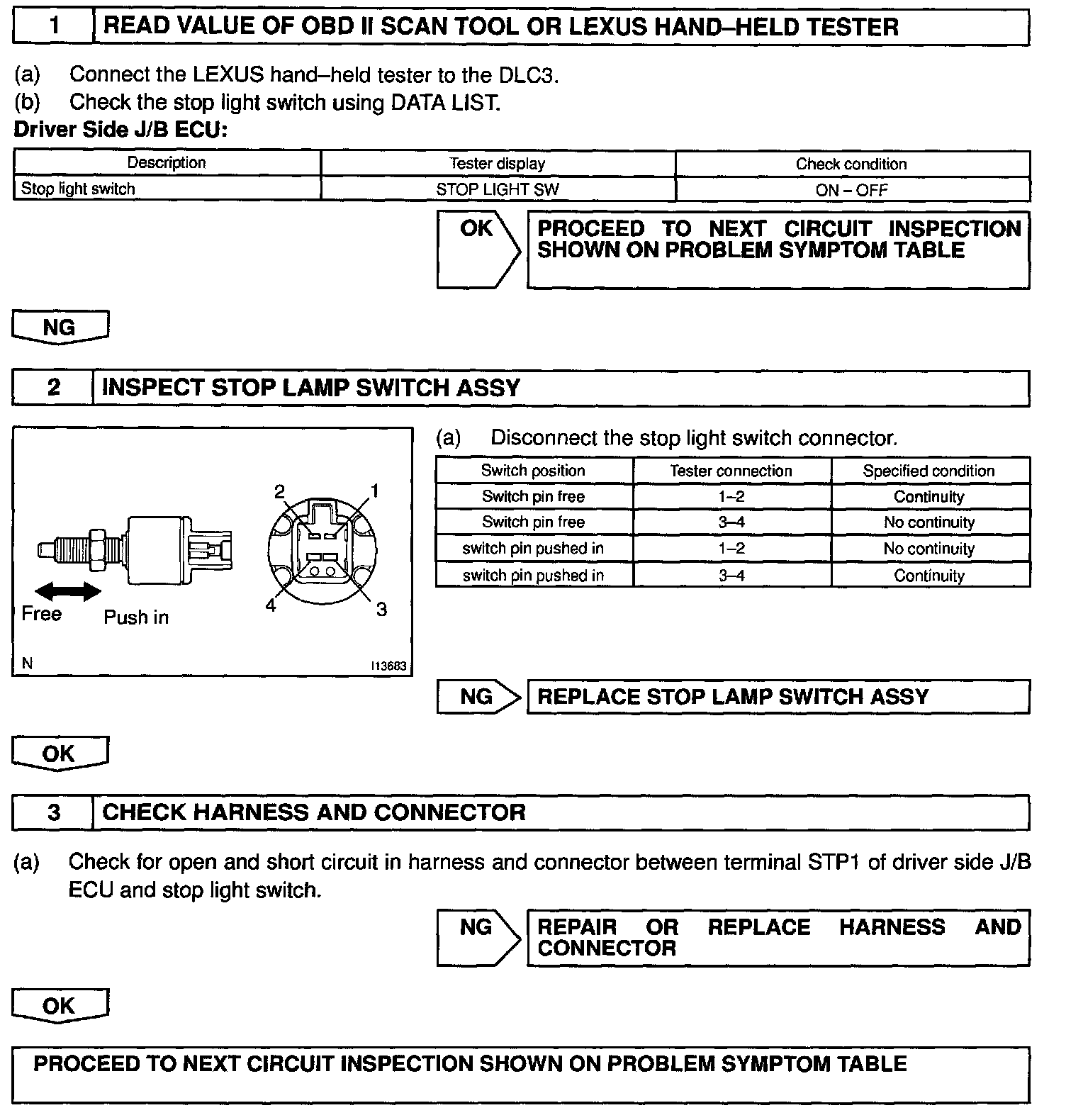

INSPECTION PROCEDURE
