Light Control Switch Circuit

CIRCUIT DESCRIPTION

This circuit detects the state of the light control switch and send it the to Driver Side J/B ECU.

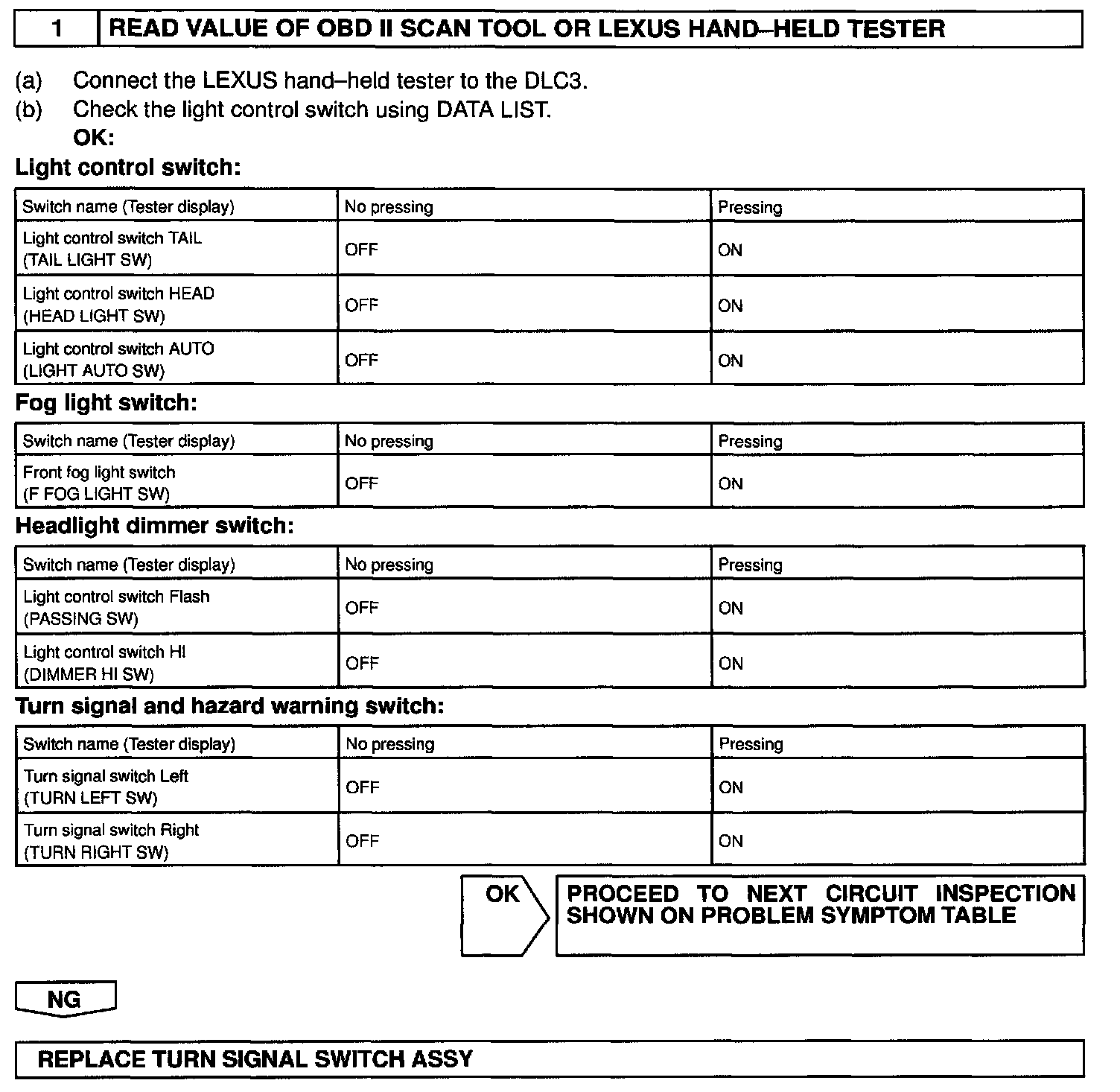

Step 1:




INSPECTION PROCEDURE
