High Mounted Stop Lamp Circuit
CIRCUIT DESCRIPTIONReceiving the brake pedal signal from the luggage room J/B ECU makes the stop light come on.

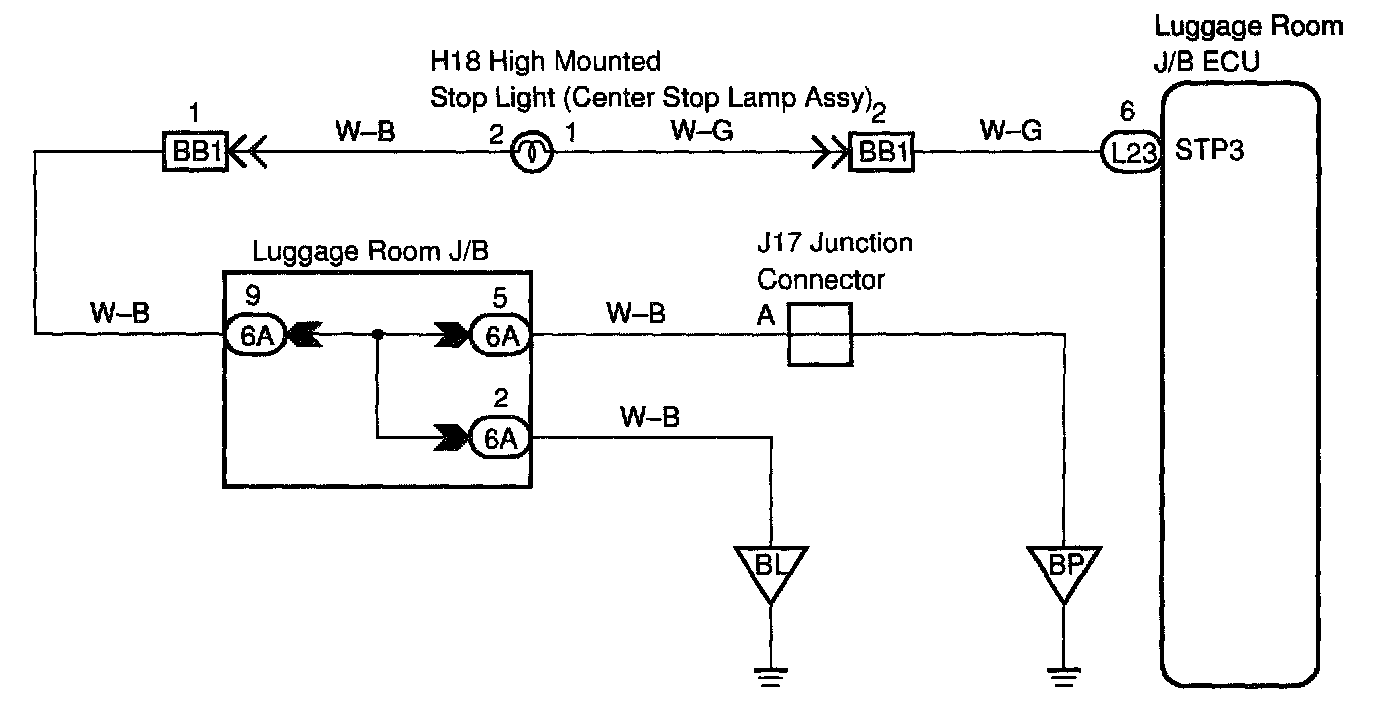

Wiring Diagram:

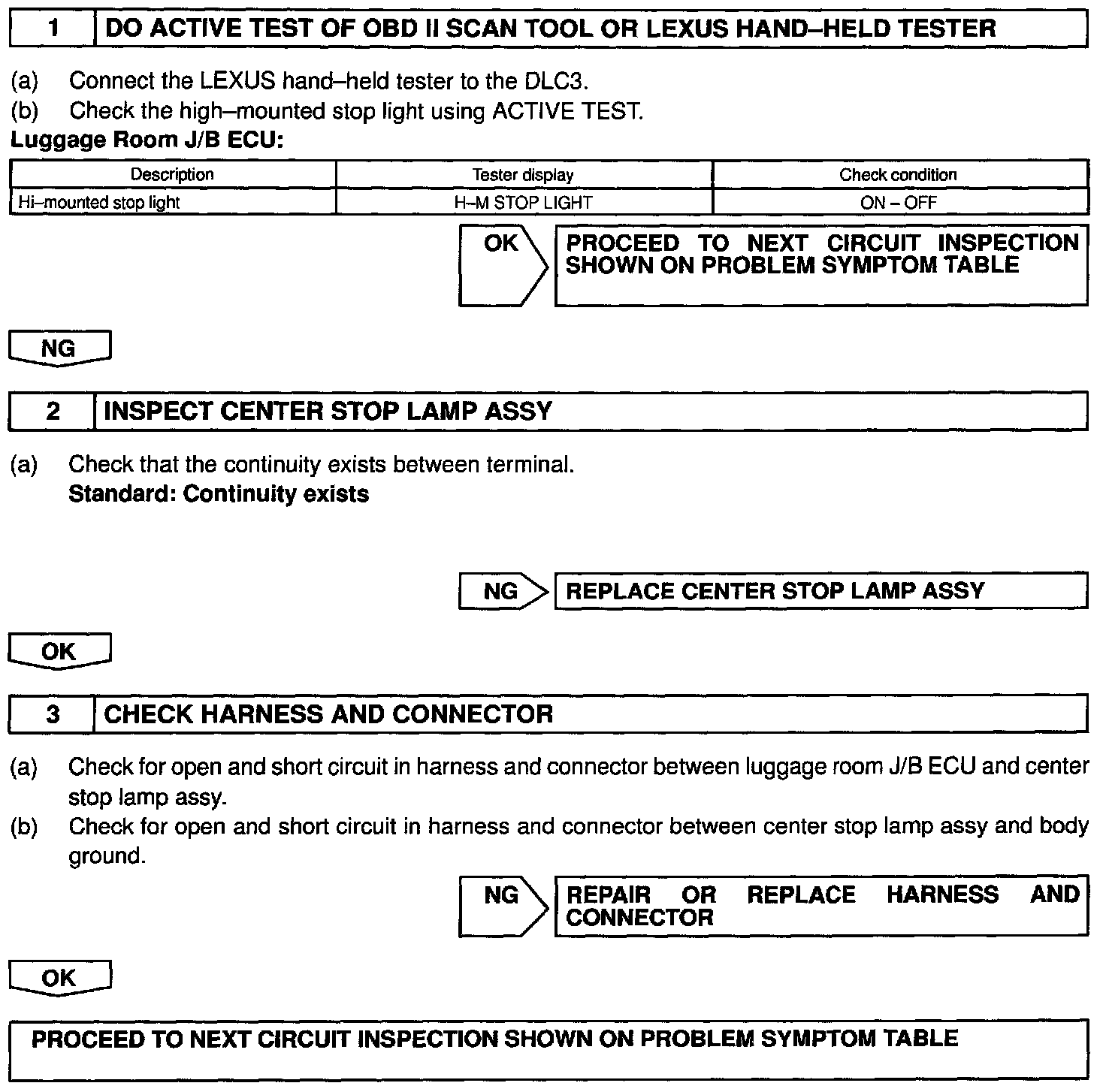

Step 1 - 3:
INSPECTION PROCEDURE
Receiving the brake pedal signal from the luggage room J/B ECU makes the stop light come on.
INSPECTION PROCEDURE
