Headlight Circuit

CIRCUIT DESCRIPTION

Front Light ECU receives headlight HI switch information from the combination switch, and lights the headlight.

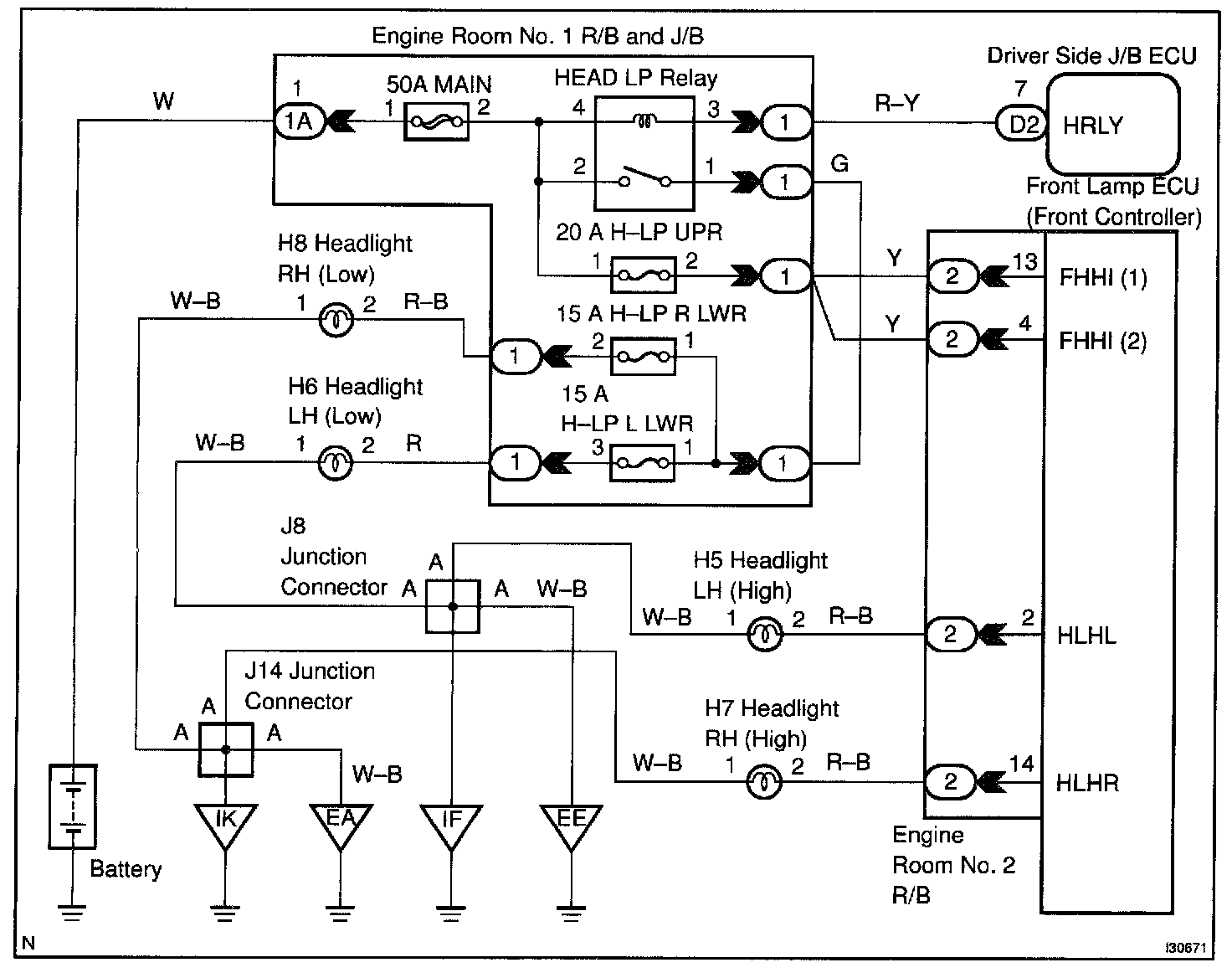

Wiring Diagram:

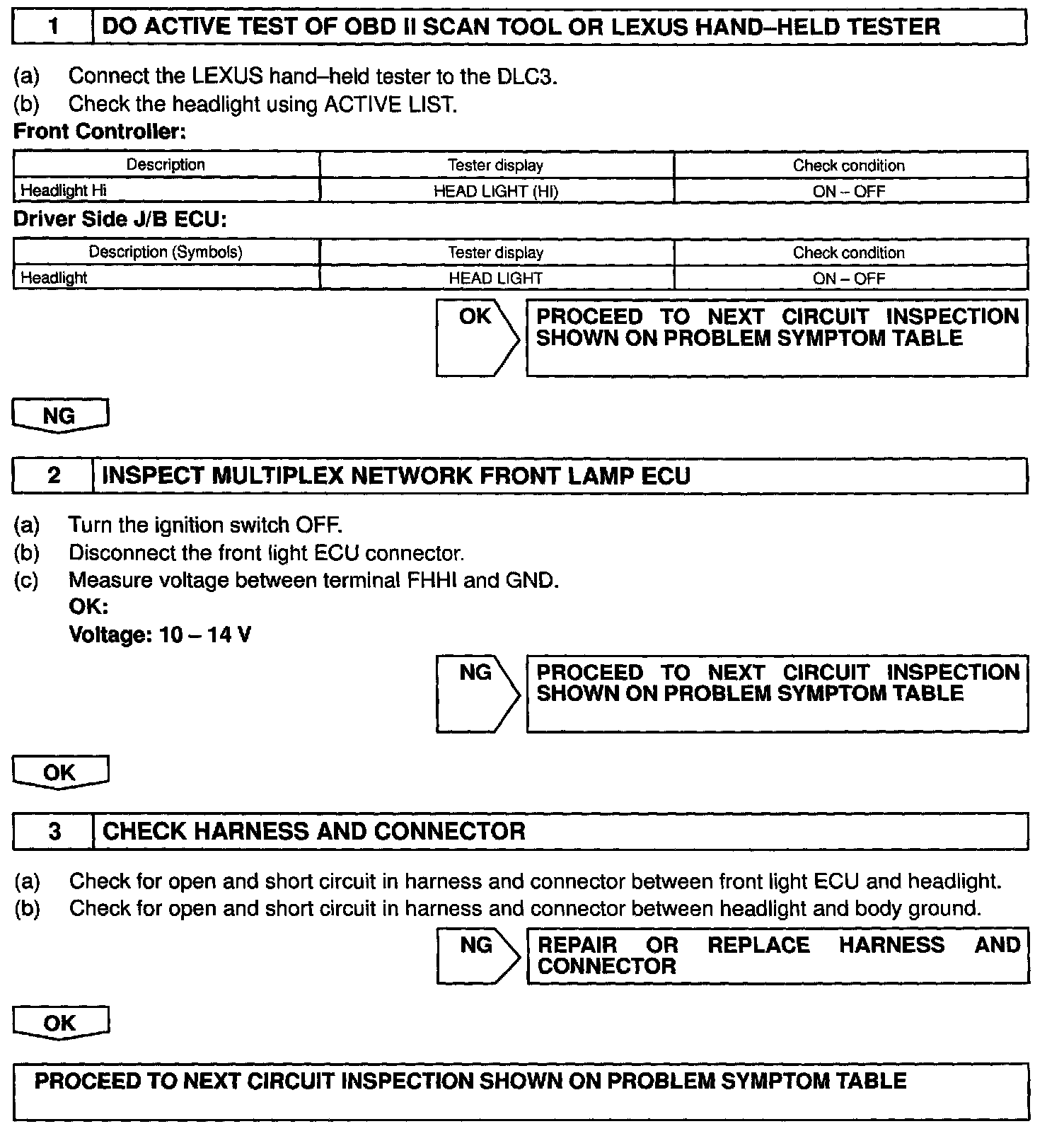

Step 1 - 3:

INSPECTION PROCEDURE
