Headlight Beam Level Control Actuator Circuit

CIRCUIT DESCRIPTION

When the actuator is received from a signal from the headlight beam level control ECU, the step motor is activated and the angle of the reflector in the headlight will be adjusted.

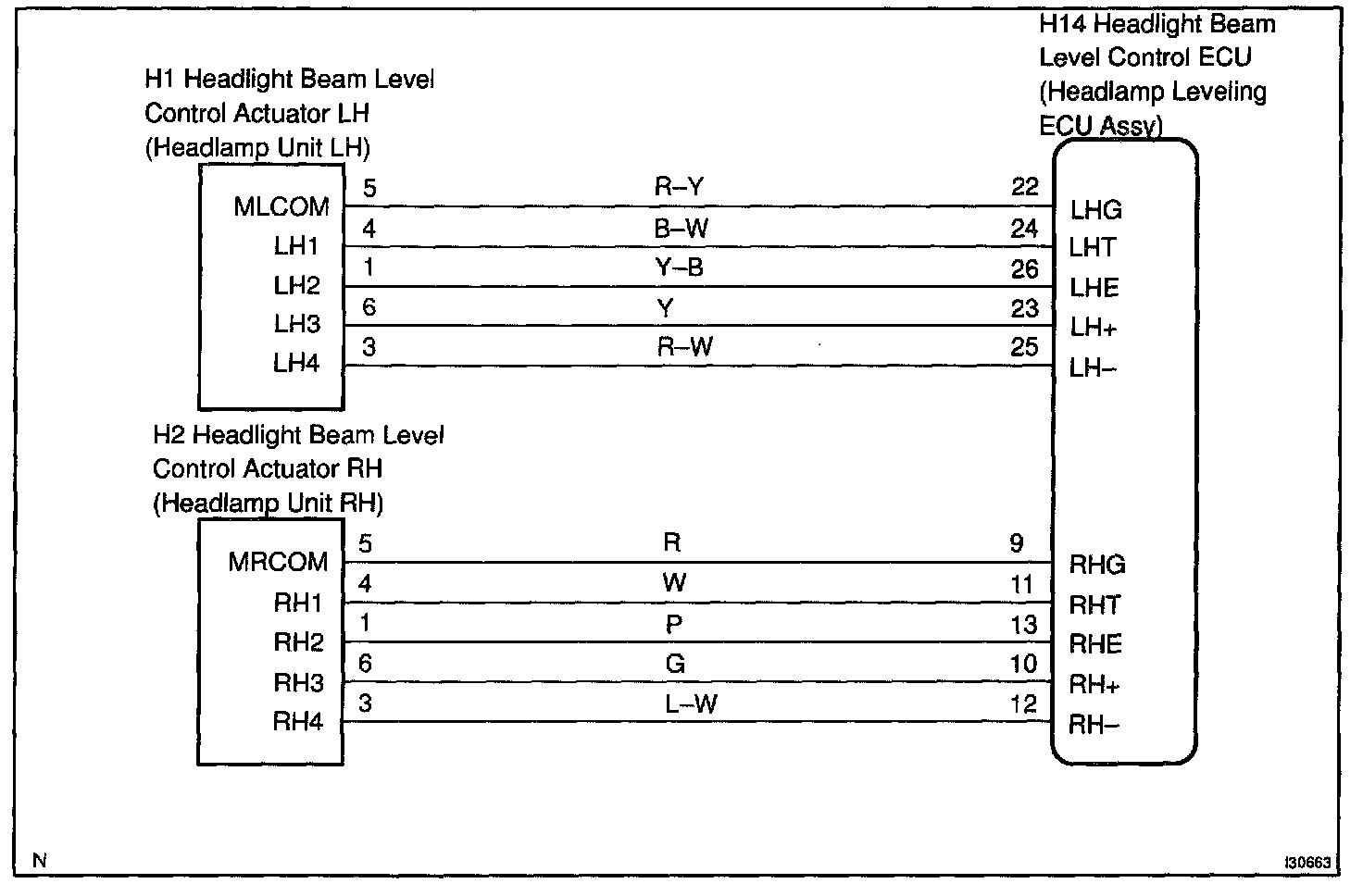

Wiring Diagram:

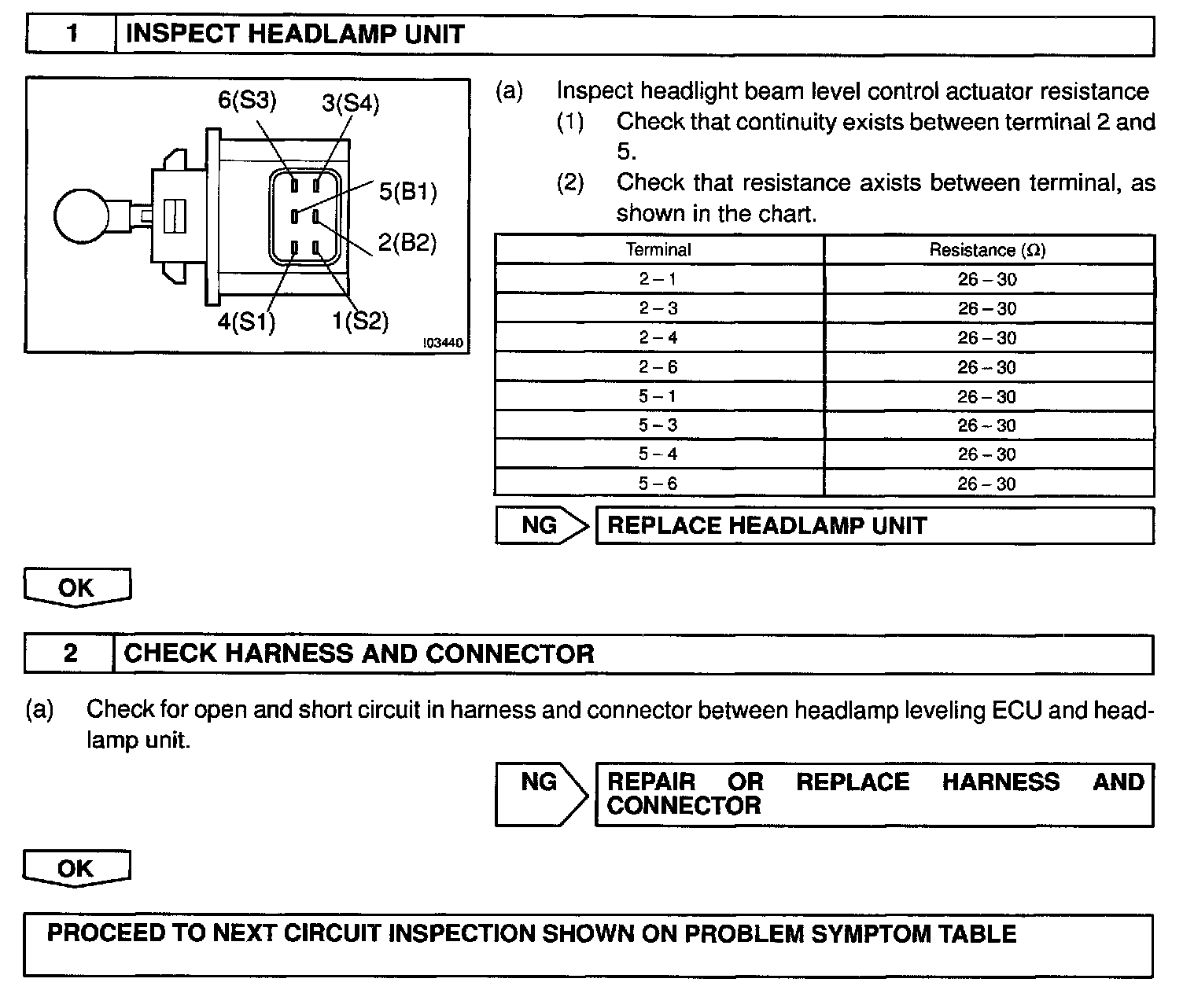

Step 1 - 2:




INSPECTION PROCEDURE
