Back-Up Lamp Circuit
CIRCUIT DESCRIPTIONReceiving the PNP switch R position signal from the luggage room J/B ECU makes the back-up light come on.

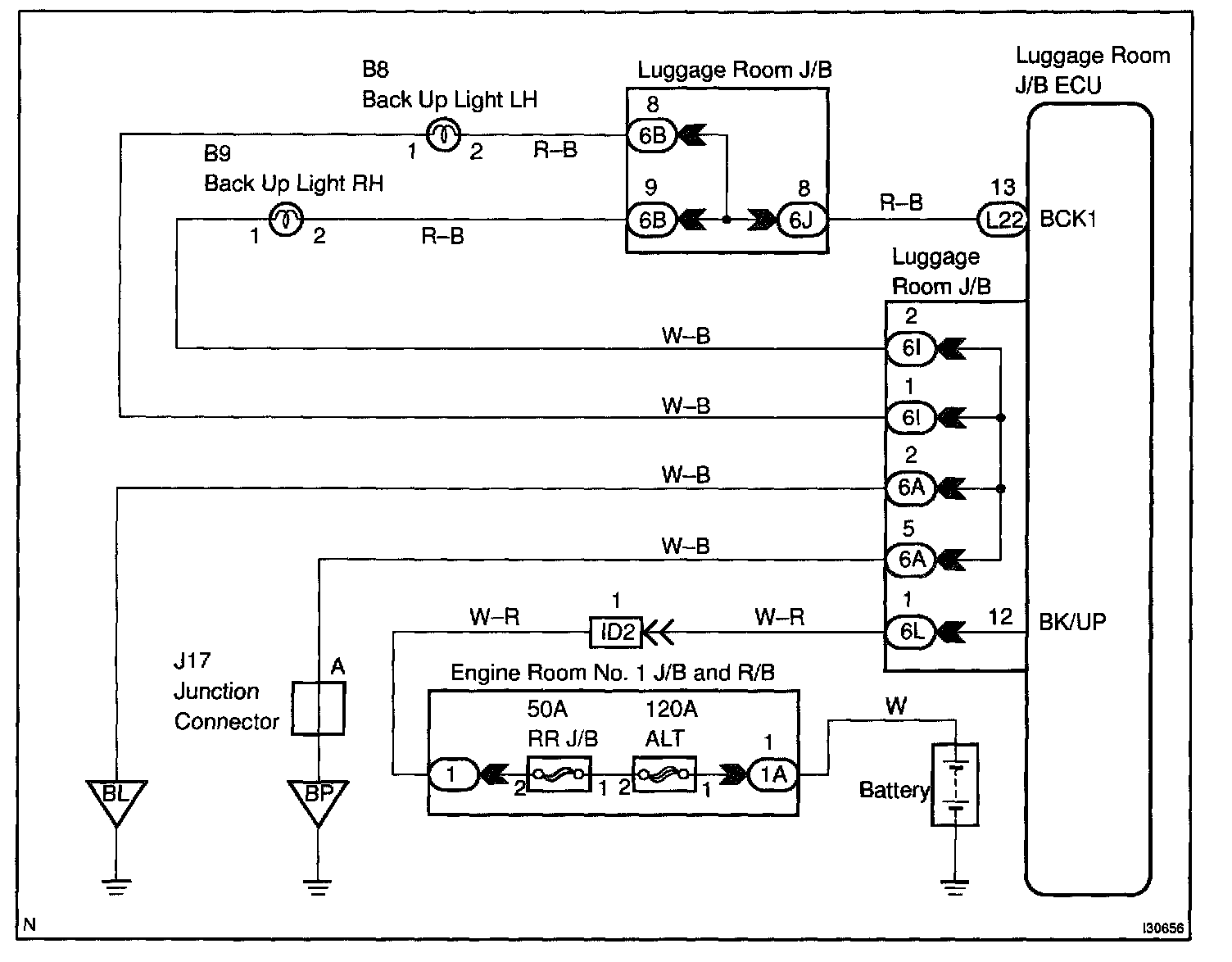

Wiring Diagram:

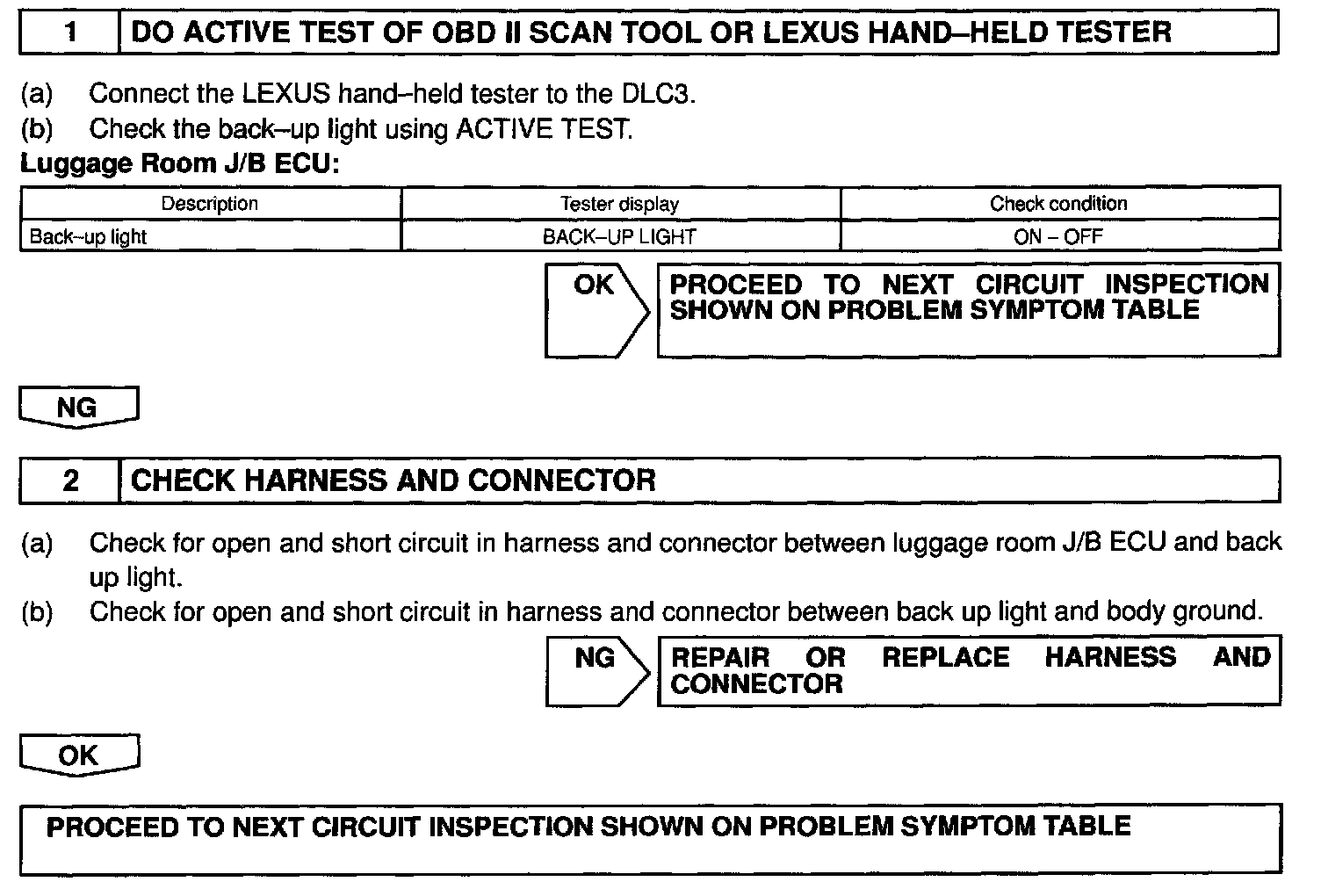

Step 1 - 2:
INSPECTION PROCEDURE
Receiving the PNP switch R position signal from the luggage room J/B ECU makes the back-up light come on.
INSPECTION PROCEDURE
