Home >> Lexus >> 2002 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> Warning Buzzer Does Not Sound >> Parking Brake, Key Unlock, Seat Belt Warning

Parking Brake, Key Unlock, Seat Belt Warning

WARNING BUZZER DOES NOT SOUND (PARKING BRAKE WARNING, KEY UNLOCK WARNING, SEAT BELT WARNING)

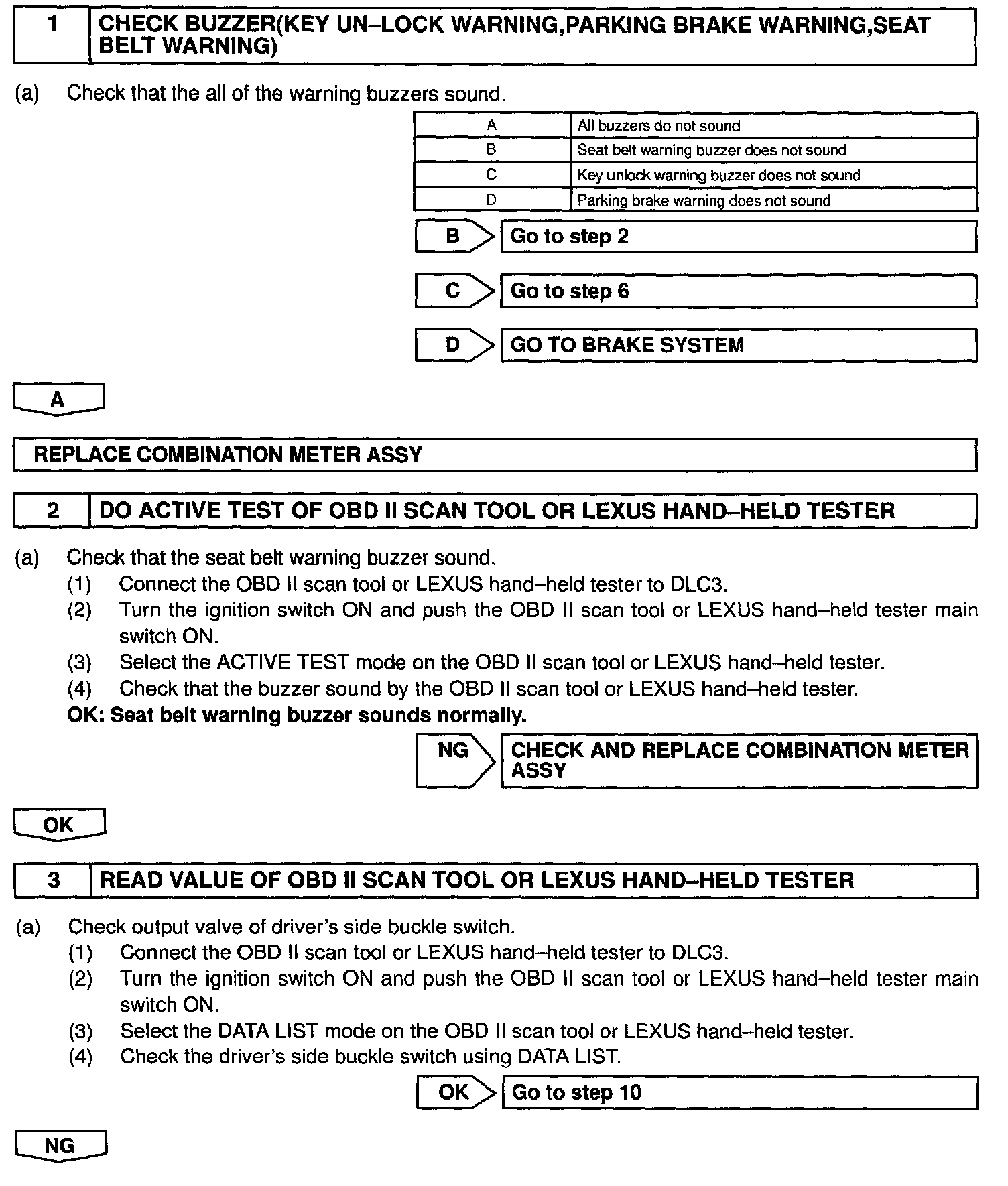

Step 1 - 3:

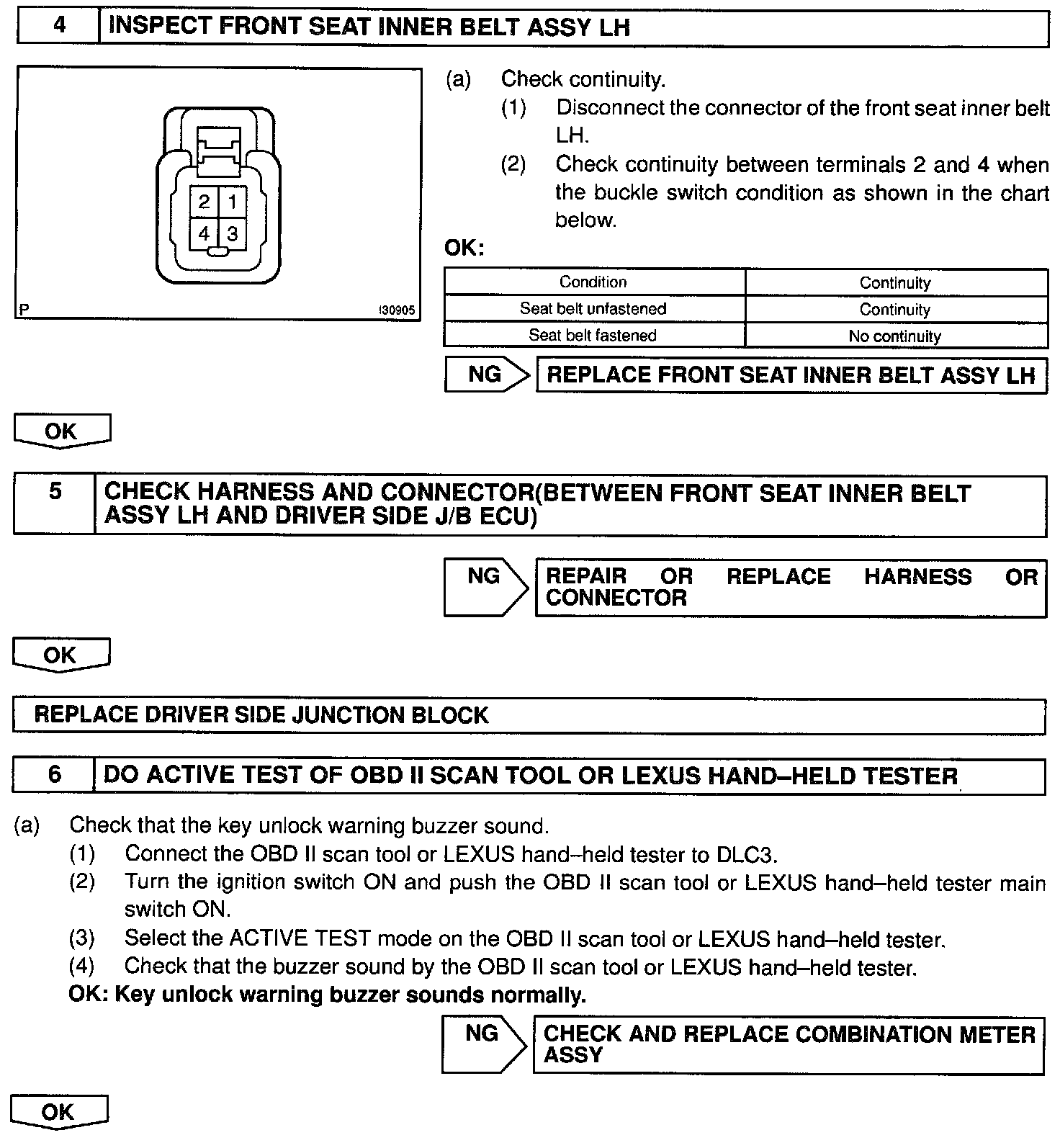

Step 4 - 6:




Step 7 - 10:

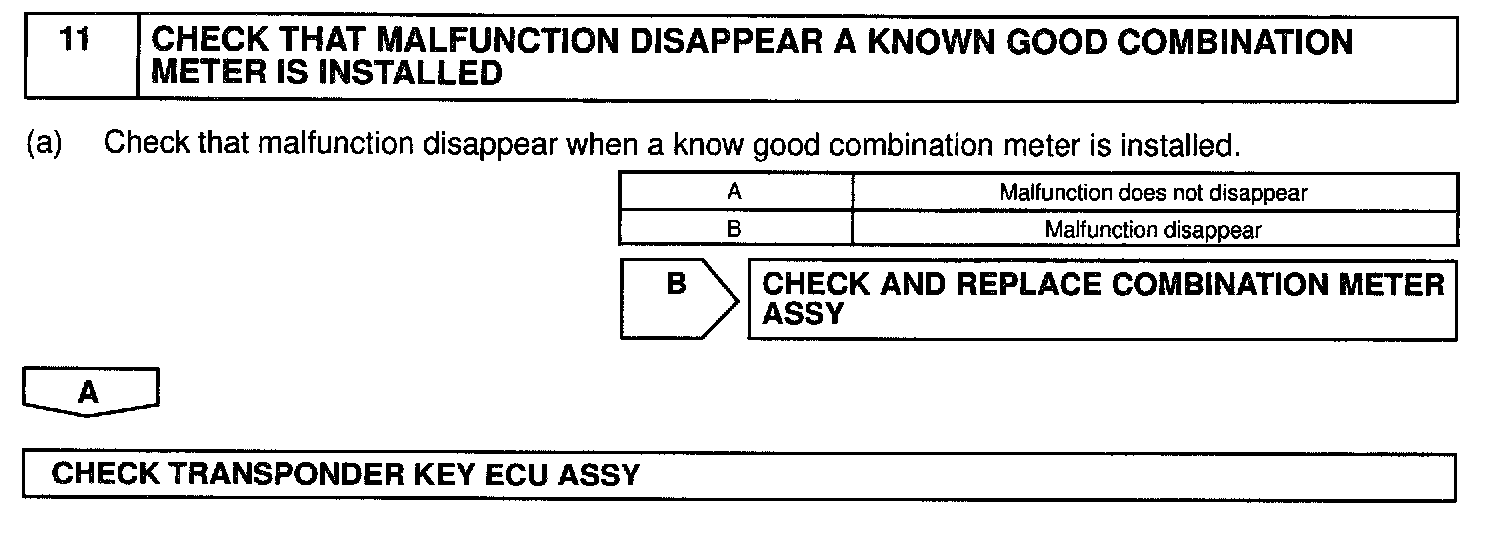

Step 11:




INSPECTION PROCEDURE
