Warning Buzzer Does Not Sound
>>
Open Door, Metal Top Warning
Open Door, Metal Top Warning
WARNING BUZZER DOES NOT SOUND (OPEN DOOR WARNING, METAL TOP OPERATING WARNING)

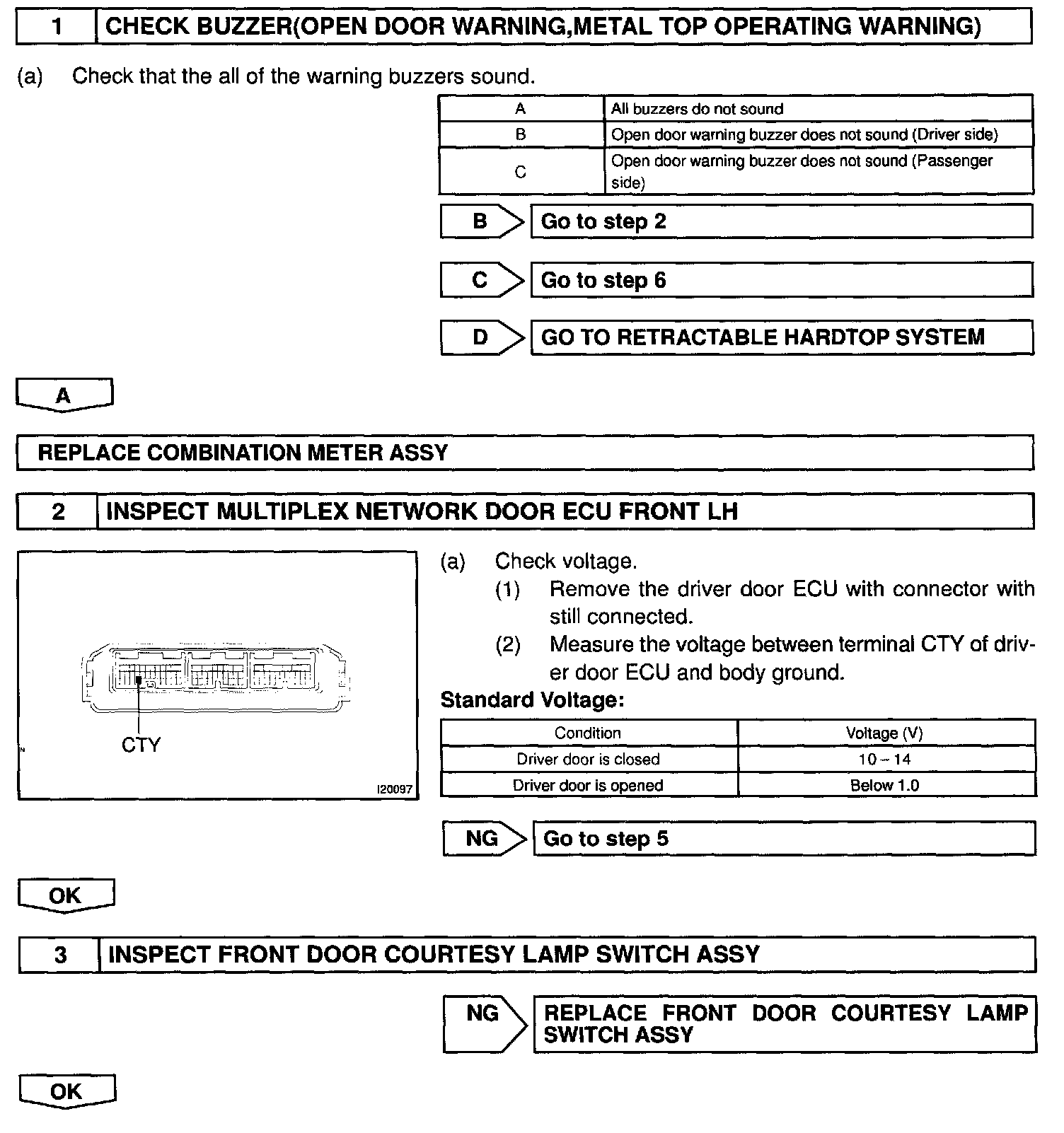

Step 1 - 3:

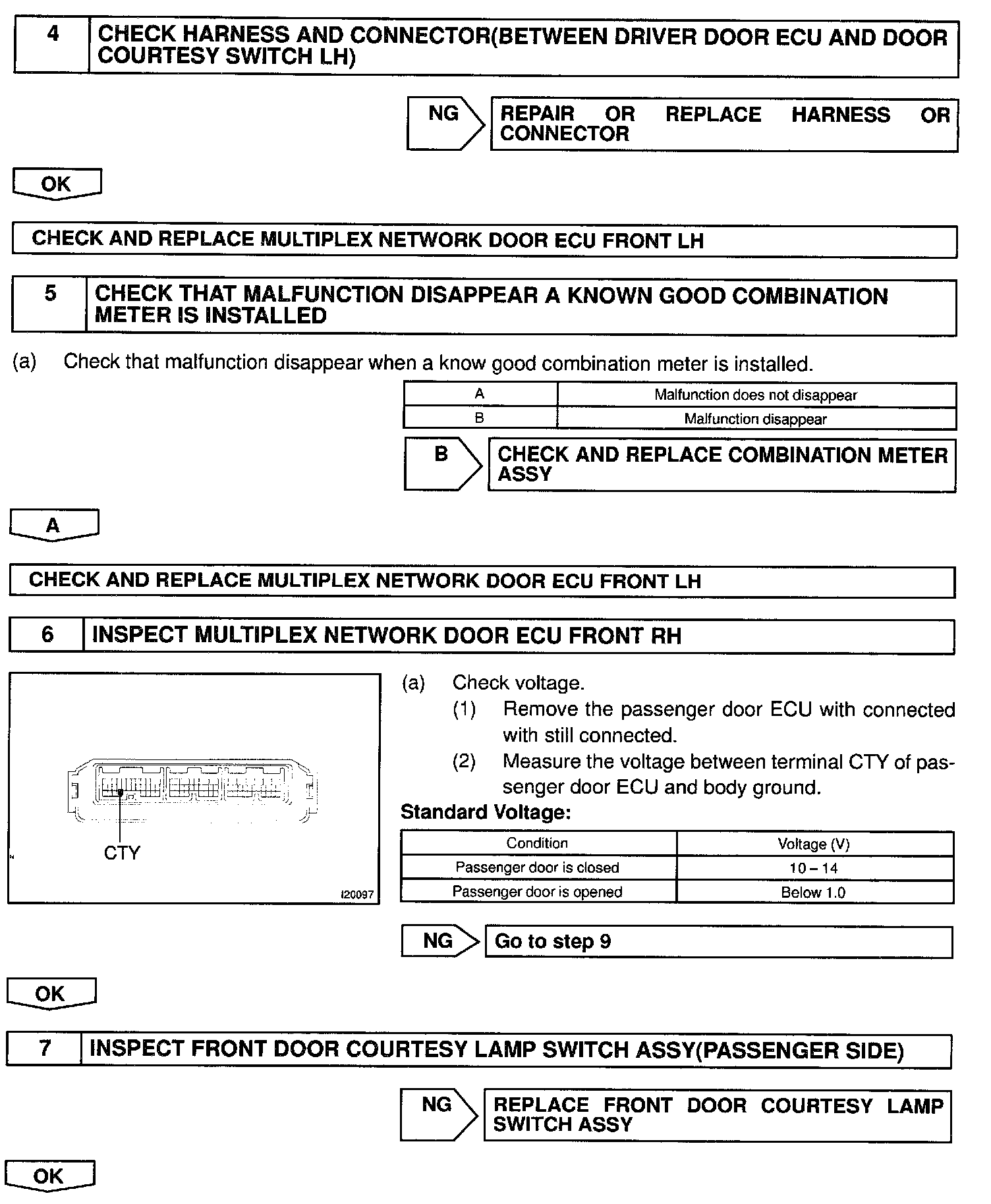

Step 4 - 7:

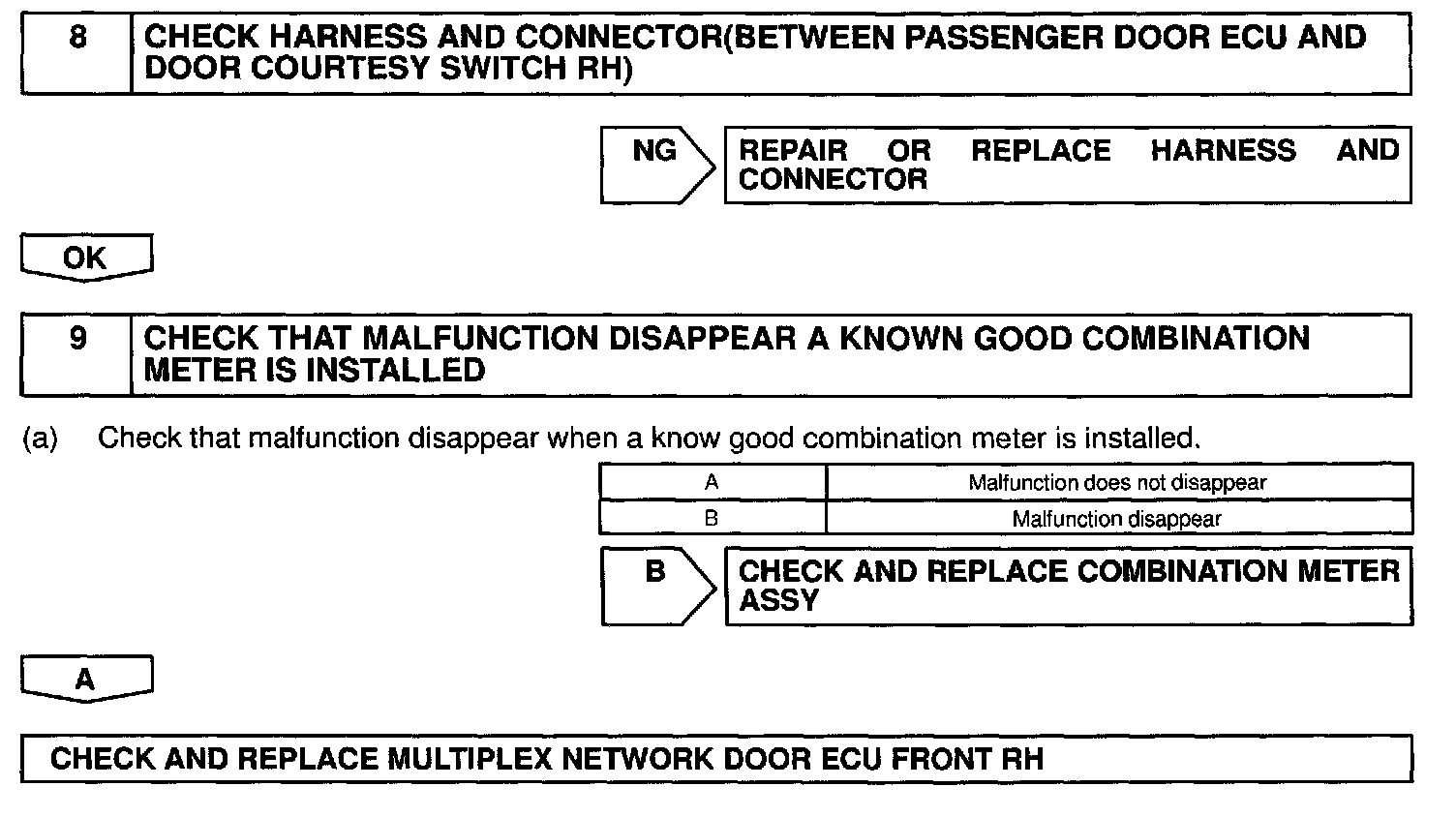

Step 8 - 9:
INSPECTION PROCEDURE
