Seat Belt Warning Lamp For Driver Seat Does Not Operate

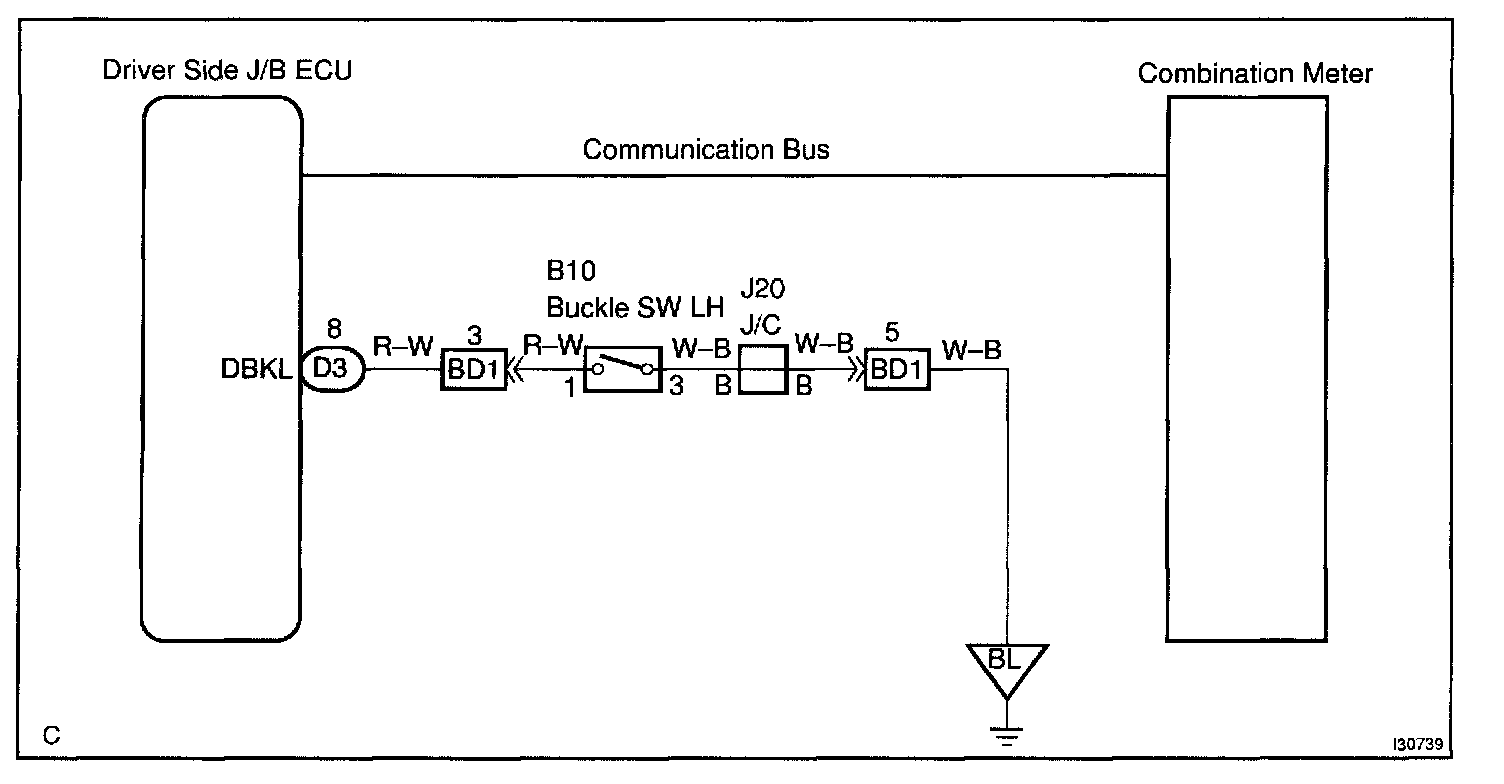

Wiring Diagram:

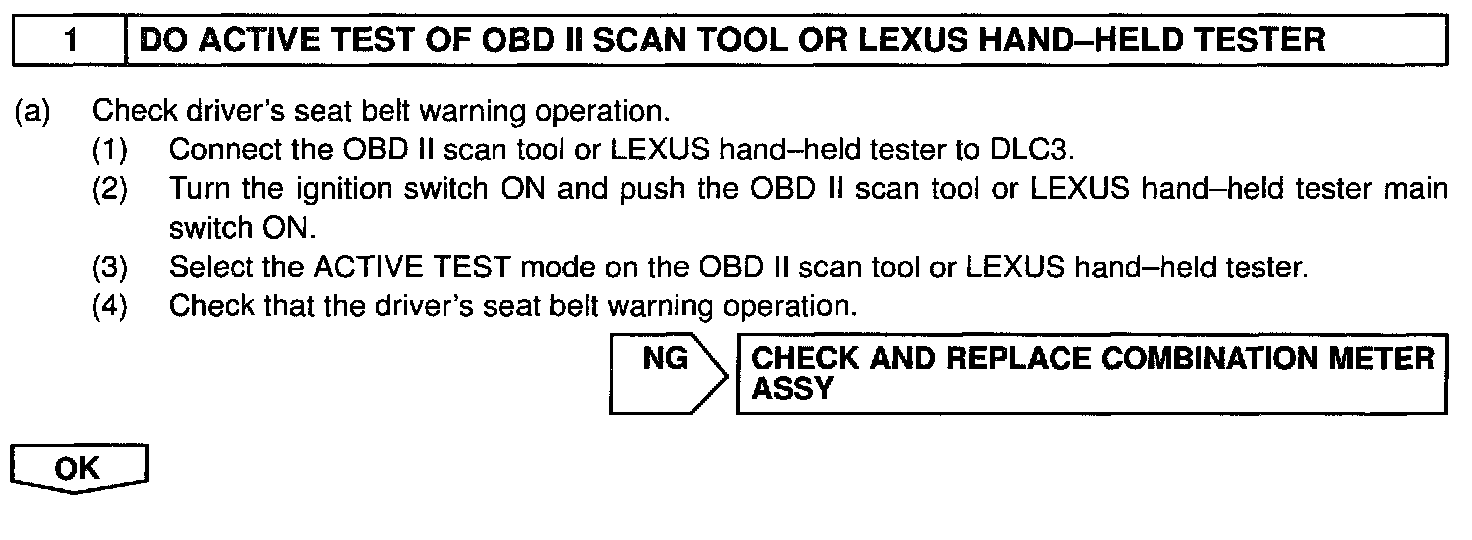

Step 1:

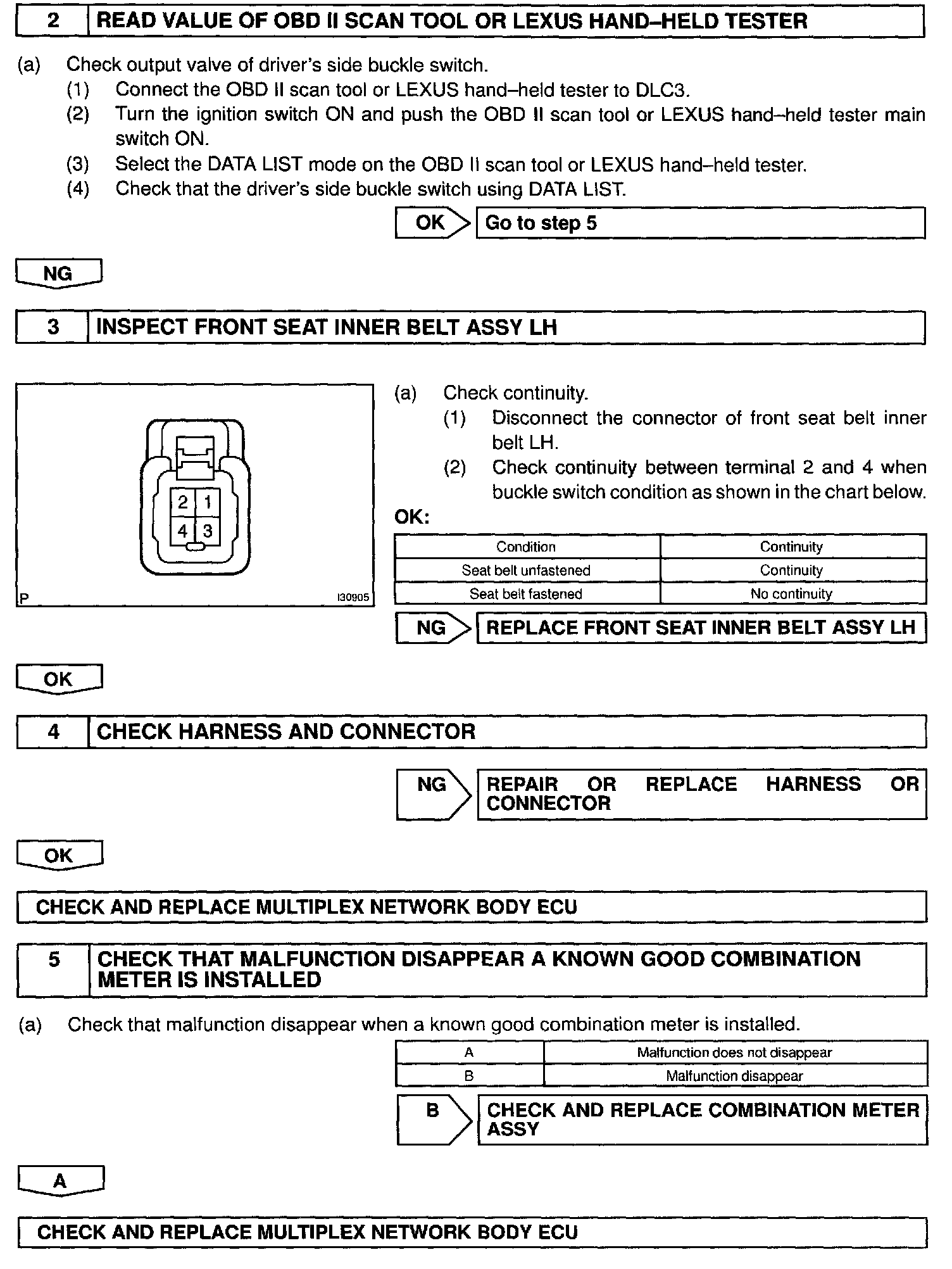

Step 2 - 5:




INSPECTION PROCEDURE
