Light Control Rheostat Does Not Change Light Brightness

OPERATING LIGHT CONTROL RHEOSTAT DOES NOT CHANGE LIGHT BRIGHTNESS

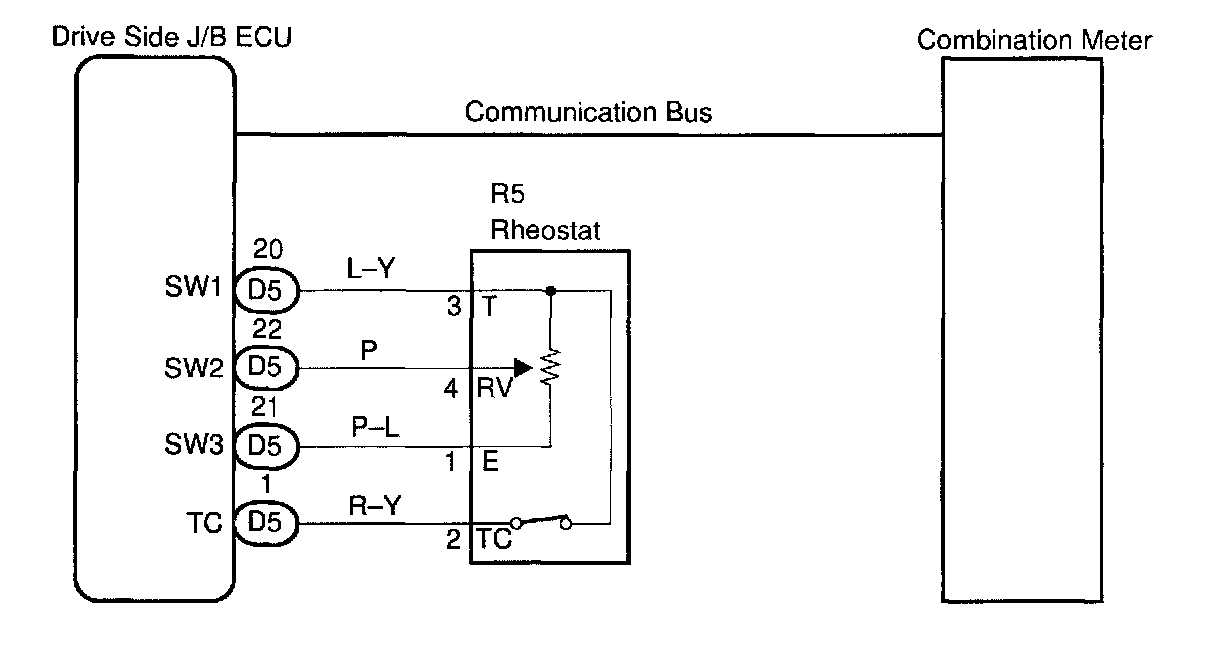

Wiring Diagram:






Step 1:

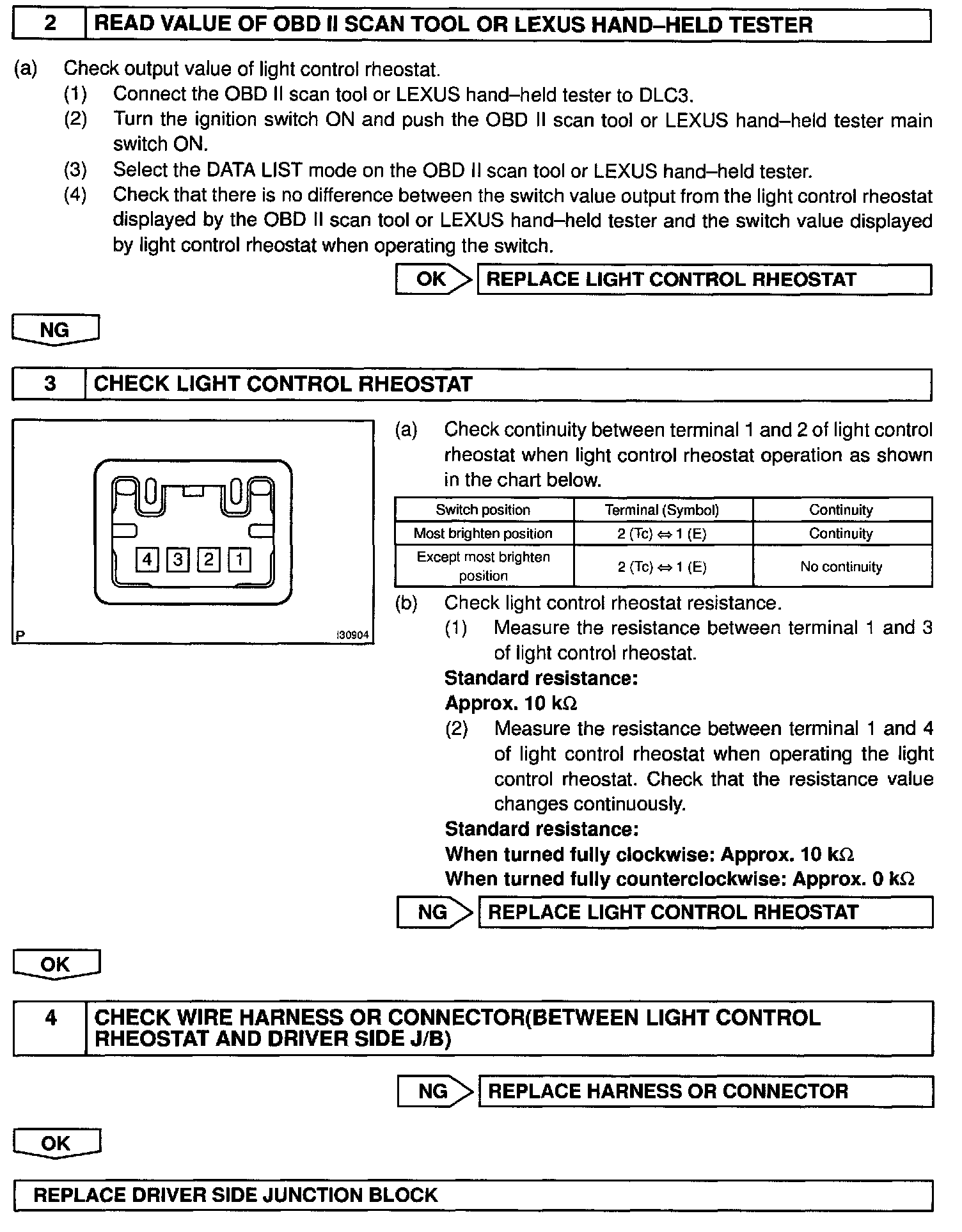

Step 2 - 4:




INSPECTION PROCEDURE
