Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of ECU:

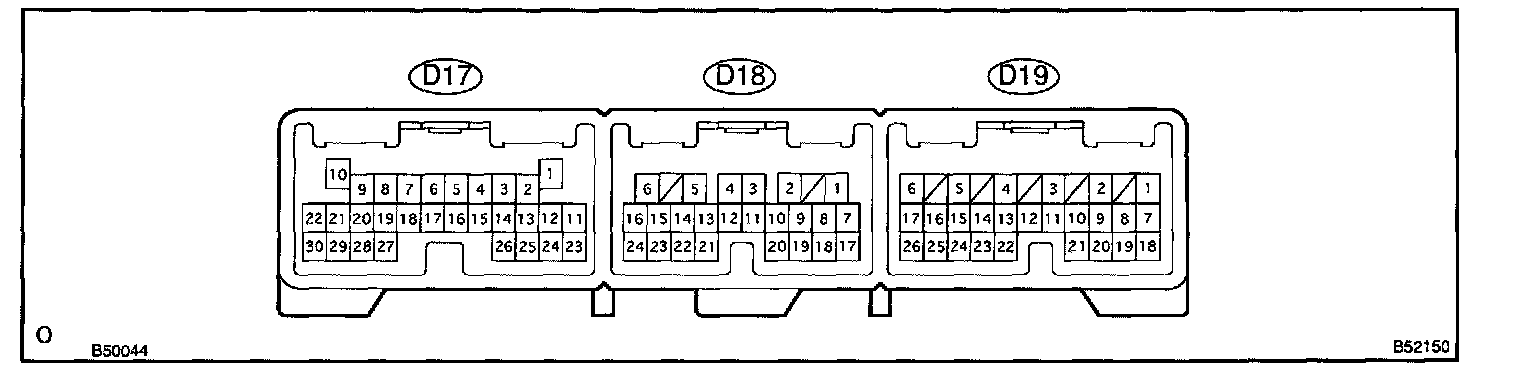

1. DRIVER DOOR ECU

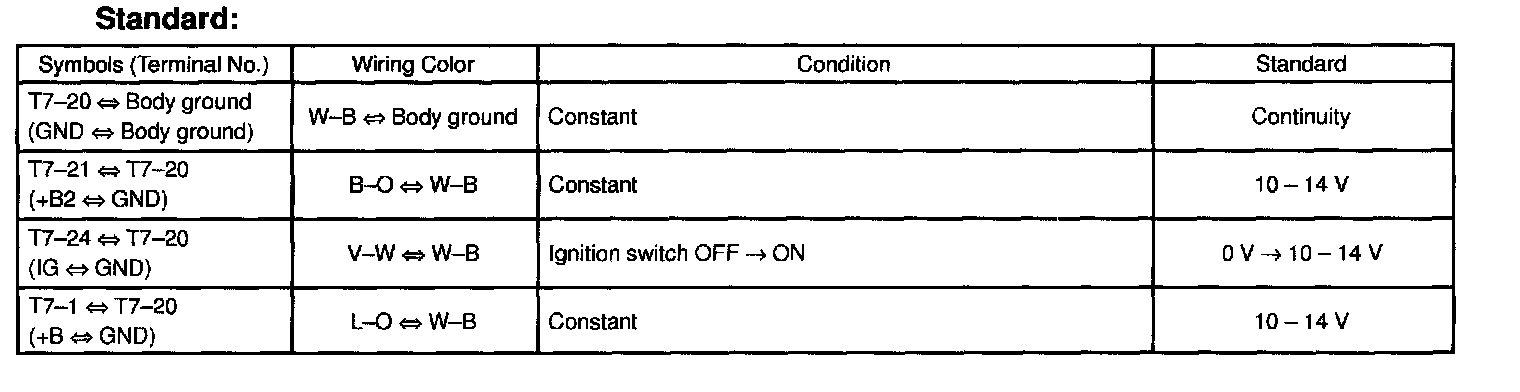

a. Disconnect the driver door ECU connector.

Terminals Of ECU:

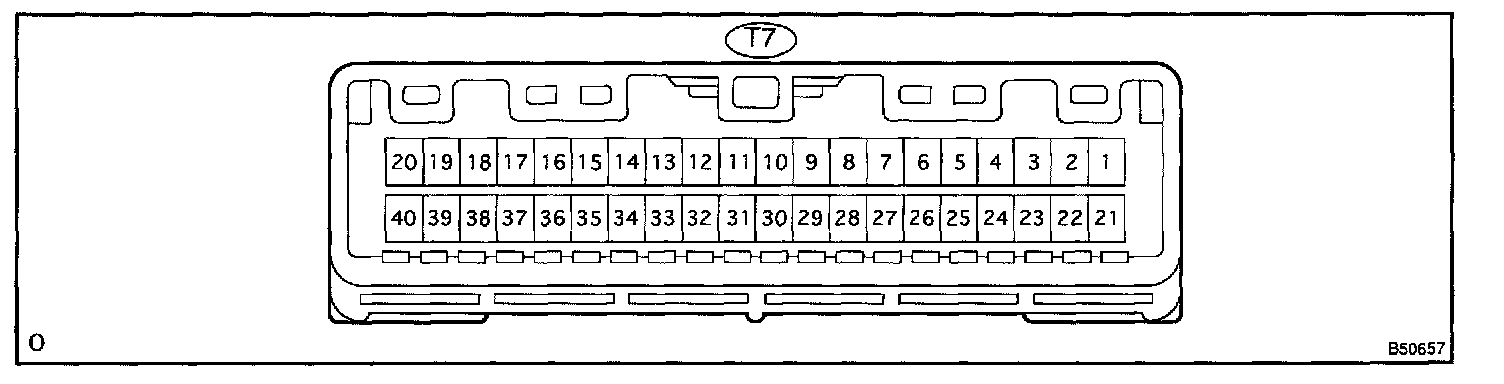

2. THEFT WARNING ECU

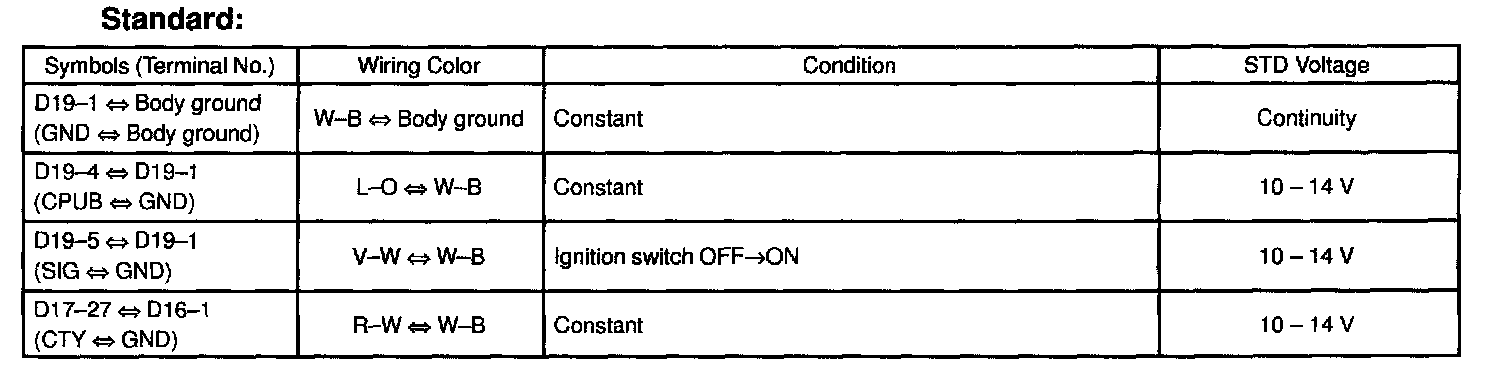

a. Disconnect the theft warning ECU connector.

Terminals Of ECU:

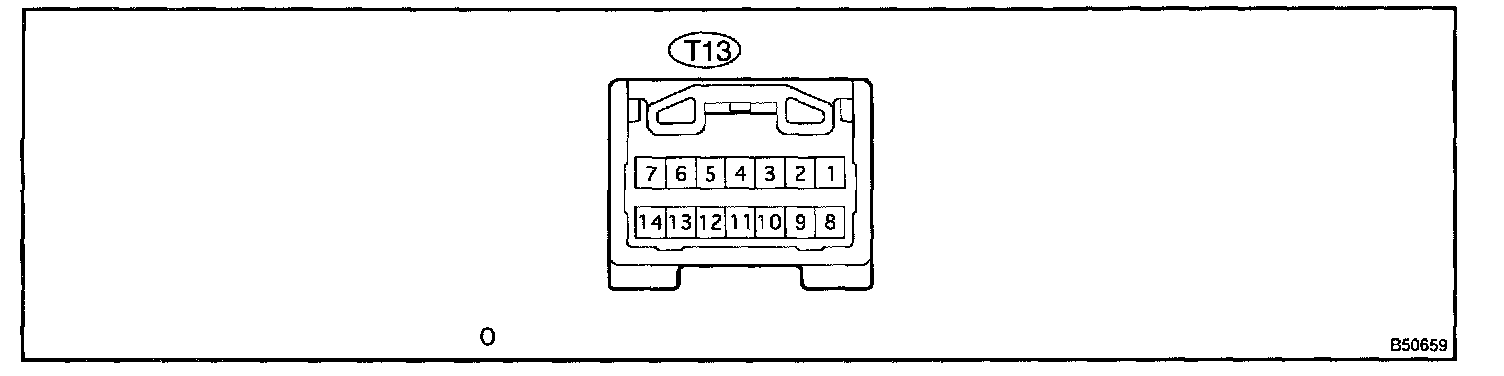

3. TRANSPONDER KEY ECU

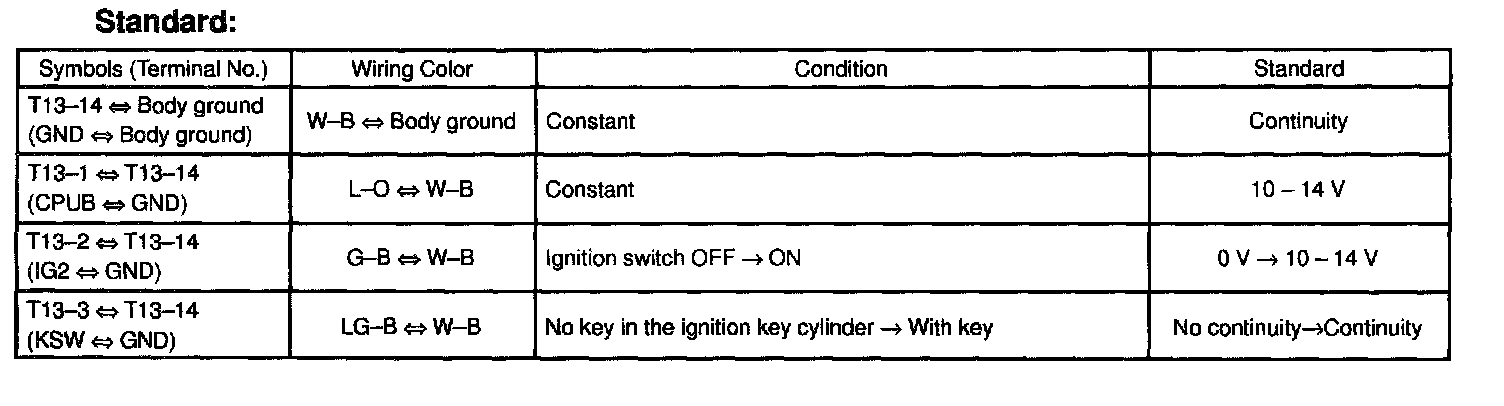

a. Disconnect the theft transponder key ECU connector.
